When setting up a PoE security camera, one critical question arises: "What is the maximum distance for a PoE security camera?" Understanding this distance is essential for effective surveillance. Power over Ethernet (PoE) systems provide both power and data transmission through a single cable. However, this convenience comes with limitations.

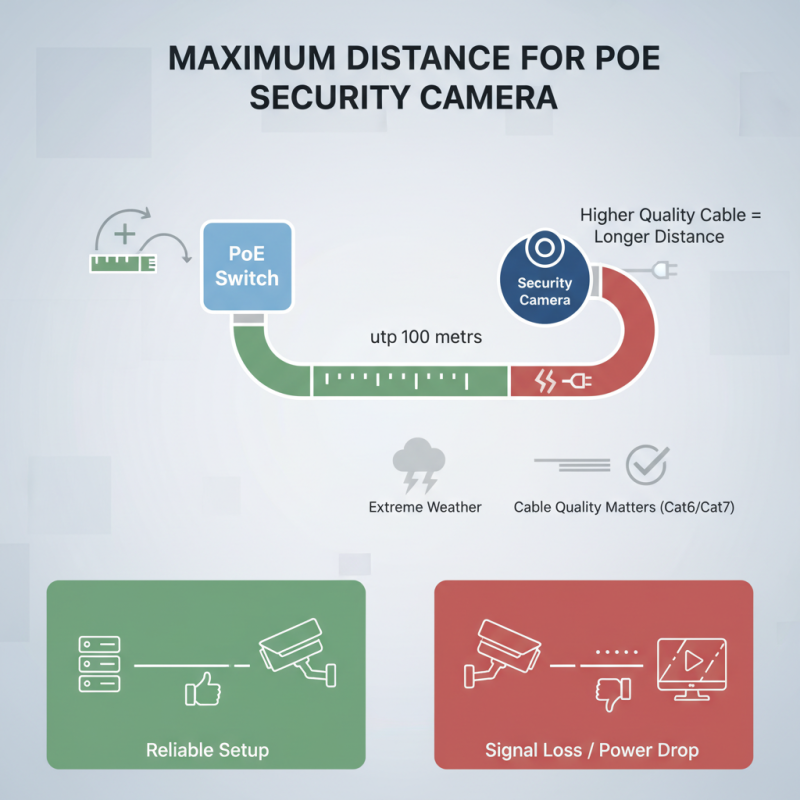

The maximum distance for a PoE connection typically is 100 meters. Beyond this range, power loss and data degradation can occur. The quality of the cable matters significantly. Using higher-quality Cat6 or Cat7 cables can slightly extend this distance. Additionally, environmental factors may affect performance, especially in extreme weather conditions.

In practical applications, installers sometimes overlook these factors, leading to unexpected issues. For instance, mounting a camera too far from the switch can compromise video quality. Reflecting on these challenges is vital for achieving a reliable security system. Thus, knowing the limitations, and making thoughtful decisions based on circumstance and necessary setups, can enhance both security and efficiency.

Understanding Power over Ethernet (PoE) Technology

Power over Ethernet (PoE) technology simplifies network installations by allowing data and power transmission through a single cable. This can be especially useful for security cameras. By using standard Ethernet cables, you can install cameras in challenging locations without worrying about additional power sources. However, there are distance limitations that you must consider.

When it comes to PoE, the maximum distance for delivering power effectively is about 100 meters. Beyond this, you may face issues like voltage drop, resulting in insufficient power. This distance is crucial for users aiming to place cameras far from a network switch. Selecting the right type of Ethernet cable is important. Cat5e or Cat6 cables are typical choices, but remember that higher quality cables can manage distances better.

Tip: If you need to extend further than 100 meters, consider using PoE extenders or switches. They help maintain power and data integrity over longer distances. It’s vital to test your setup after installation. Monitor for any camera operational issues that indicate power problems. Sometimes slight adjustments to cable management can solve major issues.

Tip: Always check the power requirements of your device. Some cameras might require more power, affecting your distance capabilities. Making informed decisions upfront can save you time and costly re-installation later. Be mindful of your specific environment, as interference can also alter performance.

Factors Affecting the Maximum Distance of PoE Security Cameras

When considering the maximum distance for a Power over Ethernet (PoE) security camera, several factors come into play. One key element is the type of Ethernet cable used. Cat5e and Cat6 cables are common choices, but they have varying performance levels. Generally, a standard Ethernet connection can extend up to 100 meters. Beyond that, the quality of video feed may degrade. It’s crucial to monitor the integrity of the cable to avoid signal loss.

Installation conditions can greatly influence performance. Environmental factors, such as temperature and humidity, affect the cable’s efficiency. For example, longer runs in humid areas may require additional measures to ensure reliability. Additionally, electromagnetic interference from nearby devices can disrupt the signal. Evaluating the surroundings before installation can help mitigate potential issues.

**Tips:** Consider using a PoE extender if your distance exceeds standard limits. This solution can improve signal integrity. Regularly check cable connections and components. Maintaining a clean installation environment is essential for optimal performance.

Calculating Cable Length for Optimal PoE Performance

When determining the maximum distance for a Power over Ethernet (PoE) security camera, cable length plays a crucial role. The industry standard recommends a maximum distance of 100 meters (328 feet) for Ethernet cables, ensuring reliable performance without significant data loss. However, as cable length increases, the voltage delivered to the camera decreases, potentially affecting its functionality.

According to a report by the Institute of Electrical and Electronics Engineers (IEEE), performance drops significantly when cables exceed this distance. For instance, using a longer cable might lead to a voltage drop lower than 44V, which is essential for PoE to function correctly. Careful calculations are essential for optimal performance. In some cases, using higher gauge cables can help maintain power delivery over longer distances, but this often demands a balance of costs and efficacy.

While industry guidelines suggest staying within the 100-meter limit, real-world scenarios often present challenges. Factors such as cable quality, environmental conditions, and installation practices can impact performance. This necessitates a well-thought-out approach to installation, and reflective considerations about cable routing can significantly affect your system's reliability. Always consider testing equipment to diagnose any potential issues in your PoE setup.

Recommending Cable Types for PoE Applications

When selecting cable types for PoE applications, consider the distance and power requirements. Ethernet cables are typically categorized into several types. Cat5e, Cat6, and Cat6a are popular for PoE setups. Cat5e can support distances up to 100 meters while providing adequate power. However, if you need higher performance and speed, Cat6 or Cat6a is worth considering.

These cables ensure lower attenuation and better performance over longer distances. Cat6 cables can transmit data up to 10 Gbps for short distances. However, their power delivery may decrease beyond 100 meters. It's essential to evaluate your camera's power needs when making a choice. Insufficient power can compromise camera functions.

Remember, not all installations are perfect. Various factors, such as cable quality and environmental conditions, can affect performance. Regular assessments of your installation may reveal areas for improvement. Keeping cables organized and away from electrical interference sources helps maintain reliability. Overall, choosing the right cable type can enhance the effectiveness of your PoE security camera setup.

Best Practices for Installation and Distance Management

When installing PoE (Power over Ethernet) security cameras, understanding maximum distance is crucial. A standard Ethernet cable, like Cat5e or Cat6, supports lengths up to 100 meters for both power and data transmission. Exceeding this limit can lead to signal degradation, possibly causing poor video quality or camera outages.

Tips: Use a network switch with PoE capabilities to extend distances. This allows multiple cameras to connect within the recommended limits. For longer runs, consider fiber optics or PoE extenders. They can vastly improve range without sacrificing quality.

Another consideration is camera placement. Walls, furniture, and even weather can impact signal quality. Aim to install cameras in clear, open areas. Avoid obstructions that might interfere with the signal. Remember, the positioning of your cameras will influence not only distance but also the effectiveness of surveillance.

The installation process should involve meticulous planning. Testing cable lengths before finalizing the placement can save time and resources. Consider the environment—moisture and temperature variations can affect performance. Regular maintenance checks are vital to ensure reliable operation over time.

FAQS

Conclusion

Determining the maximum distance for a PoE security camera involves understanding Power over Ethernet (PoE) technology and the factors that influence distance limitations. Notably, the maximum distance for a PoE security camera is generally capped at 100 meters (328 feet) using a standard Ethernet cable. Several factors, including cable quality, power requirements of the camera, and environmental conditions, play significant roles in achieving optimal performance.

To ensure effective performance, it's essential to calculate the appropriate cable length and choose the right type of cable for PoE applications—such as Cat5e or Cat6—while adhering to best practices for installation and managing distances. By taking these elements into account, users can maximize the efficiency and reliability of their PoE security camera installations.
