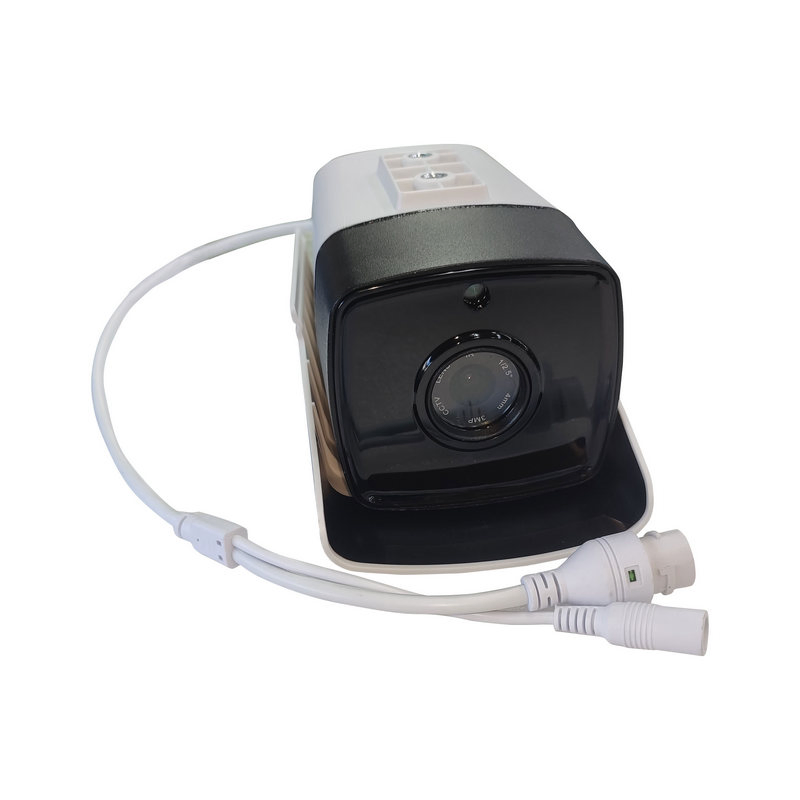

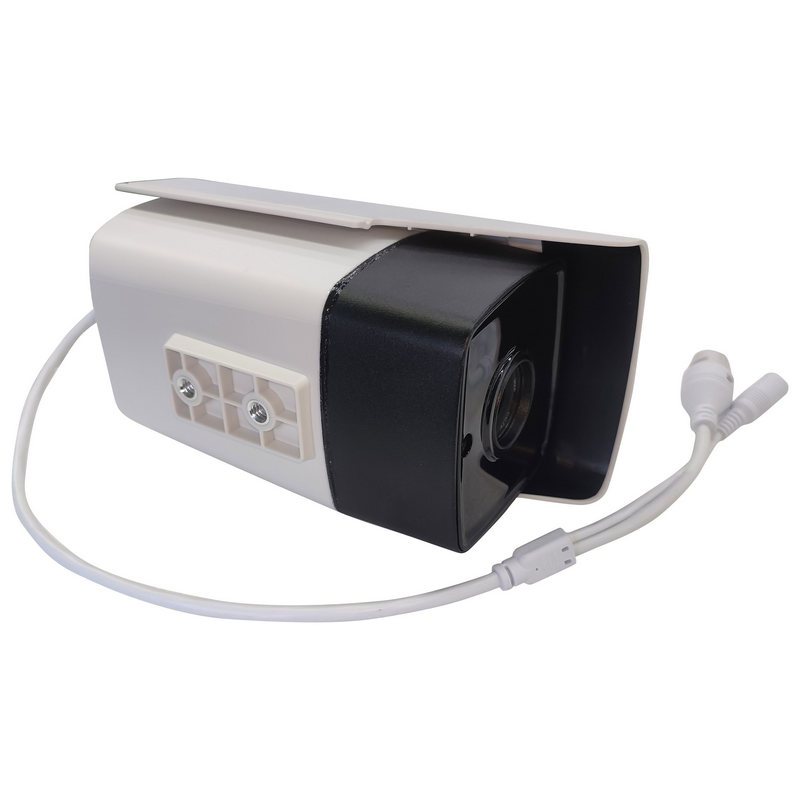

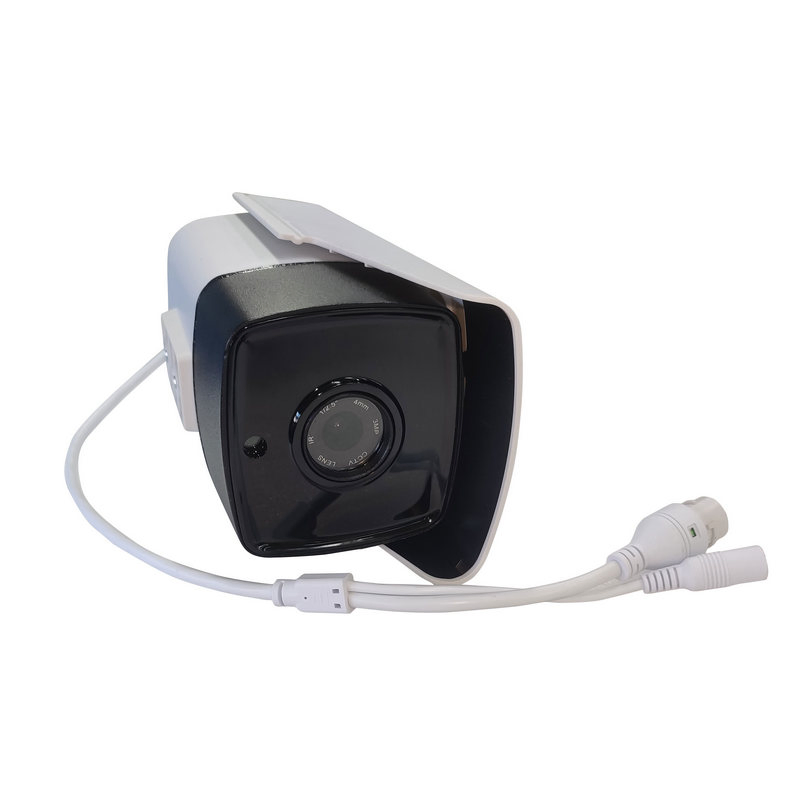

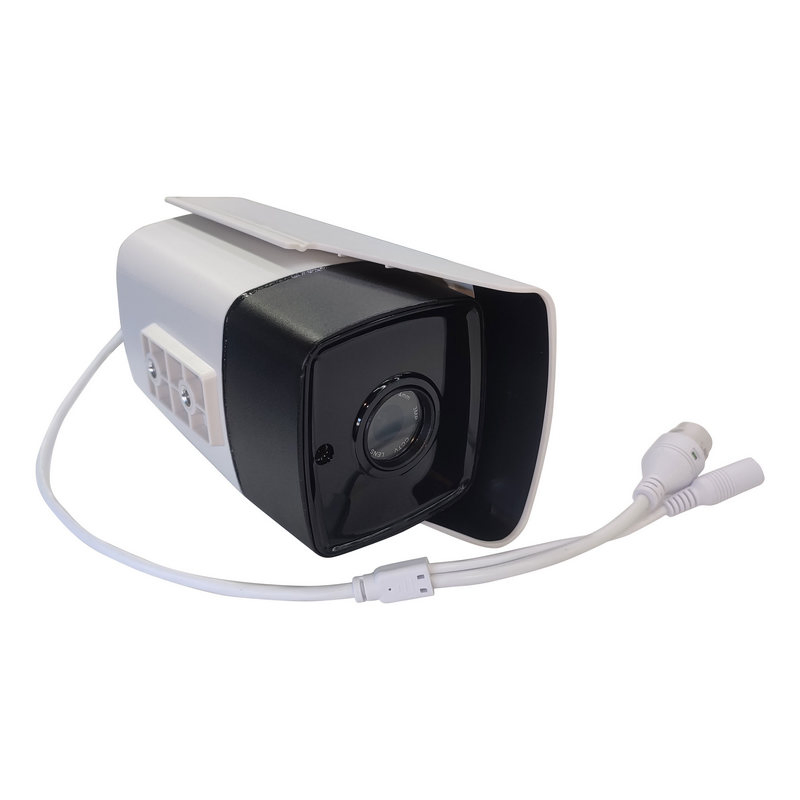

2.0 Megapixels Waterproof IP Outdoor Camera (IP-8803HM-20)
2.0 Megapixels Waterproof IP Outdoor Camera (IP-8803HM-20)
2.0 Megapixels Waterproof IP Outdoor Camera (IP-8803HM-20)
2.0 Megapixels Waterproof IP Outdoor Camera (IP-8803HM-20)
2.0 Megapixels Waterproof IP Outdoor Camera (IP-8803HM-20)
1 / 5
2.0 Megapixels Waterproof IP Outdoor Camera (IP-8803HM-20)
2.0 Megapixels Waterproof IP Outdoor Camera (IP-8803HM-20)
2.0 Megapixels Waterproof IP Outdoor Camera (IP-8803HM-20)
2.0 Megapixels Waterproof IP Outdoor Camera (IP-8803HM-20)
2.0 Megapixels Waterproof IP Outdoor Camera (IP-8803HM-20)

2.0 Megapixels Waterproof IP Outdoor Camera (IP-8803HM-20)

Customization: Available
Technology: Infrared
Style: Bullet Camera
Send Inquiry

Product Description

Basic Information
Model NO.
IP-8803HM-20
Type
IP Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
1920*1080
Kind
Manual Focus Lens
Certification
CE, FCC, RoHS
Feature
Waterproof / Weatherproof
Effective Distance
30-50m
Remote Control
With Remote Control
Video Compression
H.264/Mjpeg
Waterproof Level
IP66
IR LED
2 PCS Array IR LED
Megapixels
2.0 Megapixels
HS Code
8529904100
Production Capacity
1000/Month
Product Description

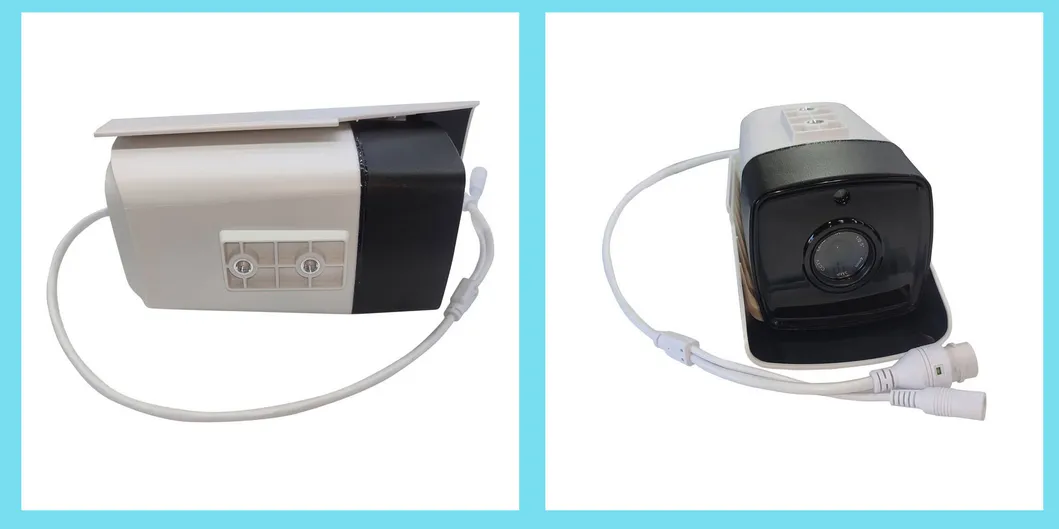

2.0 Megapixels Waterproof IP Outdoor Camera

2.0 Megapixels Waterproof IP Outdoor Camera (IP-8803HM-20)

Full HD Visuals
1/4" CMOS FULL HD 1080P with 1920*1080 resolution and H.264 compression.
Extreme Durability
IP66 Waterproof rating and built-in temperature control (heater) for -30°C to 50°C environments.
Night Vision
IR distance of 30-50M powered by high-performance Dot Matrix IR LEDs.
  • Waterproof IR camera, CS interface 6mm Lens
  • Built-in Temperature control device (built-in heater inside)
  • One channel audio with internal microphone
  • 10/100M BPS high-speed Ethernet automatic detection
  • Motion detection with E-mail notification and FTP image transmission
  • Supports Mobile View and Onvif V1.0.2
Technical Specifications
Category Item Specification Detail
CCD/Sensor Image sensor 1/3 CMOS 1080P 1920*1080
Lens CS interface 6mm Lens
Min Illumination 0.5LUX / F1.2
Night Vision IR LED Dot Matrix IR LED, IR distance 30-50m, outdoor
Video Compression H.264
Resolution D1, HalfD1, CIF, QCIF Support
Audio Compression G.711 / Duplex Support
MIC Voice pickup device connection supported
Hardware CPU 32 Bit ARM926EJ-S RISC
System Built-in Linux system
Memory 256M DDR / 32M Flash
Network Protocols TCP/IP, UDP, HTTP, FTP, UPnP, DDNS, PPPoE, DHCP, SMTP
Functions Management Administrator, Common, Anonymous (Max 20 viewers)
SD Recording Supported (Internal slot)
Motion Detection 4 Alarm ways: Hummer, Notification, Recording, Email
General Power Input AC 100-240V; Output DC 12V/1.5A
Frequently Asked Questions
What is the maximum resolution of this IP camera?
The camera provides Full HD 1080P resolution (1920*1080) with a 2.0 Megapixel CMOS sensor.
Can this camera operate in extremely cold weather?
Yes, it features a built-in temperature control device and heater, allowing it to operate in temperatures ranging from -30°C to 50°C.
How far can the night vision reach?
Equipped with 2 PCS Array/Dot Matrix IR LEDs, the camera offers an effective night vision distance of 30 to 50 meters.
Does the camera support remote mobile monitoring?
Yes, it supports mobile view and motion detection alerts that can be sent via email or uploaded to an FTP server.
Is the camera waterproof for outdoor installation?
Absolutely. The camera has an IP66 waterproof level, making it suitable for outdoor weatherproof applications.
What type of lens is used in this model?
It uses a 6mm manual focus lens with a CS interface.
