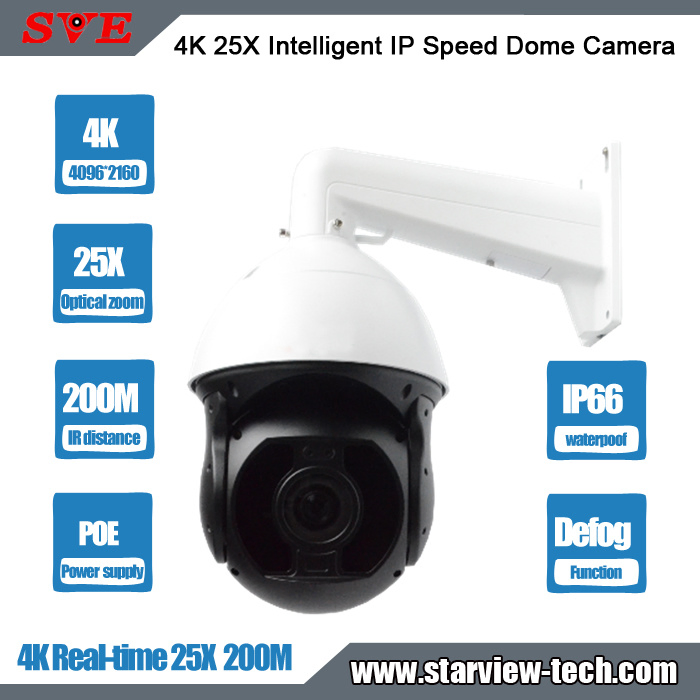

200m IR 25X 4K Intelligent IP IP Poe Network Onvif Outdoor Security Waterproof IP66 Speed Dome PTZ Camera

1 / 5

200m IR 25X 4K Intelligent IP IP Poe Network Onvif Outdoor Security Waterproof IP66 Speed Dome PTZ Camera

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Dome Camera

Send Inquiry

Product Description

Basic Information

Model NO.

SVN-HDP9825-Q1

Type

CCTV Camera

Sensor

CMOS

HDMI Format

4096*2160

Kind

Autofocus Lens

Certification

CE, FCC, RoHS

Effective Distance

200m

Optical Zoom

25X

Protection

IP66 Weatherproof

Key Features

✓8.0MP Full Real-time HD with Low Code Stream and High Quality Image

✓25x Optical Zoom with Auto-Focus and High Precision Control

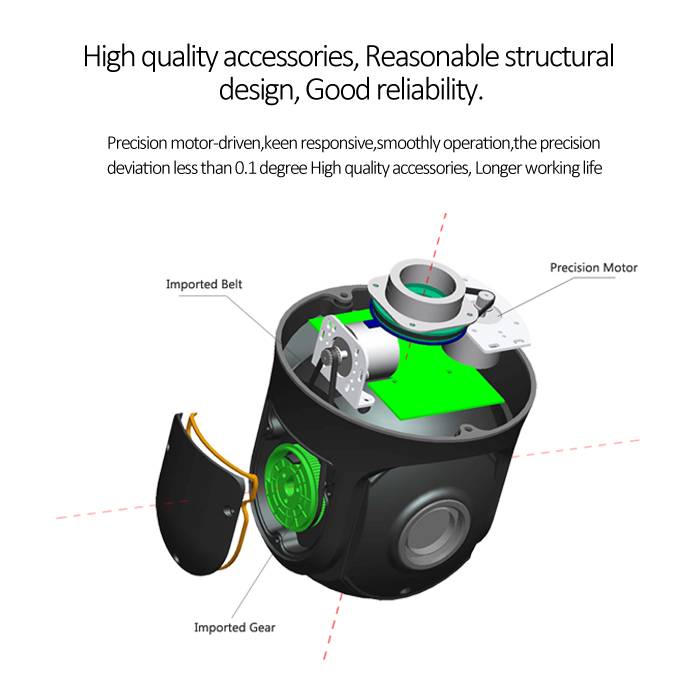

✓3D High Precision Pan/Tilt Position Control

✓Professional Weatherproof IP66 Grade for Outdoor Security

✓Advanced Defog Function and IR distance up to 200 meters

✓Wide Working Temperature Range: -30ºC to +60ºC

Technical Parameters

Lens & Module
Model No.	SVN-HDP9825-Q
Optical Zoom	25X Optical Zoom
Focus Length	f5.6~140mm
Image Sensor	1/1.7" 12MP CMOS
Max Resolution	DCI-4K (4096x2160), 8.85MP, 24fps
Min. Illumination	Color: 0.2Lux @ F1.6; B/W: 0Lux with IR
Video & Image
Compression	H.265 / H.264 / MJPEG
WDR / BLC / HLC	Support
3D DNR	Support
OSD Settings	Multiple Zone OSD (Date, Time, Scene)
Pan/Tilt & Infrared
Rotation Range	Horizontal: 0°~360° Continuous; Vertical: -15°~90°
Preset Positions	255 Presets, 8 Cruise Groups
IR Distance	≥200 Meters
IR Sync	IR Light and Zoom Synchronously Adjustable
Interface & General
Network Port	1*RJ45 10M/100M Adaptive Ethernet
Audio I/O	1ch Input / 1ch Output
Power Supply	DC 12V 4A / PoE (Optional), Max 30W

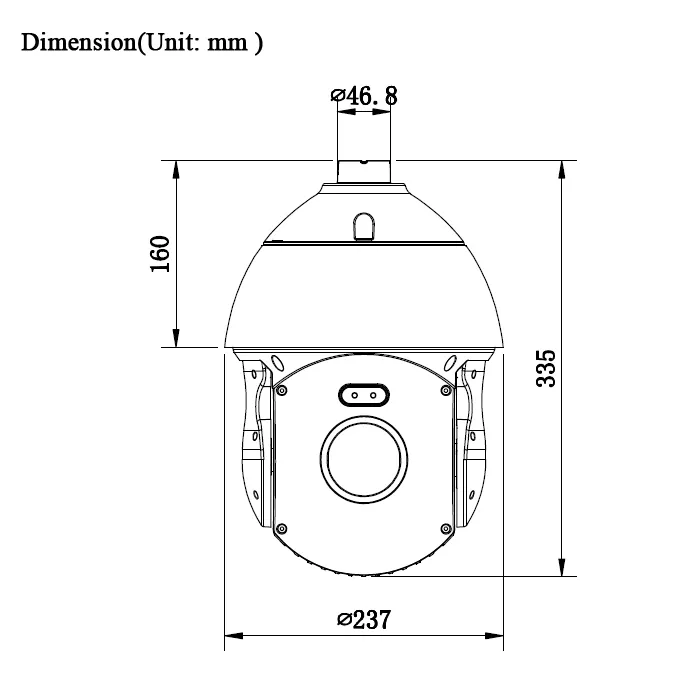

Dimensions	Φ237 x H335mm

Product Gallery

Frequently Asked Questions

What is the maximum resolution of this PTZ camera?

This camera supports DCI-4K resolution (4096x2160) at 8.85MP, providing ultra-high-definition video quality for professional surveillance.

How far is the night vision range?

The camera is equipped with high-performance Array IR LEDs, offering an effective infrared night vision distance of 200 meters or more.

Can I use this camera outdoors in extreme weather?

Yes, the camera features an IP66 waterproof rating and can operate in temperatures ranging from -30ºC to +60ºC, making it suitable for harsh outdoor environments.

What kind of zoom does it offer?

It features a 25X optical zoom with a focus length of 5.6mm to 140mm, allowing for clear identification of distant objects.

Does the camera support PoE?

The camera supports DC 12V power supply by default, but a PoE (Power over Ethernet) option is available. A high-power PoE switch is required for this function.

Is it compatible with third-party systems?

Yes, the camera is compatible with ONVIF and GB/T 28181 protocols, ensuring seamless integration with various NVRs and management software.
