2MP Explosion-Proof Fixed IR Bullet CCTV Surveillance IP Block Camera

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Info.
Model NO.
IPC-FB700-204-(4/6/8mm)SS/6
Type
IP Camera
Sensor
CMOS
Certification
CE, ISO9001: 2000
Feature
High Definition, Mini Size, Auto BLC
Housing
304/316L Stainless Steel
IR Distance
60m
IP Protection
IP68
🔍 Product Description
  • Explosion-proof certification: Ex d IIC T6 Gb / Ex tD A21 IP68 T80ºC
  • High-Quality Imaging: H.265 compression with 2MP 1/3" CMOS sensor
  • Lens Options: Fixed 4mm, 6mm, or 8mm options
  • Starlight Technology: 0.005 Lux color illumination, 0 Lux with IR
  • Long-Range Vision: High-efficiency array IR lamp reaches up to 60 meters
  • Smart Detection: Supports intrusion, line crossing, face, and motion detection
  • Enhanced Clarity: Supports BLC, HLC, 3D DNR, and 120 dB WDR
  • Durable Material: 304/316L stainless steel for corrosive and chemical environments
  • Nanotechnology Glass: Special explosion-proof glass is water, oil, and dust resistant

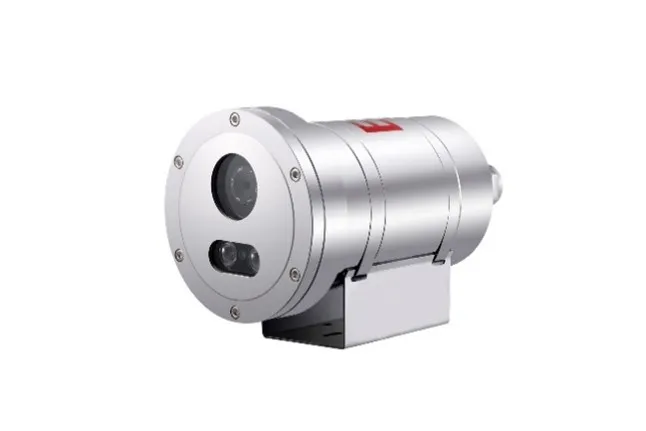

2MP Explosion-Proof Fixed IR Bullet Camera

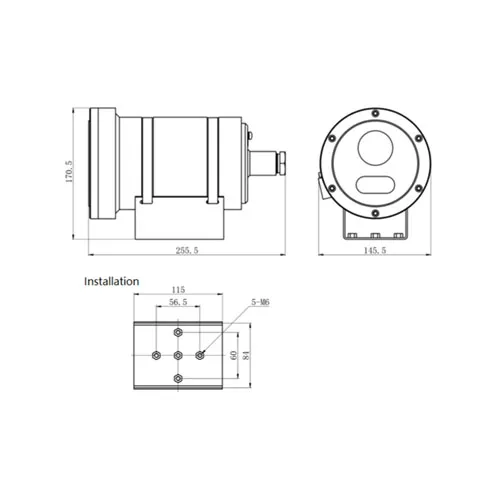

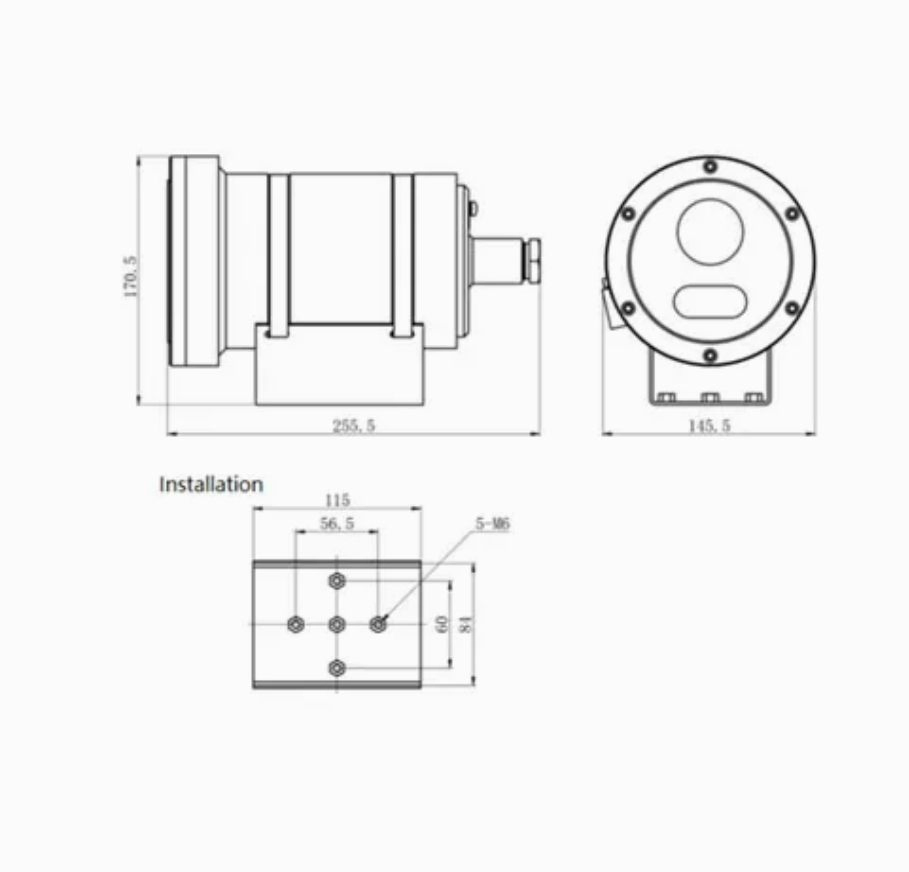

📏 Dimension
Product Dimension

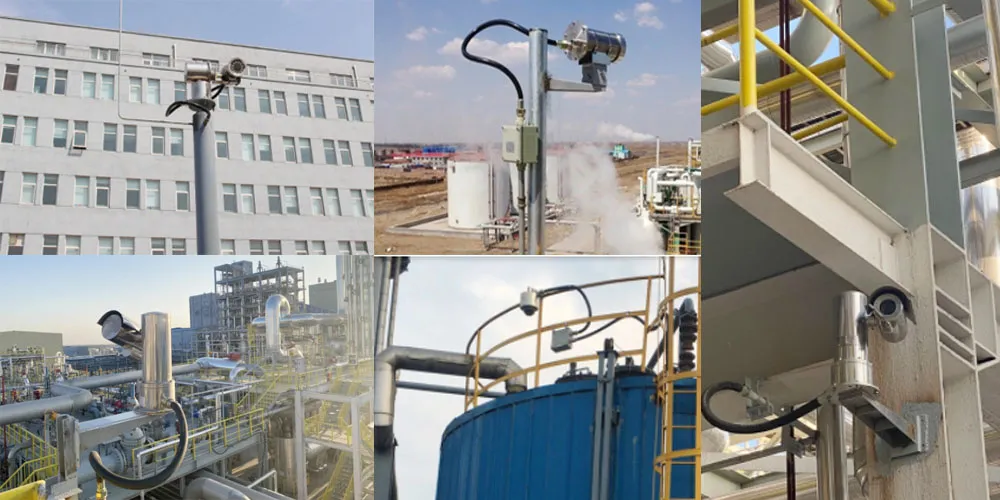

🌍 Applicable Environment

Applicable to environments of IIA, IIB and IIC with combustible gases, T1-T6 group 1 and 2 zones with combustible gas or explosive mixture of vapor, and T1-T6 groups 21 and 22 zones containing combustible dust mixture. Widely used in petroleum, chemical industry, mines, medicine, oil depots, ships, drilling platforms, gas stations, grain processing, and storage.

Applicable Environments
⚙️ Specifications
Parameters Details
Resolution2MP (1920x1080)
Sensor1/2.8" Progressive Scan CMOS
Lens4mm (6/8mm options)
IlluminanceColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
WDRSupport optical Wide Dynamic Range
Video CompressionH.265 / H.264
Network ProtocolPPPoE, IPv4, IPV6, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP
Interface1 RJ45 10M/100M Adaptive Ethernet port
Operating Temp-40ºC ~ +60ºC
Power SupplyDC12V ± 25% (POE optional)
Material304/316L Stainless steel
ProtectionIP68, 4KV lightning protection for network port
FAQ
Do you support sample orders?
Yes, we support sample orders for customers to test before bulk orders, with the client covering basic sample and shipping costs.
What is the lead time?
For sample orders: 3-5 days. For bulk orders: 3-5 weeks depending on the quantity and specific items.
Do you have any MOQ limit?
There is no MOQ limit for sample orders. For customized bulk orders, MOQ requirements can be discussed case by case.
What is the warranty period for the products?
Our standard warranty is 2 years. We also offer extended warranty periods at a reasonable additional cost.
How is your after-selling service handled?
We offer free technical training, 24/7 online technical support, and a product return-for-repair service.
Do you provide OEM/ODM services?
Yes, we are a professional OEM/ODM manufacturer capable of meeting all customized service requirements.
