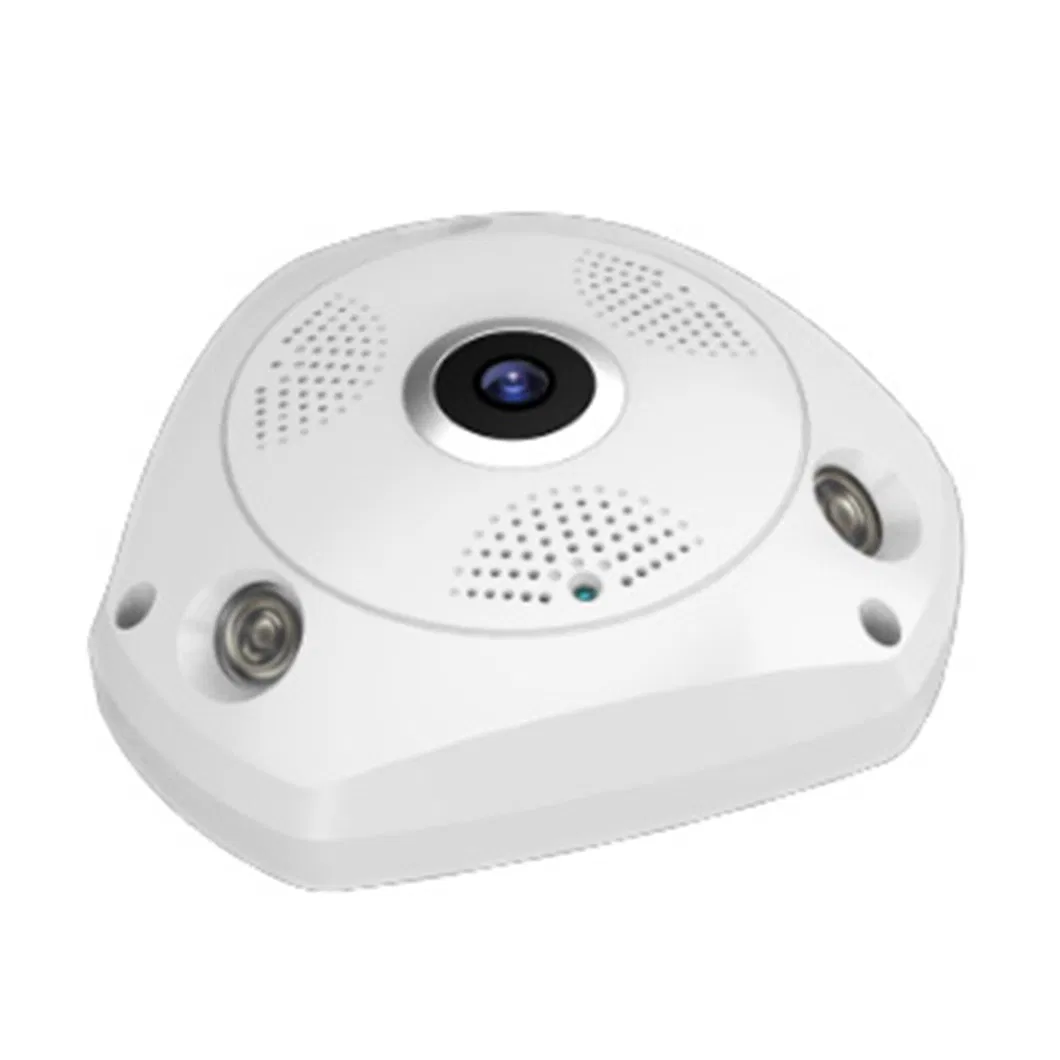

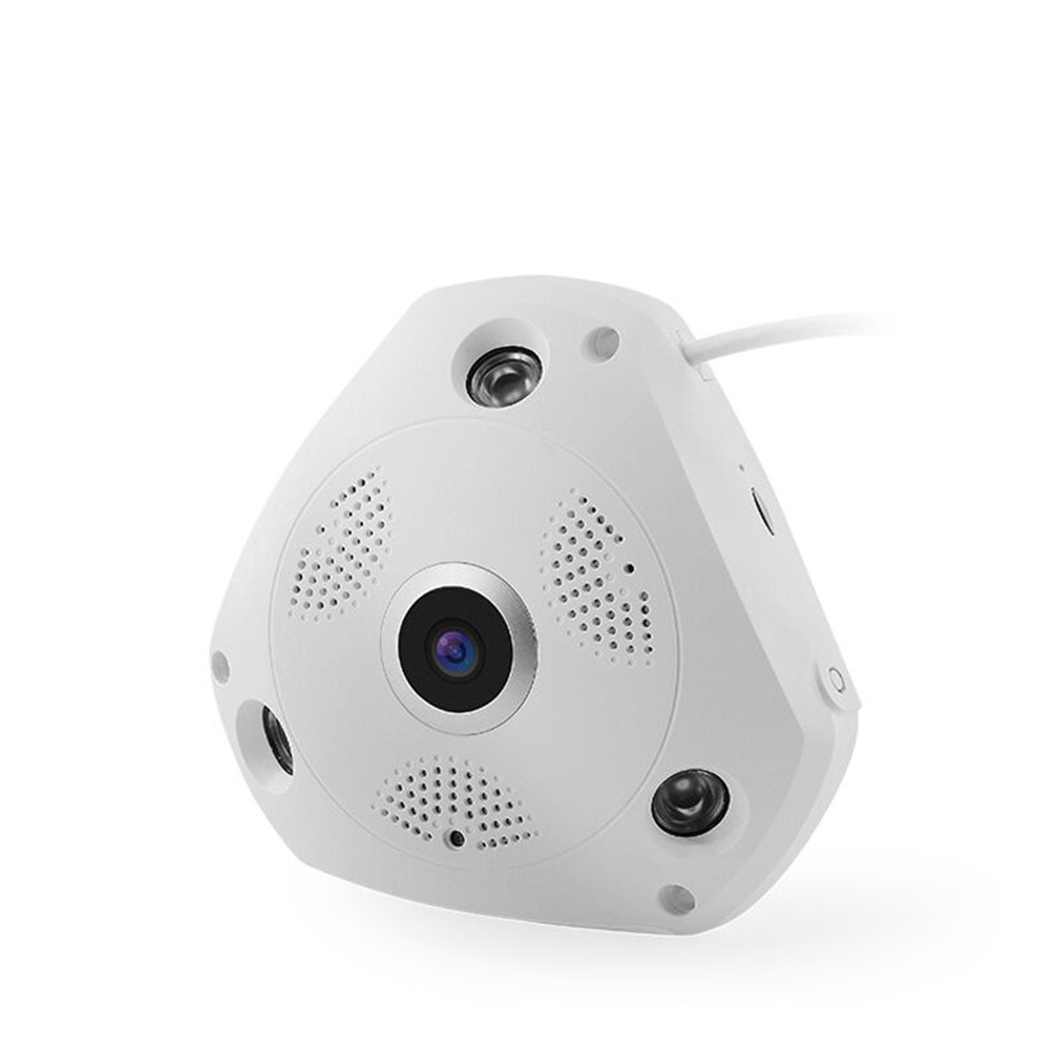

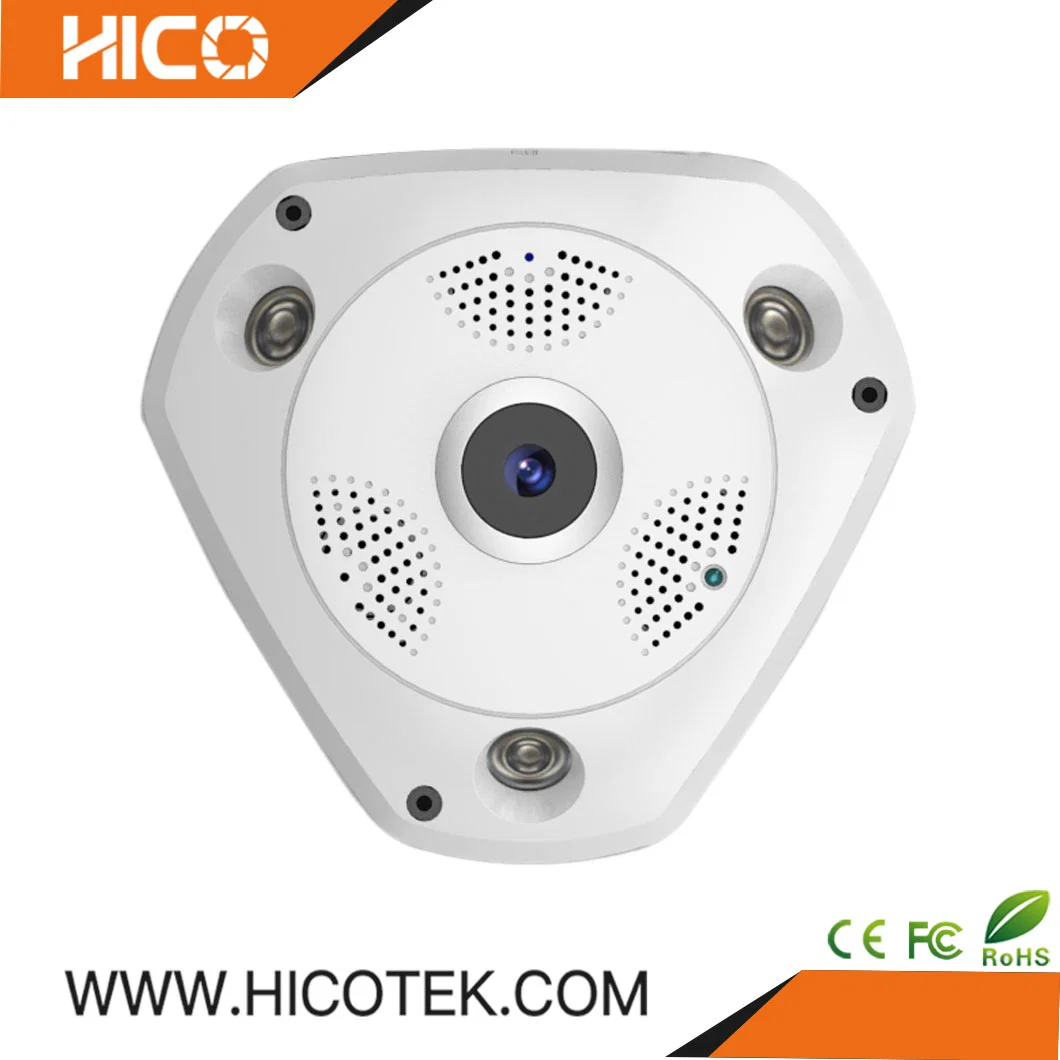

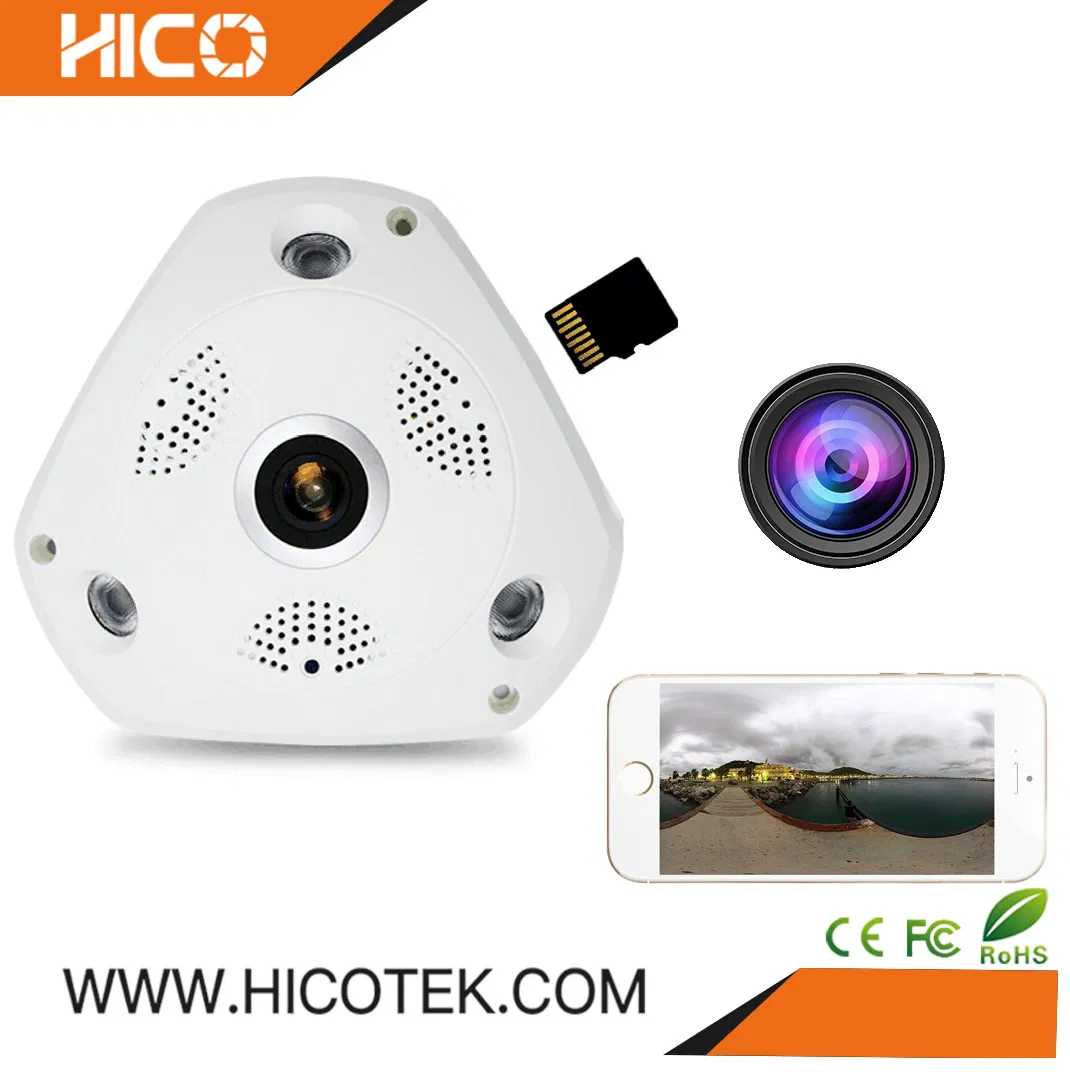

CCTV 3MP Panoramic Fisheye Onvif IP Camera Full HD 360 Degree Camera

1 / 5

CCTV 3MP Panoramic Fisheye Onvif IP Camera Full HD 360 Degree Camera

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

WIP- HFIF03M30H

Type

WiFi

Sensor

CMOS

HDMI Format

H.265/H.264

Horizontal Resolution

3MP

Kind

Panoramic Lens

Certification

CE, FCC, CCC, RoHS, ISO9001

Feature

Waterproof, High Definition, Auto BLC

Effective Distance

10-30m

Sensor Size

1/3 inch

Remote Control

By APP

Onvif

Yes

Product Highlights

✓

3.0MP Resolution: High-definition 2048*1536 resolution for crystal clear imagery.

✓

360° Panoramic: 1.14mm Fisheye lens provides a full VR panoramic view.

✓

Night Vision: Equipped with 3pcs IR Array LEDs, supporting 5-10M distance.

✓

Two-way Audio: Internal microphone and speaker with noise cancellation.

✓

Smart Storage: Supports up to 64GB TF card for local recording.

✓

Mobile Access: Full support for iPhone and Android remote monitoring.

Technical Specifications

Hardware & Video
Image Sensor	HISILICON HI3518E + SC3035
Compression	H.264/JPEG/AVI/MJPEG
TV System	PAL/NTSC Adjustable
Electronic PTZ	Yes (360° 3D VR Mode)
Lens Type	1.14mm Fixed Fisheye
Video Quality	2048*1536 @25fps
Split Screen	1 / 2 / 4 Screen Modes
Network & Connectivity
WiFi	2.4GHz WiFi (IEEE 802.11 b/g/n)
P2P Connection	Yes, Supported
OS Support	iOS (V10.0+) / Android (V5.0+)
Audio Input/Output	Internal Mic (38dB) / Internal Speaker
Environment & General
Motion Detection	Smart PIR Sensor (Sensitivity Editable)
Housing	Plastic for Indoor Use
Day/Night	Auto ICR (Color / B&W)
Operating Temp	-20ºC ~ +55ºC
Power Supply	DC12V 1000mA

Product Gallery

CCTV 3MP Panoramic Fisheye Camera Overview

Frequently Asked Questions

1. What is the viewing angle of this panoramic camera?

This camera features a 1.14mm fisheye lens that provides a full 360-degree panoramic VR view, eliminating blind spots in indoor environments.

2. Does the camera support remote monitoring on mobile devices?

Yes, it supports P2P connection and can be accessed remotely via dedicated apps for both iOS (V10.0 or above) and Android (V5.0 or above) smartphones.

3. How does the night vision work?

The camera is equipped with 3pcs IR Array LEDs and a CDS auto-control sensor. It automatically switches to black and white mode in low light (under 10 Lux), providing clear vision up to 5-10 meters.

4. Can I record video without a computer?

Yes, the camera has a built-in TF card slot that supports a maximum of 64GB TF cards for local storage and playback.

5. Does it support two-way communication?

Yes, the device features an internal microphone and speaker, allowing for two-way audio with noise cancellation for clear communication.

6. Is this camera compatible with other security systems?

Yes, this model is ONVIF compliant, allowing it to work with various ONVIF-supported Network Video Recorders (NVRs) and software.
