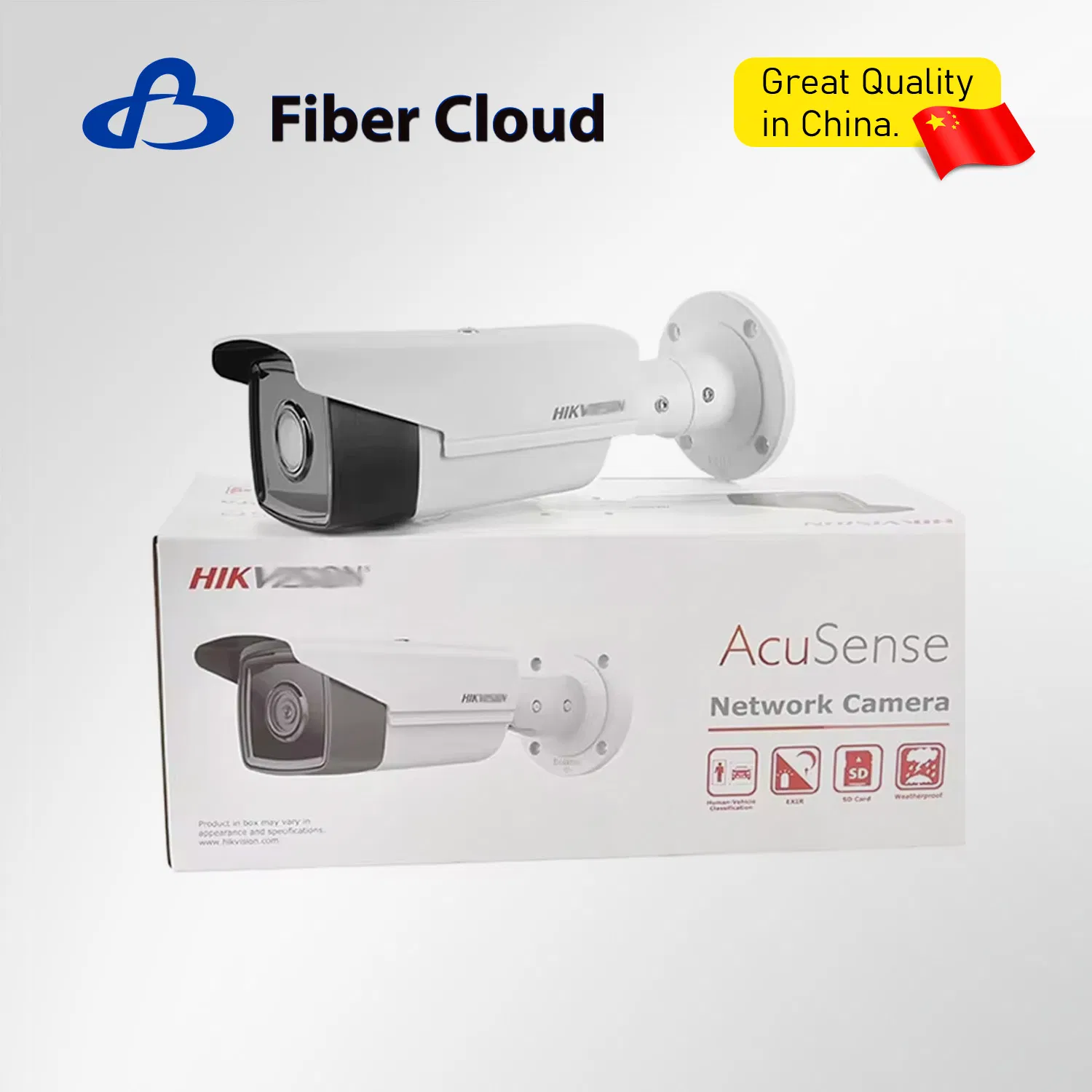

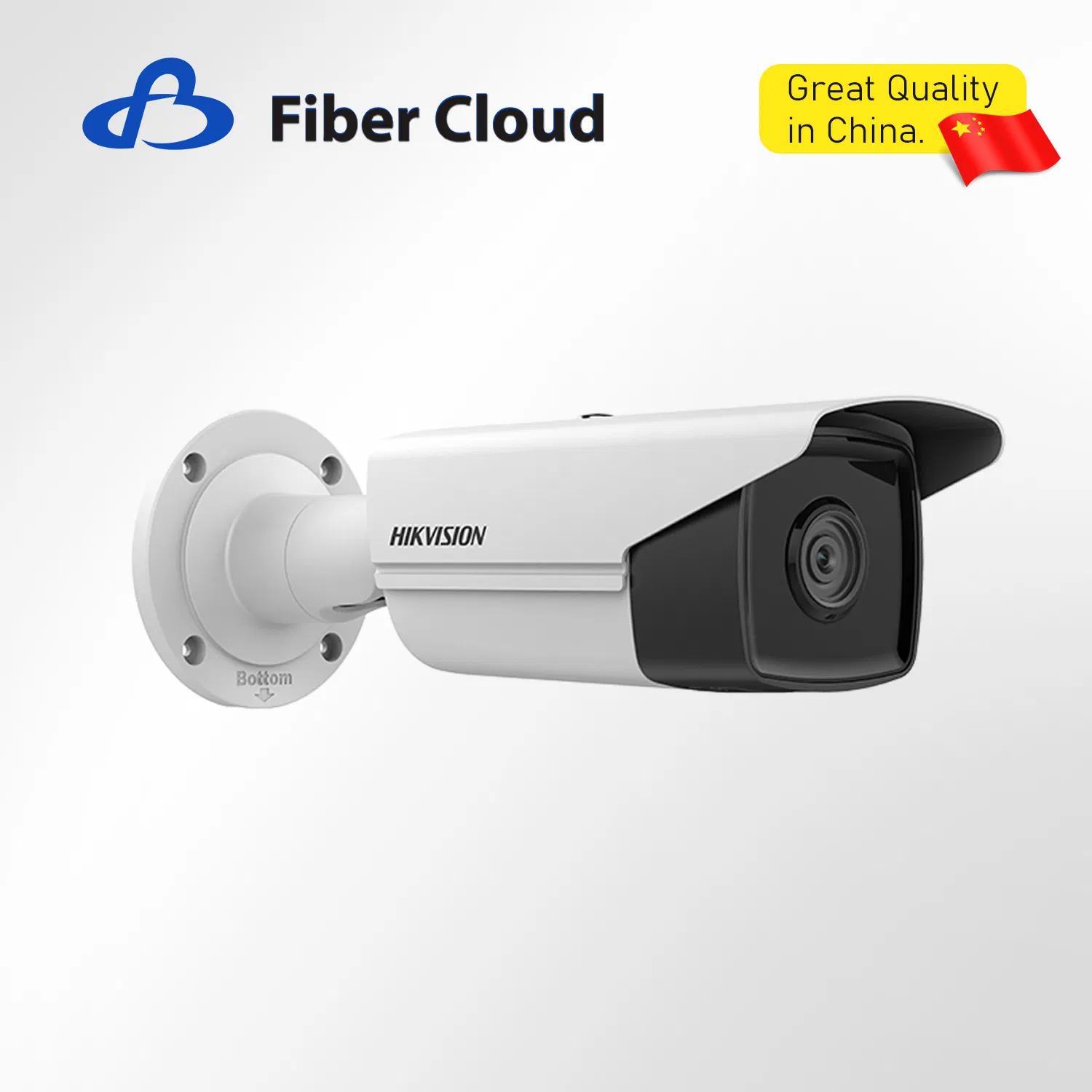

AxizView Camera
1 / 5
| Model NO. | DS-2CD2T86G2-2I/4I |
|---|---|
| Type | IP Camera |
| Sensor | CMOS |
| HDMI Format | 4K |
| Horizontal Resolution | 2688 × 1520 |
| Kind | Autofocus Lens |
| Certification | CE, FCC, RoHS |
| Feature | Waterproof / Weatherproof, High Definition |
| Effective Distance | 10-30m |
| Sensor Size | 1/3 inch |
| Lens Focal Length | 2.8 mm, 4 mm, 6 mm Optional |
| Minimum Illumination | Color: 0.003 Lux @ (F1.4, AGC on) |
| Storage Interface | Built-in Micro SD Slot, up to 512 GB |
Globally recognized security devices designed for diverse surveillance needs, suitable for indoor, outdoor, and specialized environments.
| Camera Specifications | |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Lens Details | |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm: Horiz. 111°, Vert. 59°, Diag. 131° 4 mm: Horiz. 87°, Vert. 47°, Diag. 102° 6 mm: Horiz. 51°, Vert. 28°, Diag. 60° |
| Aperture | F1.6 |
| Illuminator | |
| Supplement Light | IR Range: up to 80 m |
| IR Wavelength | 850 nm |
| Camera Type | Main Features | Sample Picture |
|---|---|---|

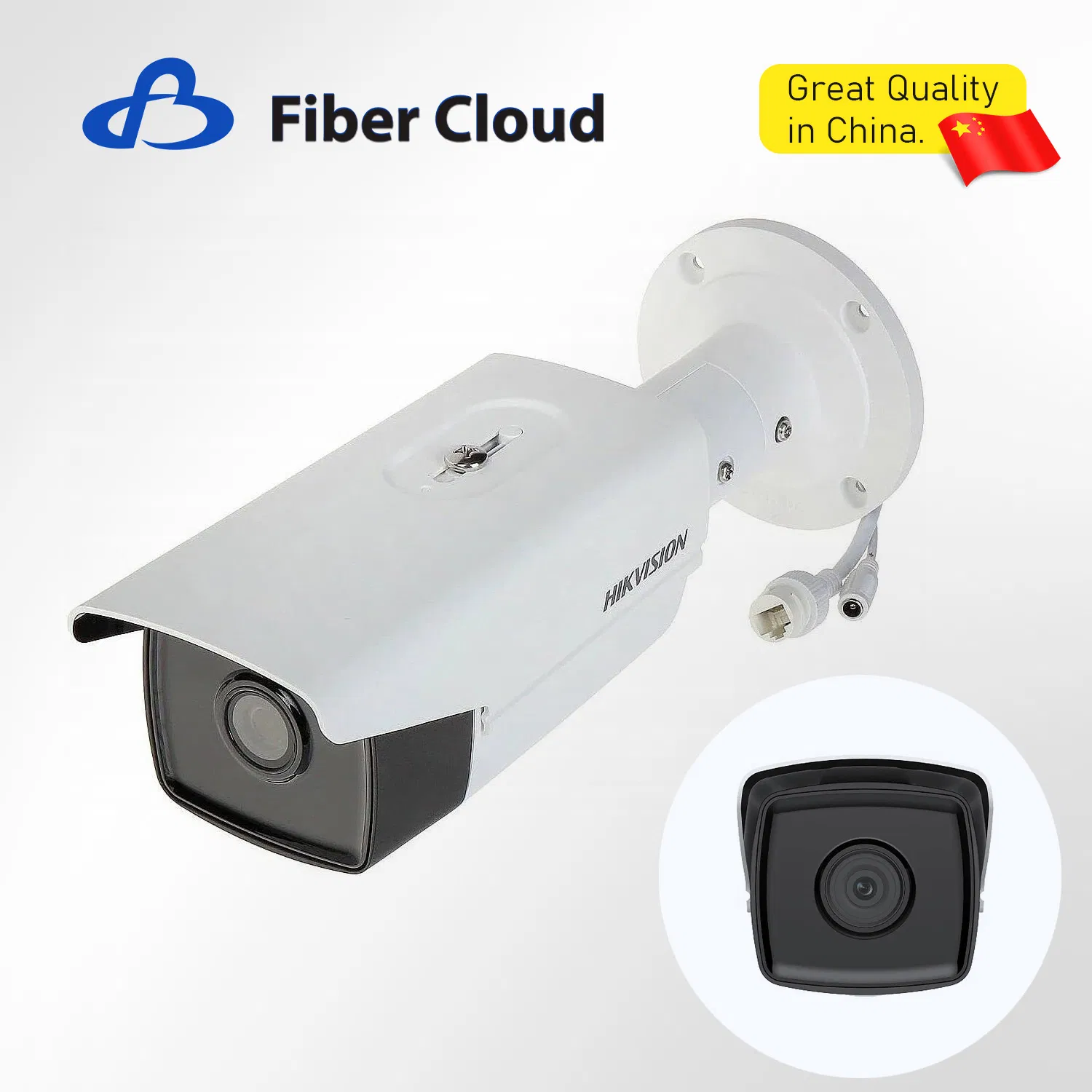

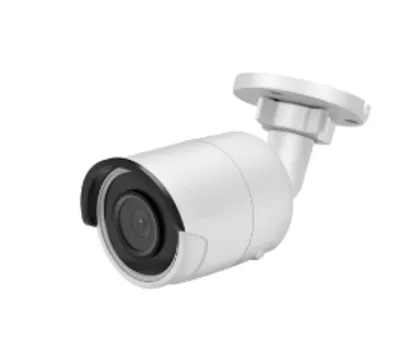

| Bullet Camera | Outdoor, HD/IR night vision, motion detection. |  |

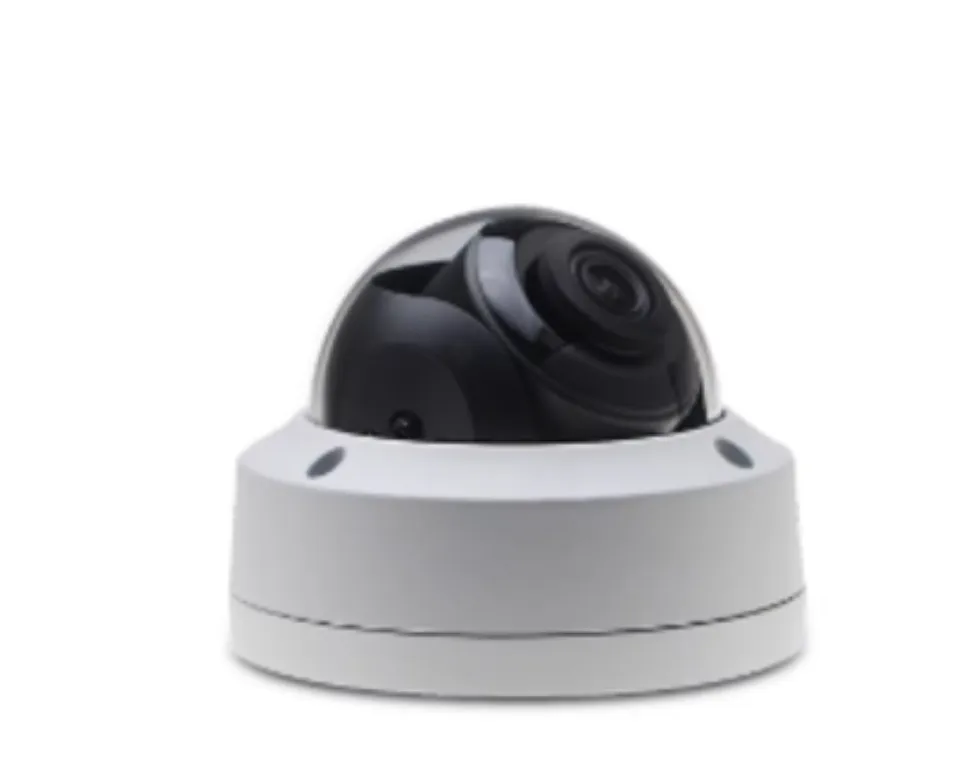

| Dome Camera | Wide-angle, anti-vandal, indoor/outdoor. |  |

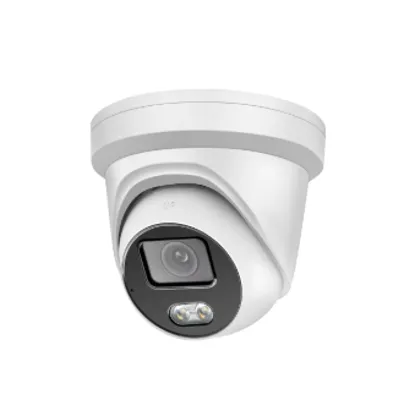

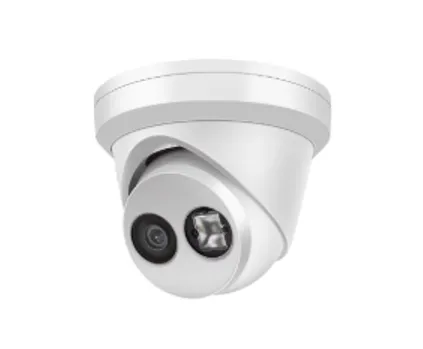

| Turret Camera | Fixed lens, compact, IR night vision, built-in mic. |  |
| PTZ Camera | Pan/tilt/zoom, auto-tracking, large area. |  |
