📋 Basic Information
Type
H.265 Human Detection IP Camera
Sensor
1/2.8" Sony Starvis 8MP CMOS
Resolution
3840 X 2160 (8MP)
Effective Distance
White Light 30m + IR LED 30m
Feature
Waterproof, High Definition, Mini Size
Certification
CE, FCC, RoHS, ISO9001
🔍 Product Overview

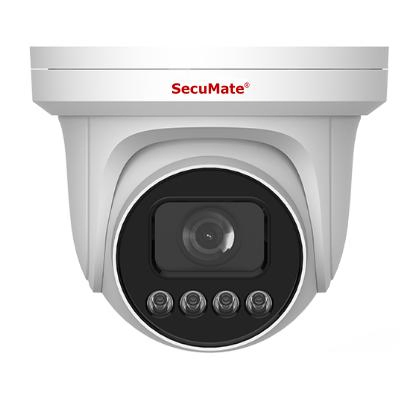

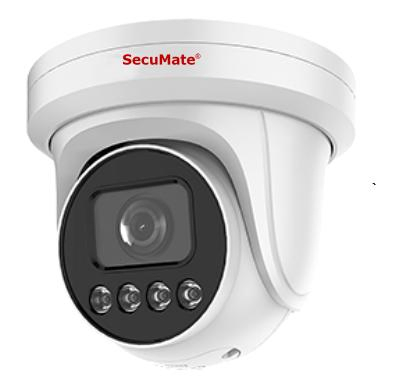

8MP 4K Full Color Dual Light H.265 Network Turret Dome Camera
MODEL: SE-HS8WD303
Key Features:
- 1/2.8" SONY 8 Megapixel CMOS
- Ultra HD Resolution: 3840 x 2160
- 3.6mm / 2.8mm Optional Lens
- Ultra Starlight True Day & Night
- Dual Light Distance: 25-30m
- ONVIF Profile S Compliance
- DWDR & 3D Noise Reduction
- Motion Detection & Privacy Masking
- IP66 Weatherproof Rating
- Support DC12V & PoE Power Supply
⚙️ Technical Specifications
| Camera Parameters |
| Image Sensor |
1/2.8" SONY 8 Megapixel CMOS |
| Min. Illumination |
0Lux/F1.4 (IR on) |
| Dual Light |
25-30m |
| Electronic Shutter |
Auto/Manual (1/25~1/10000) |
| Day/Night |
ICR switch, Auto, Color, B/W |
| Encoding & Video |
| Compression |
H.265 / H.264 / MJPEG |
| Max Resolution |
3840 x 2160 |
| Frame Rate |
NTSC: 8MP@20fps; PAL: 8MP@25fps |
| Bit Rate |
16kbps ~ 8000kbps (CBR/VBR) |
| Network & Intelligence |
| Protocols |
TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, FTP |
| Access Protocol |
ONVIF Profile S |
| Intelligent Analysis |
Target Counting, Area Detection, Line Crossing |
| Mobile Support |
iOS, Android APP |
| General |
| Operating Temp |
-30°C ~ 60°C |
| Protection Grade |
IP66 Waterproof |
| Power Supply |
DC12V / PoE |
| Power Consumption |
< 6W |
🖼️ Product Details
❓ Frequently Asked Questions
What is the maximum resolution of this camera?
The camera supports 4K Ultra HD resolution (3840 x 2160) at up to 25fps for PAL and 20fps for NTSC systems.
Does this camera support Power over Ethernet (PoE)?
Yes, it supports both DC12V and PoE (Power over Ethernet), allowing for easier installation with a single cable for both data and power.
Is the camera suitable for outdoor use?
Absolutely. It features an IP66-rated waterproof and weatherproof housing made of aluminum alloy, designed to operate in temperatures from -30°C to 60°C.
What kind of night vision does it offer?
It features Dual Light technology with both White Light and IR LEDs, providing up to 30 meters of visibility even in total darkness (Ultra Starlight performance).
Can I view the camera on my mobile phone?
Yes, it supports remote access via P2P applications on both iOS and Android platforms, as well as web browsers like IE, Chrome, and Firefox.
What intelligent features are included?
The camera includes built-in intelligent analysis such as Target Counting, Area Detection, Line Crossing, and Motion Detection.
