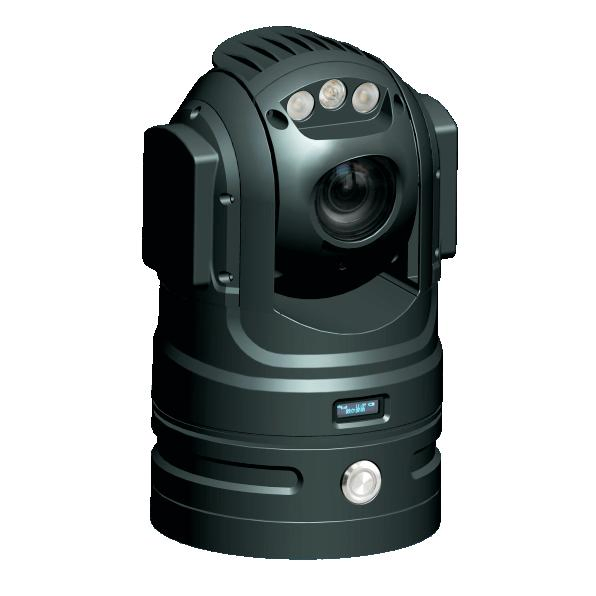

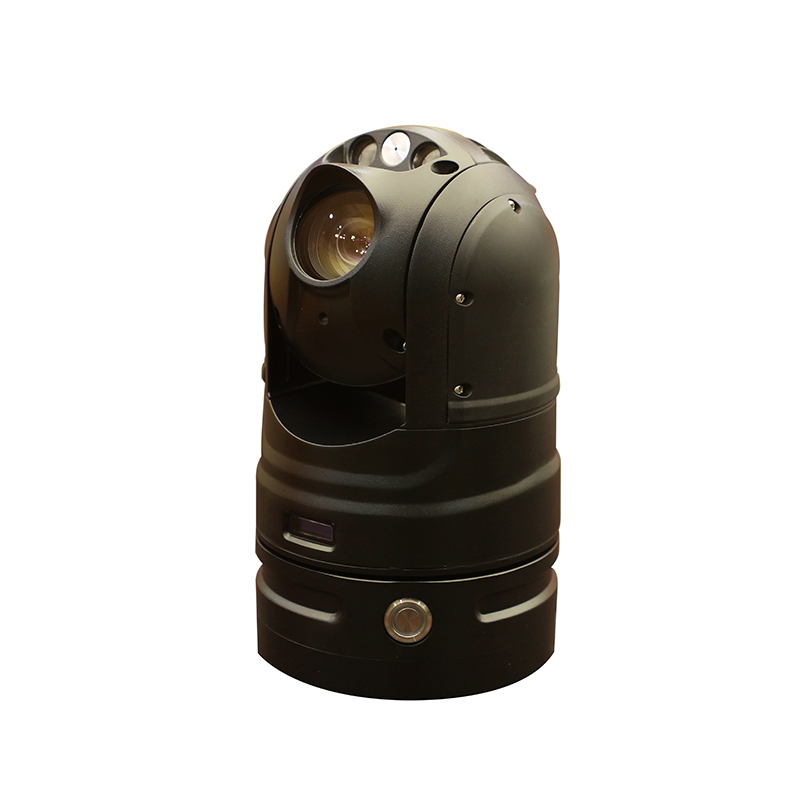

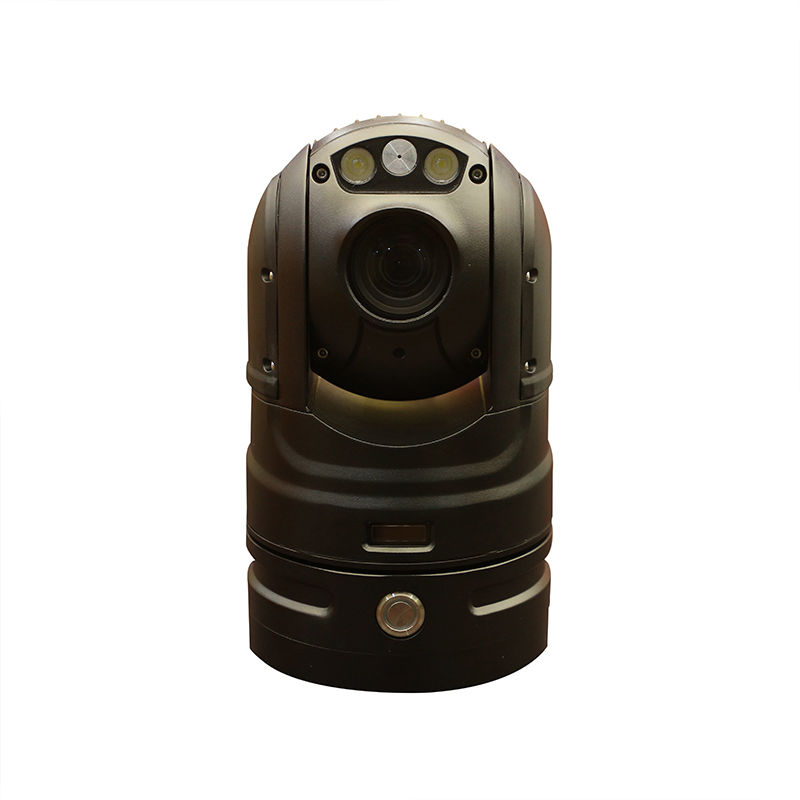

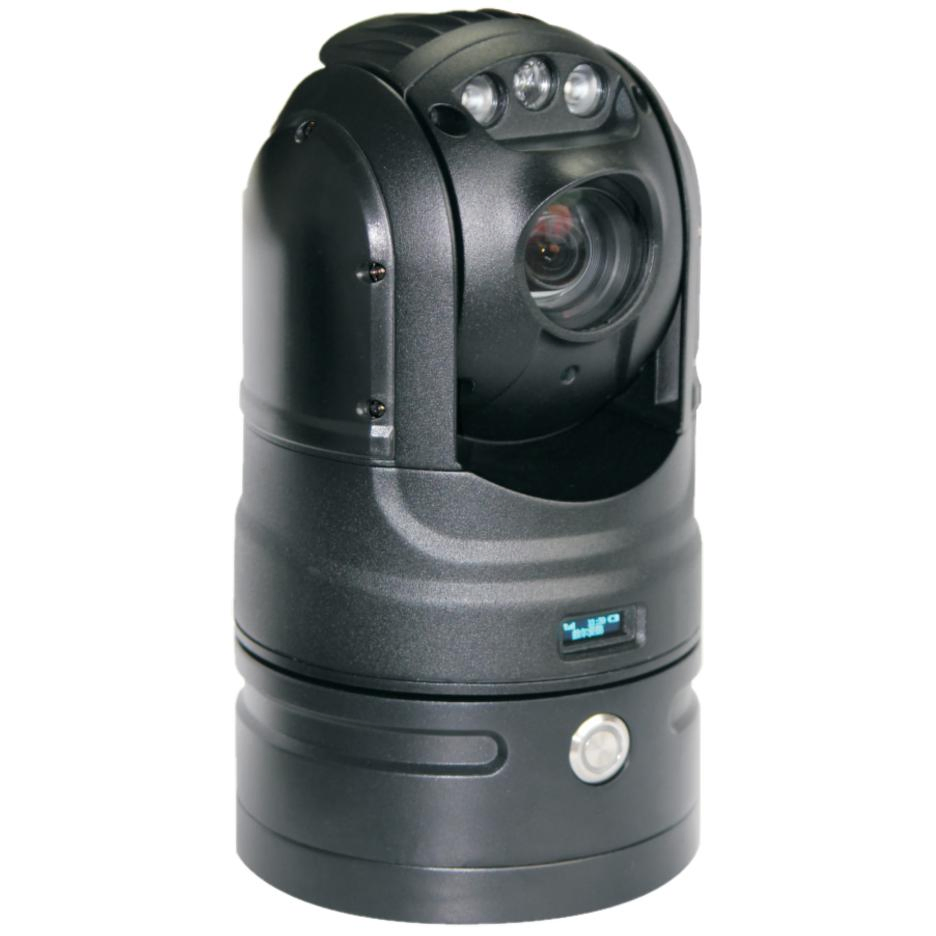

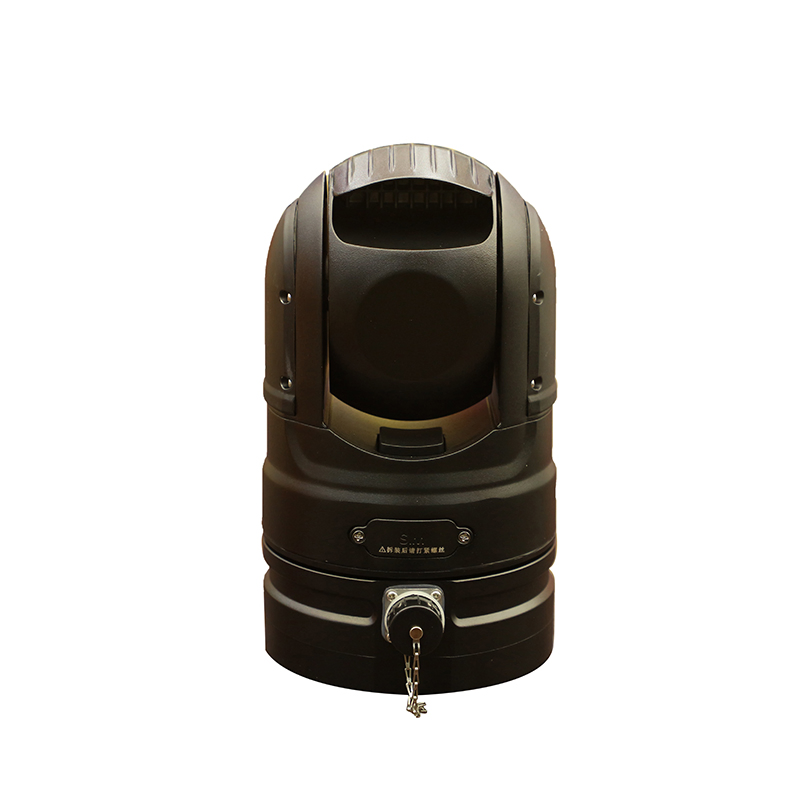

5g WiFi 4MP Outdoor Portable Battery Powered Mobile PTZ Camera

Basic Information

Model NO.

UV-972-5G

Type

CCTV Camera

Sensor

CMOS

HDMI Format

1080P

Horizontal Resolution

4MP

Kind

Autofocus Lens

Certification

CE, RoHS

Feature

Waterproof, High Definition, Auto BLC

Effective Distance

≧30m

Sensor Size

1/1.8''

Remote Control

With Remote Control

Specification

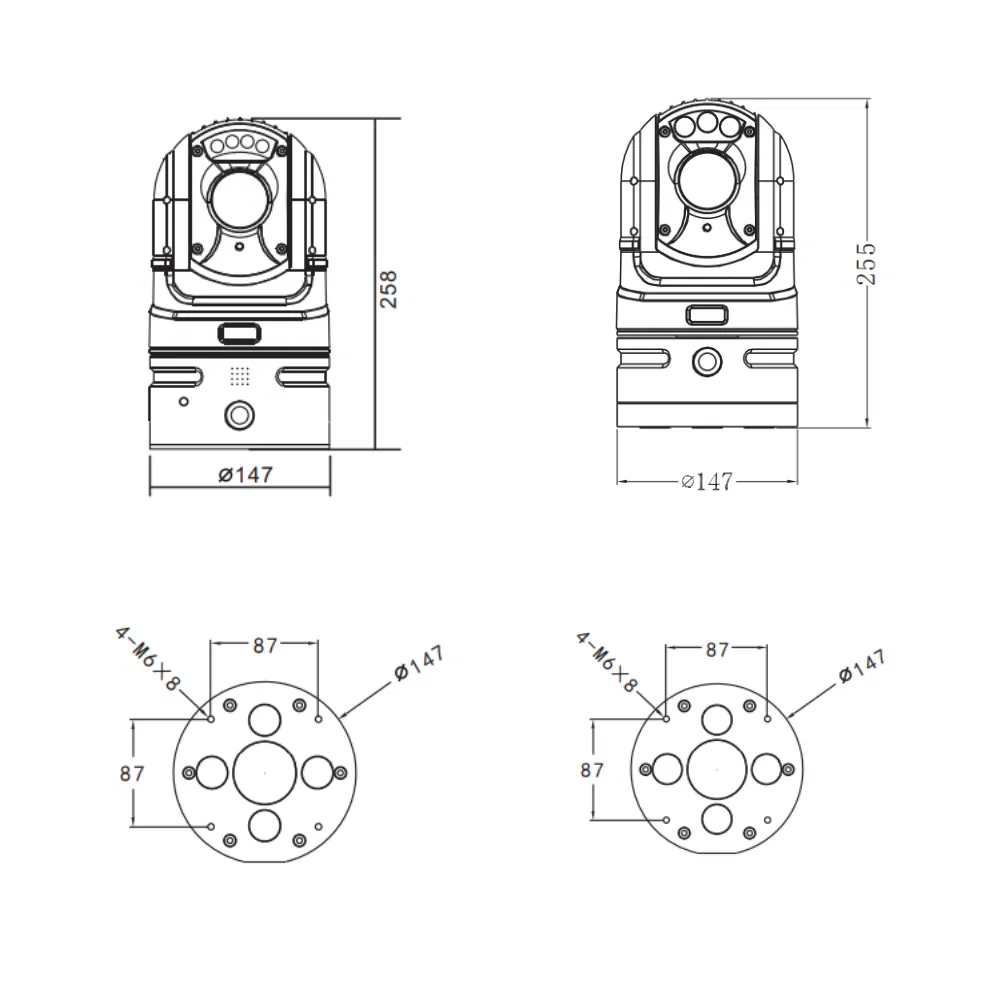

147*147*258mm

Product Description & Features

▶ Simultaneously support 10 target detection, statistics of motor vehicles, non-motor vehicles, and personnel numbers and report search.

▶ Starlight level low illumination: 0.001Lux/F1.5 (color), 0.0005Lux/F1.5 (Black and white), 0 Lux with IR.

▶ Powerful Zoom: Support 33 times optical zoom and 16 times digital zoom.

▶ Wireless Connectivity: Built-in 5G wireless transmission, fully compatible with 5G, 4G, and 3G.

▶ Built-in Wi-Fi and GPS/Beidou positioning systems.

▶ Long Battery Life: Adopt large-capacity lithium battery, supporting up to 10 hours of operation with power display.

▶ Support Bluetooth voice, audio, and video recording and broadcasting simultaneously.

▶ Portable Design: Handle design with a strong magnetic chassis for easy disassembly and installation.

Technical Specifications

Specification	Description
Model No.	UV-SC972-5G
Camera & Lens
Sensor	1/2.8 inch progressive scan, 2.0 megapixel CMOS
Lens	4.5 ~ 135 mm (30x optical zoom), AF automatic focusing
Minimum Illumination	Color: 0.001Lux; W/B: 0.0005Lux (IR on)
Optical Zoom	33x Optical, 16x Digital
Video Compression	H.265 / H.264 / MJPEG (3 Streams)
BLC	BLC / HLC / WDR (120dB)
Network & Connection
Dial-up	5G/4G (LTE-FDD, LTE-TDD, WCDMA, GSM supported)
Wi-Fi Protocol	802.11b/g/n/ac (2.4 Ghz)
Positioning	GPS; Beidou
Working Time	Approx. 9-10 Hours
PTZ Performance
Pan/Tilt Range	Pan: 360° endless; Tilt: -25°~90°
Presets	255 Presets, 6 patrols, 4 patterns
IR Distance	Up to 50m (Automatically adjusted)
General
Protection	IP66, TVS 4000V Lightning & Surge protection
Mounting	Vehicle mounting, Ceiling/Tripod Mounting
Weight	3kg

Professional Solutions

The professional technical support team ensures quick responses to the needs of partners. Core R&D employees come from top international enterprises in the industry, with an average experience of more than 10 years. Our core technologies include audio and video coding and video image processing.

The product line covers all series from 4x to 90x zoom, full HD to Ultra HD, and extends to network thermal modules. These are widely used in UAV, surveillance, security, fire, search and rescue, and marine applications. Products have obtained national patents, software copyrights, and CE, FCC, and ROHS certifications.

Professional OEM and ODM services are provided to meet various market requirements. Brand and language customization, as well as custom-made algorithm zoom cameras, are available.

Frequently Asked Questions

How long does the battery last on a full charge?

The camera is equipped with a large-capacity lithium battery that provides approximately 9 to 10 hours of continuous operation.

Does the camera support 5G connectivity?

Yes, it features built-in 5G wireless transmission and is fully backward compatible with 4G and 3G networks.

What is the night vision capability of this model?

It uses starlight-level low illumination technology (0.0005Lux) and has an infrared (IR) distance of up to 50 meters for clear night imaging.

Is the camera suitable for outdoor use in harsh weather?

Absolutely. It is IP66 rated for waterproof and weatherproof protection, and includes TVS 4000V lightning and surge protection.

Can this camera be mounted on a vehicle?

Yes, it is designed for versatility and supports vehicle mounting, ceiling mounting, and tripod mounting.

What is the maximum zoom capability?

The camera supports a 33x optical zoom combined with a 16x digital zoom for long-range surveillance.
