AxizView Camera
1 / 5
The intuitive web management interface facilitates effortless remote control and access using mobile phones, computers, and tablets.
Easily connect to NVR, NAS, or network cloud storage. Supports Micro SD cards ranging from 32GB to 512GB.
Experience ultimate security as the camera transitions between infrared monitoring and full-color night vision modes.
| Main Chip | RV1109 |
| Sensor Type | IMX335 |

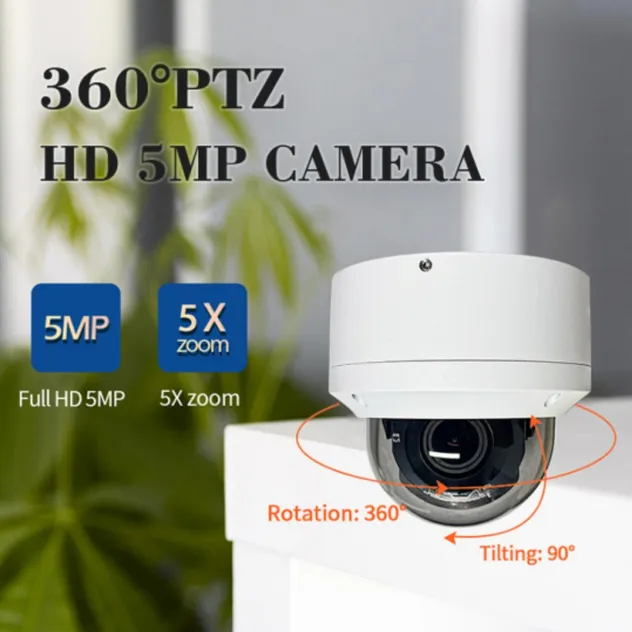

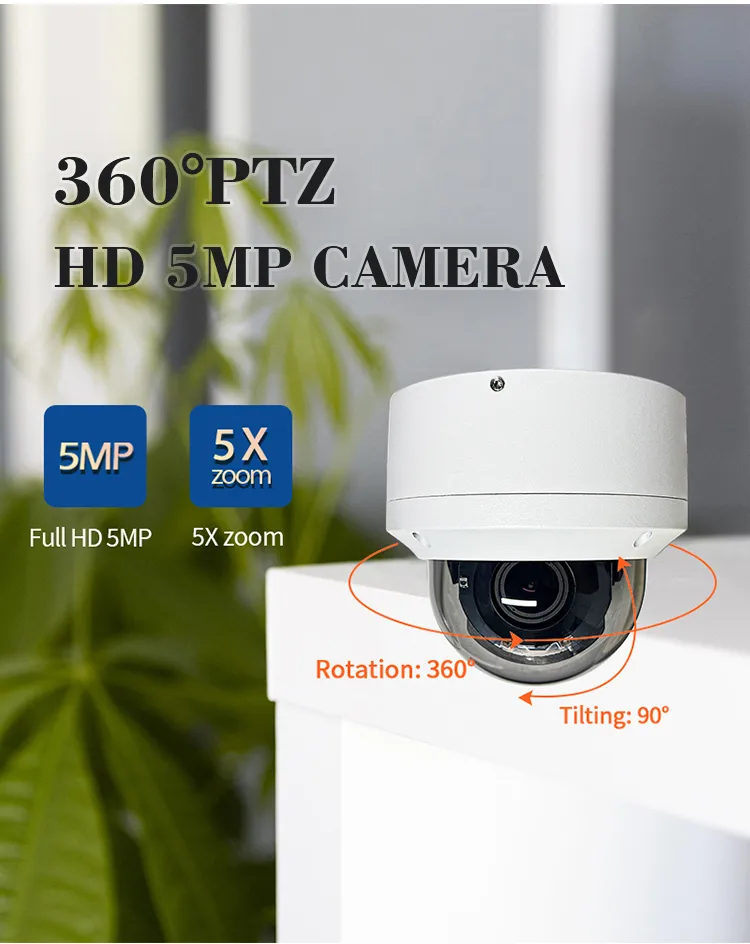

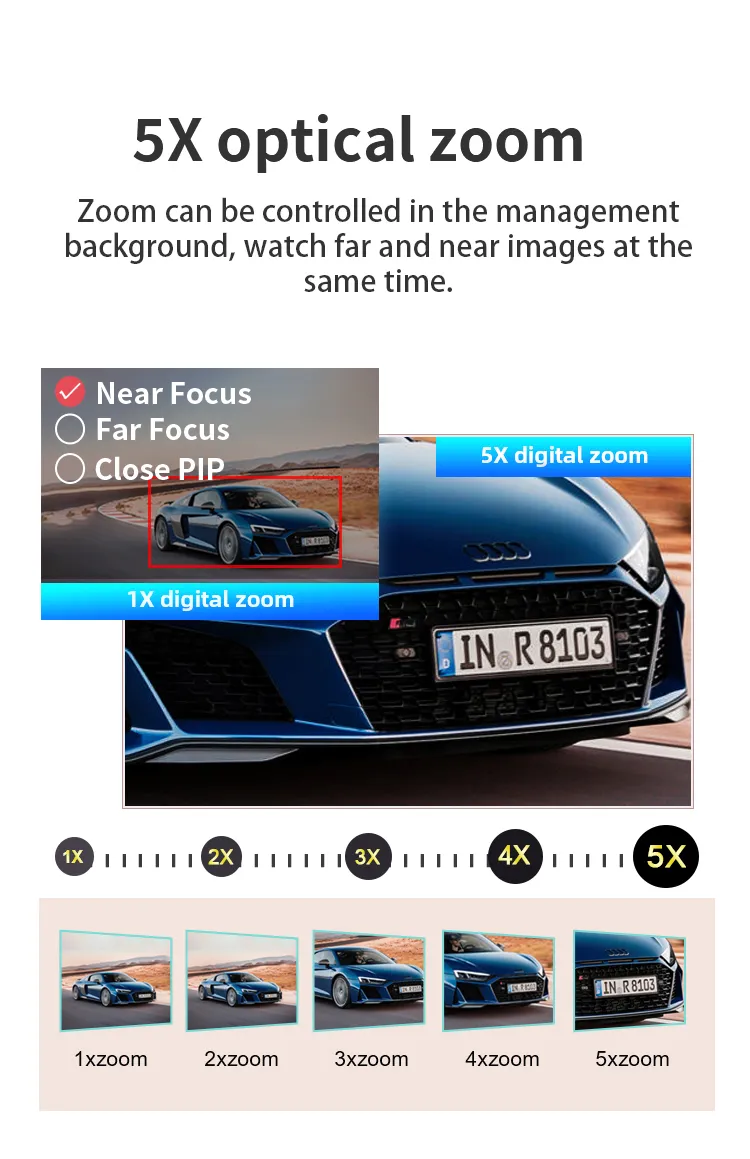

| Lens | 2.7mm~13.5mm: F1.6 360° rotation |
| Lens Interface Type | M20 |
| Shutter | 1 second to 1/1000.000 second |
| Video Processing | 3A (AE, AF, and AWB) function |
| Day and Night Mode | ICR infrared filter type |
| Video Compression | H.264 / H.265 |
| Bit Rate | 32Kbps~40Mbps |
| Maximum Image Size | 2592x1944 |
| Main Stream | 2592x1944@30hz, 1280x720@60hz |
| Sub Stream | 704x480@60hz, 640x480@60hz |
| Highlight Suppression | Support |
| OSD | Support PNG image overlay |
| Interface Protocol | ONVIF |
| Network Protocol | TCP/IP, HTTP, FTP, DHCP, DNS, RTP, RTSP, RTMP |

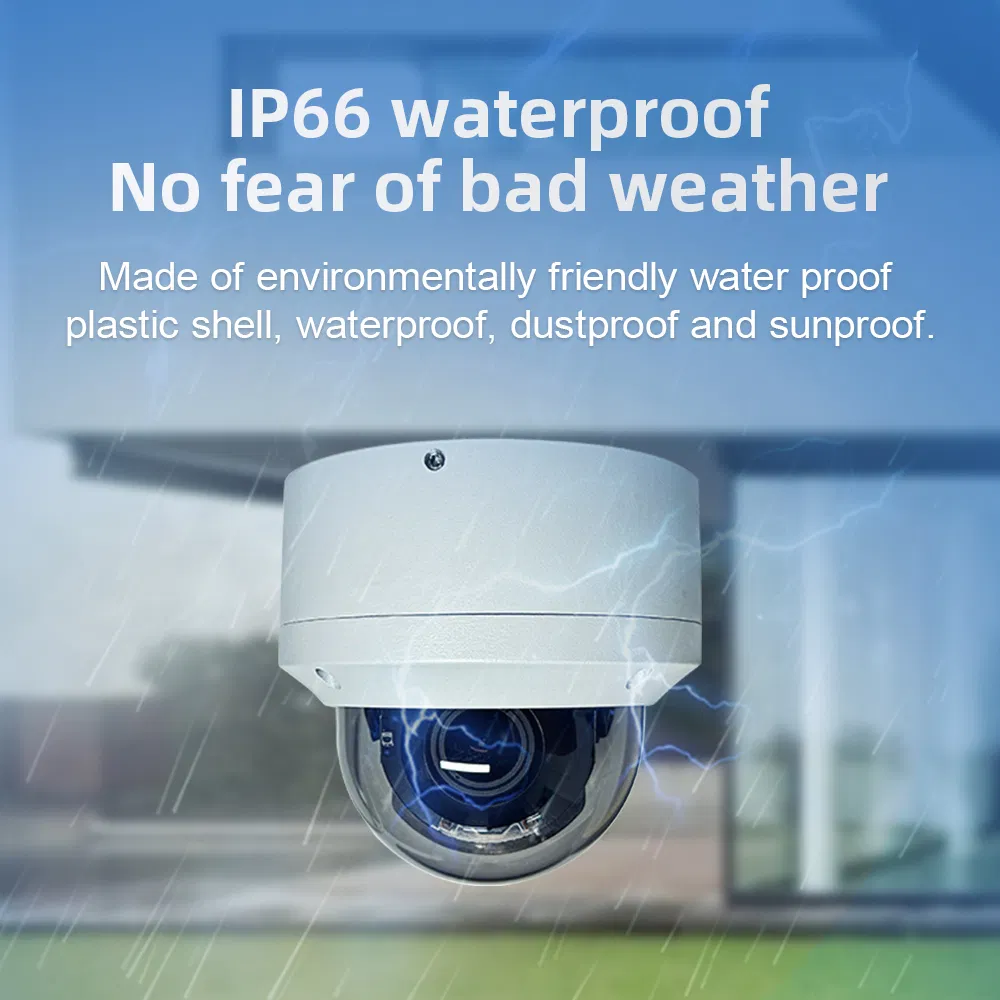

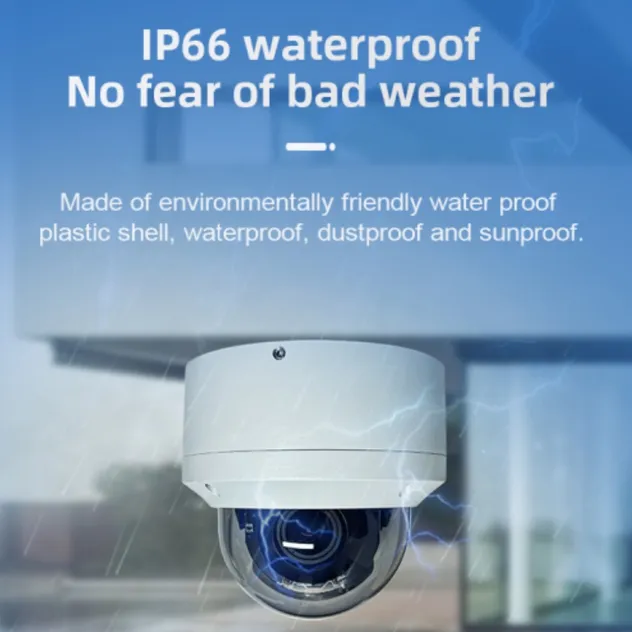

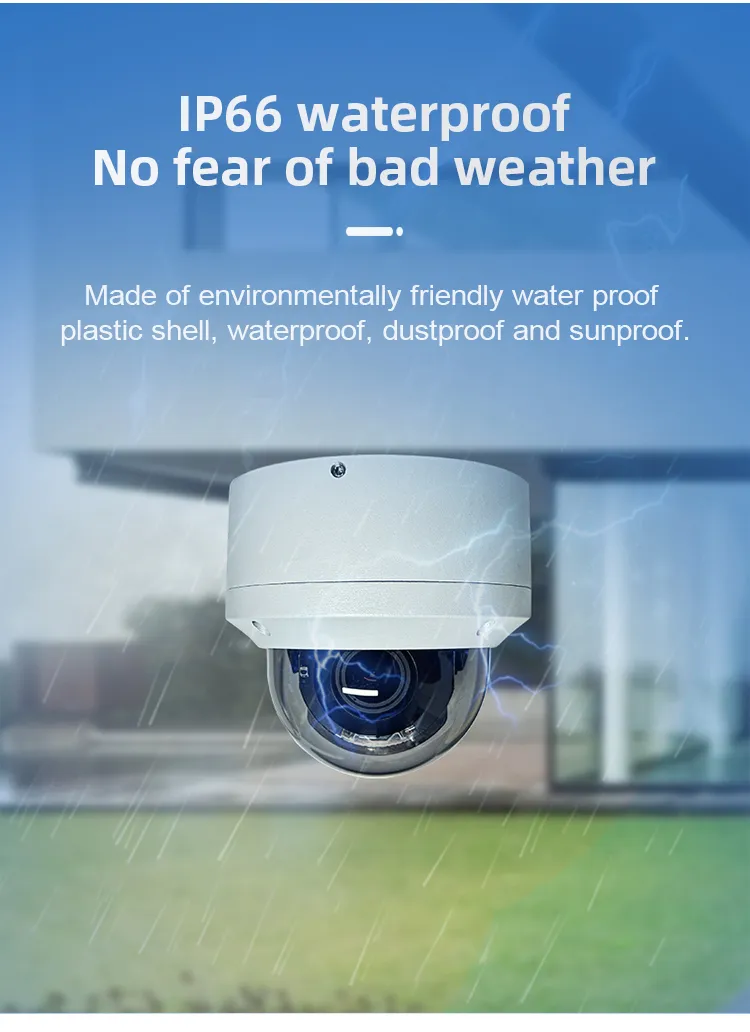

| Level of Protection | IP66 |
| Material | White / Metal |
| Size (mm) | W120mm x H113mm |
| Weight | About 640g |
