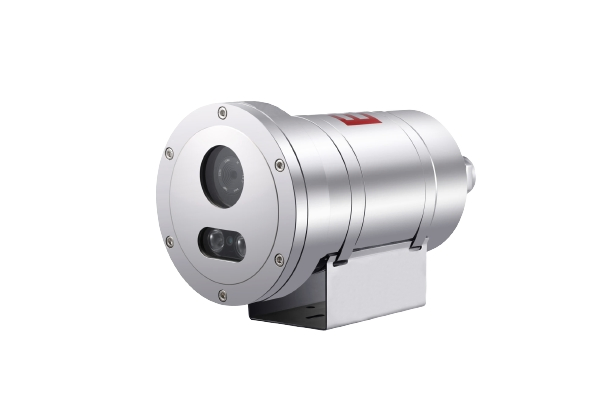

5MP Fixed Explosion-Proof IR Mini Bullet CCTV Security Surveillance Block Camera Zoom Module Camera ATEX
5MP Fixed Explosion-Proof IR Mini Bullet CCTV Security Surveillance Block Camera Zoom Module Camera ATEX
5MP Fixed Explosion-Proof IR Mini Bullet CCTV Security Surveillance Block Camera Zoom Module Camera ATEX
5MP Fixed Explosion-Proof IR Mini Bullet CCTV Security Surveillance Block Camera Zoom Module Camera ATEX
5MP Fixed Explosion-Proof IR Mini Bullet CCTV Security Surveillance Block Camera Zoom Module Camera ATEX
1 / 5
5MP Fixed Explosion-Proof IR Mini Bullet CCTV Security Surveillance Block Camera Zoom Module Camera ATEX
5MP Fixed Explosion-Proof IR Mini Bullet CCTV Security Surveillance Block Camera Zoom Module Camera ATEX
5MP Fixed Explosion-Proof IR Mini Bullet CCTV Security Surveillance Block Camera Zoom Module Camera ATEX
5MP Fixed Explosion-Proof IR Mini Bullet CCTV Security Surveillance Block Camera Zoom Module Camera ATEX
5MP Fixed Explosion-Proof IR Mini Bullet CCTV Security Surveillance Block Camera Zoom Module Camera ATEX

5MP Fixed Explosion-Proof IR Mini Bullet CCTV Security Surveillance Block Camera Zoom Module Camera ATEX

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
IPC-FB707-504(4/6/8mm)
Type
IP Camera
Sensor
CMOS
HDMI Format
1080P
Certification
CE, FCC, CCC, RoHS, EMI/EMC, ISO9001
Feature
Waterproof, High Definition, Mini Size
Sensor Size
1/3 inch
Housing
304/316L Stainless Steel
IP Protection
IP68
Weight
7.5kg
Product Description
  • Explosion-proof certification: Ex d IIC T6 Gb / Ex tD A21 IP68 T80ºC
  • High Performance: H.265, 5MP 1/2.8" CMOS sensor
  • Lens Options: Fixed lens 4mm, 6mm, or 8mm available
  • Starlight Low Illumination: Color 0.01 Lux, 0 Lux with IR enabled
  • Efficient IR: High-efficiency array IR lamp, 40 meters range
  • Smart Detection: Supports human body and motion detection
  • Image Enhancement: Supports BLC, HLC, 3D DNR, 120 dB WDR
  • Premium Glass: Special explosion-proof glass with nanotechnology, high optical pass rate
  • Durable Material: 304/316L stainless steel for strong corrosive environments

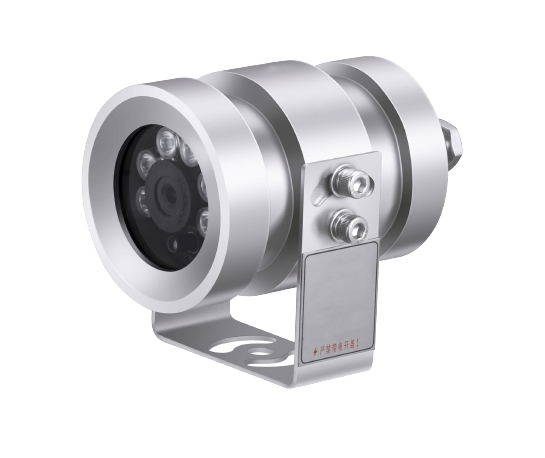

Explosion-Proof IR Mini Bullet Camera
Dimensions

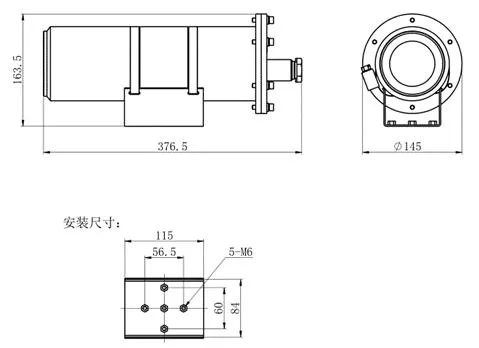

Camera Dimensions

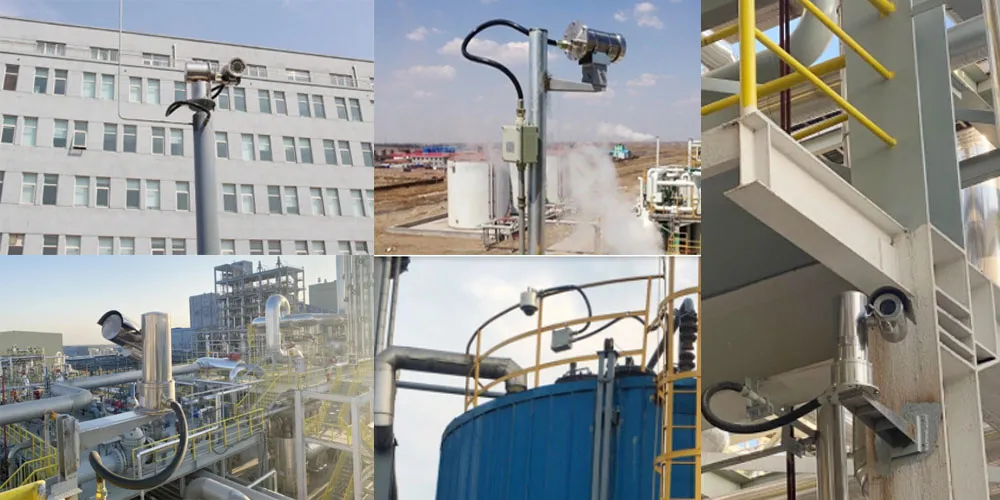

Applicable Environment
Applicable to environments of IIA, IIB and IIC with combustible gases, T1-T6 group 1 and 2 zones with combustible gas or explosive mixture of vapor, and T1-T6 groups 21 and 22 zones containing combustible dust mixture. Ideal for petroleum, chemical industry, mines, medicine, oil depots, ships, drilling platforms, gas stations, grain processing, and storage.
Technical Specifications
Lens & Sensor Resolution 5MP
Sensor 1/2.8" Progressive Scan CMOS
Lens 4mm (6/8mm options)
Illuminance Color: 0.01 Lux, 0 Lux with IR
IR Distance 40 meters
Video Compression H.265 / H.264
Main Stream 2304*1296, 1920*1080, 1280*720
Intelligent Human body detection, motion detection
General Temperature -40ºC ~ +60ºC
Power Supply DC12V ± 25% (POE optional)
Material 304/316L Stainless steel
Protection IP68, Ex d IIC T6 Gb
Package & Shipment

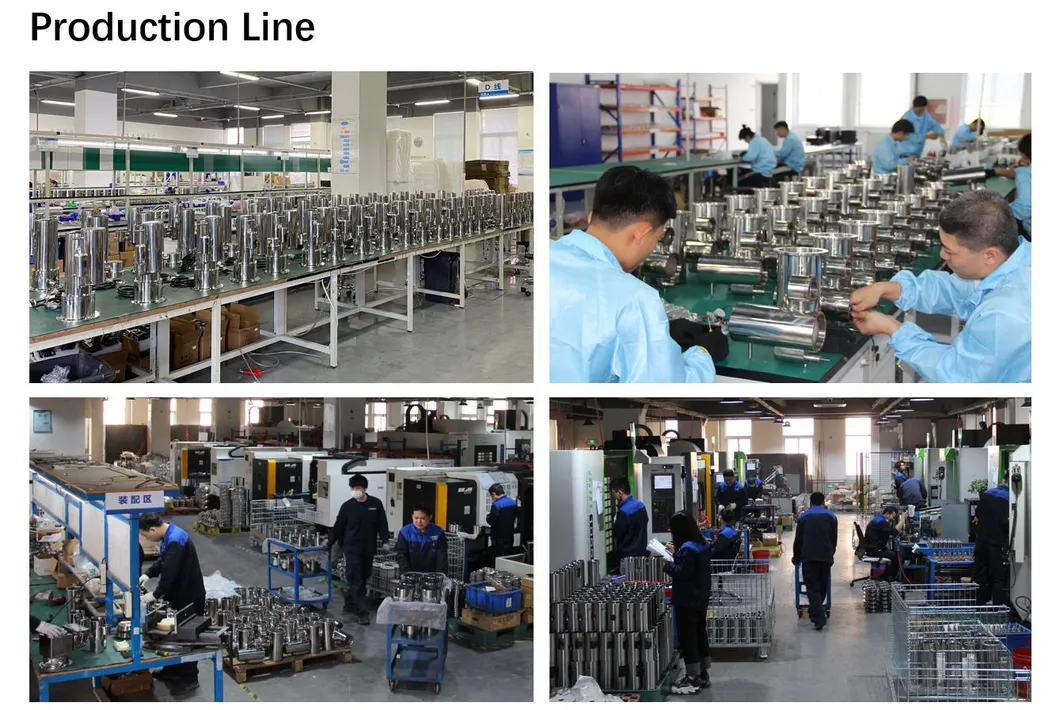

Packaging Box
Shipping Logistics

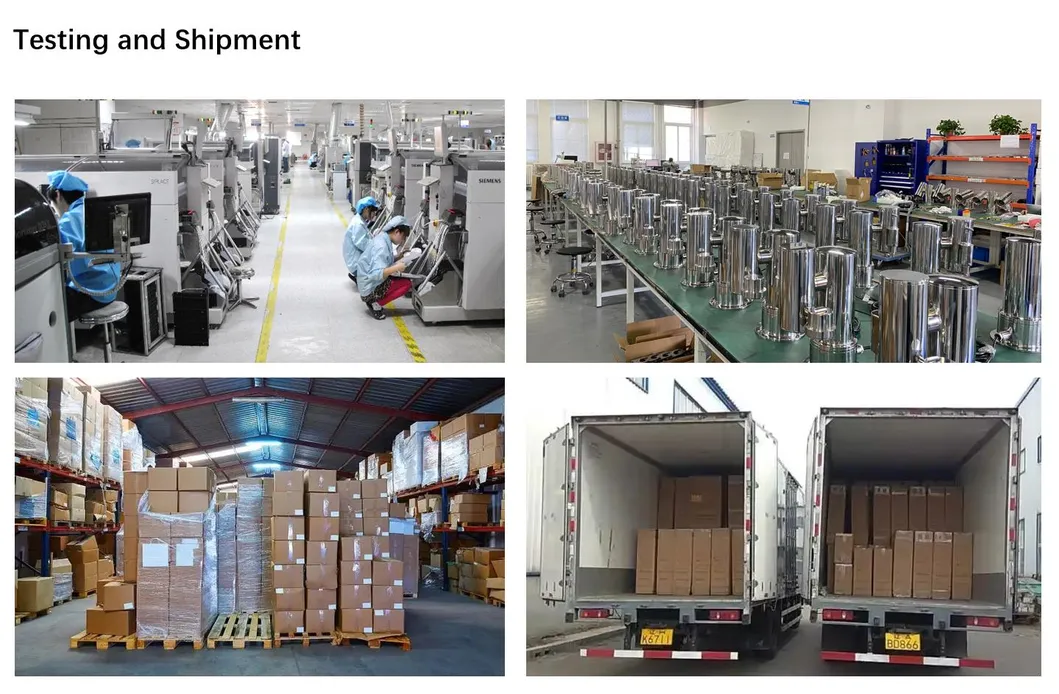

Production Quality
Frequently Asked Questions
Do you support sample orders?
Yes, we support sample orders for customers to test quality before placing bulk orders. Sample and shipping costs are covered by the client.
What is the standard lead time?
Sample orders typically take 3-5 days. Bulk orders range from 3-5 weeks depending on the specific items and quantity.
What is the warranty period for your products?
Our standard warranty is 2 years. We also offer extended warranty periods upon request with a reasonable cost.
Do you provide OEM/ODM services?
Yes, we are a professional OEM/ODM manufacturer and can provide customized services to meet your specific requirements.
What are your terms of payment?
Usually, we require T/T 30% as a deposit and 70% before delivery. PayPal and Western Union are also accepted for sample orders.
Are all goods tested before delivery?
Yes, we conduct 100% testing on all products before they are dispatched to ensure maximum reliability.
