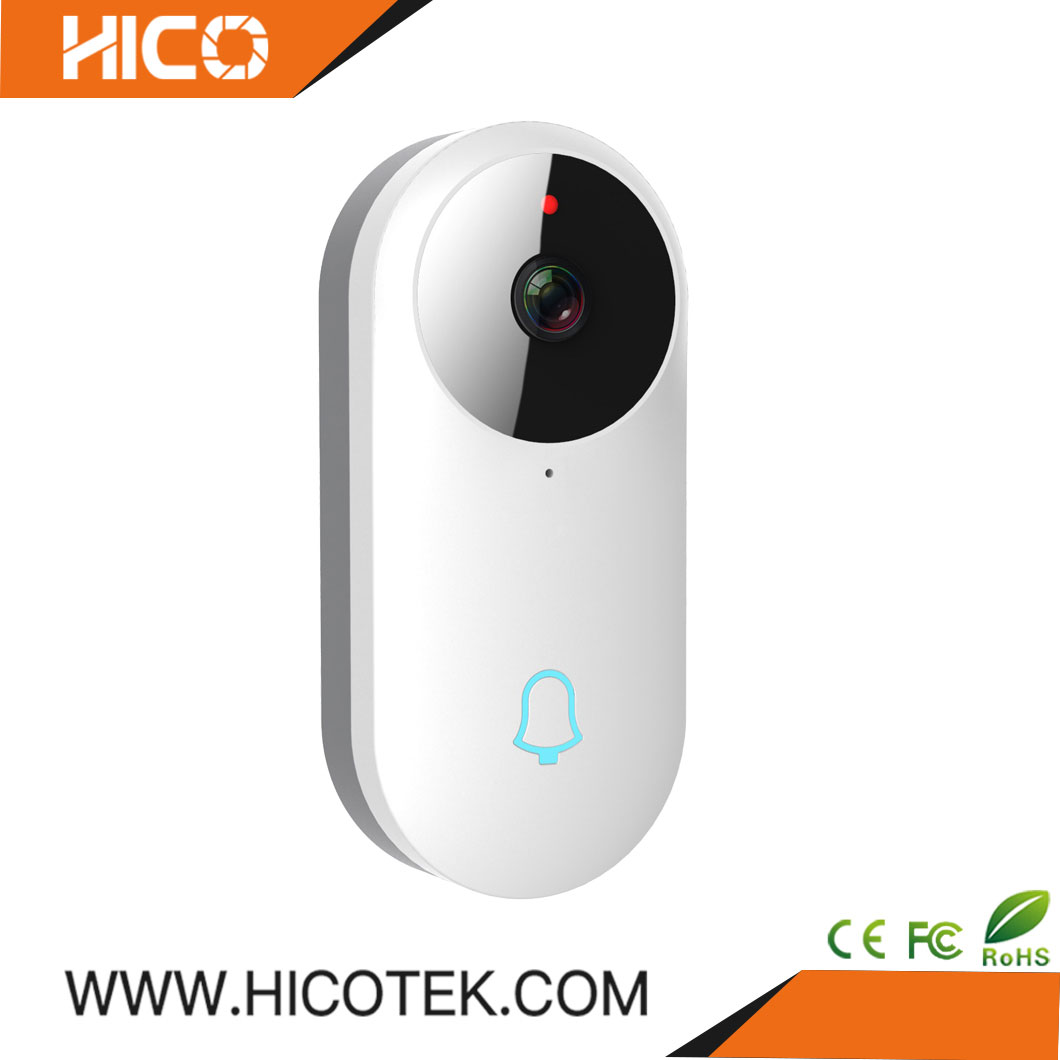

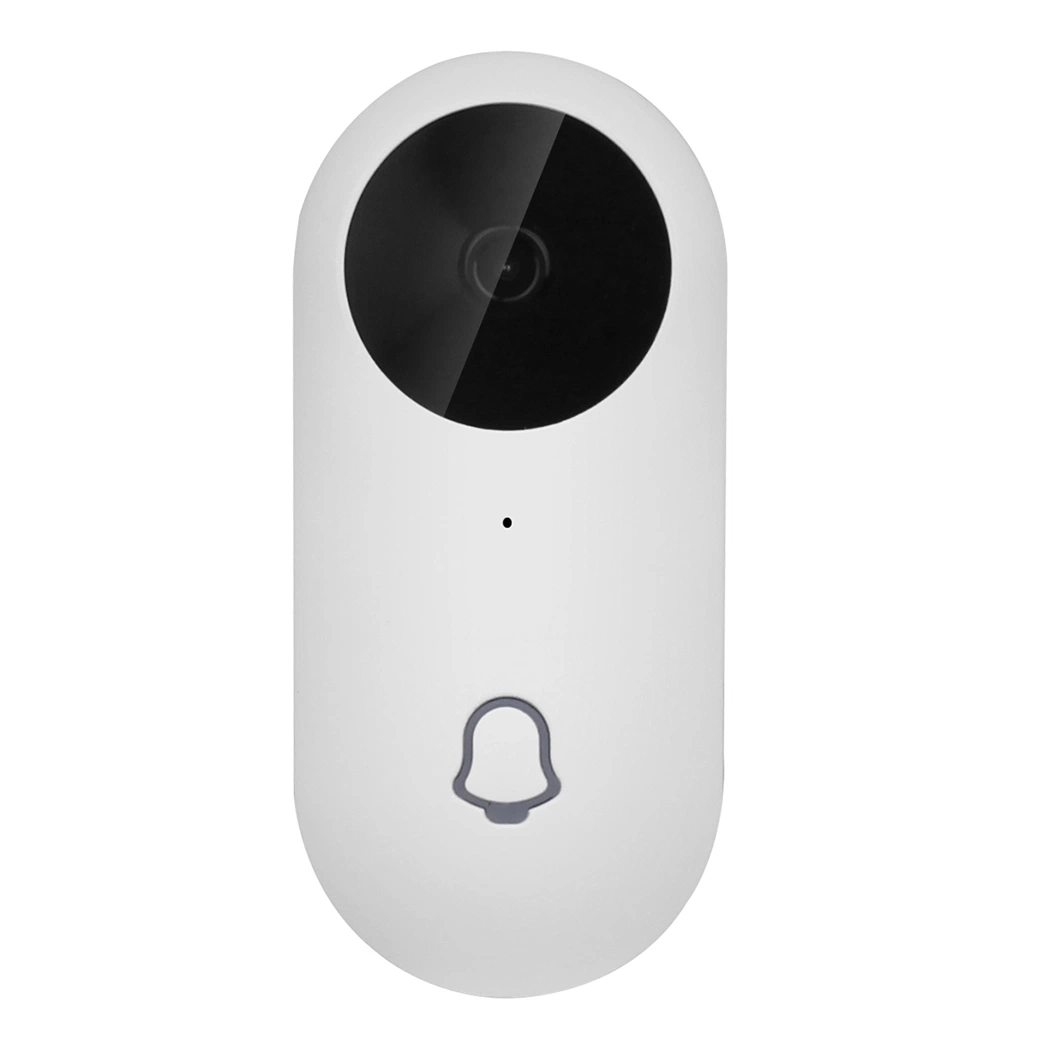

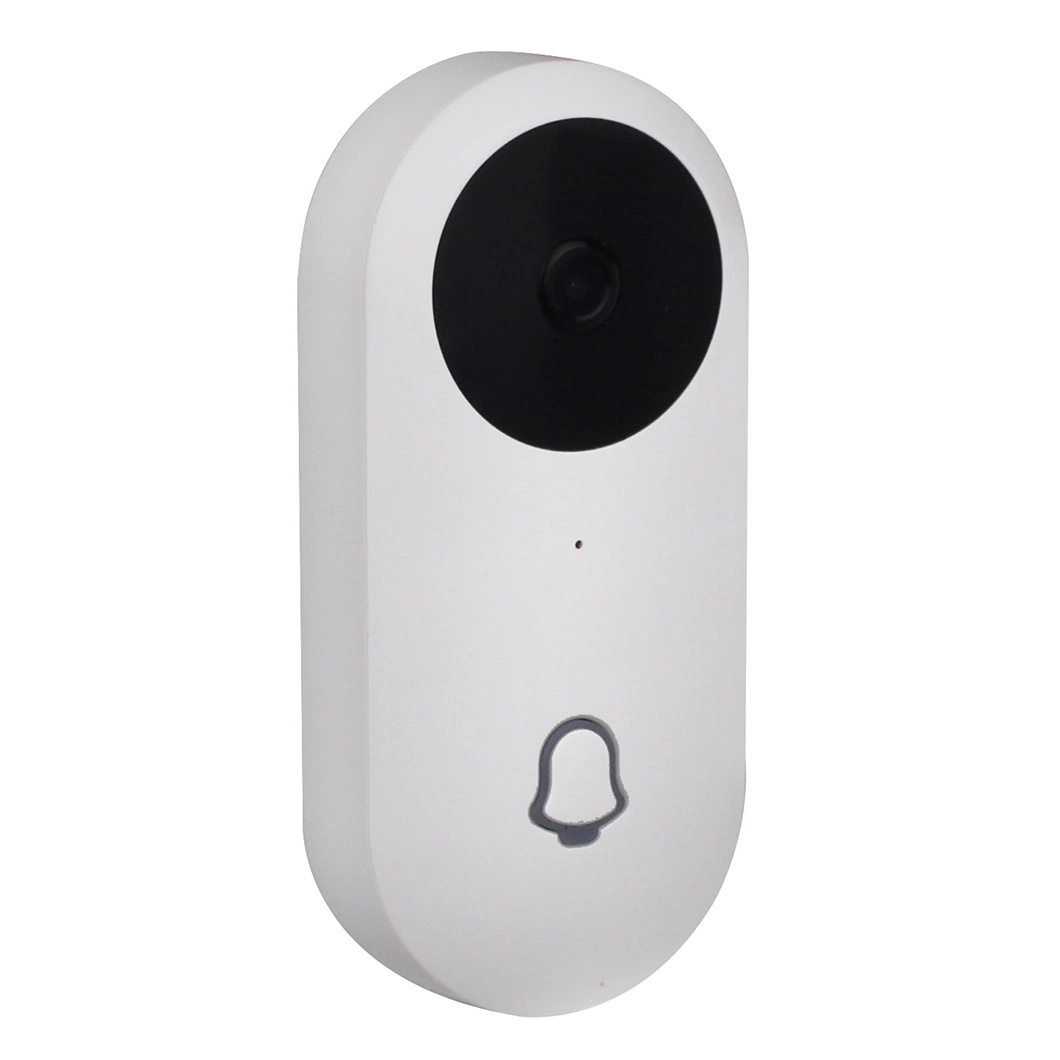

960p Intercom Doorbell Phone 2g/3G/4G WiFi APP Chargeable Battery Powered Digital Trigger Doorbell Video Camera System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Key Features

Wireless WIFI Smart Doorbell

1.8mm Wide Angle (160°) Lens

PIR Motion Detection & WDR

Free Lifetime Cloud Storage

Two-way Audio with Noise Cancellation

Rechargeable 18650 Battery Support

Technical Specifications

Hardware & Imaging
Model NO.	WIP-HADB40M13
Image Sensor	1/2.7" CMOS SC1235
Main Processor	Hi3518E
Resolution	960P (1280 x 960)
Lens Type	1.8mm Fixed (160° Wide-angle)
Video Compression	H.264 / JPEG / AVI / MJPEG
Network & Connectivity
WiFi	2.4GHz WiFi (IEEE 802.11 b/g/n)
Remote Control	Support via App (iOS 10.0+ / Android 5.0+)
P2P Connection	Supported
Audio	Internal Microphone & Speaker (5m Pickup Range)
Operation & General
Motion Detection	Smart PIR Sensor (Sensitivity Editable)
Wakeup Time	Within 600ms
Cloud Storage	Yes (No charge for ever)
Power Supply	1x Rechargeable 18650 Battery / DC 5V
Working Temp.	-20ºC ~ +55ºC
Dimensions	136(L) * 62(W) * 30(H) mm

Product Presentation

Frequently Asked Questions

What is the field of view for this doorbell camera?

The camera features a 1.8mm wide-angle lens providing a broad 160° field of view, ensuring you see more of your doorstep.

Is there a monthly fee for cloud storage?

No, this model supports cloud storage with no charge forever, allowing you to save and review footage without subscription fees.

How does the motion detection work?

The device uses a Smart PIR (Passive Infrared) sensor. It can detect motion within 10-30m and send instant push alarms to your smartphone.

What kind of batteries does it require?

The doorbell is powered by one rechargeable 18650 battery. It also supports a DC 5V linear power supply.

Can I talk to visitors through the app?

Yes, the system supports high-quality two-way audio with built-in noise cancellation, allowing clear communication via your iPhone or Android device.

How fast does the device wake up when someone rings?

The camera features a fast-trigger system that wakes the device up within 600ms of a trigger or ring.
