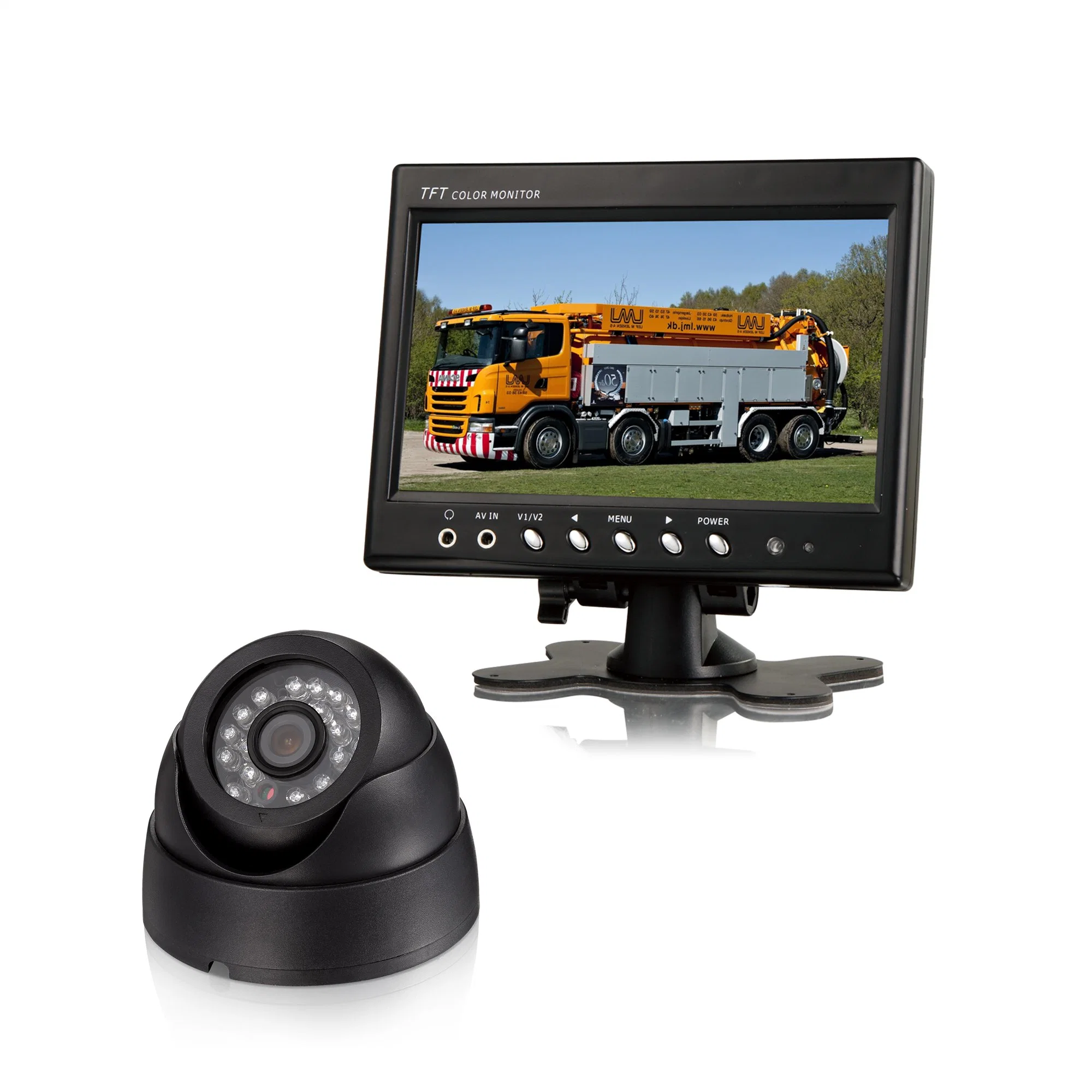

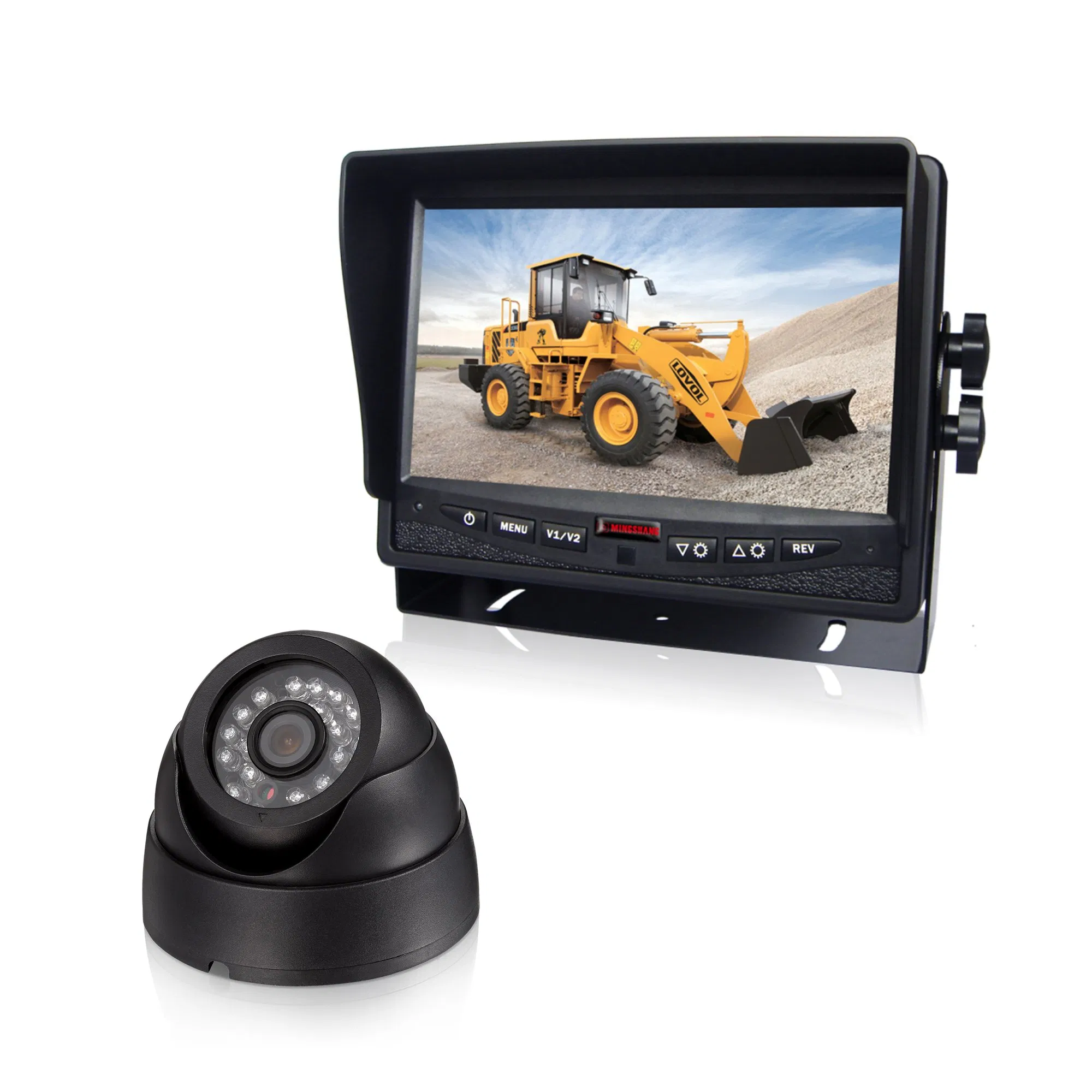

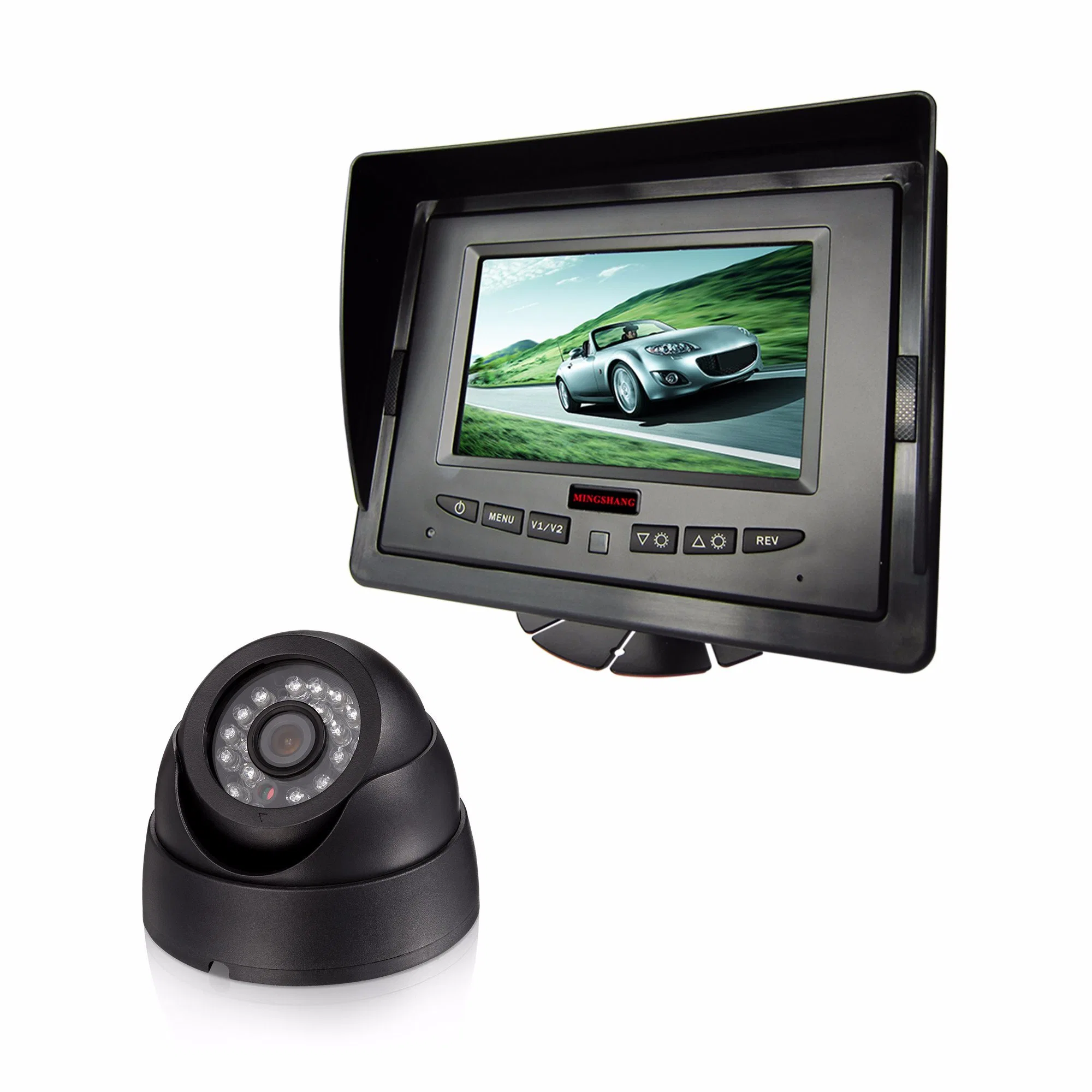

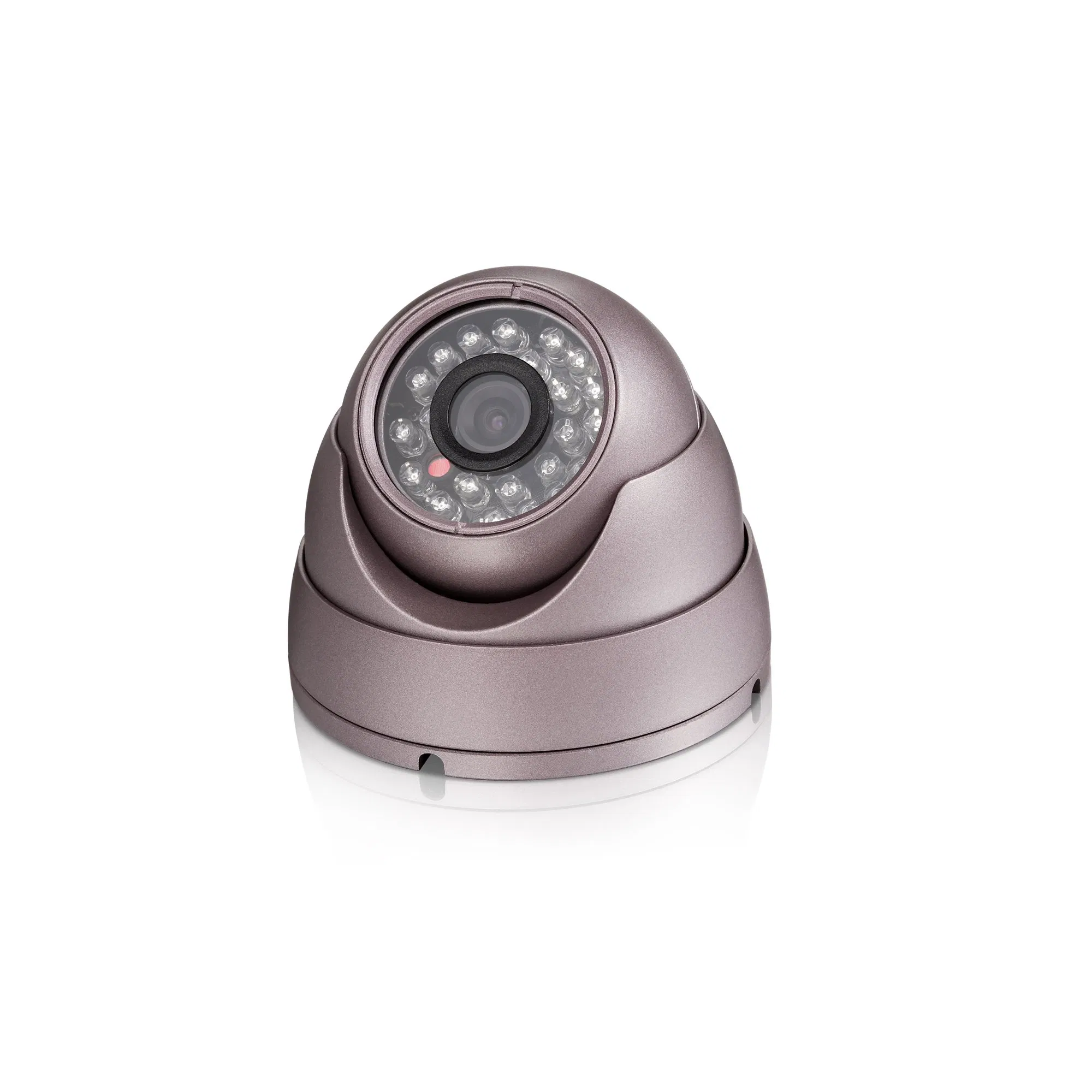

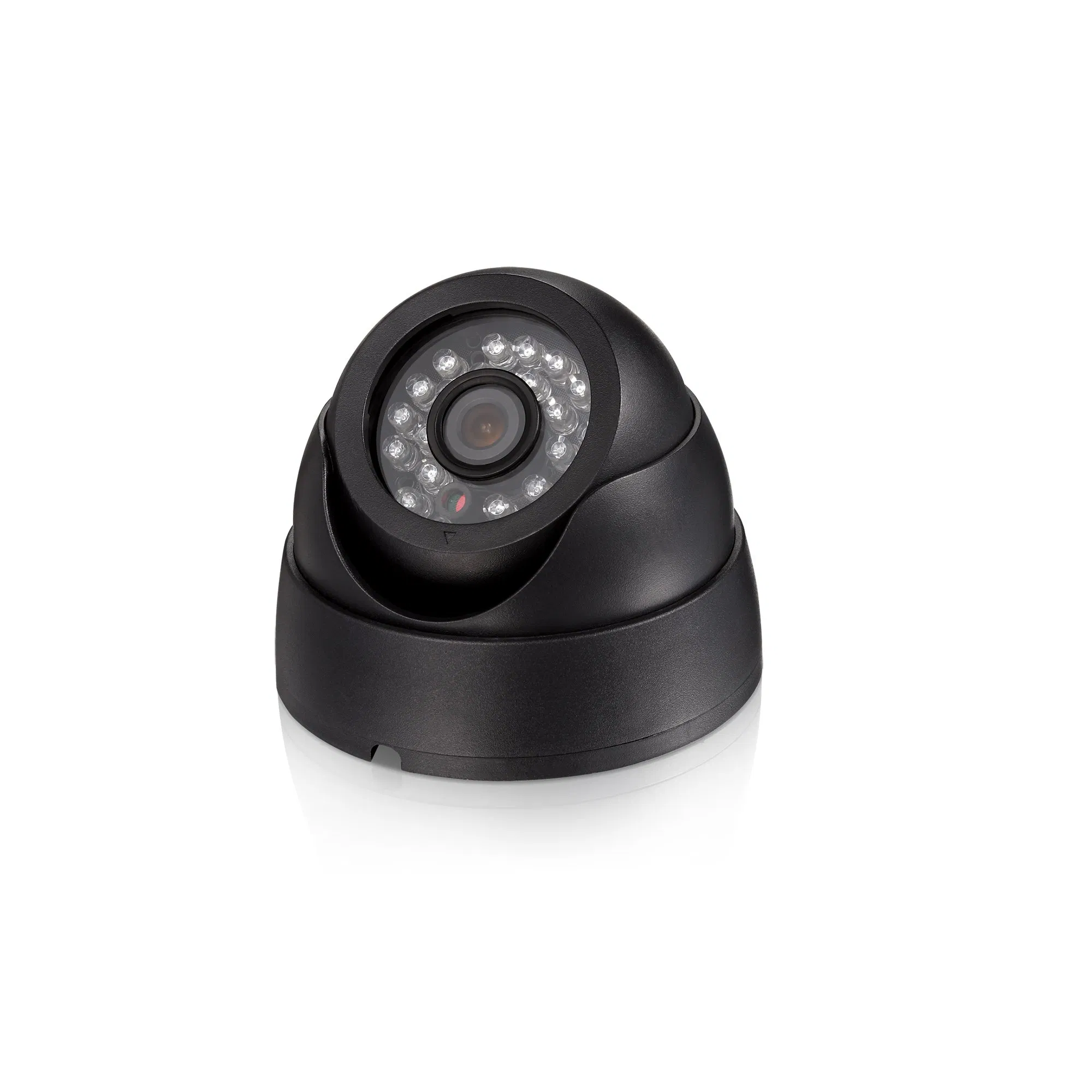

Color CCD Dome Camera with 10m IR Distance, Anti-Vandal Housing

1 / 5

Color CCD Dome Camera with 10m IR Distance, Anti-Vandal Housing

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ️ Basic Information

Model NO.

MS-770

Probe Number

Display Type

Reverse Image

Interface

Air Plug

Definition

600tvl

Chip

CCD

Waterproof Grade

IP69K

Alarming Distance

10m

View Angle

120 Degree

Origin

China

Capacity

50000PCS/Month

📋 Product Description

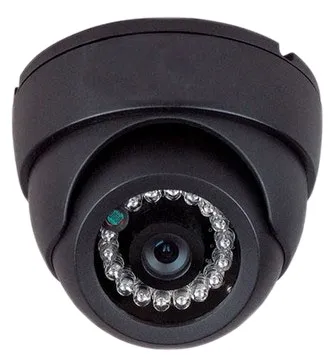

Color CCD Dome Camera with 10m IR Distance, Anti-Vandal Housing

CCD RV camera MS-770 Specifications
1/3 CCD sharp sensor Waterproof Rating: IP69 Pixels: NTSC: (H) 769 x (V) 494 / PAL: (H) 752 x (V) 582 Resolution: 600 TV lines Minimum light: 0.01lux (LED on) S/N ratio: more than 48dB Video output: 1Vp-p 75Ω Voltage: 12V DC (+/-15%) View angle: 120 degrees 24-piece SMD IR LED for excellent night vision Size: L=93mm, H=80mm Net weight: 250g

CCD RV camera MS-770 Specifications

1/3 CCD sharp sensor
Waterproof Rating: IP69
Pixels: NTSC: (H) 769 x (V) 494 / PAL: (H) 752 x (V) 582
Resolution: 600 TV lines
Minimum light: 0.01lux (LED on)
S/N ratio: more than 48dB
Video output: 1Vp-p 75Ω
Voltage: 12V DC (+/-15%)
View angle: 120 degrees
24-piece SMD IR LED for excellent night vision
Size: L=93mm, H=80mm
Net weight: 250g

🖼️ Product Gallery

❓ Frequently Asked Questions

What is the waterproof rating of the MS-770 camera? The camera features a high-grade IP69K waterproof rating, ensuring reliable performance in heavy rain and extreme weather conditions.

How far can the night vision reach? Equipped with 24-piece SMD IR LEDs, the camera provides a clear night vision distance of up to 10 meters.

Does this camera support both NTSC and PAL formats? Yes, it is available in both NTSC and PAL formats to meet different regional television standards and display requirements.

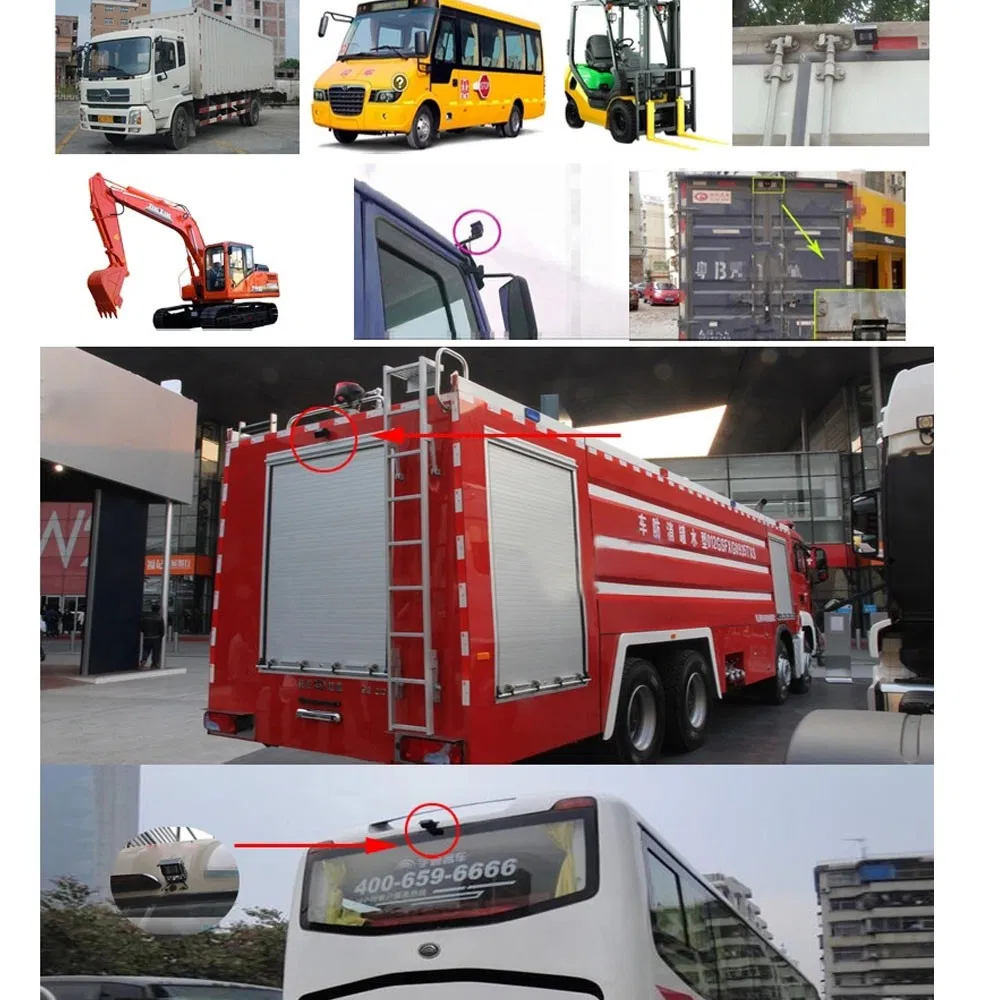

What is the viewing angle of the lens? The camera offers a 120-degree wide-angle view, providing a comprehensive perspective of the vehicle's surroundings.

Is the camera housing durable against impacts? Yes, it is designed with an anti-vandal housing and is built to be shockproof and dustproof, making it ideal for heavy-duty vehicle use.

What type of power supply does it require? The camera operates on a standard 12V DC power supply, which is compatible with most vehicle electrical systems.
