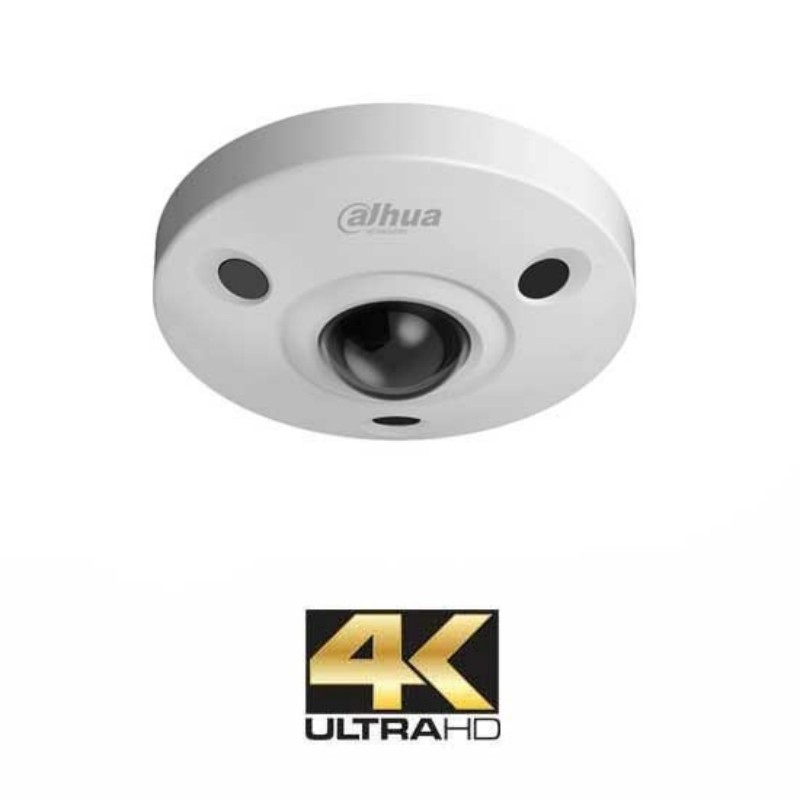

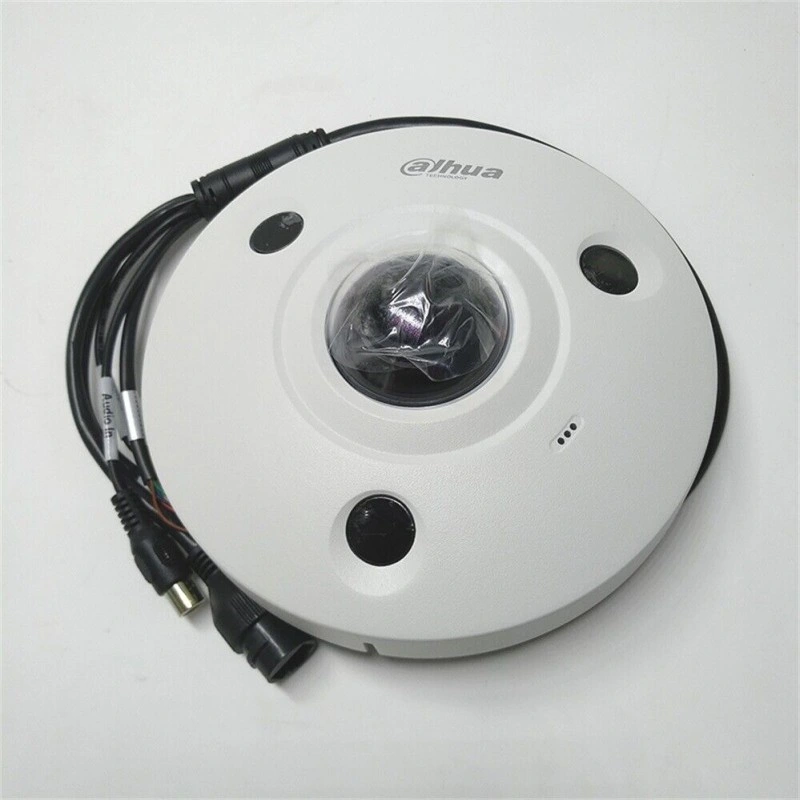

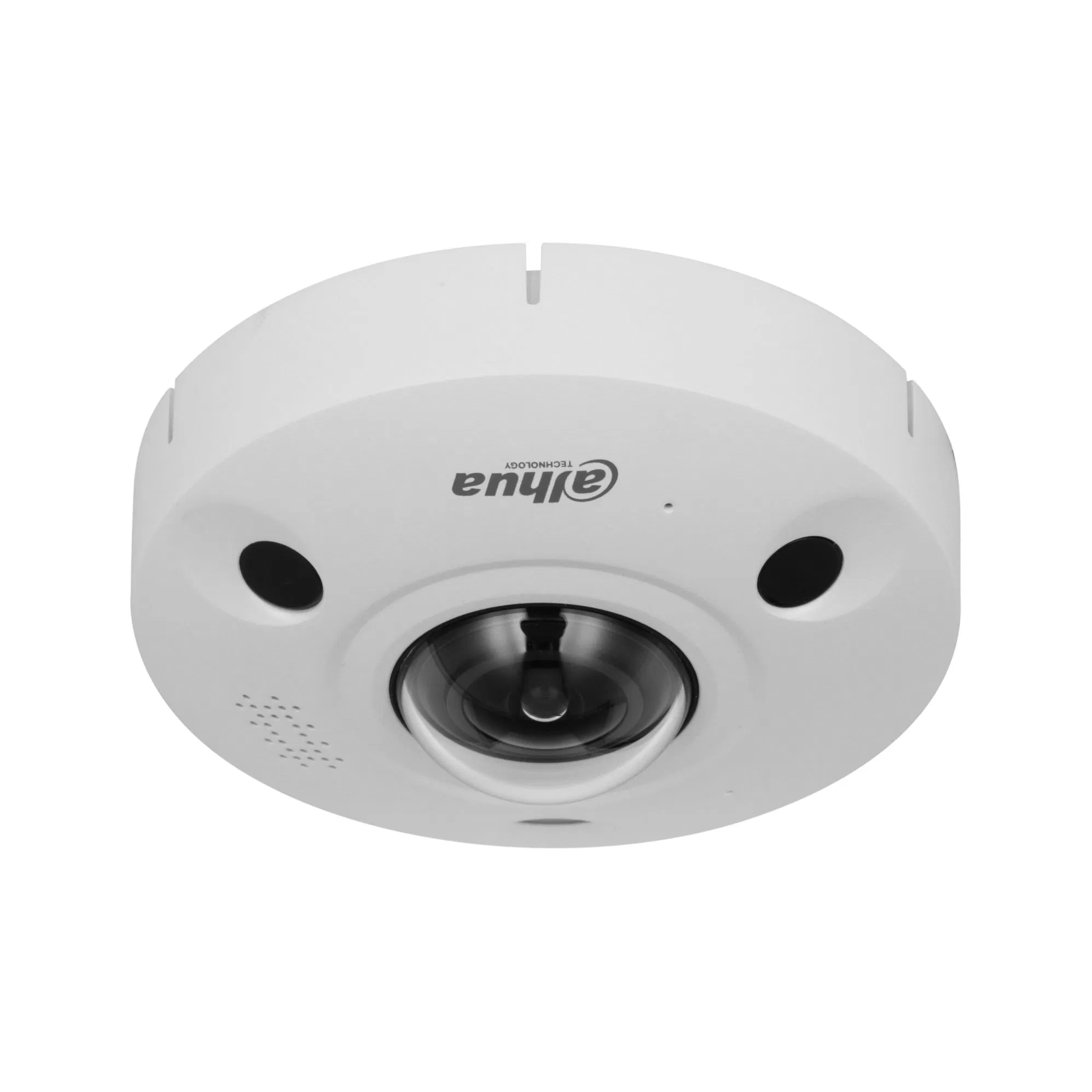

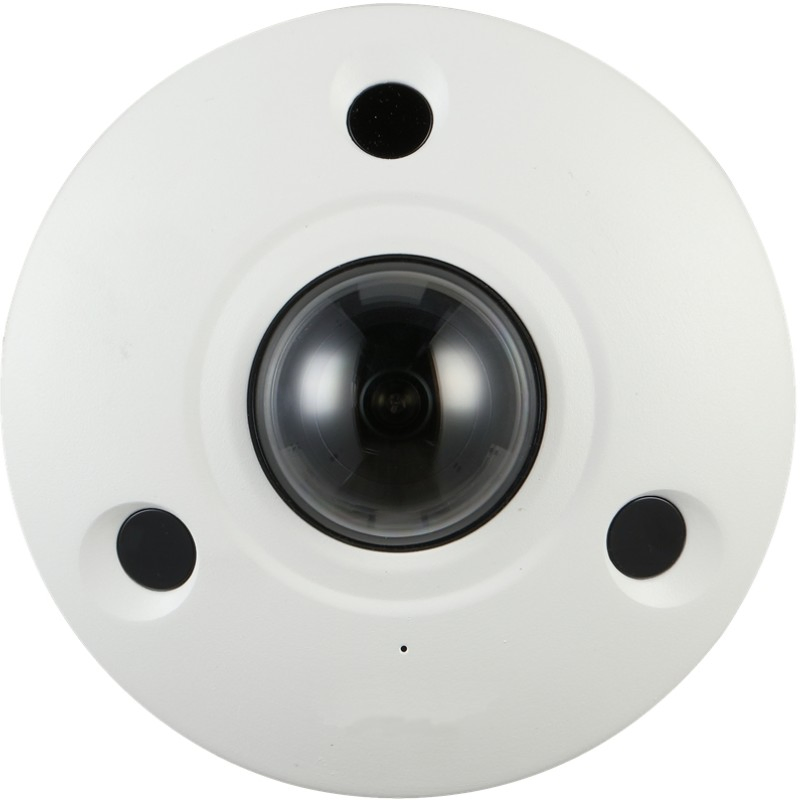

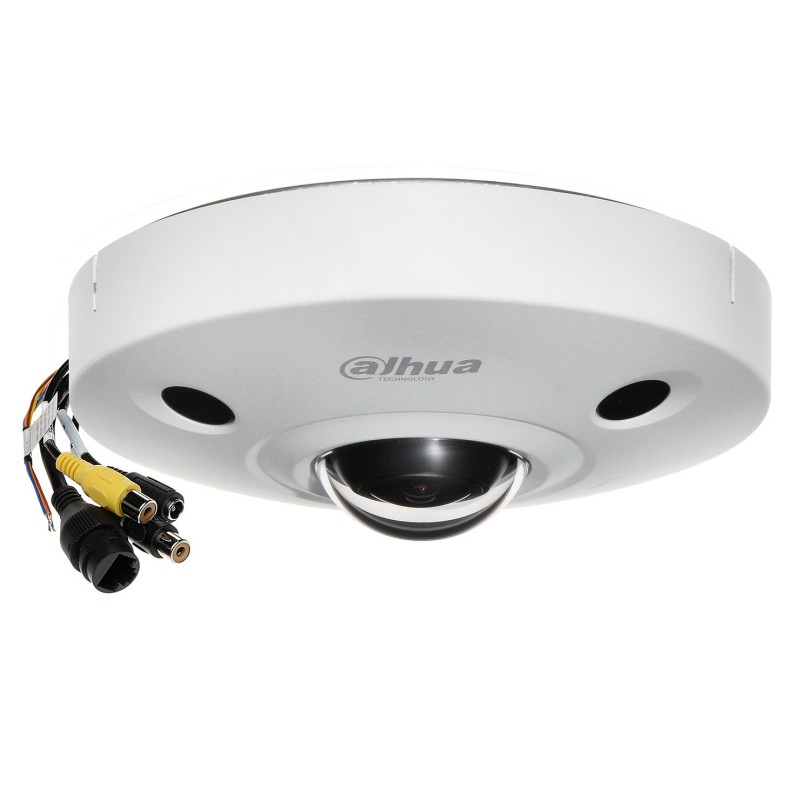

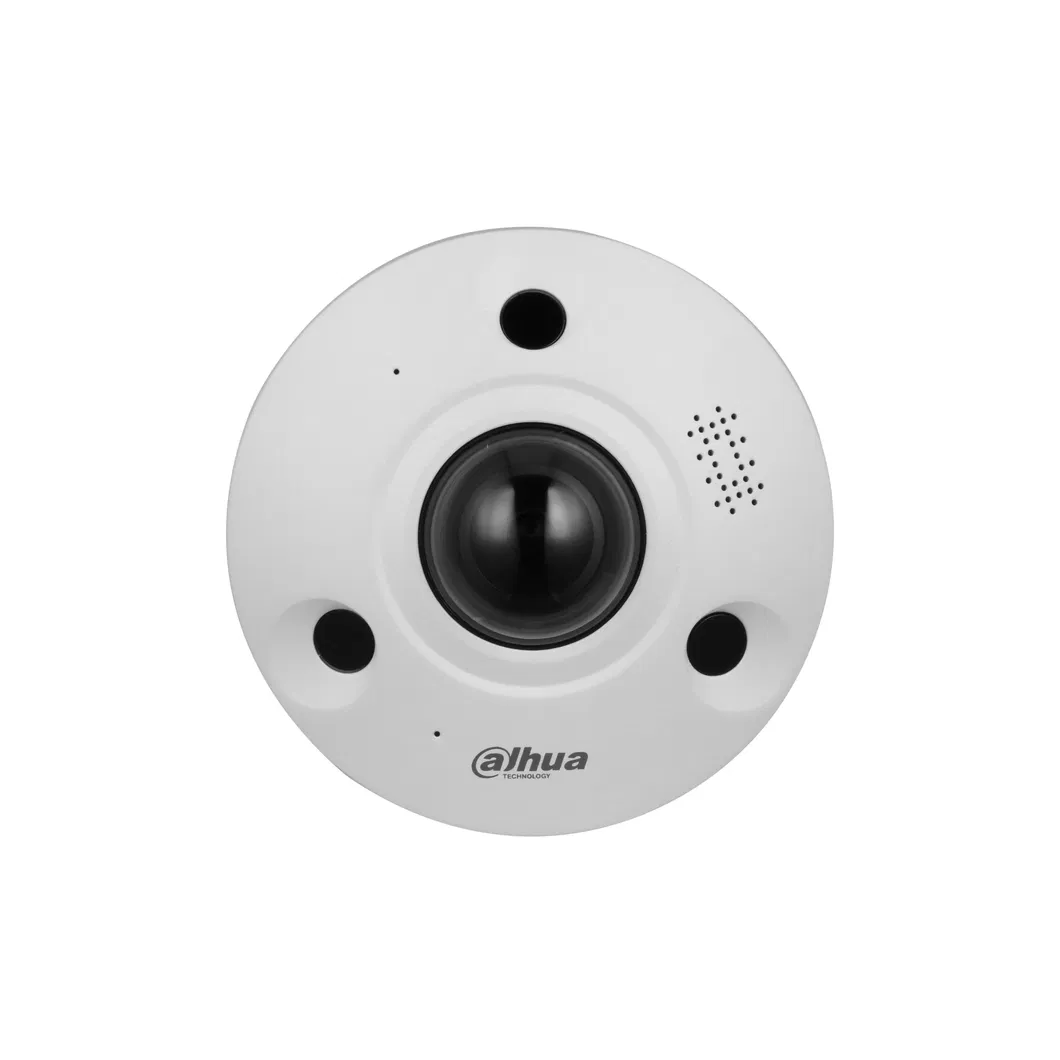

Dahua 12MP 360 Degree Fisheye Ai IP Camera for Commercial Surveillance

Customization:	Available
Technology:	WDR
Style:	Pan/Tilt

◈

Basic Information

Model NO.

IPC-EBW81242

Type

CCTV Camera

Sensor

CMOS

Resolution

12MP

Lens

Autofocus Lens (1.85mm)

Feature

IP67 Waterproof, IK10 Vandal-proof, Smart IR

IR Distance

10m

Sensor Size

1/1.7"

Casing

Metal

◈

Product Highlights

✔1/1.7" 12Megapixel progressive scan STARVIS™ CMOS

✔H.265/H.264 triple-stream encoding

✔Multiple dewarped Modes (360° Panoramic View)

✔Advanced AI: People counting, heat map & queue management

✔Reliable Protection: IP67 and IK10 rated

✔Built-in Dual Microphone for audio monitoring

◈

Performance & Comparison

Key Comparison	Project-Level Fisheye Camera	Standard Solution
Resolution	12MP Ultra HD	5MP / 8MP
Coverage	360° Panoramic (Zero Blind Spots)	Mostly 180°
AI Analytics	People Counting, Heat Map, Queue Management	Basic or None
Protection	IP67 & IK10	Usually IP66

◈

Technical Parameters

Camera & Lens
Image Sensor	1/1.7" 12Megapixel progressive scan CMOS
Effective Pixels	4000(H)x3000(V)
Scanning System	Progressive
Electronic Shutter	Auto/Manual, 1/3~1/100000s
Minimum Illumination	0.001Lux/F2.8 (Color)
Focal Length	1.85mm Fixed
Angle of View	H: 185˚, V: 180˚
Intelligence & Video
Advanced Functions	Heat Map, People Counting, Tripwire, Intrusion
Compression	H.265 / H.264
Resolution Max	12M (4000x3000)
Frame Rate	Main Stream: 12M(1~25fps)
Day/Night	Auto(ICR) / Color / B/W
Environmental & Physical
Casing / Material	Metal
Dimensions	Φ149.8mm × 47.7mm
Net Weight	0.58kg
Ingress Protection	IP67 & IK10

◈

Frequently Asked Questions

Why should I choose a fisheye camera instead of normal cameras?

A traditional solution requires installing 3 to 6 cameras per area, involving complex wiring and blind spots. This fisheye camera provides 360-degree surveillance with zero blind spots, significantly reducing installation and maintenance costs.

How accurate is the people counting function?

The camera utilizes deep learning AI algorithms specialized in human target recognition. It is highly accurate and widely used in airports and shopping malls for both security and business analysis.

Can I use this camera for standard security without the AI analytics?

Yes, the camera functions as a high-performance panoramic security camera. AI features can be enabled or disabled as needed, making it a future-proof investment for your surveillance system.

What is the protection level for outdoor or harsh environments?

This camera is rated IP67 (waterproof/weatherproof) and IK10 (vandal-resistant), with a durable metal casing, making it suitable for high-traffic public areas and outdoor installations.

Is the camera easy to install by myself?

Absolutely. The camera is designed for flexible installation and includes a comprehensive user manual. It supports PoE (Power over Ethernet), which simplifies the wiring process to a single cable.

What kind of after-sales support do you provide?

We offer a three-year warranty and 24-hour technical support. Our technicians are available to assist with any configuration or project difficulty to ensure efficient implementation.
