AxizView Camera
1 / 5

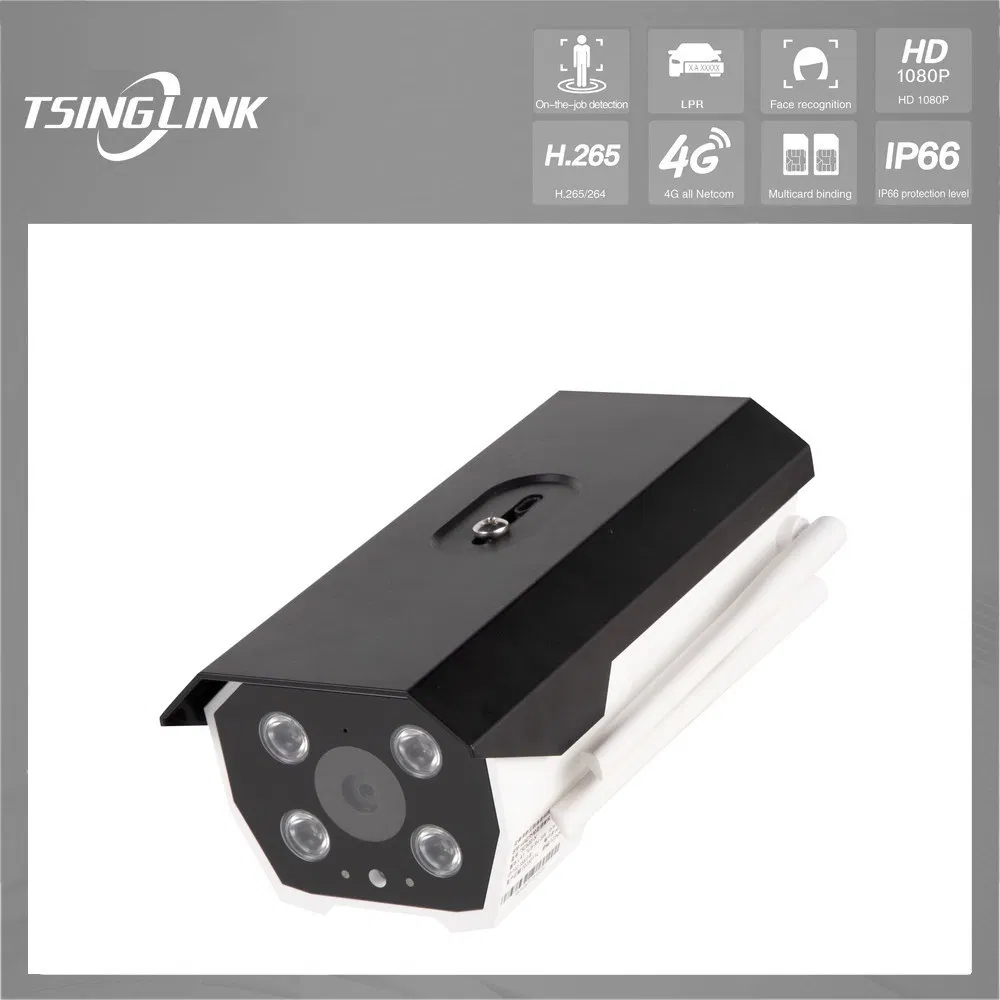

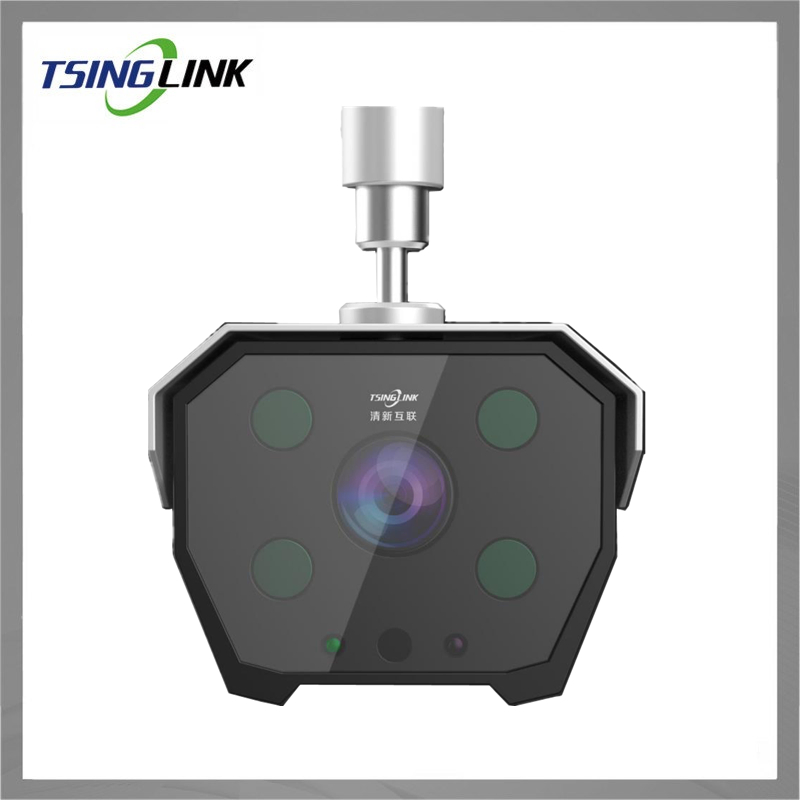

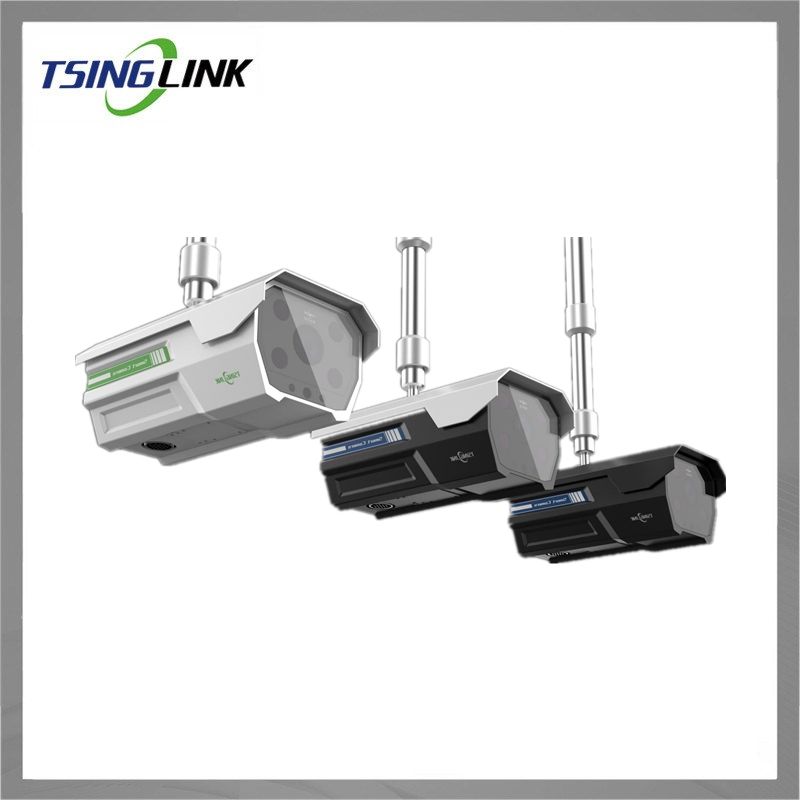

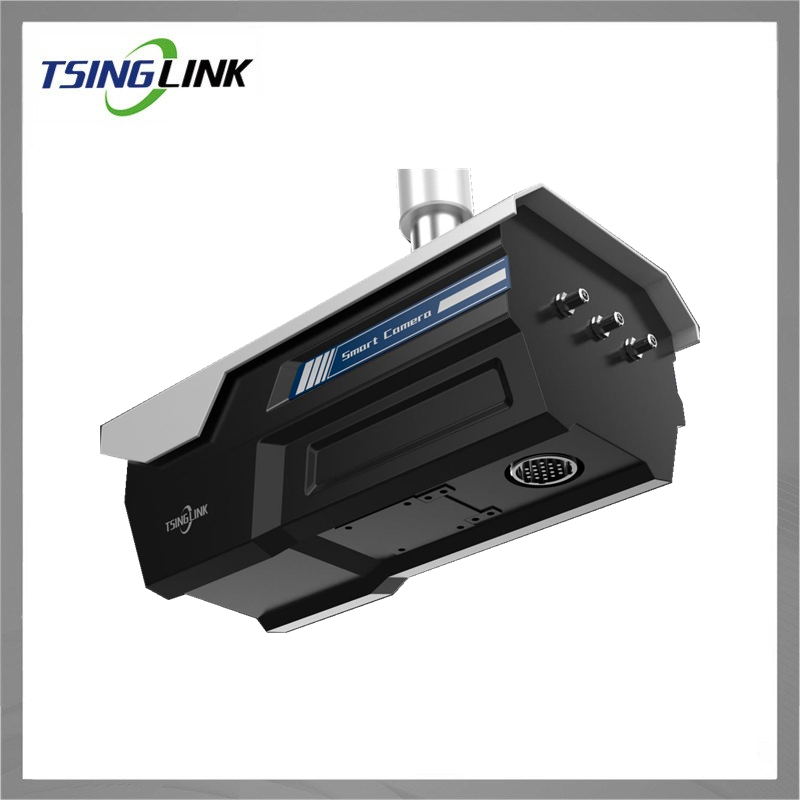

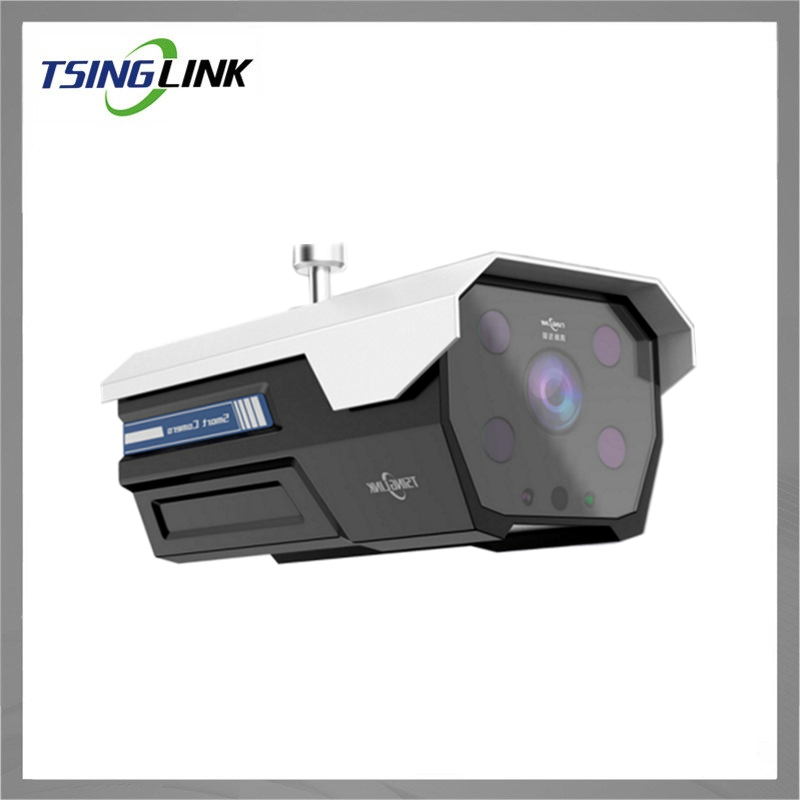

TSC620-N is a powerful black light full color camera, with H.264/H.265 video coding and network transmission, local storage function, optional 5G wireless transmission function. It supports intelligent functions such as license plate recognition, face detection, smoke and fire detection, and human shape tracking. It is widely applicable for airports, subways, parks, schools, and banks.
| Item | Specifications (TSC620-N-1U8) |
|---|---|
| Sensor | 8.0 MP 1/1.2" CMOS |
| Video Encoding | H.265/H.264 |
| Video Resolution | 4K, 2K, 1080P, 720P, VGA |
| Frame Rate | 1~30FPS |
| Bit Rate | 64Kbps~32Mbps |
| Fill-in Light | Support white light filling |
| Audio Input | Built-in pickup & external support |
| Audio Output | Built-in speaker & external support |
| Storage Medium | TF card, up to 1TB |
| Network | 10/100M Ethernet, WiFi 802.11ac, Optional 5G |
| Power Input | 12V DC (8 ~ 36V wide voltage support) |
| Dimensions | 230mm × 145mm × 100mm |
| Protection Level | IP66 Waterproof |
| Working Temp | -40 ºC ~ 70 ºC |
