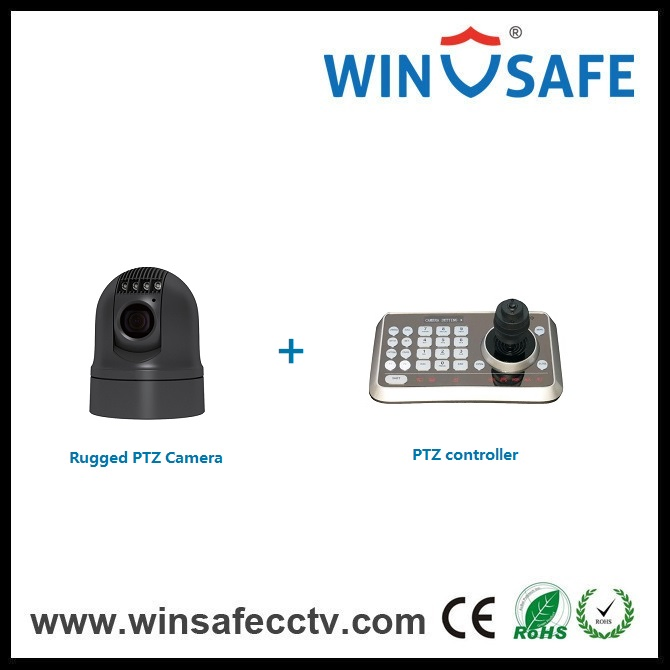

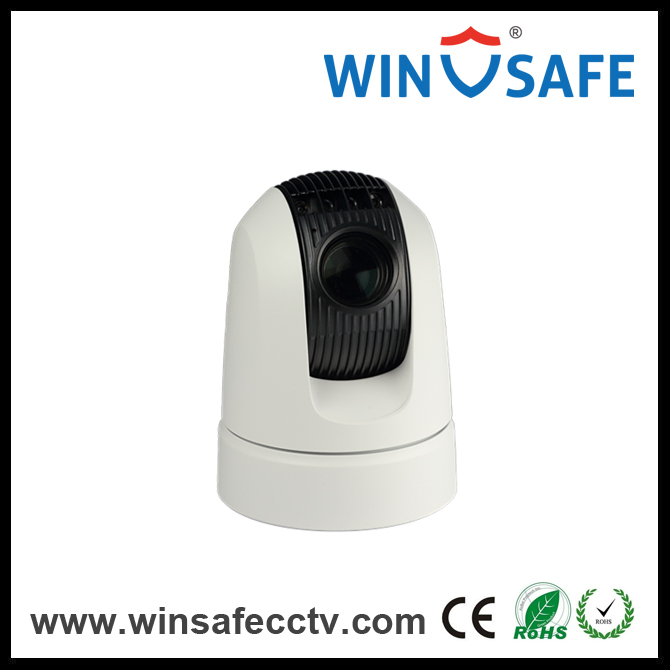

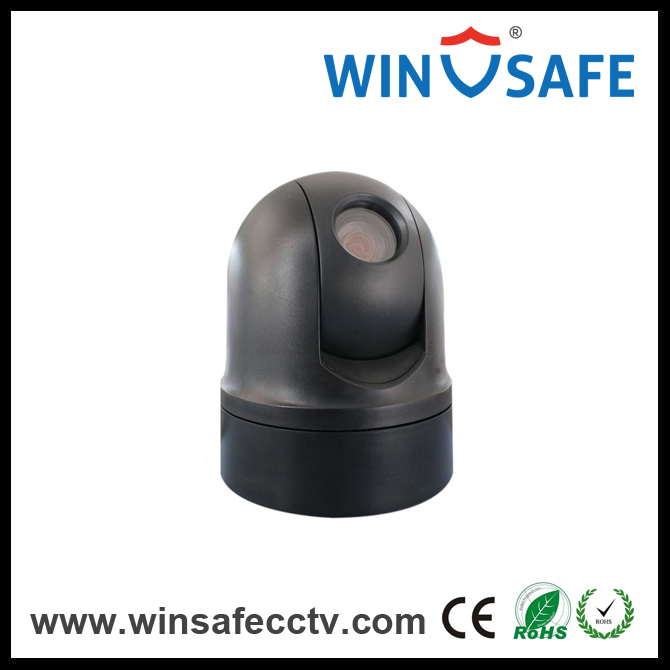

Digital Security Surveillance CCTV PTZ Camera for Car and Ship

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Mini Camera

Send Inquiry

Product Description

Digital Security Surveillance CCTV PTZ Camera

Basic Specifications

Model NO.

WS-VS3600

Type

Car Camera

Sensor

CCD

HDMI Format

1080P

Horizontal Resolution

540tvl

Lens Type

Autofocus Lens

Certification

CE, FCC, RoHS, ISO9001

Protection

Waterproof (IP66), Mini Size

Effective Distance

≧30m

Optical Zoom

36X

Digital Zoom

12X

WDR

Supported

Pan/Tilt Presets

100 Positions

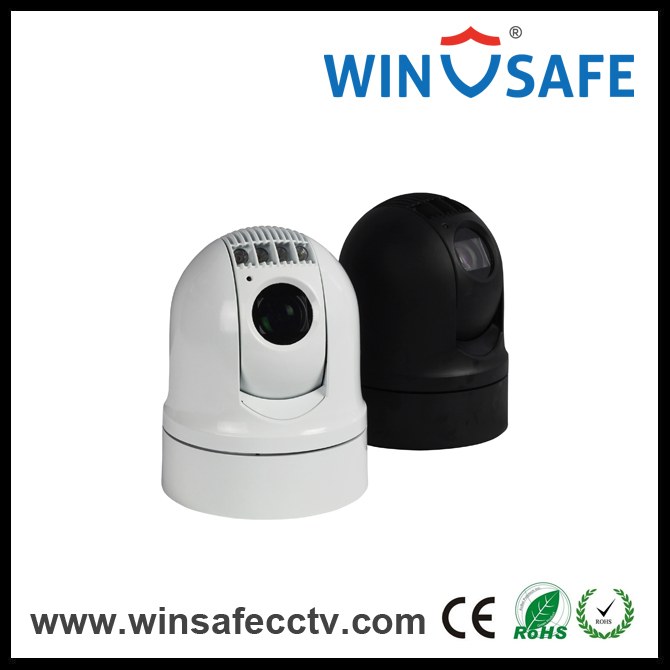

Color Options

White/Black/Army

Key Features & Highlights

🛡️ Full weather proof, anti-vibration, IP66 protection

🔄 Continuous 360° Pan, 90° Tilt

🔍 Auto focus, White Balance, BLC

⚡ Car cigar Lighter supported

🧲 Magnets for car roof mounting

📸 Image flip function & Multi-scan modes

Technical Parameters

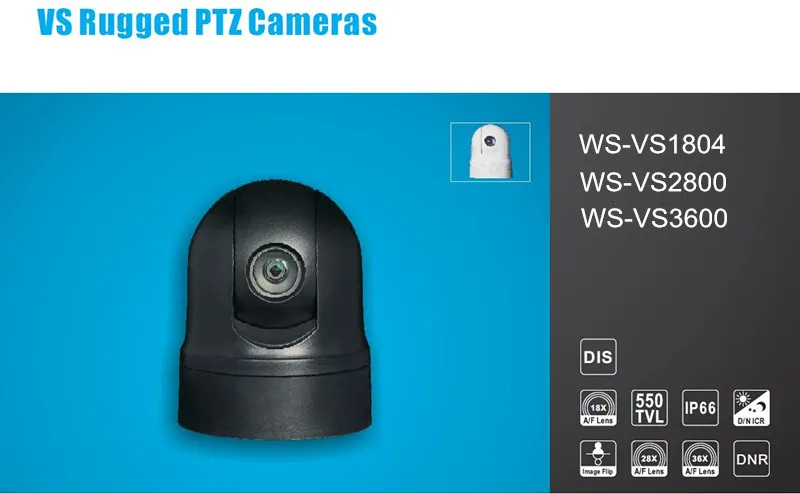

Model	WS-VS3600	WS-VS2800	WS-VS1804
Image Sensor	1/4" SONY EX-View HAD CCD
Resolution	550TVL
WDR	Yes	No	Yes
Min. Illumination	0.01Lux	0.0015Lux	0.01Lux
Lens Spec	f=3.4-122.4mm	f=3.5-98mm	f=4.1-73.8mm
Optical Zoom	36X	28X	18X
Digital Zoom	12X
Pan/Tilt Range	Pan: 0°~360° continuous; Tilt: -15°~90°
Working Temp	-45°C ~ +55°C
Voltage	DC12V +/- 0.5V

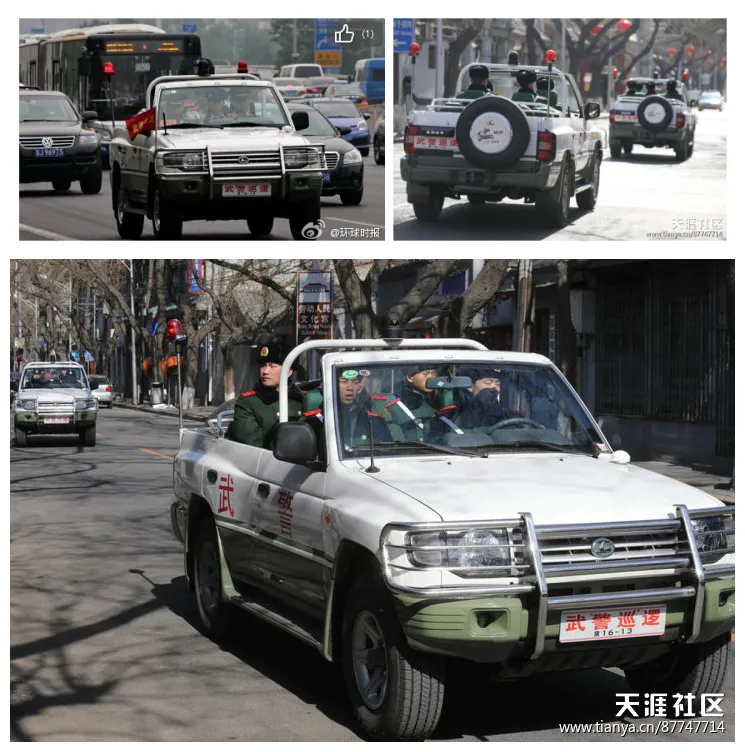

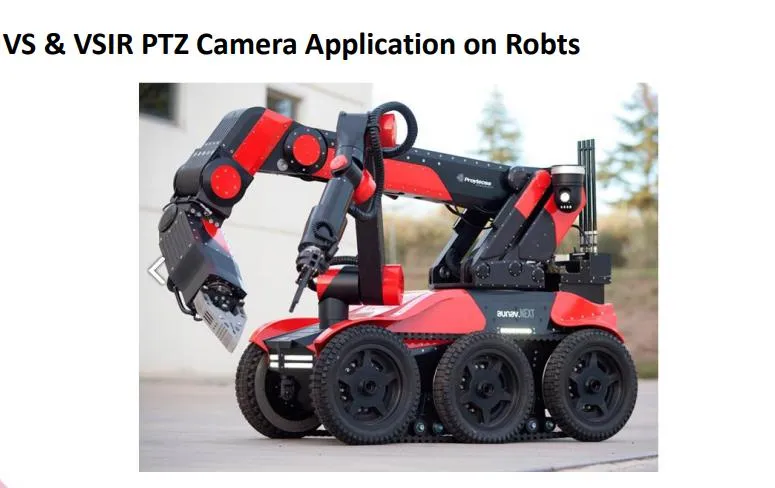

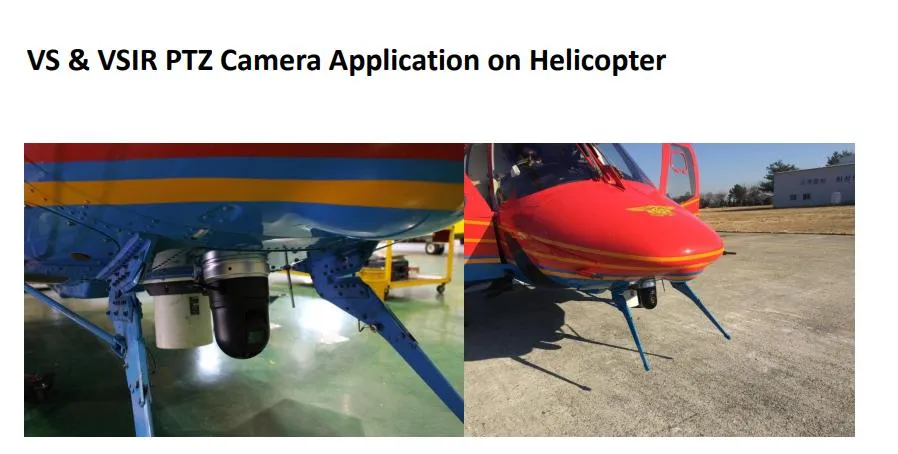

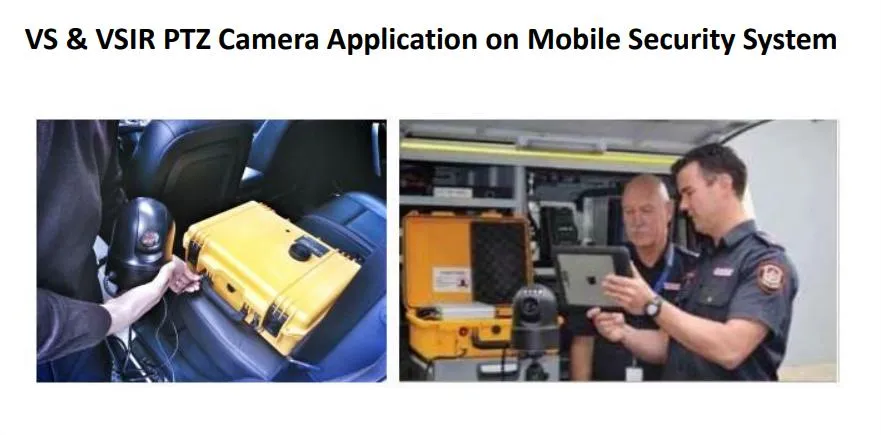

Applications & Installation

Frequently Asked Questions

Is the camera suitable for extreme weather conditions?

Yes, the camera is designed with IP66 protection, making it fully weatherproof. It can operate in temperatures ranging from -45°C to +55°C.

How is the camera mounted onto a vehicle?

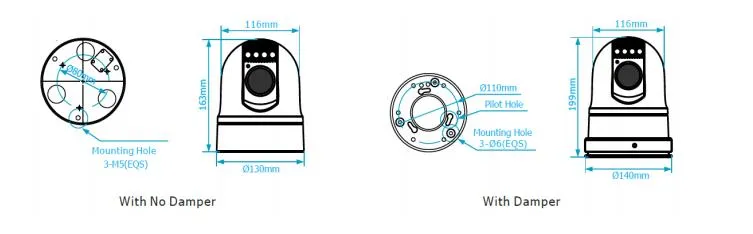

The system features powerful magnets designed for secure mounting on a car roof, and it also supports an optional damping system for stabilization.

What is the rotation range of the PTZ function?

The camera offers continuous 360° pan rotation and a tilt range from -15° to 90°, with auto-flip functionality.

What kind of zoom capabilities does this model have?

The WS-VS3600 model provides high-performance 36X optical zoom combined with 12X digital zoom for detailed long-distance monitoring.

Can it be powered directly from a vehicle?

Yes, the camera is compatible with car cigar lighter power sources and operates on a standard DC12V input.

Does the camera support low-light environments?

Yes, it features a SONY EX-View HAD CCD sensor with a minimum illumination of up to 0.0015Lux (model dependent) and supports WDR (Wide Dynamic Range).
