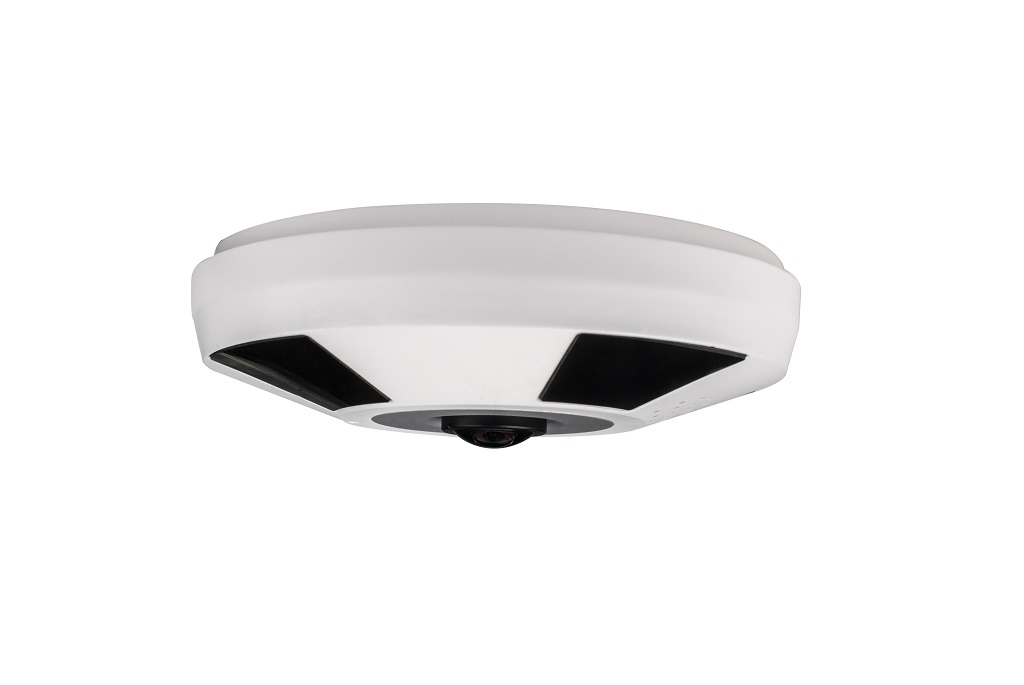

Fsan 12MP Starlight Smart IR Infrared Night Vision 360 Degree Panoramic View Fisheye Home Security System Outdoor IP Poe Network HD Surveillance CCTV Camera

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
W9131IHBB79A
Type
Wide-Angle
Sensor
CMOS
HDMI Format
12MP
Kind
Fisheye Lens
Certification
CE, FCC, RoHS
Effective Distance
10-30m
Waterproof
IP66
Sensor Size
1/2.7 Inch
Feature
Waterproof, High Definition, Vandal-proof
📷 Product Overview
12MP Starlight Smart IR Infrared Night Vision 360 Degree Panoramic View Fisheye Home Security System Outdoor IP Poe Network HD Surveillance CCTV Camera
12MP Fisheye Camera Overview
🚀 Key Features
  • Max resolution 12Mega (4000*3000 @ 20fps)
  • Support low bit rate, low delay and ROI enhance encoding
  • H.265 high effective compression, save bandwidth and storage space
  • High efficient infrared LEDs, IR distance can reach 10-15m
  • Support smart IR, prevent IR overexposure at night
  • ICR infrared filter plate automatic switch for D/N monitoring
  • Support PoE (optional) and Micro SD Card (128G) local storage
  • Support 3D digital N/R, DWDR and bidirectional talkback
  • Support 2CH Alarm input / 1CH Alarm output
  • Support HTTPS encryption transmission for security
🛠 Specifications
Parameter Detail
CAMERA
Image sensor1/1.7" 12 Mega Progressive Scan CMOS
Min.illumination0Lux(IR ON); Color: 0.1Lux/F1.4
IR distance10-15M (4*IR array IR leds)
Electronic shutterAuto/ Manual(1/25~1/10000)
LensFisheye lens (M12 Interface)
WDRDWDR (Off/ Low/ Middle/ High)
AUDIO/VIDEO ENCODING
Video compressionH.265 / H.264
Max. Resolution4000 * 3000
Video bit rate32kbps ~ 16Mbps
Audio compressionG.711u (64Kbps)
NETWORK
ProtocolTCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, FTP
BrowserSupport IE, Chrome, Firefox, Safari
Safe modeAuthorized user/password, HTTPS & AES encryption
INTERFACE
NetworkRJ45 10M/100M adaptive
TF cardSupport Max 128G Micro SD
Power supplyAV24V/DC12V/POE optional
📐 Dimensions

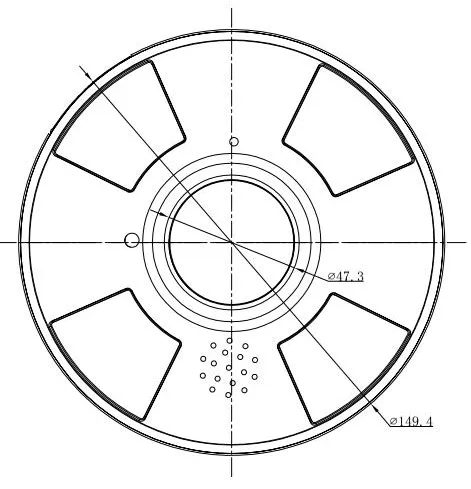

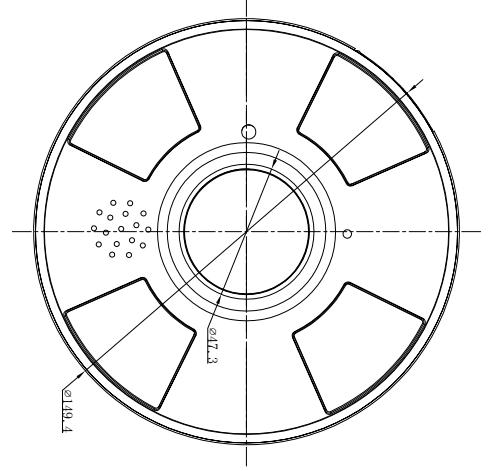

Camera Dimension 1

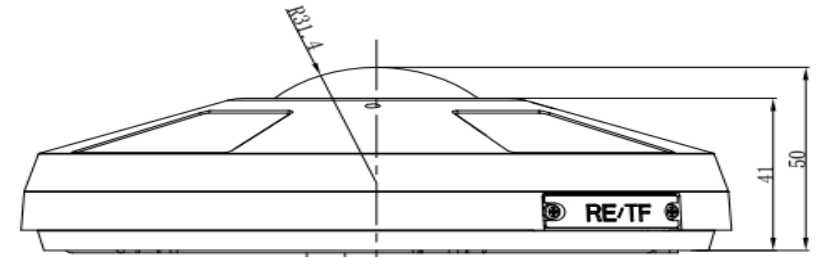

Camera Dimension 2
🔌 Interface Details

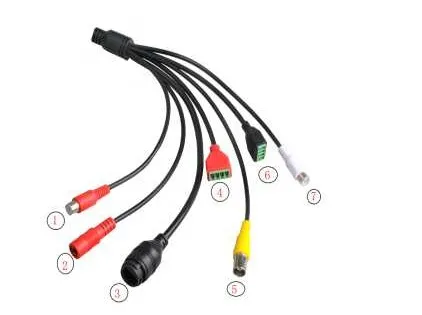

Interface Diagram
  1. Audio input
  2. Power supply input
  3. Network interface
  4. Alarm input/output
  5. Analog video output
  6. RS485
  7. Audio output
🖼 Product Gallery

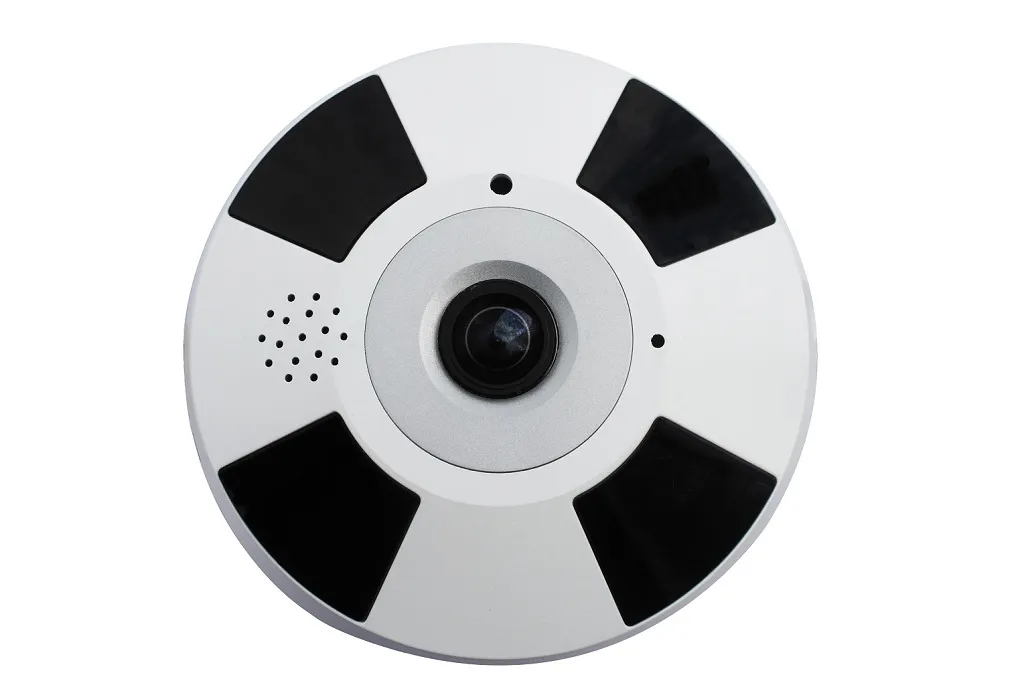

Product View 1

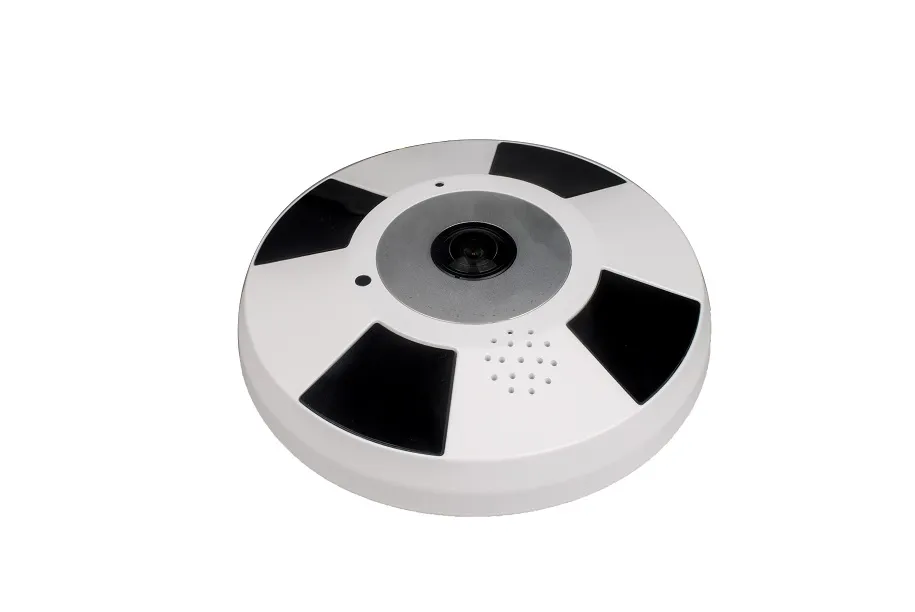

Product View 2
Product View 3

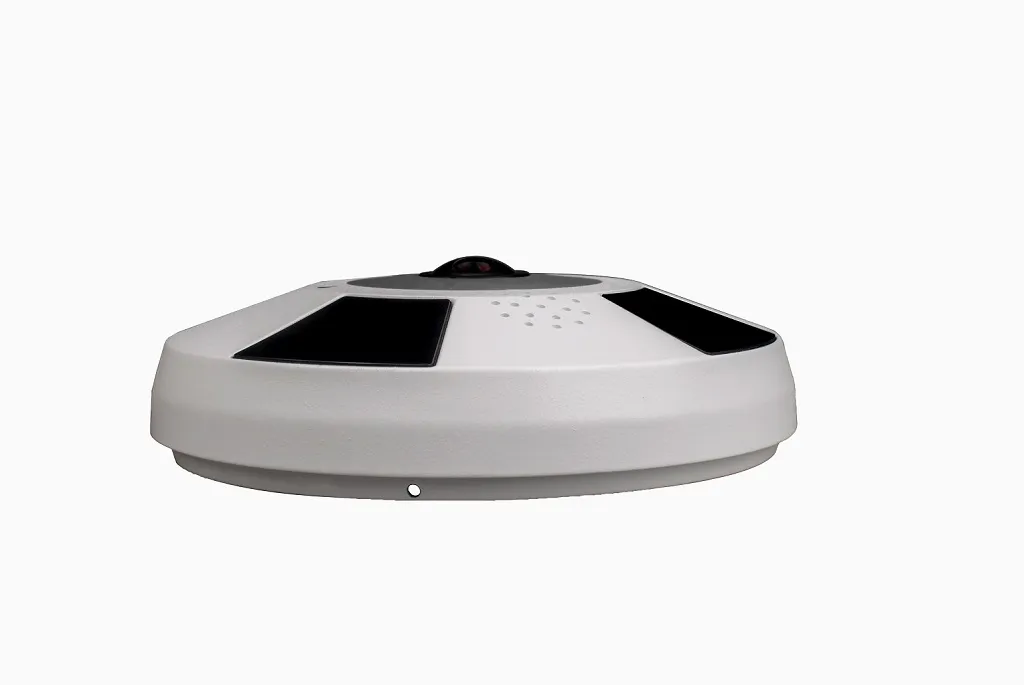

Product View 4
📜 Certifications
Certification 1
Certification 2
📦 Shipping & Delivery
Shipping Information
Frequently Asked Questions
Q1: Is sample order supported for testing? Yes, we support sample orders for customers to test quality and functionality before placing bulk orders.
Q2: What is the typical lead time for orders? Sample orders usually take 3-5 days. For bulk orders, the lead time is negotiable based on the quantity and requirements.
Q3: Do you have a Minimum Order Quantity (MOQ)? There is no MOQ for standard sample orders. MOQ only applies to customized requirements like logo printing or special packaging.
Q4: How are the products shipped? Samples are usually shipped via DHL, FedEx, UPS, or TNT. Bulk orders can be shipped by air, sea, or train via your appointed forwarder.
Q5: What is the warranty period for this camera? We provide a 2-year warranty on our products along with online technical support to solve any issues.
Q6: Do you offer OEM/ODM services? Yes, as a professional manufacturer, we support customized logo printing, customized packaging, and GUI language modifications.
