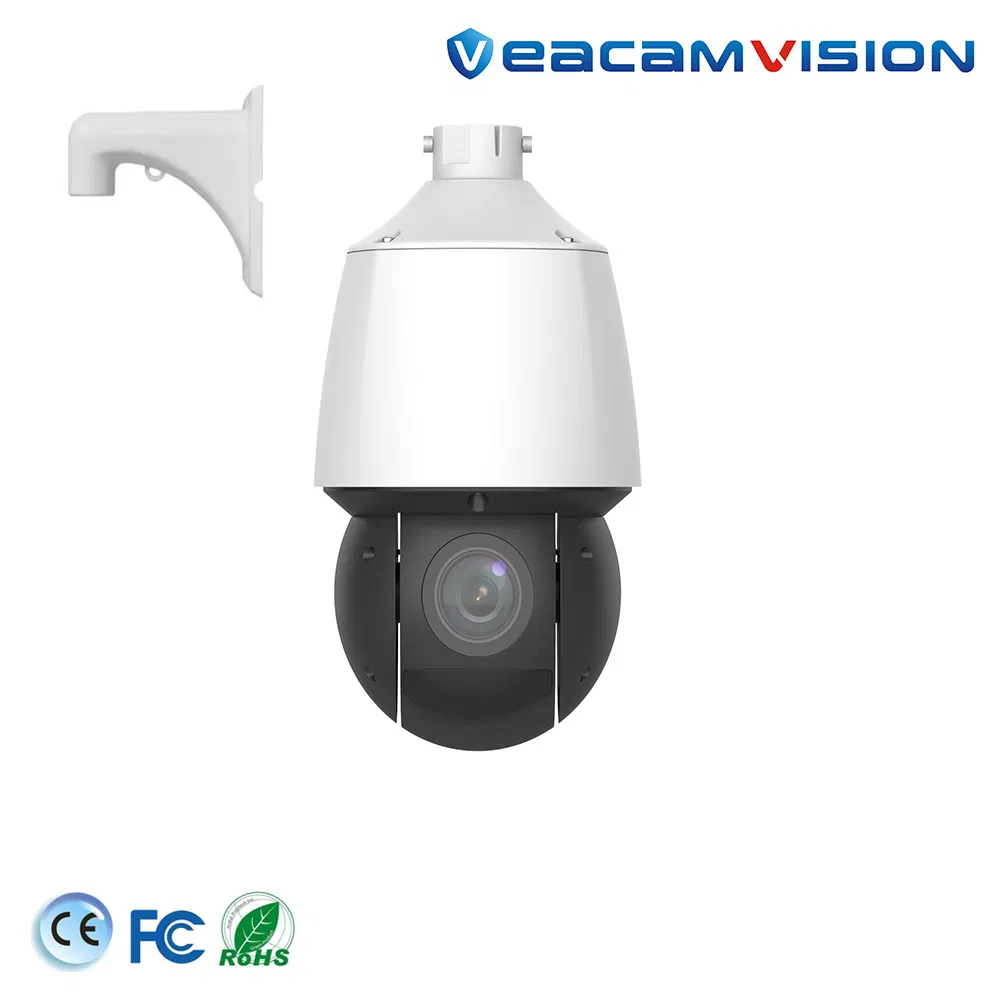

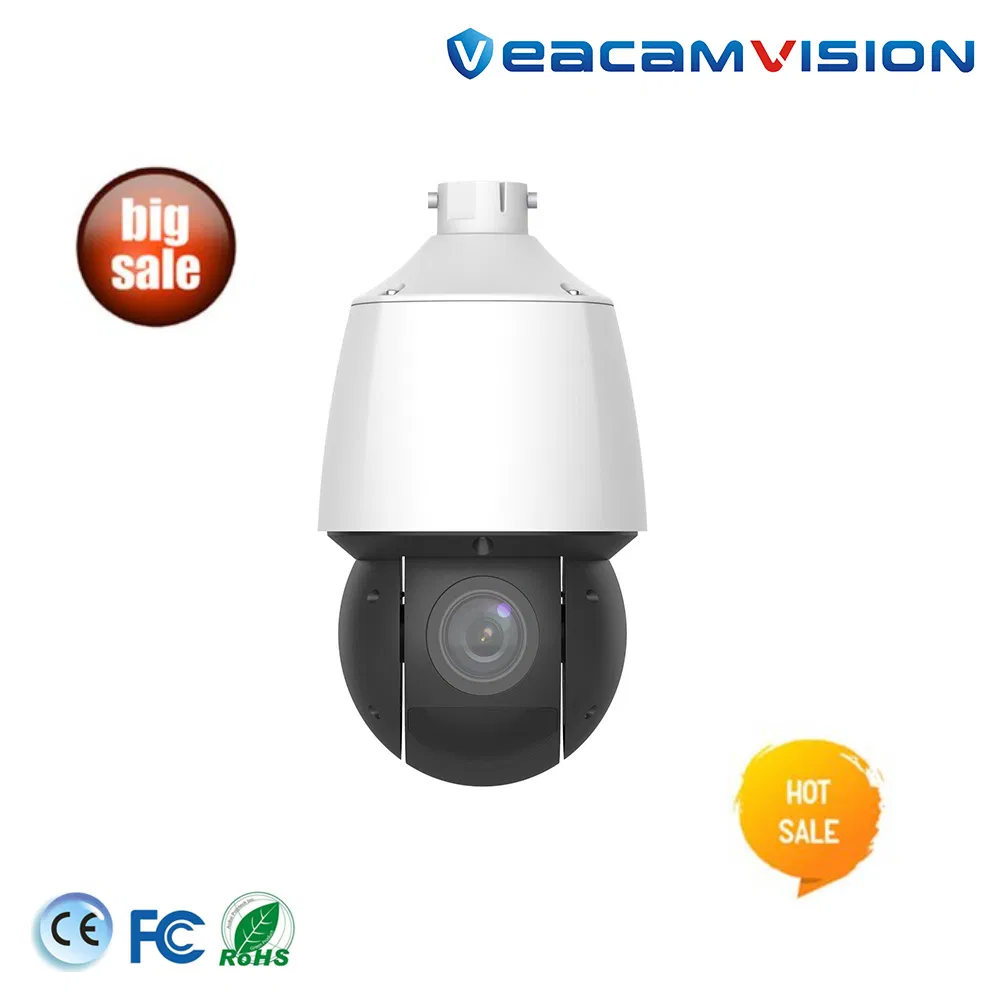

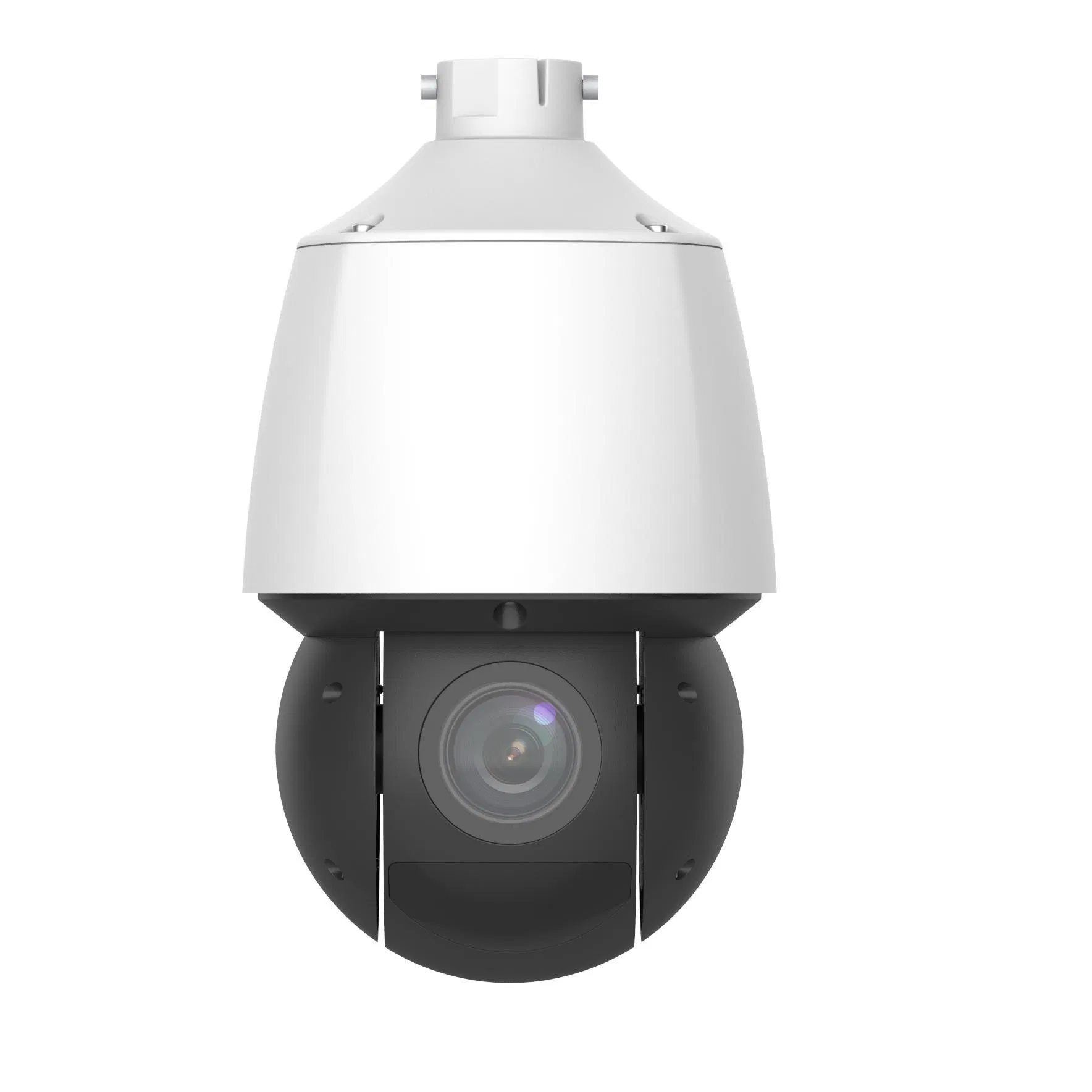

Experience high-quality surveillance with the 4MP 25x Lighthunter Network PTZ Dome Camera. Designed for professional security, it delivers stunning images even in ultra-low illumination environments.
| Model | WVCPTZBT25X4 |
|---|---|
| Sensor Type | 1/3 inch CMOS |
| Resolution | 4MP (High Definition) |
| Lens | 25X Autofocus Lens |
| IR Range | 100m |
| Protection | IP67 Waterproof / IK10 Vandal-proof |

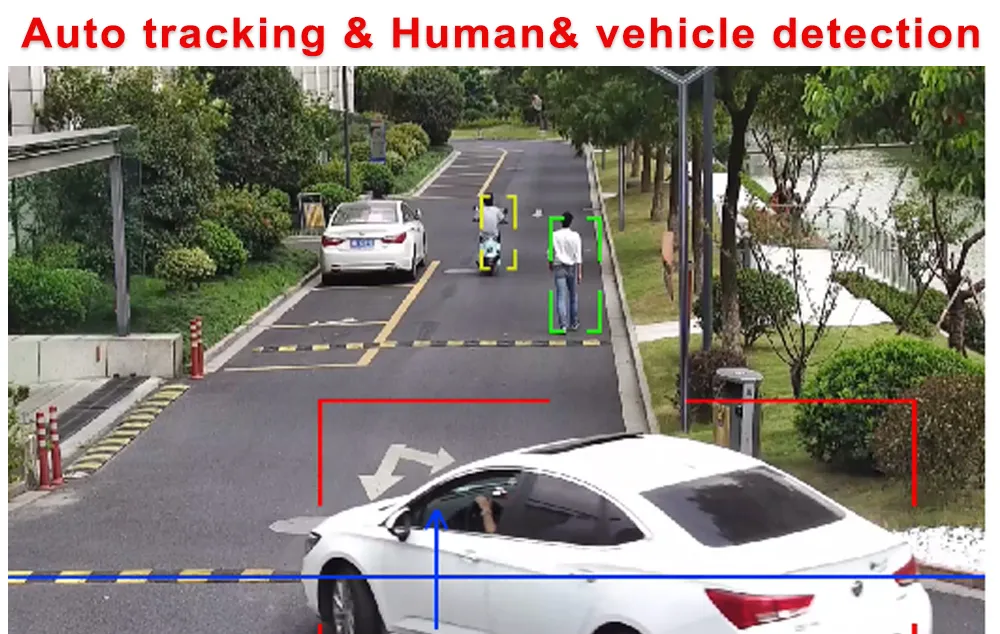

| Smart Features | Intrusion Prevention, Face Capture, Cross Line |
| Camera & Lens | |

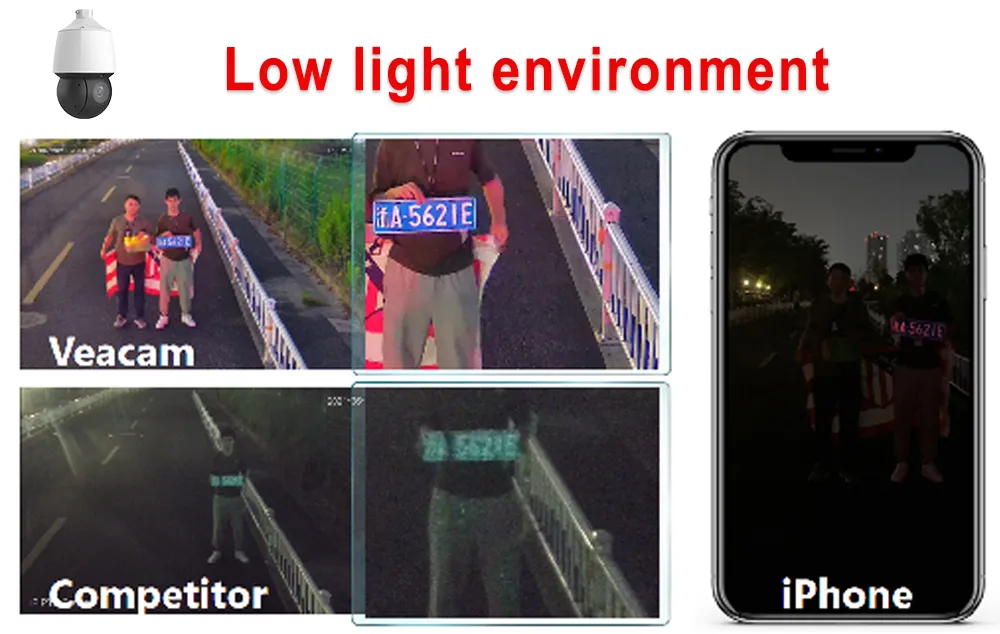

| Min. Illumination | Colour: 0.003 Lux (F1.5, AGC ON); 0 Lux with IR |
| Shutter | Auto/Manual, 1 ~ 1/100000s |

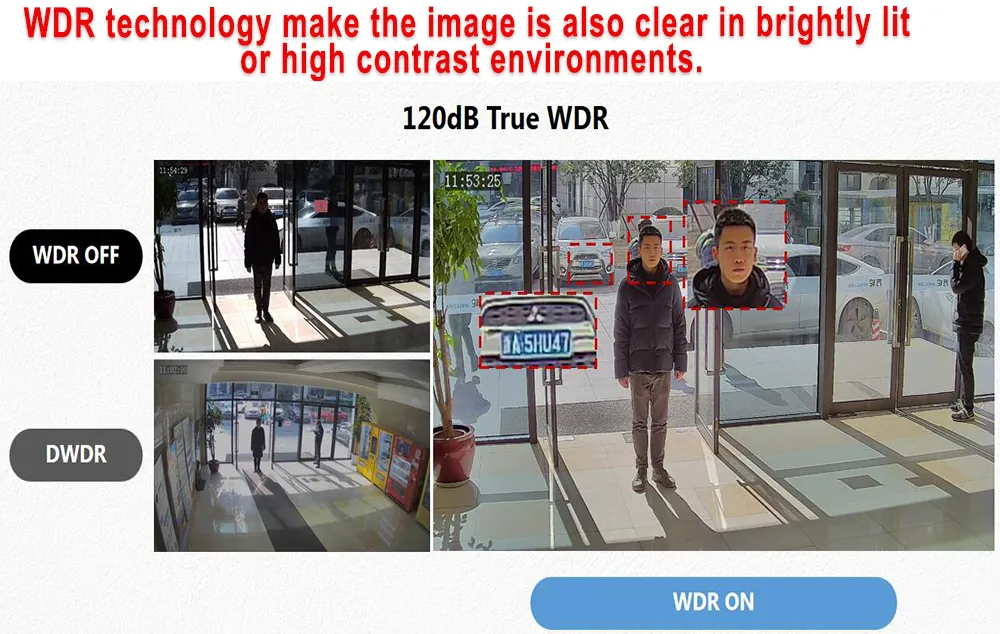

| WDR | 120dB |
| Optical Zoom | 25X |
| Digital Zoom | 16X |
| Angle of View (H) | 52.20° ~ 2.74° |
| Video & Audio | |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 4MP(2688*1520), Max 30fps |
| Audio | Two-way Audio supported; G.711U, G.711A |
| Network & Storage | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, etc. |
| Storage | Micro SD slot, up to 256 GB; NAS (NFS) |
| Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| General | |
| Power | DC 12V±25% or PoE+ (IEEE 802.3at); Max 21W |
| Operating Temp | -40ºC ~ 70ºC (-40°F ~ 158°F) |

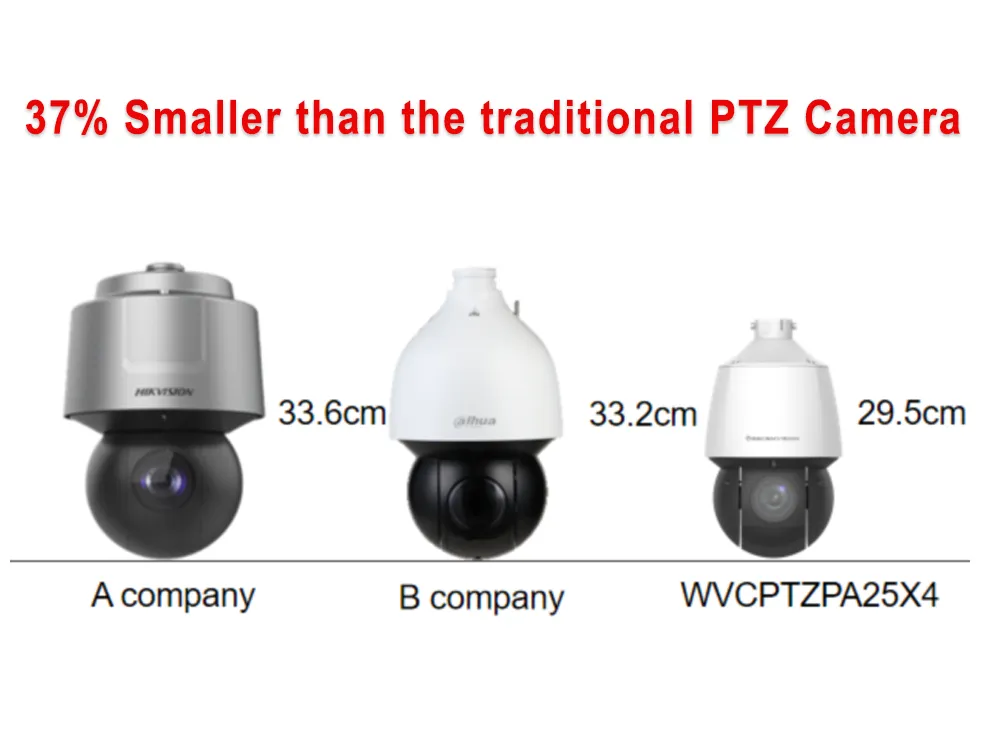

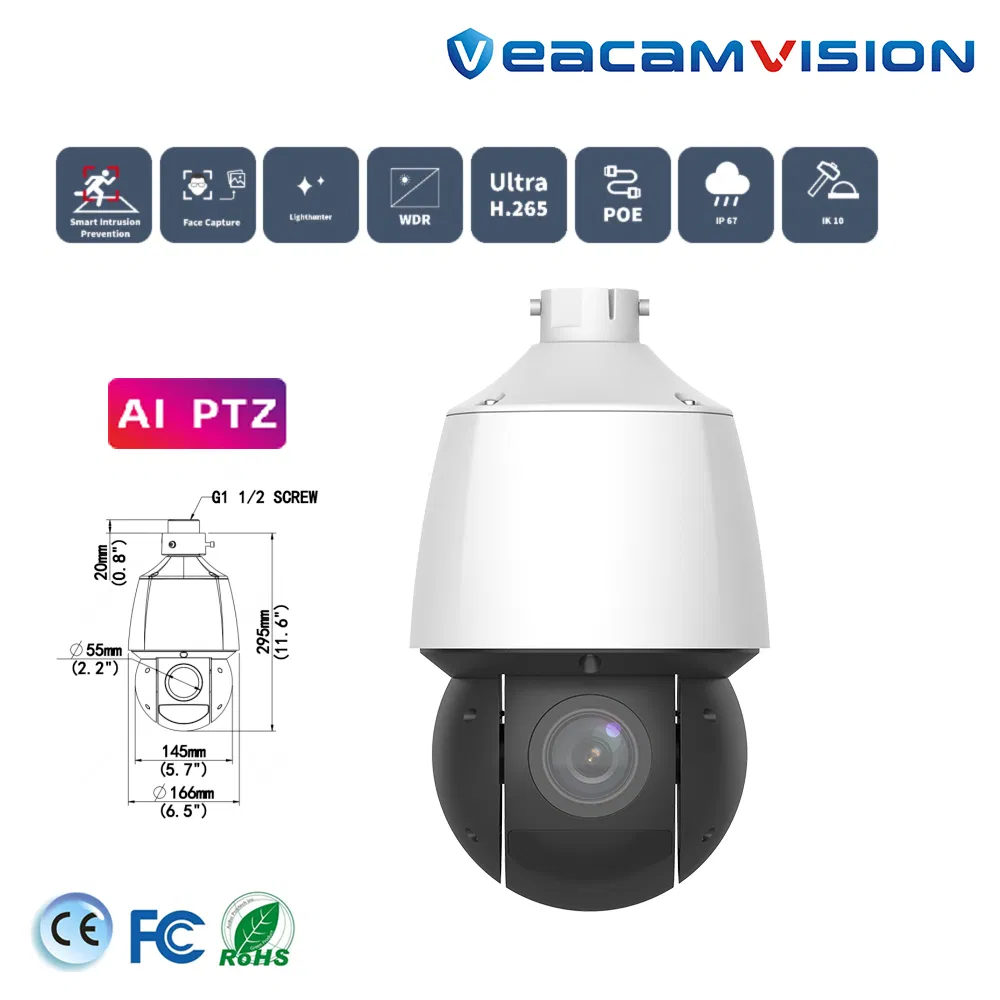

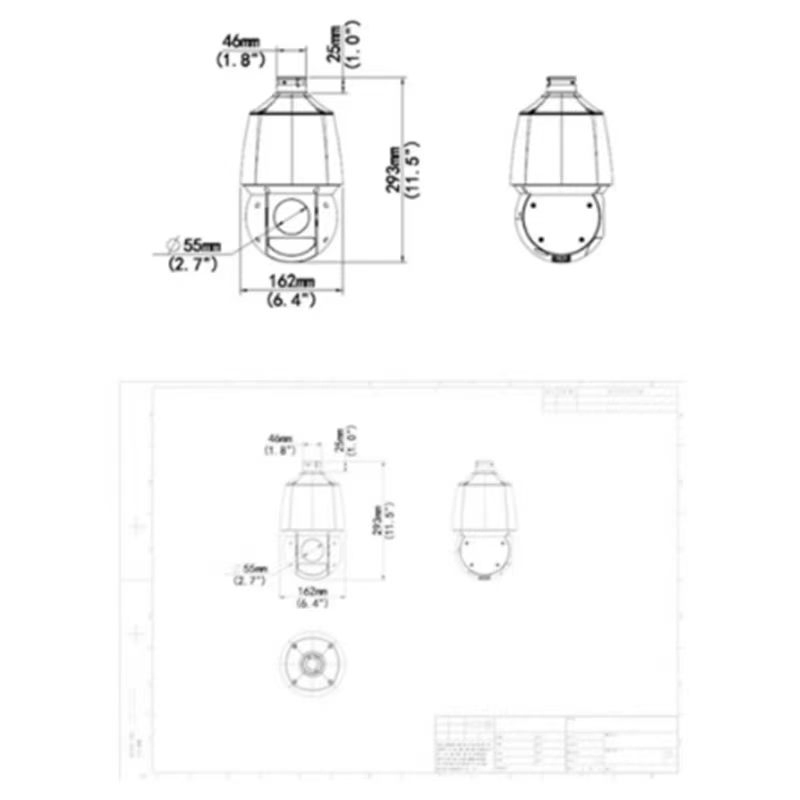

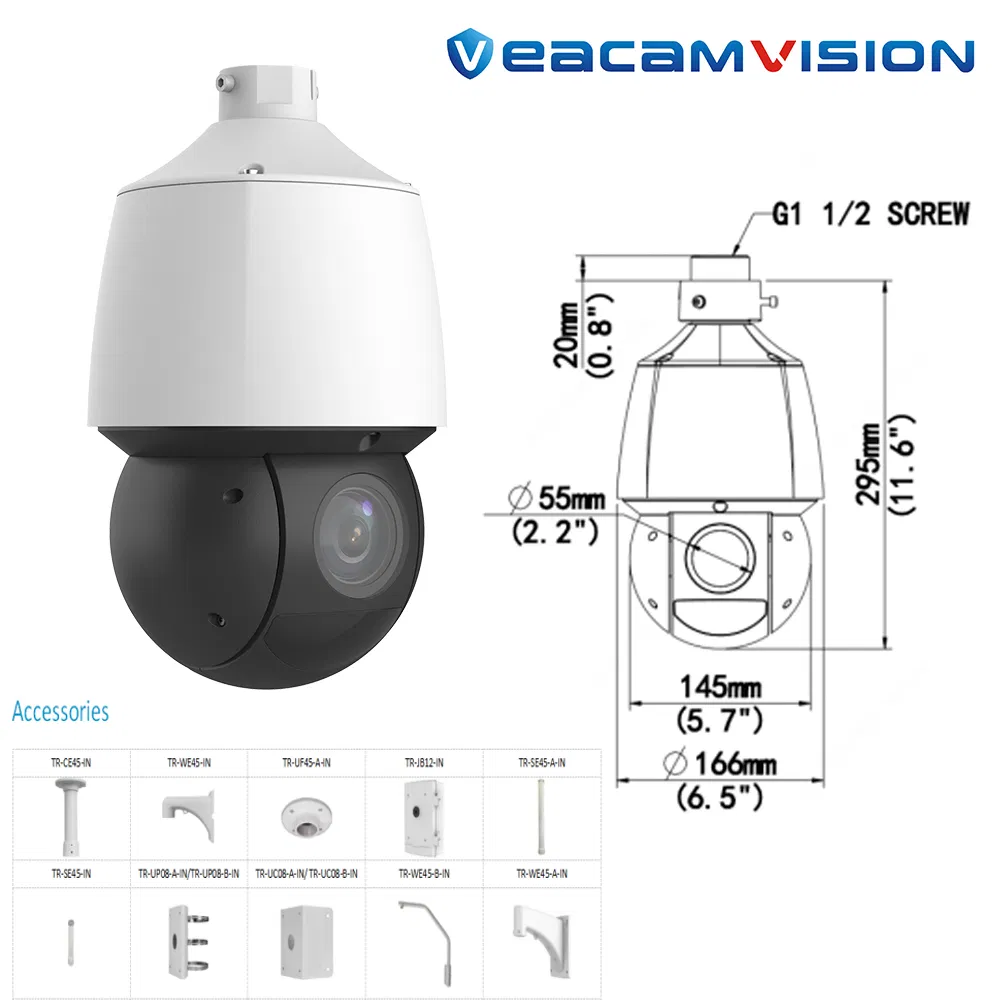

| Dimensions | Ø166 x 295mm |
