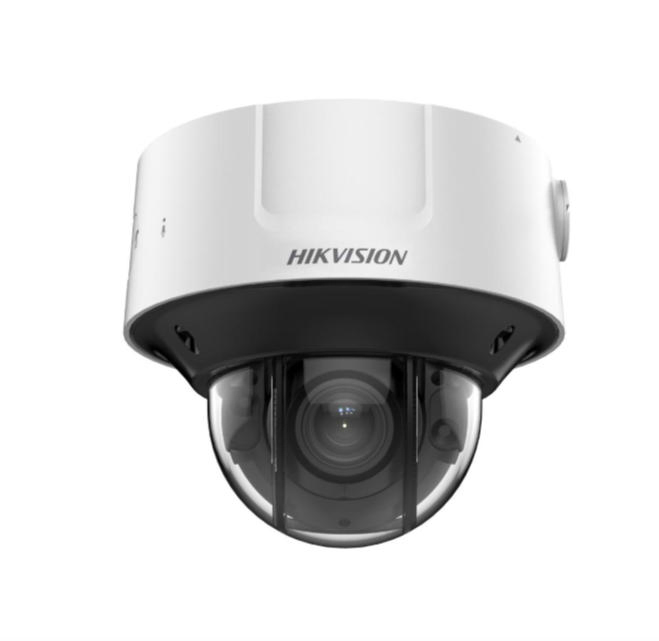

Hik 4MP HDMI Varifocal Dome Network Camera Ds-2CD3d46g2t-Izmsu

1 / 5

Hik 4MP HDMI Varifocal Dome Network Camera Ds-2CD3d46g2t-Izmsu

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

ModelDS-2CD3D46G2T-IZMSU

TypeCCTV Camera

SensorCMOS (1/1.8" Progressive Scan)

Resolution4MP (2688*1520)

Video FormatH.265+ / H.265 / H.264+ / H.264

Lens2.8 to 12 mm Varifocal

WaterproofIP67

Vandal-resistantIK10

IR DistanceUp to 40m

WDR140 dB

Key Features

High Quality 4MP Imaging

DarkFighter Technology

Human & Vehicle Classification

Two-Way Audio

HDMI Video Output

Anti-IR Reflection

Deep Learning Functions

Product Gallery

Detailed Technical Specifications

Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	2688 × 1520
Min. Illumination	Color: 0.0014 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Time	1/3 s to 1/100,000 s
Focal Length & FOV	2.8 to 12 mm, horizontal FOV 115° to 42°, vertical FOV 59° to 24°
Supplement Light	IR Range up to 40 m; Smart Supplement Light supported
Video Compression	Main stream: H.265/H.264/H.264+/H.265+
Audio	Mono sound; G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, IPv4, IPv6, etc.
Interface	1 RJ45 10M/100M port; HDMI output (1920 × 1080P); Built-in microSD slot (up to 512 GB)
Smart Event	Unattended baggage, object removal, scene change, audio exception detection
Power	12 VDC ± 25% or PoE (802.3af, Class 3)
Dimensions	Ø162 mm × 141.8 mm

Packaging & Delivery

Package Size45.00cm * 45.00cm * 30.00cm

Package Gross Weight15.000kg

Single Item Weight1.420 kg (Unit) / 2.058 kg (with package)

Frequently Asked Questions

What is the maximum resolution of this camera?

The camera supports high-quality imaging with a maximum resolution of 2688 × 1520 (4 Megapixels).

Does this camera perform well in low-light conditions?

Yes, it features DarkFighter technology, which provides excellent low-light performance with a minimum illumination of 0.0014 Lux.

Is the camera suitable for outdoor installation?

Absolutely. It is rated IP67 for water and dust resistance and IK10 for vandal resistance, making it ideal for harsh environments.

What smart features are included for security?

It includes deep learning functions such as human and vehicle target classification, face capture, and perimeter protection (line crossing and intrusion detection).

Does it support local storage?

Yes, the camera has a built-in memory card slot that supports microSD/microSDHC/microSDXC cards with a capacity of up to 512 GB.

What video compression technology does it use?

It utilizes efficient H.265+ compression technology, which significantly reduces bandwidth and storage requirements while maintaining high video quality.
