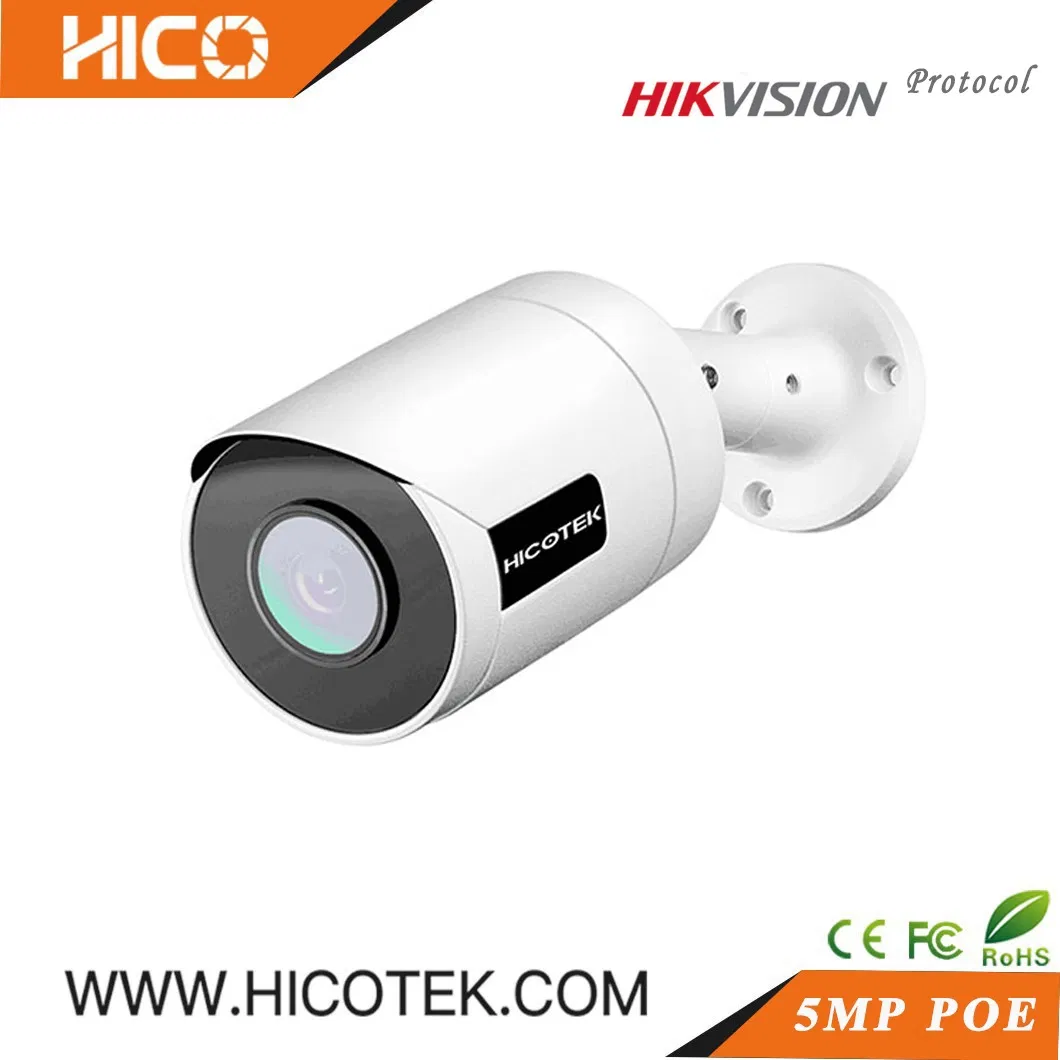

Hikvision Protocol P2p 12MP 4K 8MP 5MP Sony UHD CCTV IP Poe Waterproof Outdoor Camera Uniview NVR Video Surveillance Security Humanoid Detection

Basic Information

Model NO.IPC-HBIF51 Series

TypeIP Camera

SensorCMOS

HDMI FormatH.265/H.264

Resolution5MP

KindStarvis Lens

Effective Distance≧30m

Sensor Size1/2.7 Inch

Remote ControlRemote Control by APP

PoeSupport

MicrophoneSupport Audio

ProtocolHikvision + Onvif

IR LED12PCS IR Array

Specification68*68*210mm

Main Features

Unique Private Model

Waterproof IR Bullet

AI Humanoid Detection

3.6mm Fixed Lens

IP66 Water Resistant

ONVIF 2.4 Support

Advanced Surveillance Technology

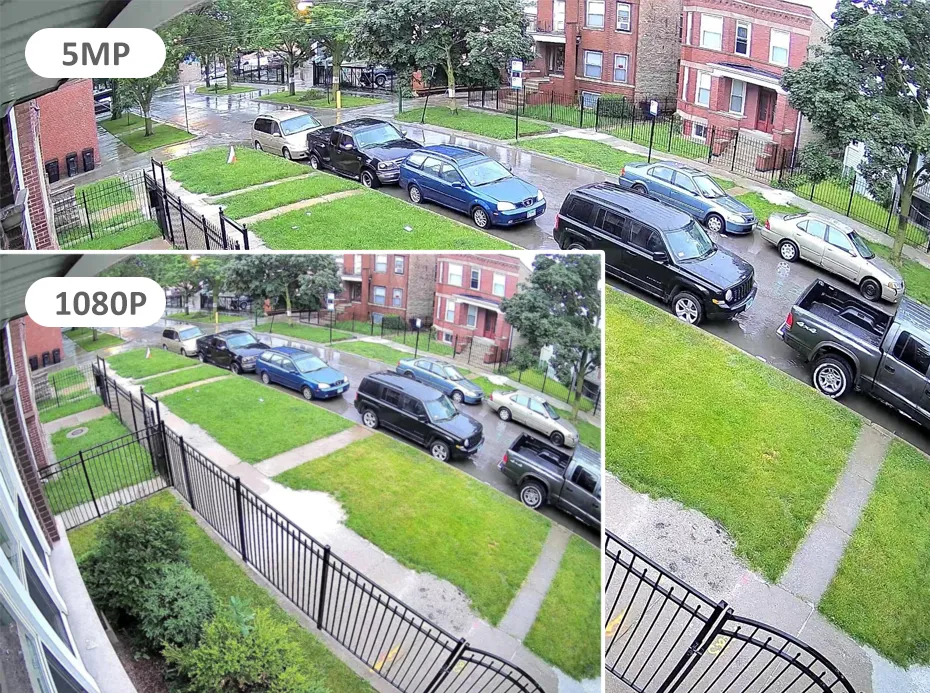

System Compatibility & Resolution

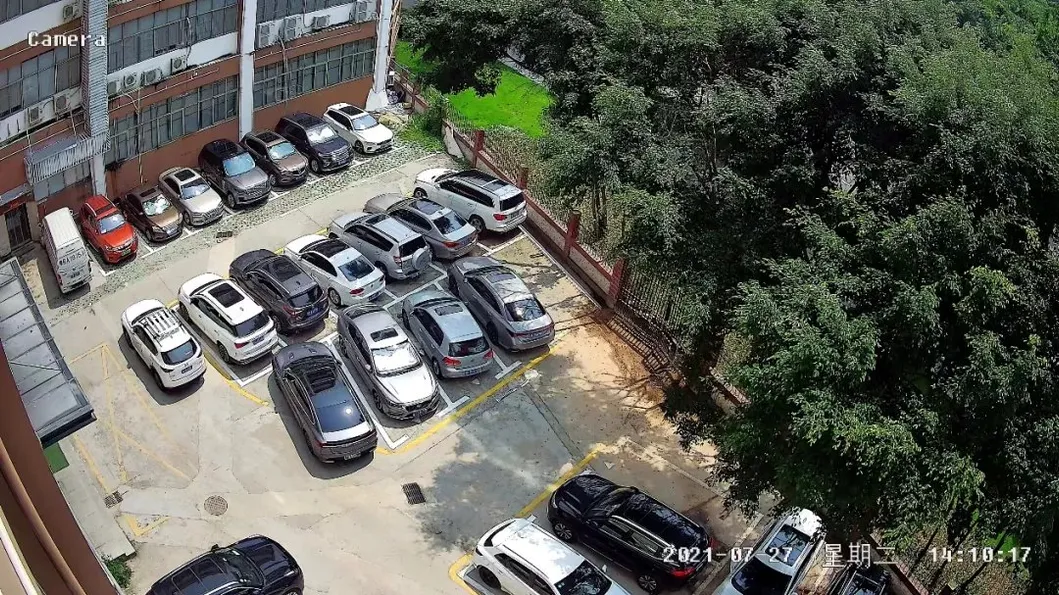

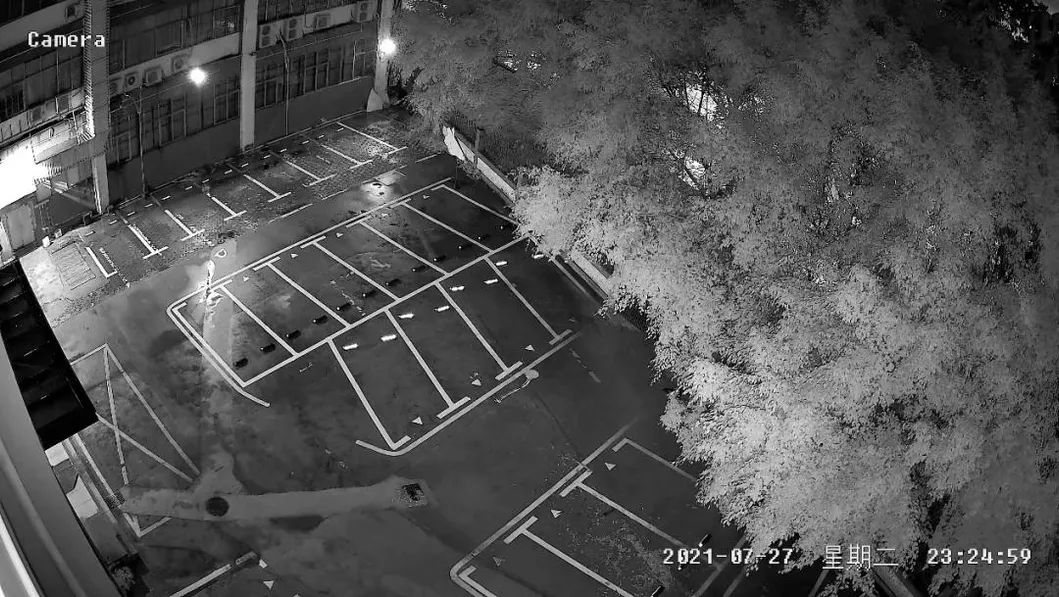

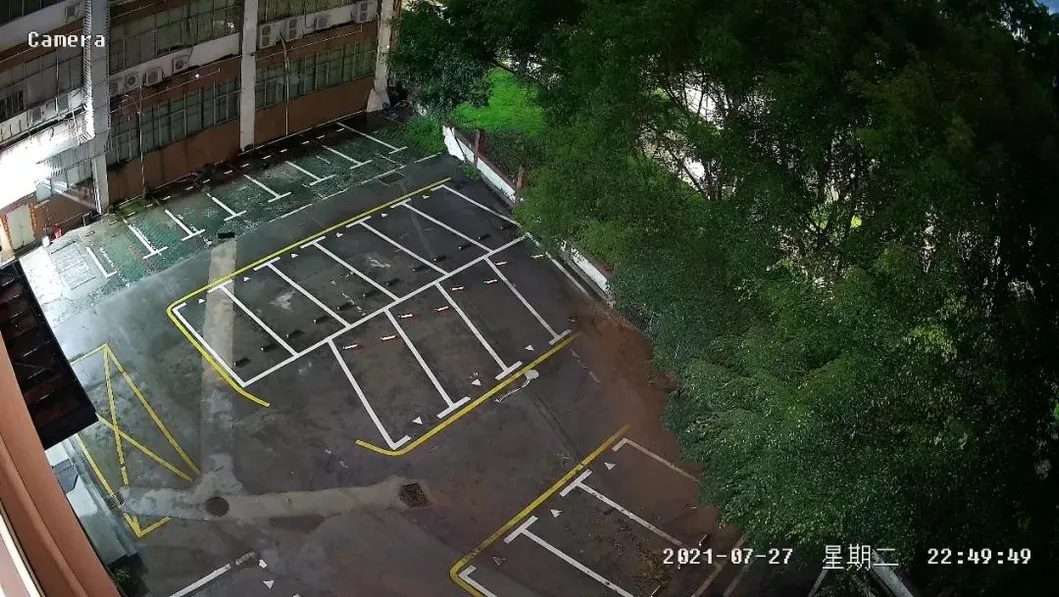

Day & Night Performance

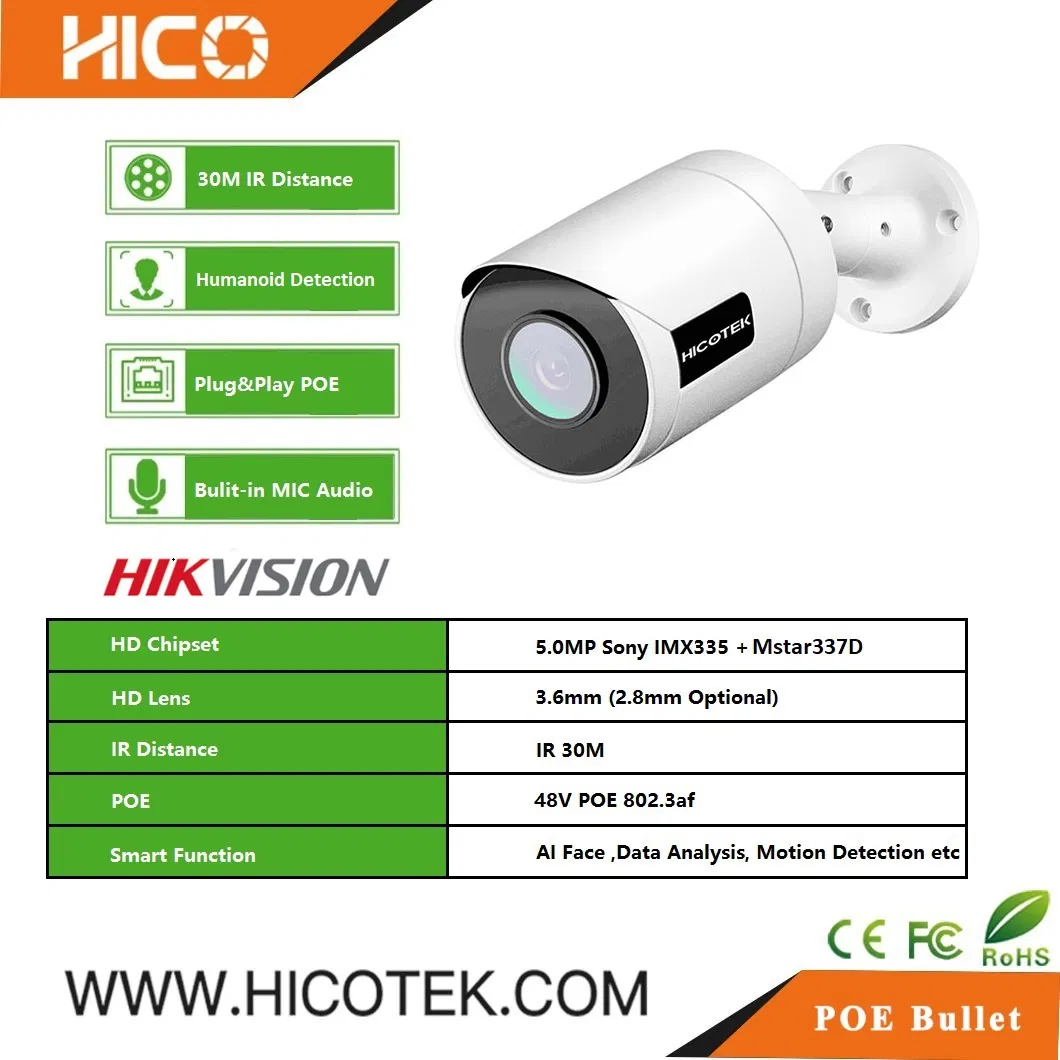

Technical Specifications

Parameter	IPC-HBIF51M50	IPC-HBIF51M80
Chipset
Image Sensor	1/2.7" Sony	1/2.5" Sony
Resolution	5MP	8.29MP (4K)
Compression	H.264/H.265/JPEG/AVI	H.264/H.265/JPEG/AVI
Lens & Night Vision
Lens Type	Fixed 3.6/2.8/4mm	Fixed 3.6/2.8/4mm
Infrared LED	SMD 14µ x 18pcs
Infrared Distance	20 Meters
Network
Protocol	TCP/IP, HTTP, HTTPS, FTP, DHCP, RTSP, ONVIF 2.4
Smart Features	AI Humanoid Detection, Area Detection, Line Crossing
General
Housing	Metal, IP66 Waterproof
Power Source	DC12V±10% / PoE Optional
Working Temp	-10ºC ~ +50ºC

Frequently Asked Questions

What is the maximum resolution supported by this series?

The series offers models with up to 5MP and 8.29MP (4K UHD) resolutions for crystal clear surveillance footage.

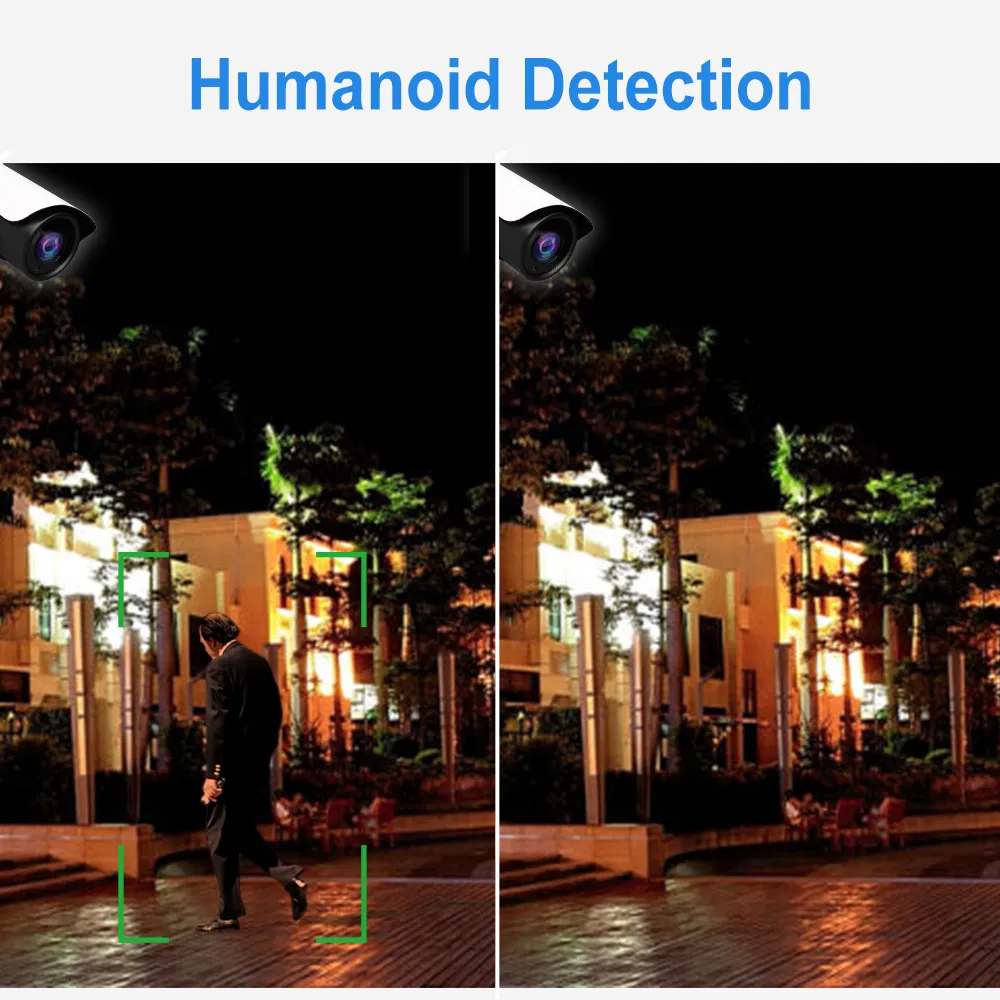

Can this camera detect humans specifically?

Yes, it features built-in AI Humanoid Detection and intelligent analysis such as area detection and line crossing alarms to reduce false triggers.

How far can the camera see in total darkness?

The camera is equipped with 18 high-efficiency SMD IR LEDs, providing a night vision range of up to 20-30 meters.

Is the camera suitable for extreme weather?

Yes, the camera is built with a rugged metal housing and holds an IP66 waterproof rating, designed to operate in temperatures from -10ºC to +50ºC.

Does it support Power over Ethernet (PoE)?

Yes, it supports PoE (IEEE 802.3af), allowing for both power and data transmission over a single network cable.

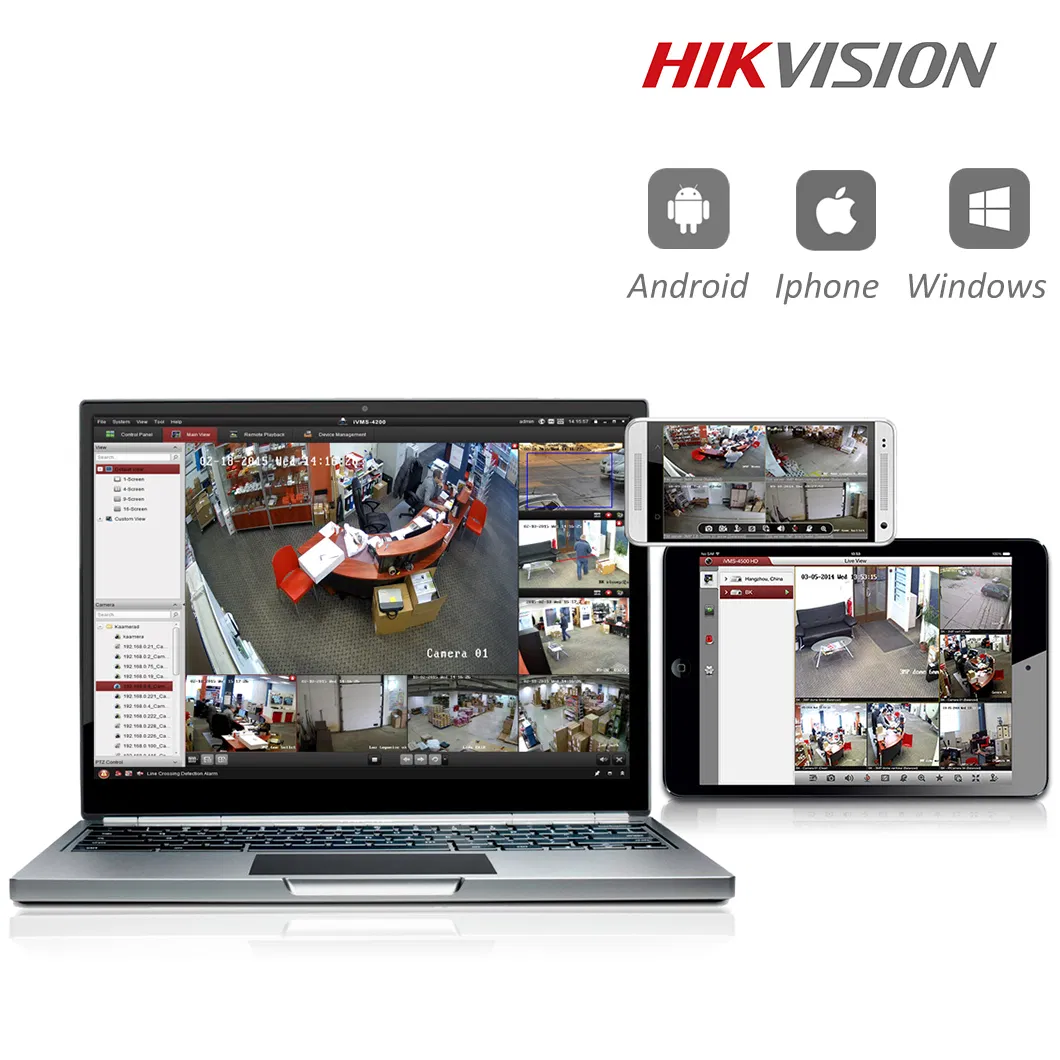

What monitoring software is compatible?

It is compatible with ONVIF 2.4 and Hikvision protocols, and can be viewed via IE Browser, CMS, NVR, and mobile apps for iOS and Android.
