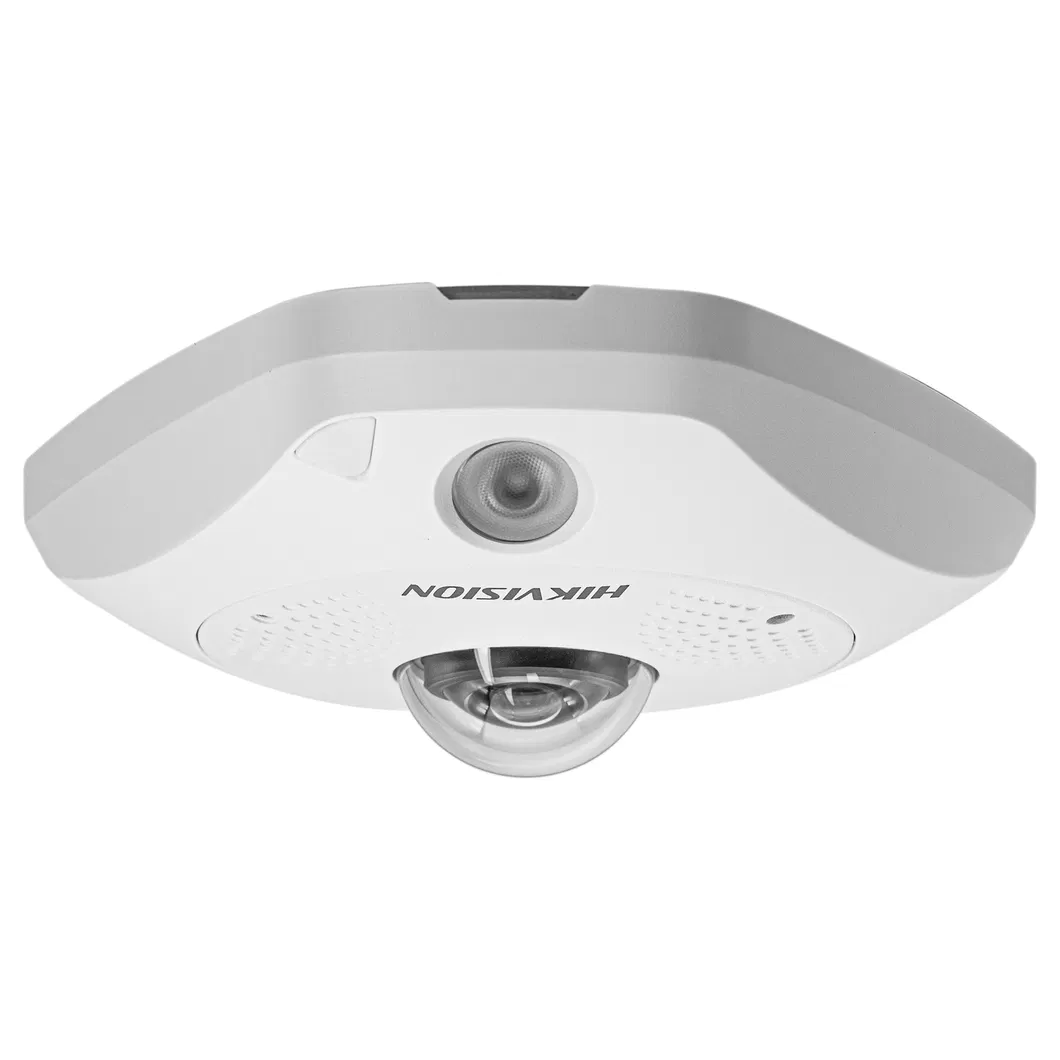

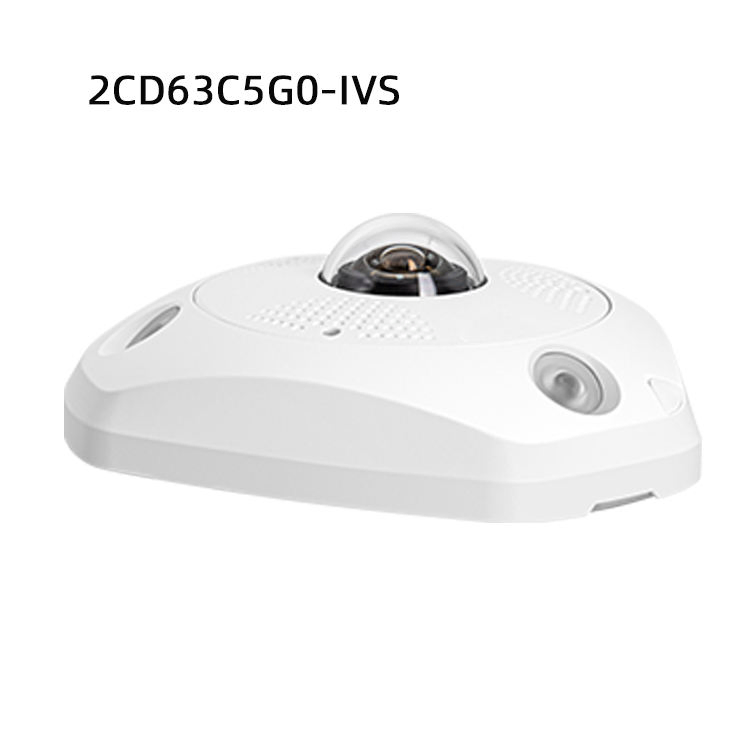

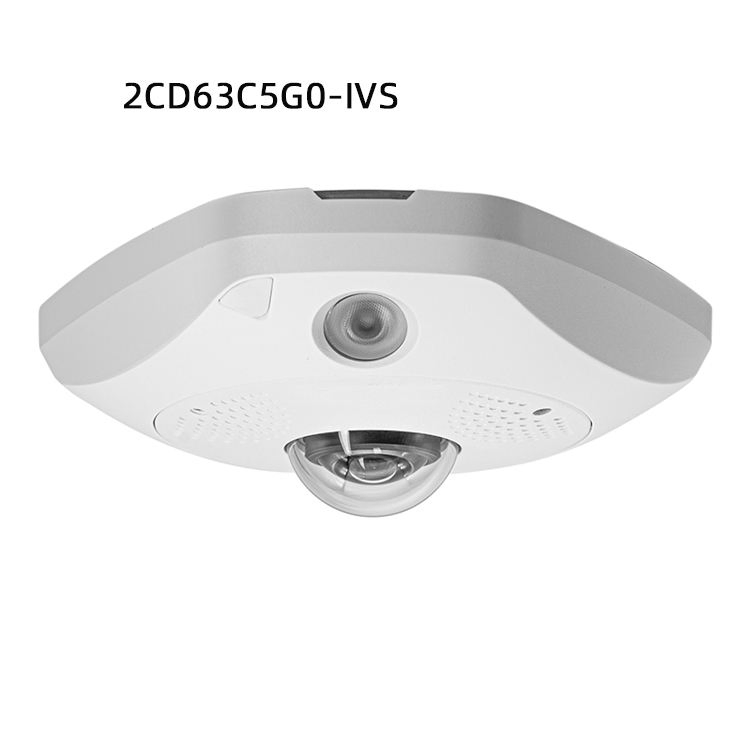

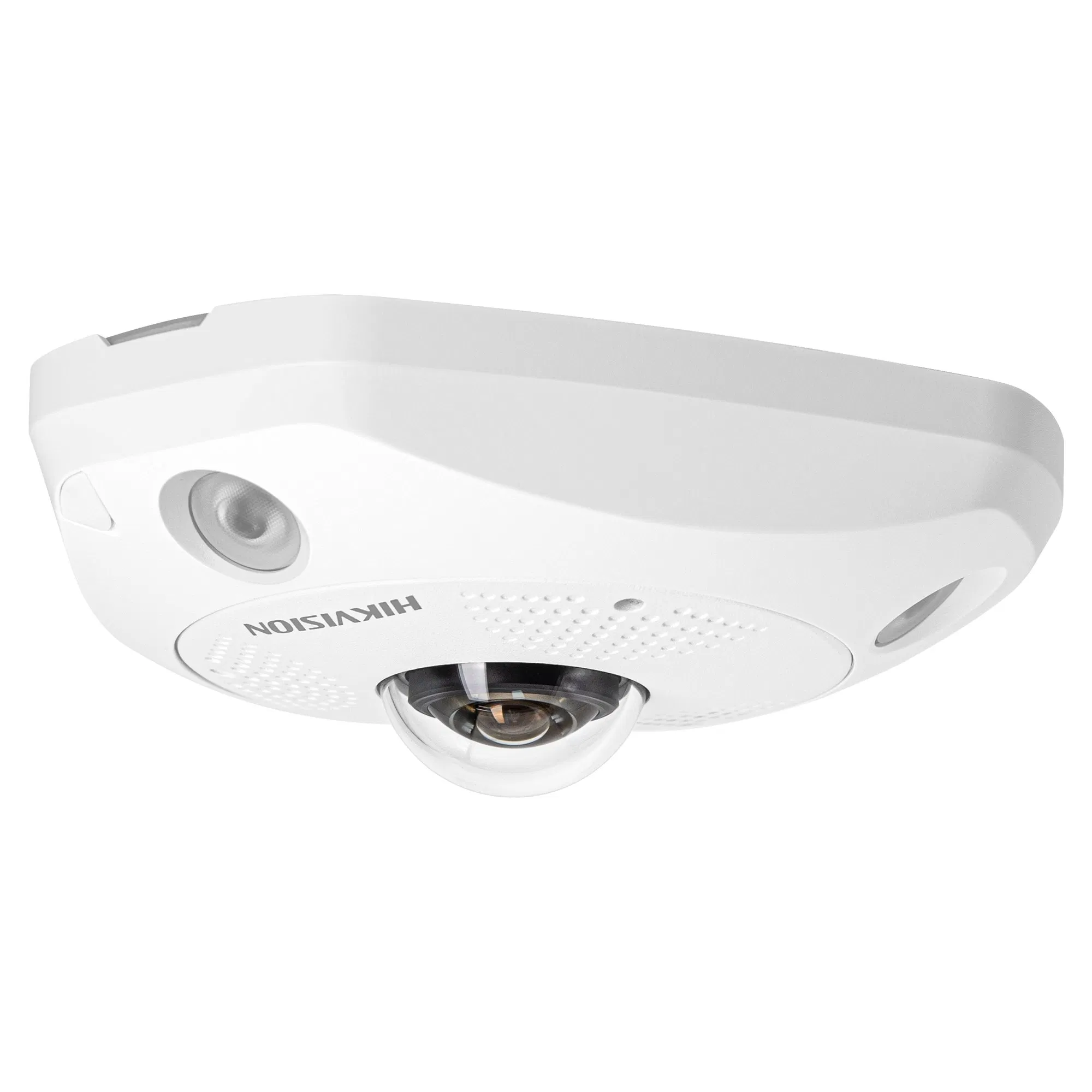

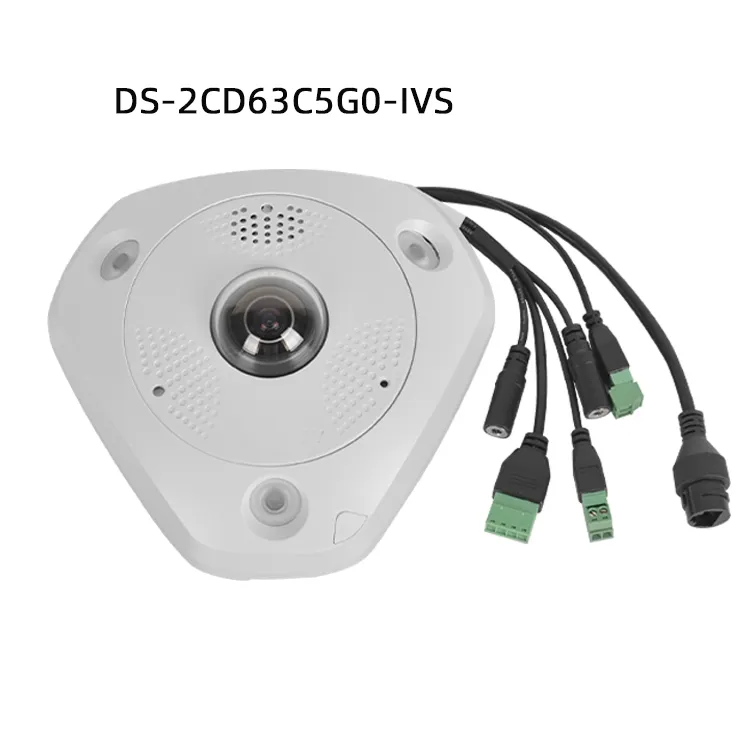

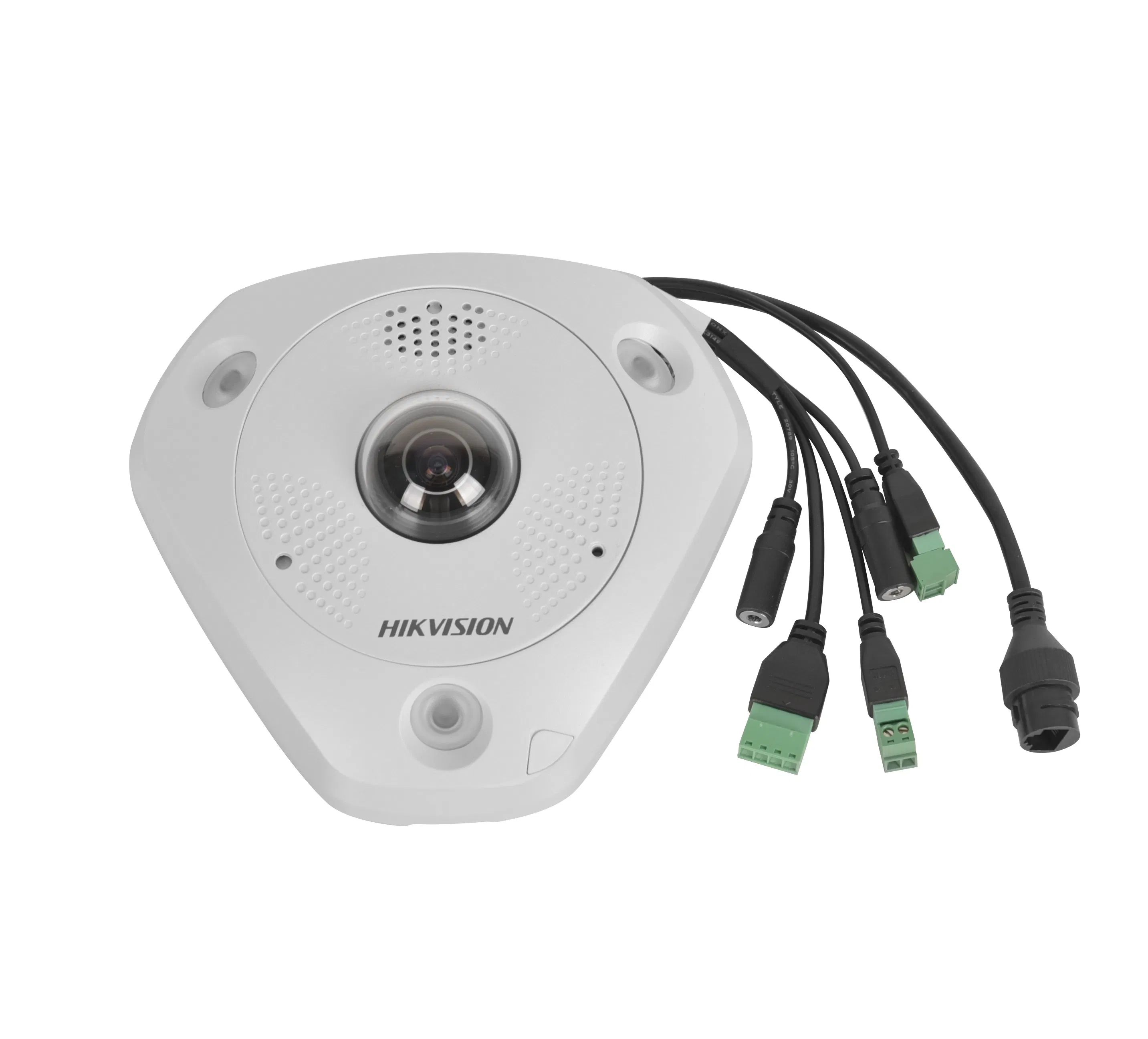

DS-2CD63C5G0-IVS 12 MP IR Network Fisheye Camera
This fisheye network camera is capable of providing a 360-degree panoramic image of its surveillance scene. The progressive scan CMOS sensor provides high-resolution images of up to 4000 × 3000. Up to 18 live view display modes, designed for 3 mount types, meet various user preferences.
| Image Sensor | 1/1.7'' Progressive Scan CMOS |
| Min. Illumination | Color: 0.05 Lux @ (F2.2, AGC ON), B/W: 0.01 Lux @ (F2.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/100,000 s |
| Focal Length | 1.29 mm |
| FOV | Horizontal FOV: 180°, vertical FOV: 180° |
| IR Range | Up to 15 m, 3 LEDs independently controlled |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Max. Resolution | 4000 × 3000 |
| Behavior Analysis | Line crossing, intrusion, region entrance/exiting, unattended baggage, object removal |
| Audio Interface | 2 built-in microphones, 1 built-in speaker; -S model: 1 in / 1 out |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Operating Conditions | -40 °C to +60 °C (-40 °F to +140 °F) |
| Power Supply | 12 VDC ± 20%, PoE (802.3at, class 4) |
