Hikvision 4 MP Ultra Turret Camera with Acusense Smart Hybrid Light

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview & Basic Information
Model NO.DS-2CD3143G2-LISUY(PTRZ)
TypeIP Camera
SensorCMOS
HDMI Format1080P
Resolution2688 × 1520
LensVarifocal, Motorized 2.8 to 4 mm
IP ProtectionIP67
WDR120db
Distance30m
Power12 VDC + PoE
Product Description & Features
  • Motorized Pan, Tilt, Rotate for easy installation and maintenance
  • 2.8/4 mm in one camera, point-to-point zoom
  • High quality imaging with 4 MP resolution
  • Acusense: Human and vehicle classification based on deep learning
  • Smart Hybrid Light: Integrates IR and White lights (3 modes)
  • Built-in arrayed dual-microphone for high quality audio
  • Clear imaging against backlight: 120 dB true WDR
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67) and vandal-resistant (IK10)
  • Anti-corrosion design (NEMA 4X reliability)
Technical Specifications
Camera Specs
Image Sensor1/3" Progressive Scan CMOS
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time1 s to 1/100,000 s
Angle AdjustmentPan: 0° to 346°, tilt: 0° to 75°, rotate: 0° to 344°
Lens & Illuminator
Focal Length2.8 mm (99.1° FOV) / 4 mm (79.9° FOV)
Supplement LightIR and White Light, Up to 30 m range
IR Wavelength850 nm
ApertureF1.6
Product Showcase
4 MP Ultra Turret Camera Overview
Camera Specifications Detail
Camera Dimensions
Applicable Environment

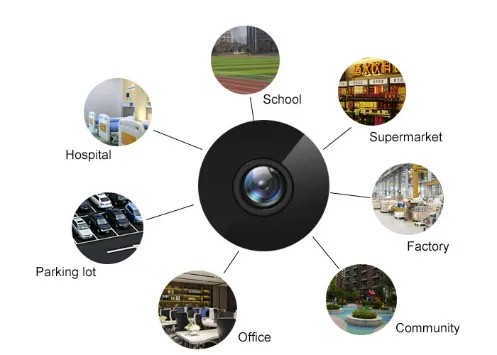

Application Scenario
Shipping & Packaging
Package Size15.00cm * 15.00cm * 15.00cm
Gross Weight1.500kg
Shipping Logistics
Frequently Asked Questions
Do you support sample orders?
Yes, we support sample orders for customers to test before placing bulk orders. The client covers the basic sample cost and shipping fees.
What is the lead time for delivery?
For sample orders, it is 3-5 days. For bulk orders, it typically takes 3-5 weeks depending on the items and quantity.
Is there a Minimum Order Quantity (MOQ)?
There is no MOQ limit for standard sample orders. For customized bulk orders, we can discuss specific requirements case by case.
How are the goods shipped?
Samples are usually shipped via DHL, Fedex, UPS, or TNT. Bulk orders are scheduled by air, sea, or train. Client-appointed forwarders are also accepted.
What is the product warranty?
Our standard warranty is 2 years. We also offer options to extend the warranty period at a reasonable cost.
What kind of after-sales service is provided?
We offer free technical training, 24/7 online technical support, and product return services for repairs.
