IP Dome Emergency 4G WiFi Battery 360 Degree Rotate Outdoor Waterproof Super Starlight Lpr Face Recognition Security PTZ Camera

Basic Information

Model NO.

TSP260-F-LA1NA1-1U41U8

Speed

Medium-speed Dome

Technology

Wireless

Feature

Waterproof, High Definition, 5G/4G

Effective Distance

≧30m

Focal Length

Zoom Lens

Horizontal Resolution

2K/4K

Sensor Size

1/3 inch

Package Size

53.00cm * 25.00cm * 44.00cm

Gross Weight

4.000kg

Product Overview

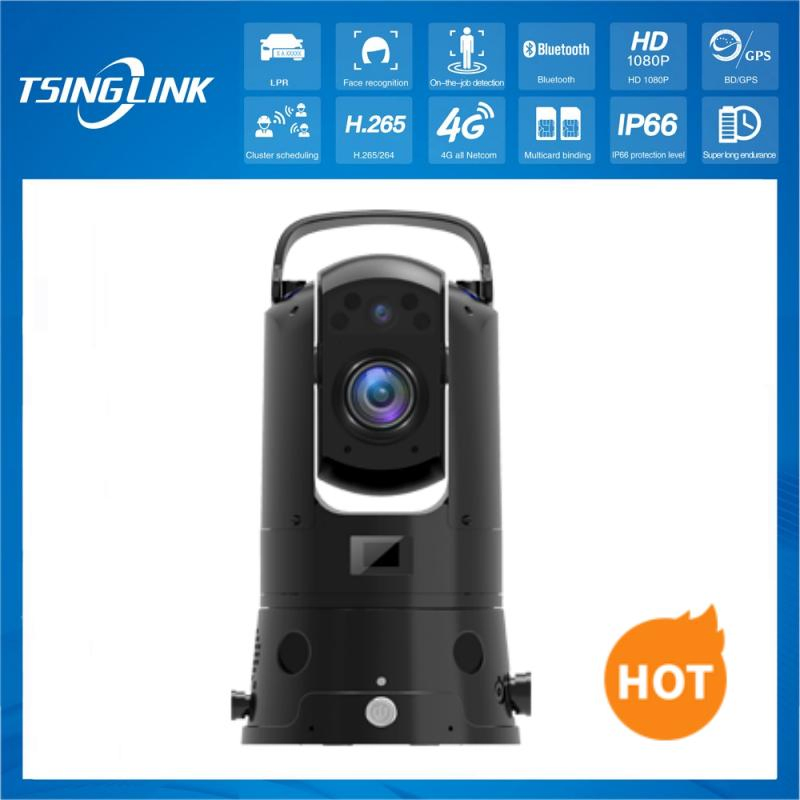

The TSP260-F wireless UHD PTZ camera is specially designed for mobile law enforcement, safe operation, emergency command and dispatch. It provides users with HD color smooth and stable video effects even in dark environments. It supports video storage, transmission, positioning, intercom, and local video preview. Additionally, it features advanced algorithms for face and license plate recognition, safety helmet detection, smoking detection, and work clothes detection.

◈ Two channel ultra-high definition video input (up to 4K resolution)

◈ Full color in the dark with gyroscope electronic anti-shake

◈ Dual display: 2.8-inch touch screen + 1.3-inch status screen

◈ 360° omnidirectional PTZ with 3D centered zoom

◈ 5G/4G remote wireless video transmission

◈ 10T computing power for AI intelligent recognition

◈ Built-in detachable battery (8+ hours operation)

◈ Dual TF card storage, supporting up to 2TB total

Technical Specifications

Item	Details
System	Android + Linux dual operating system
Video Input	Main: 4.0MP Zoom (36x Optical); Aux: 8.0MP Fixed Focus
Infrared	100m range, automatic day/night switch
PTZ Range	Horizontal 360°; Vertical -20°~90°
Coding	H.265 / H.264
Resolution	4K / 2K / 1080P / 720P / VGA
Audio	Built-in MIC & Speaker, supports Bluetooth/Wired Intercom
Wireless	5G NSA&SA, compatible with 4G; WiFi 2.4G&5G
Positioning	Beidou and GPS dual mode positioning
Protection	IP66 Waterproof level
Working Temp	-20ºC to 60ºC

Visual Display

Frequently Asked Questions

What is the maximum video resolution of the TSP260-F?

The camera supports ultra-high definition video input with a maximum resolution of 4K, ensuring crystal clear imagery for monitoring and evidence collection.

How long can the camera operate on its internal battery?

The built-in detachable battery is capable of operating for more than 8 hours. It also supports battery replacement without shutting down the device.

Does the camera support remote wireless transmission?

Yes, it supports 5G NSA&SA and is downward compatible with 4G networks, allowing for real-time and smooth remote wireless video transmission.

What intelligent AI functions are integrated?

The camera features 10T computing power and supports face recognition, license plate recognition, safety helmet detection, smoking detection, and work clothes detection.

Is the device suitable for outdoor use in harsh weather?

Absolutely. The camera has an IP66 protection level, making it waterproof and weatherproof, and it operates effectively in temperatures ranging from -20ºC to 60ºC.

What is the night vision capability of this PTZ camera?

The camera is equipped with 100m infrared technology and supports full color in the dark, providing stable and clear video effects in low-light environments.
