Horizontal Resolution
540tvl
Certification
CE, FCC, RoHS
Feature
Waterproof, Mini Size, Vandal-proof
Image Sensor
1/2.7" Ex-View 2.0MP Aptina CMOS

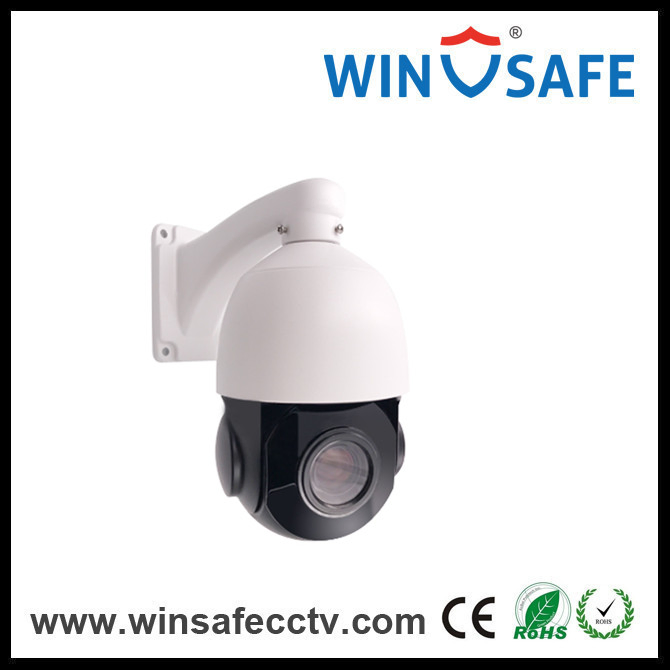

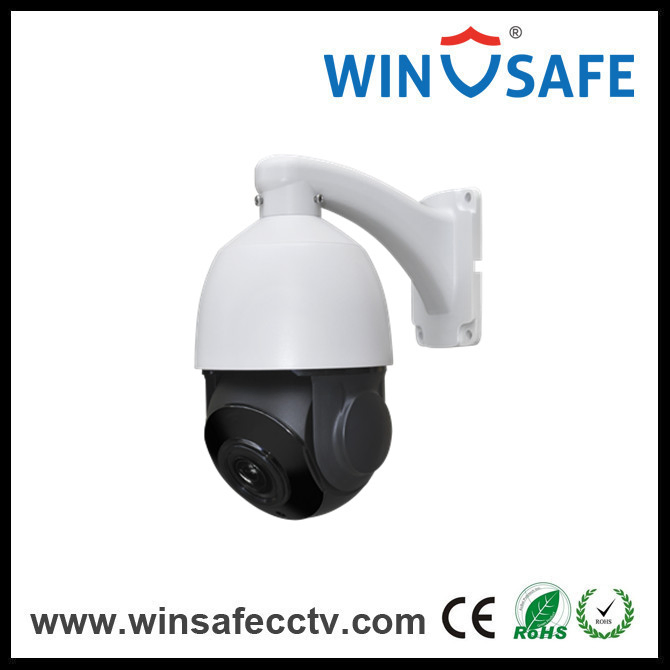

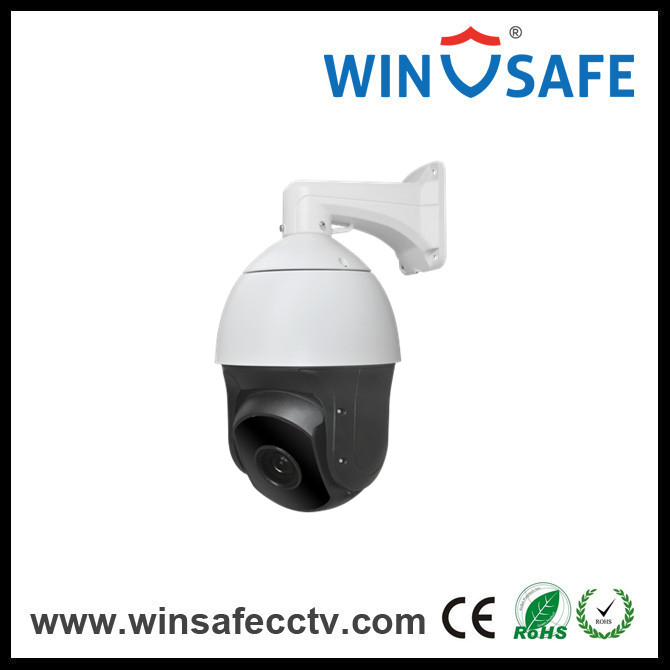

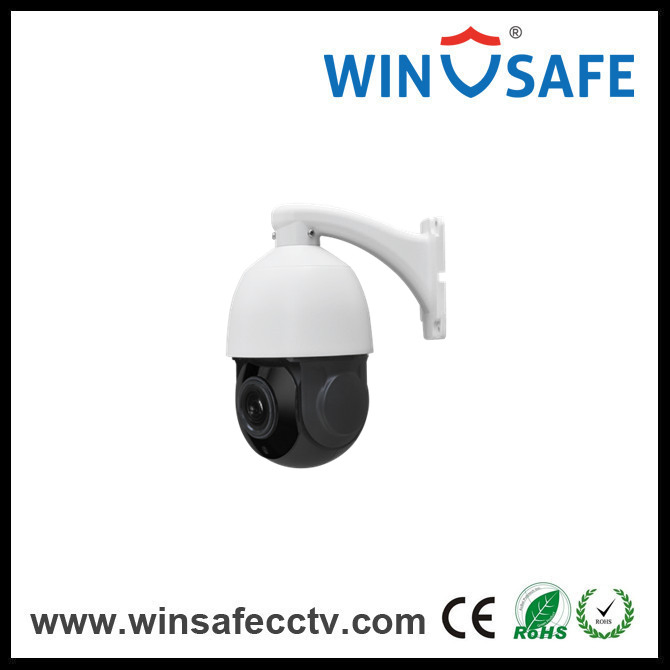

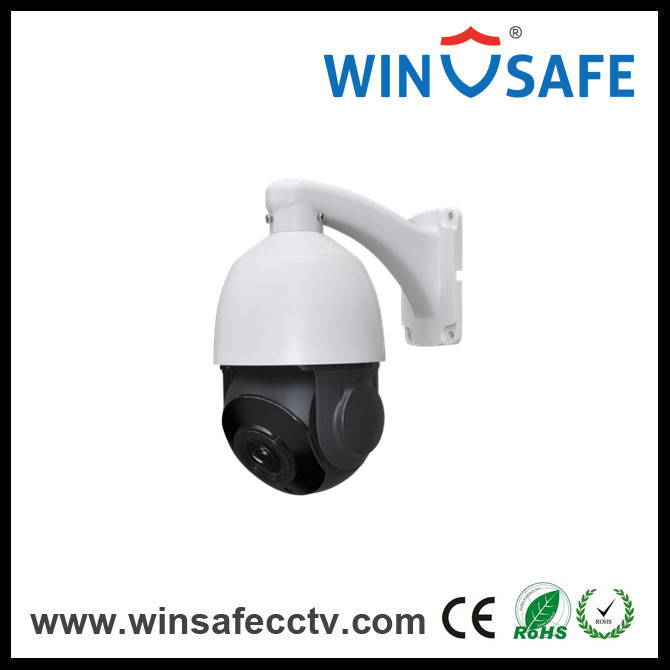

Mini Outdoor IP HD IR Middle Speed Dome Camera CCTV Waterproof IP PTZ Camera
- Precision motor-driven, keen responsive, smoothly operation, deviation less than 0.1 degree.
- 2.0MP 1/3" CMOS sensor with 10X optical zoom capabilities.
- Advanced IR System: 6PCS high-power infrared lights, IR distance up to 60m.
- 360° endless pan range and 0°- 90° tilt range with auto-flip functionality.
- IP66 Weather-proof level for reliable outdoor performance.
- Strong lightning protection and anti-surge functions.
- Support for multiple protocols: ONVIF, TCP/IP, HTTP, DHCP, DNS, DDNS, etc.
| Category |
Parameter |
Detail |
| PTZ |
Pan Range & Speed |
360° endless pan; 6°-30°/S |
| Tilt Range & Speed |
0°- 90° tilt; auto flip; 5°- 17°/S |
| Presets |
128 presets; 4 patrols |
| Video |
Resolution |
Main stream: 1080P (1920x1080), 960P, 720P |
| Low Lux |
0.1Lux (Color), 0.01Lux (B/W), 0 Lux (IR ON) |
| Compression |
H.264 High Profile / M-JPEG double stream |
| Lens |
Focal Length |
5.1~51mm (10X Optical Zoom) |
| Angle of View |
68°~6.7° (Wide-Telescope) |
| General |
Power Supply |
DC 12V/2A |
| Environment |
-20ºC~+60ºC; IP66 Waterproof |
Frequently Asked Questions
What is the night vision range of this camera?
The camera is equipped with 6 high-power infrared lights providing a clear night vision distance of up to 60 meters.
Does this PTZ camera support mobile remote viewing?
Yes, it supports remote control and monitoring via Android and iOS smartphones.
Is the camera suitable for harsh outdoor weather?
Absolutely. It features an IP66 weatherproof rating and TVS3000V lightning and surge protection, designed for durability in outdoor environments.
What is the optical zoom capability?
The camera features a 10X optical zoom with a focal length of 5.1mm to 51mm, allowing for detailed close-ups from a distance.

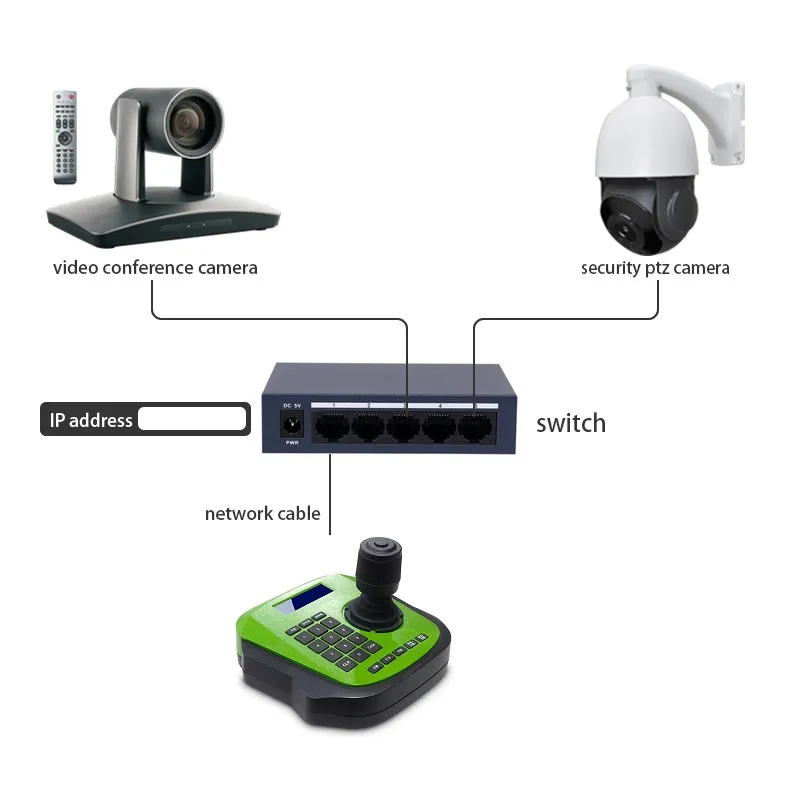

Is the camera compatible with third-party NVRs?
Yes, it supports the ONVIF protocol, making it compatible with many major brands of NVRs and software platforms like Hikvision and Dahua.
What is the movement range of the PTZ function?
It offers a full 360° endless pan range and a 0° to 90° tilt range with auto-flip support to eliminate surveillance blind spots.
