Product Description

📊 Basic Information
Model NO.
UV-CN 04T3 Series
Type
IP Camera
Sensor
CMOS
HDMI Format
H.264/H.265
Horizontal Resolution
4MP
Kind
Autofocus Lens
Certification
CE
Effective Distance
≧30m
Sensor Size
1/1.8'' Star Level CMOS
Dimension
110X110X353mm
🔍 Product Description

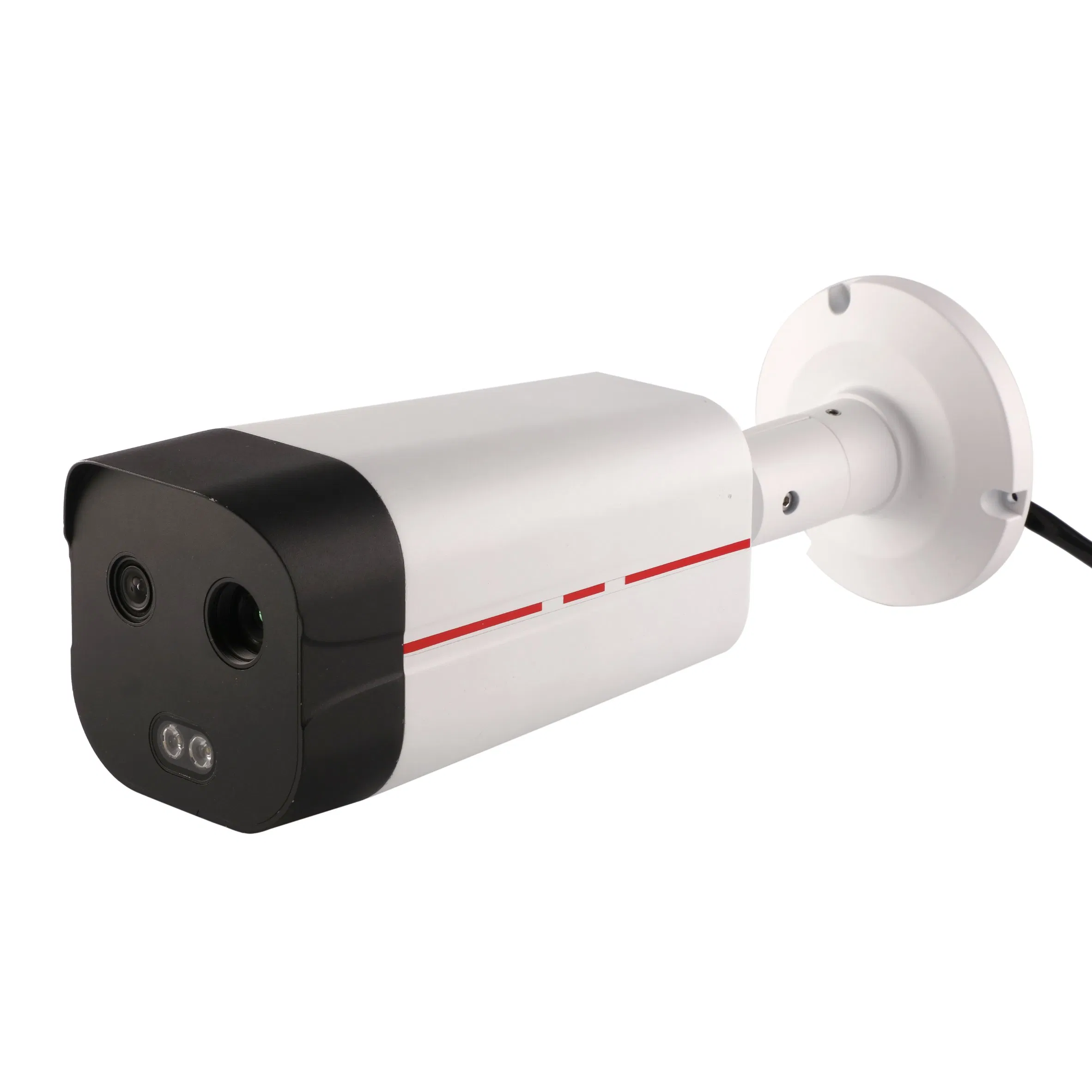

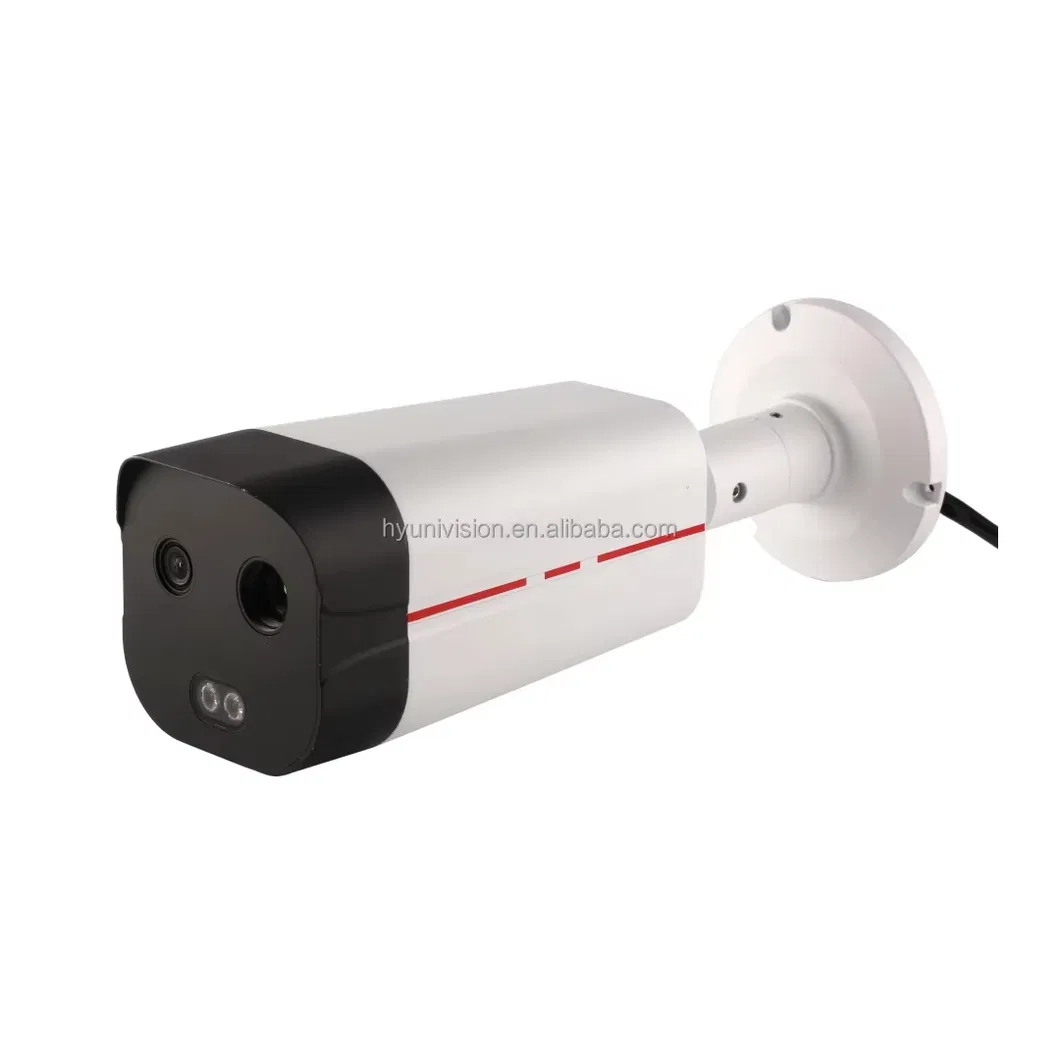

Bi-Spectrum Bullet Fixed Camera

High Speed Bi-Spectrum Camera

  • Vanadium oxide uncooled infrared detector with 12μm pixel pitch
  • 384*288 high resolution real-time image output
  • NETD sensitivity ≤35 mK @F1.0, 300K
  • 9mm/13/19/25/35mm fixed athermalized lens
  • 4MP High Resolution visible camera (max. 2688x1520@30fps)
  • Supports White Light or IR LED illumination
  • Supports Micro SD/SDHC/SDXC card storage up to 512G
  • Smart detection: Tripwire, intrusion, area entrance/exit
  • Advanced tracking: Fire detection, human, vehicle, and ship identification
  • IP67 Weatherproof rating for outdoor reliability
Night Vision Performance
Outdoor Durability
Separator Camera Components
⚙️ Technical Specifications
Product Details UV-CN04T3 Series Bi-Spectrum Bullet Camera
Thermal Camera Parameters
Detector TypeVOx Uncooled thermal Detector
Effective Pixels384*288
Pixel Pitch12μm
Sensitivity (NETD)≤35 mK @F1.0, 300K

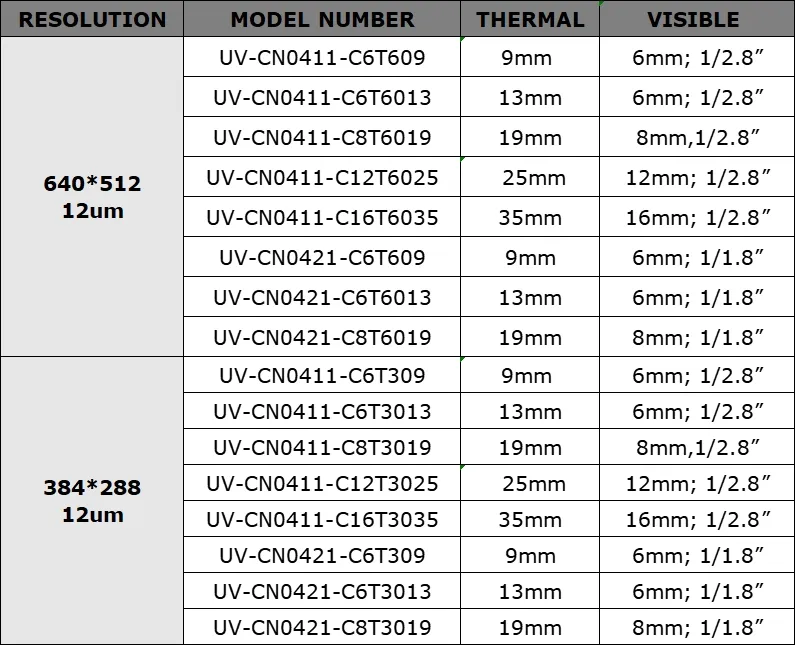

Thermal Lens9mm, 13mm, 19mm, 25mm, 35mm (Fixed Athermalized)
Digital Zoom2x, 4x, 8x
Pseudo Color10 modes (White hot, black hot, iron red, rainbow, etc.)
Visible Camera Parameters
Sensor1/1.8" Progressive Scan CMOS1/2.8" Progressive Scan CMOS
Resolution2688x1520 (4MP)
Min. Illumination0.0001Lux (Color), 0 Lux with IR
Optical Lens6mm, 8mm6mm, 8mm, 12mm, 16mm
Image EnhancementWDR, BLC, HLC, 3DNR, E-Defog
Network & Interface
CompressionH.265 / H.264 (Main/High Profile)
ProtocolsTCP/IP, HTTP, HTTPS, FTP, DHCP, ONVIF (Profile S/G), SDK
StorageBuilt-in MicroSD slot, up to 512 GB
Audio/Alarm1 Input / 1 Output for both Audio and Alarm
General Environment
Operating Conditions-30ºC~60ºC, Humidity < 90%
Protection LevelIP67 Waterproof
Power SupplyDC12V±10% (Max 12W)

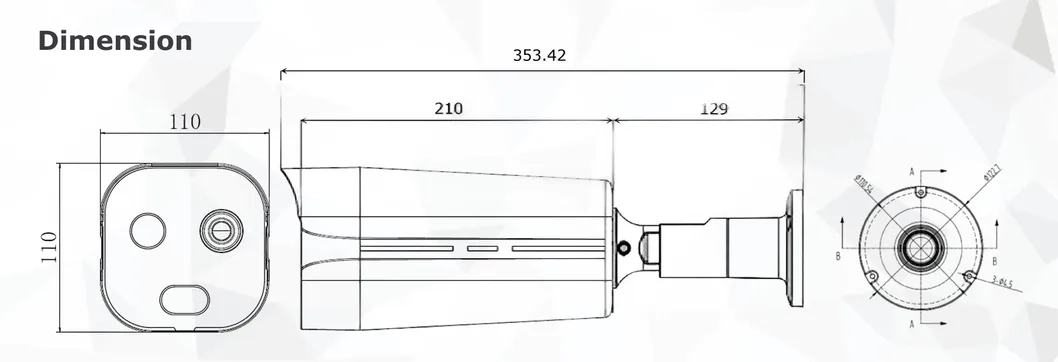

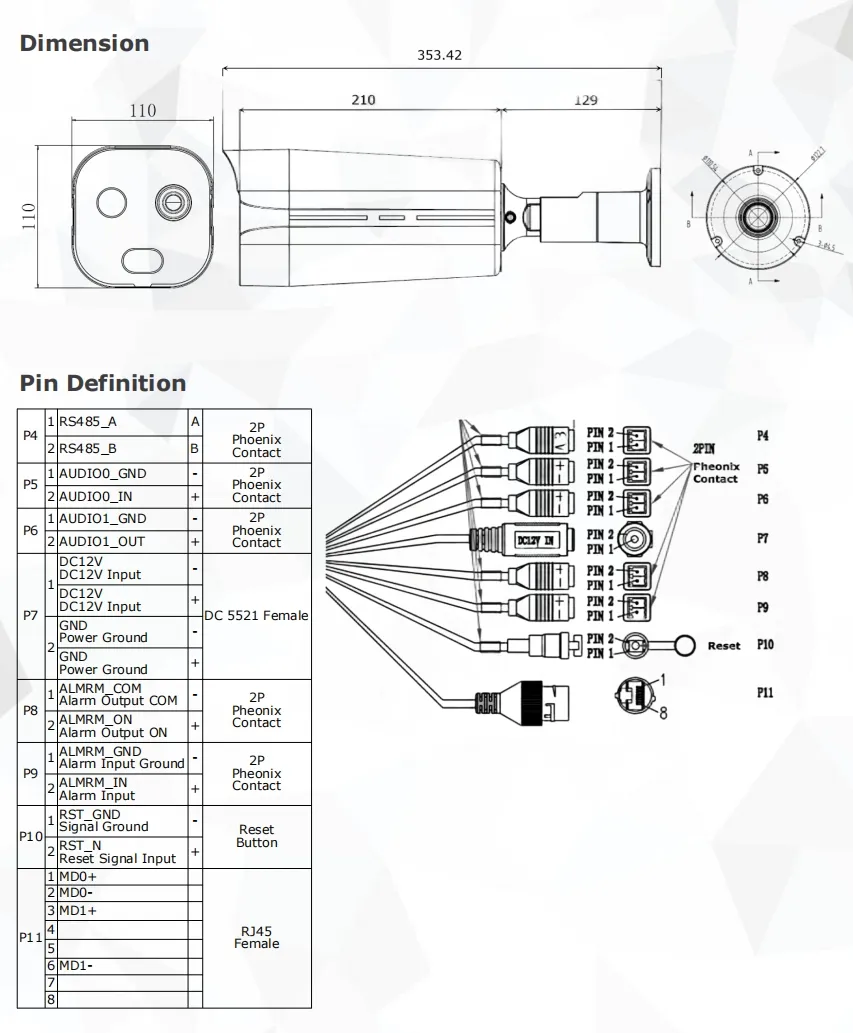

Product Dimensions and Layout
❓ Frequently Asked Questions
What is the advantage of a bi-spectrum camera?
It combines thermal imaging for heat detection (ideal for night vision and fire detection) with high-definition visible light imaging for detailed identification in a single device.
Does this camera support automatic fire detection?
Yes, the UV-CN 04T3 series includes smart functions for fire point detection, identification, and tracking.
What is the maximum storage capacity for local recording?
The camera features an on-board storage slot that supports MicroSD/SDHC/SDXC cards with a capacity of up to 512GB.
Can the camera be used in extreme weather conditions?
Absolutely. With an IP67 rating and an operating temperature range of -30ºC to 60ºC, it is designed for reliable outdoor use.
What intelligent analytics are available?
The camera supports Tripwire, cross-border detection, area intrusion, and specific tracking for humans, vehicles, and ships.
What is the resolution of the thermal and visible sensors?
The thermal sensor provides a resolution of 384x288, while the visible camera provides a 4MP high-definition output (2688x1520).
