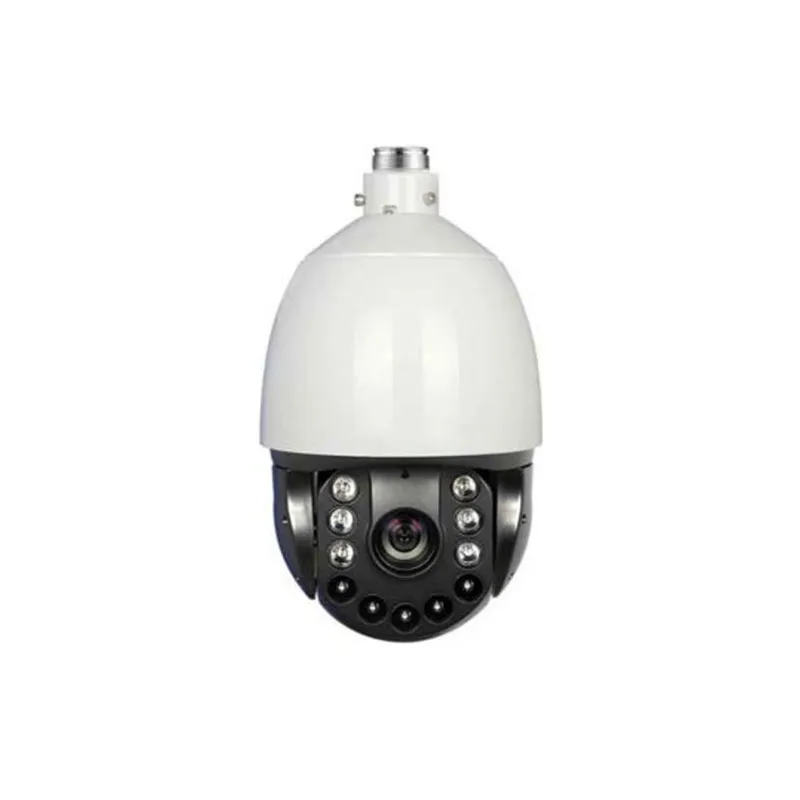

PTZ Speed Dome Security IP Camera Waterproof Outdoor CCTV Camera

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📦 Basic Information

Model NO.FC-IRS-E3025

TypeCCTV Camera

SensorCMOS

HDMI Format1080P

CertificationCE

FeatureWaterproof, Weatherproof, High Definition

Production CapacityIn Stock

Package Size372.00cm * 237.00cm * 230.00cm

📷 Product Overview

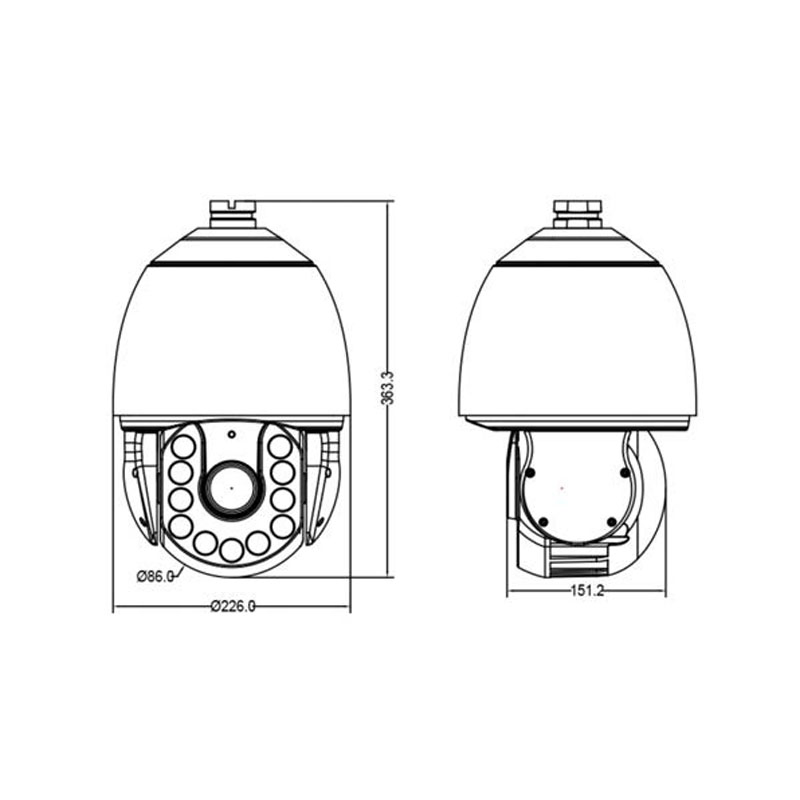

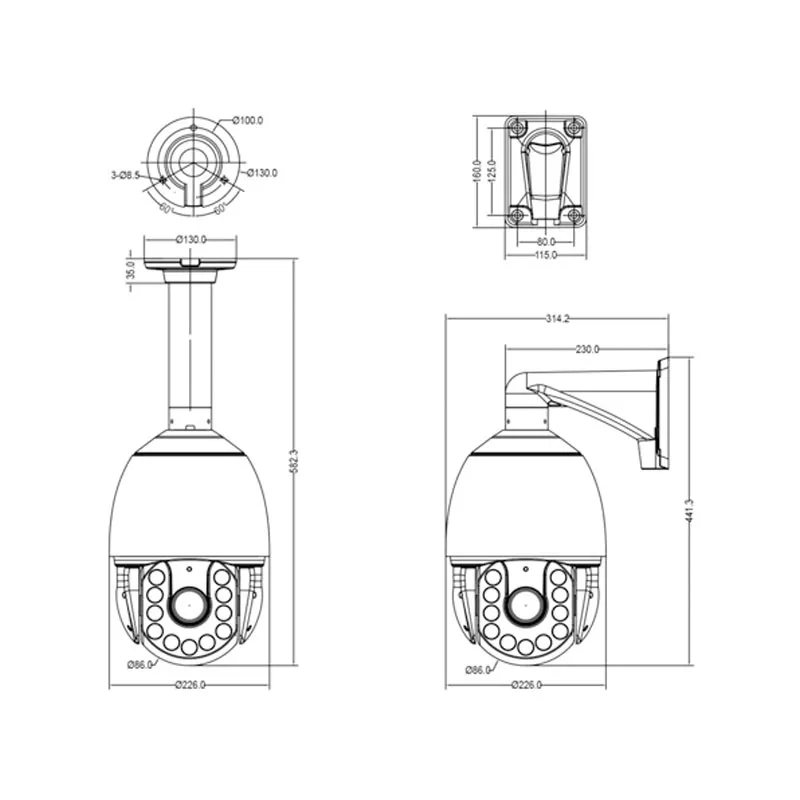

📏 Dimension

📝 Specifications

Camera
Max. Resolution	1920*1080 (1080P)
Image Sensor	1/2.8" Sony progressive scan CMOS
Min. Illumination	Color: 0.005 Lux; B/W: 0.001 Lux; 0 Lux with IR
Shutter Speed	1/3 s to 1/30000 s
Zoom	30x optical, 16x digital
Lens
Focal Length	4.7mm to 141mm
FOV	Horizontal field of view: 61.2° ~ 2.2°
Focus	Auto, semi-auto, manual
Illuminator
Supplement Light Type	IR
Supplement Light Range	IR Distance: up to 200m
PTZ
Movement Range (Pan)	360°
Movement Range (Tilt)	-15° to 90° (auto flip)
Pan Speed	Configurable 0.1° to 180°/s; Preset: 250°/s
Video & Audio
Video Compression	H.265/H.264+/H.264
Bit Rate	32 kbps to 16384 kbps
Audio Compression	AAC / MP2L2
Network
Protocols	ONVIF, GB28181, IPv4/IPv6, HTTPS, RTSP, TCP/IP, FTP, etc.
Storage	NAS, Built-in microSD slot (up to 256 GB)
General
Power	24 VAC, max. 42 W (PoE++ 802.3bt)
Protection	IP66, IK10, TVS 6000V Lightning Protection
Weight	Approx. 8 kg

❓ Frequently Asked Questions

What is the night vision range of this camera?

This camera features high-performance IR illuminators that provide a night vision distance of up to 200 meters.

Does the camera support optical zoom?

Yes, it is equipped with a powerful 30x optical zoom and 16x digital zoom for capturing distant details clearly.

Is this camera suitable for outdoor use?

Absolutely. The camera is IP66 waterproof and IK10 vandal-resistant, making it perfect for harsh outdoor environments.

What storage options are available?

It supports local storage via a microSD card slot (up to 256GB) and network-attached storage (NAS).

Does it support PoE power supply?

Yes, it supports high-power PoE++ (802.3bt standard) for easier installation, alongside traditional 24 VAC power.

What video compression standards are used?

The camera supports advanced H.265 compression, as well as H.264+ and H.264, to optimize bandwidth and storage efficiency.
