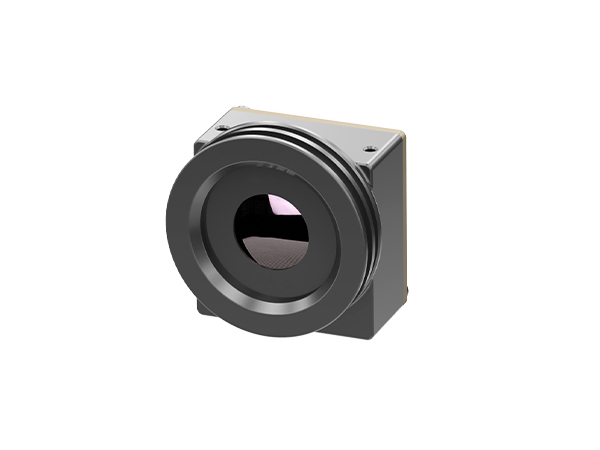

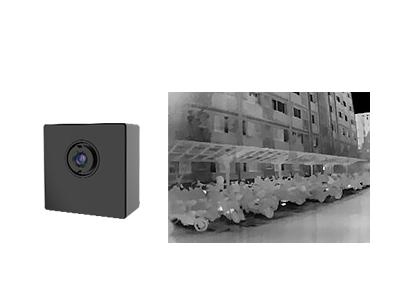

Radiometric Uncooled Thermal Camera Module 256x192/12μm for Smart Home

1 / 5

Radiometric Uncooled Thermal Camera Module 256x192/12μm for Smart Home

Customization:	Available
Function Type:	Thermal Imaging System
Detection Type:	Microbolometer

Send Inquiry

Product Description

ℹ️ Basic Specifications

Model NO.

iLC212

Output Signal

Digital Type

Material

VOx

Certification

RoHS, REACH, ISO9001

Typical NETD

≤45mk

Resolution

256X192

Spectral Range

8-14μm

Pixel Size

12μm

📝 Product Description

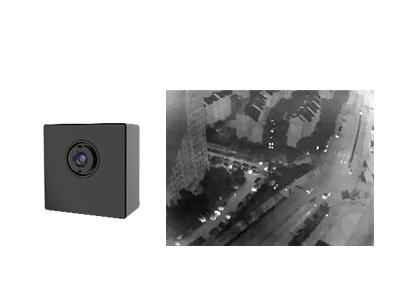

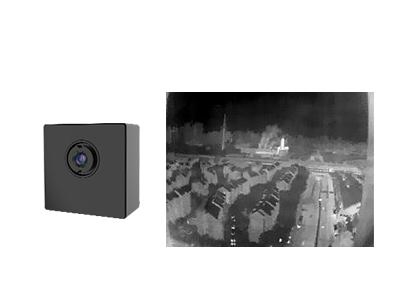

The iLC212 uncooled IR imaging module, also known as the uncooled thermal module, is radiometric-capable and features an available infrared non-contact temperature measurement function. It integrates an exceptionally small 256x192 / 12μm wafer level package (WLP) infrared detector that captures the long-wave infrared (LWIR) spectrum ranging from 8 to 14μm.

Compared with similar thermal modules in the market, iLC212 provides superior image performance through intelligent processing algorithms, including Non-uniformity Correction (NUC), 3D Noise Reduction (3DNR), 2D Noise Reduction (DNS), Dynamic Range Compression (DRC), and Edge Enhancement (EE).

Fully Optimized SWaP-C Applications
Various Intelligent Imaging algorithms
Suitable for Various Infrared Products
Support Temperature Measurement (-20ºC~+150ºC)
Low Power Consumption (0.7W)

📊 Technical Parameters

Model	iLC212R	iLC212R-P
IR Detector Performance
Resolution / Pixel Size	256×192 / 12μm
Spectral Response	8μm~14μm
Typical NETD	≤45mK
Image Processing
Frame Rate	25Hz / 30Hz
Digital Video	RAW / YUV / BT656
Supply Voltage	3.3V±0.1V VDC
Physical Characteristics
Dimension (mm)	21×21×12.8 (3.2mm Lens)	21×21×17.4 (3.2mm Lens)
Weight	8.6g±1g	13g±1g

🚀 Applications & Advantages

Our cost-effective iLC212 thermal module is widely utilized in Security Monitoring, Thermography, Wearable Devices, Vehicles, and AIoT environments. Customers' praises affirm our professional standing and reliable service in the infrared industry.

🏢 Industry Expertise & Certifications

As a leading infrared detector manufacturer and service provider, we offer high-performance uncooled and cooled thermal imaging detectors. Our advanced fabrication facilities include 8-inch fabrication lines capable of handling element purification, epitaxy growth, chip fabrication, and vacuum packaging in-house.

❓ Frequently Asked Questions

What is infrared thermal imaging?

It is a method of using infrared radiation and thermal energy to gather information about objects to formulate images or acquire temperature data, even in low visibility environments.

What are the advantages of infrared thermal imaging?

Key advantages include seeing through total darkness, identification under camouflage, long-range detection, heat distribution analysis, and non-contact temperature measurement.

What is the difference between uncooled and cooled IR detectors?

Uncooled detectors operate at ambient temperature, are smaller, and cost-effective for portable devices. Cooled detectors operate at extremely low temperatures via cryocoolers, offering higher sensitivity for long-range missions but at a higher cost and size.

What is a thermal imaging module?

A module is the minimum unit of a thermal imaging device, consisting of an infrared detector, lens, hardware electronics, and embedded software/algorithms.

What does NETD stand for?

NETD refers to "Noise Equivalent Temperature Difference," measured in milli-Kelvin (mK). A lower NETD figure indicates higher thermal sensitivity and better distinction between small thermal differences.

What is WLP (Wafer Level Package)?

WLP is the process of completing high vacuum packaging directly on a MEMS wafer before cutting it into single detectors. It is designed for miniaturization and lower costs in consumer electronics.
