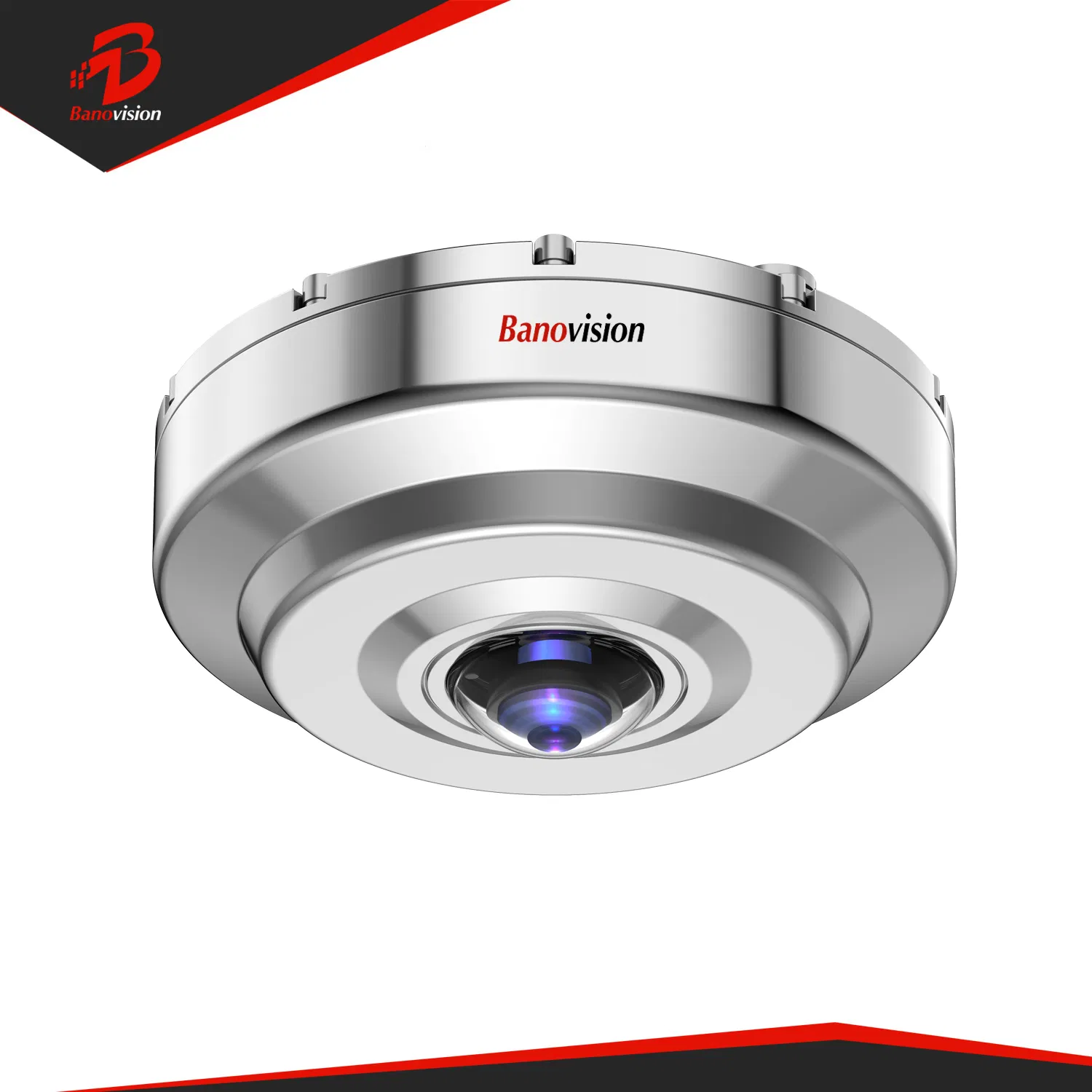

Security Explosion Proof IP68 5MP Fisheye Panoramic Network CCTV Camera

1 / 5

Security Explosion Proof IP68 5MP Fisheye Panoramic Network CCTV Camera

Customization:	Available
Technology:	Infrared
Style:	Panoramic

Send Inquiry

Product Description

Basic Specifications

Model NO.

BA-EX109-FP

Type

CCTV Camera

Sensor

CMOS

HDMI Format

5MP

Resolution

2592*1944

Lens Type

Autofocus / Fisheye

Distance

≧30m

Protection

IP68, Explosion-Proof

Explosion Level

Ex Diic T6 GB/Ex Td A21 IP68 T80℃

Power Supply

Support PoE

Product Description

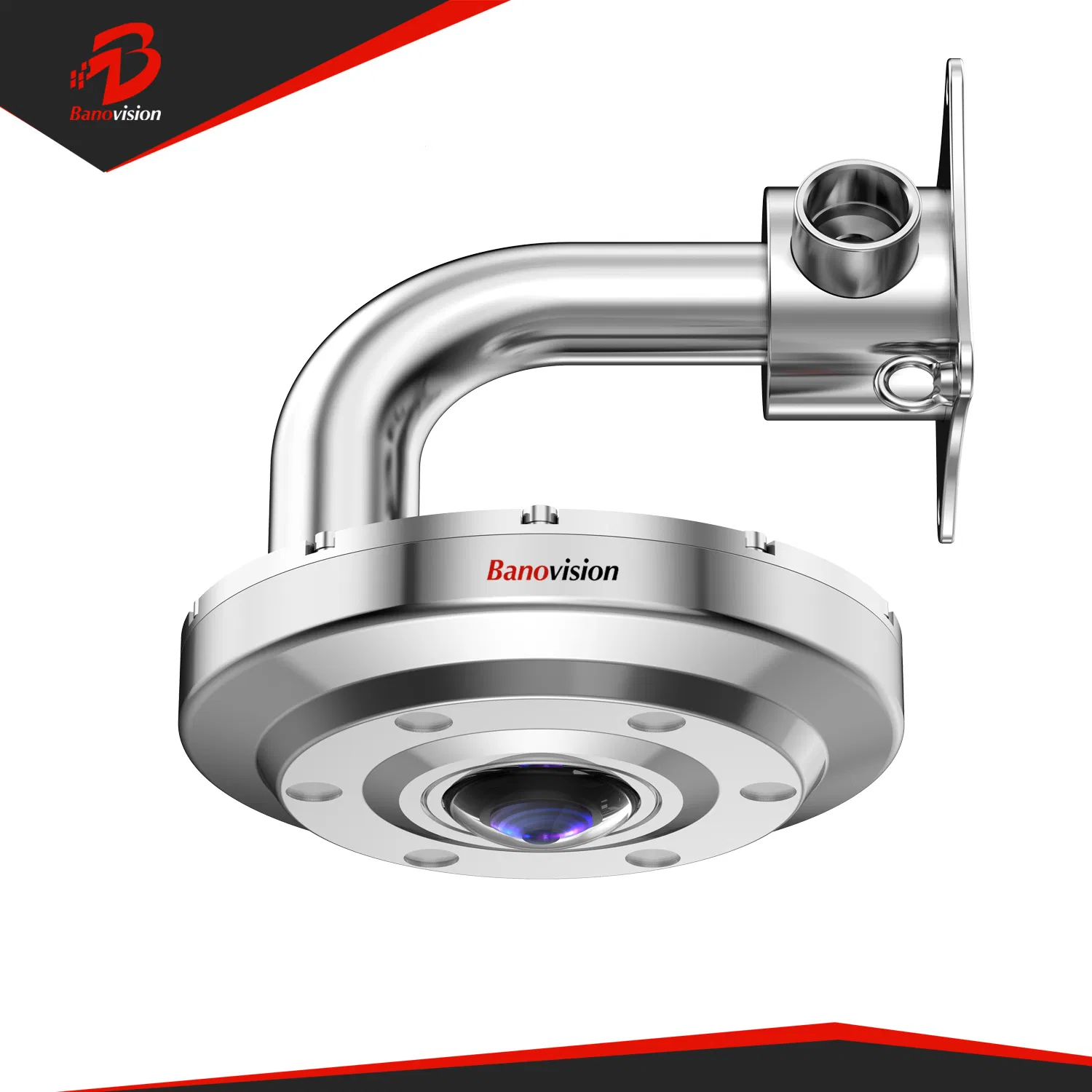

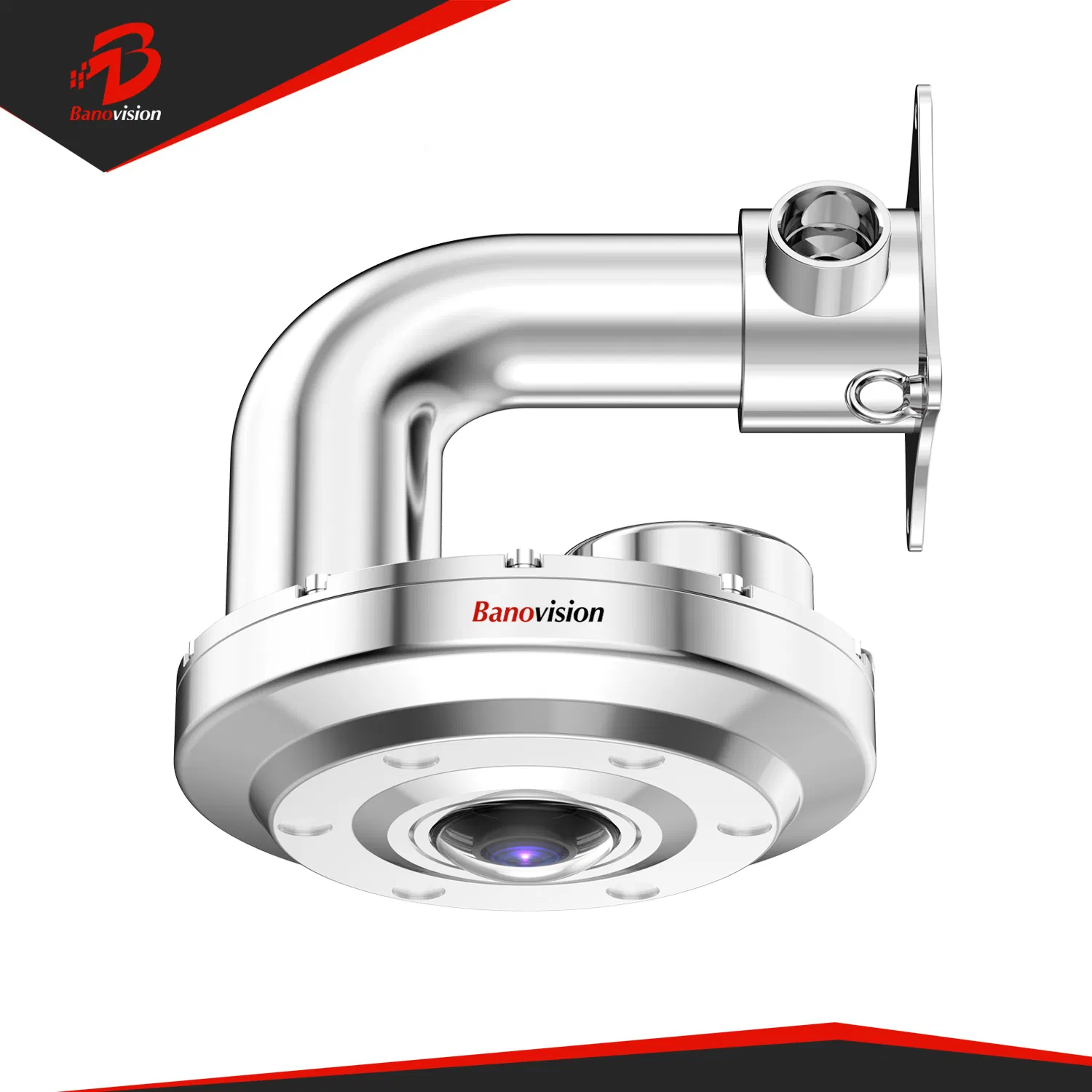

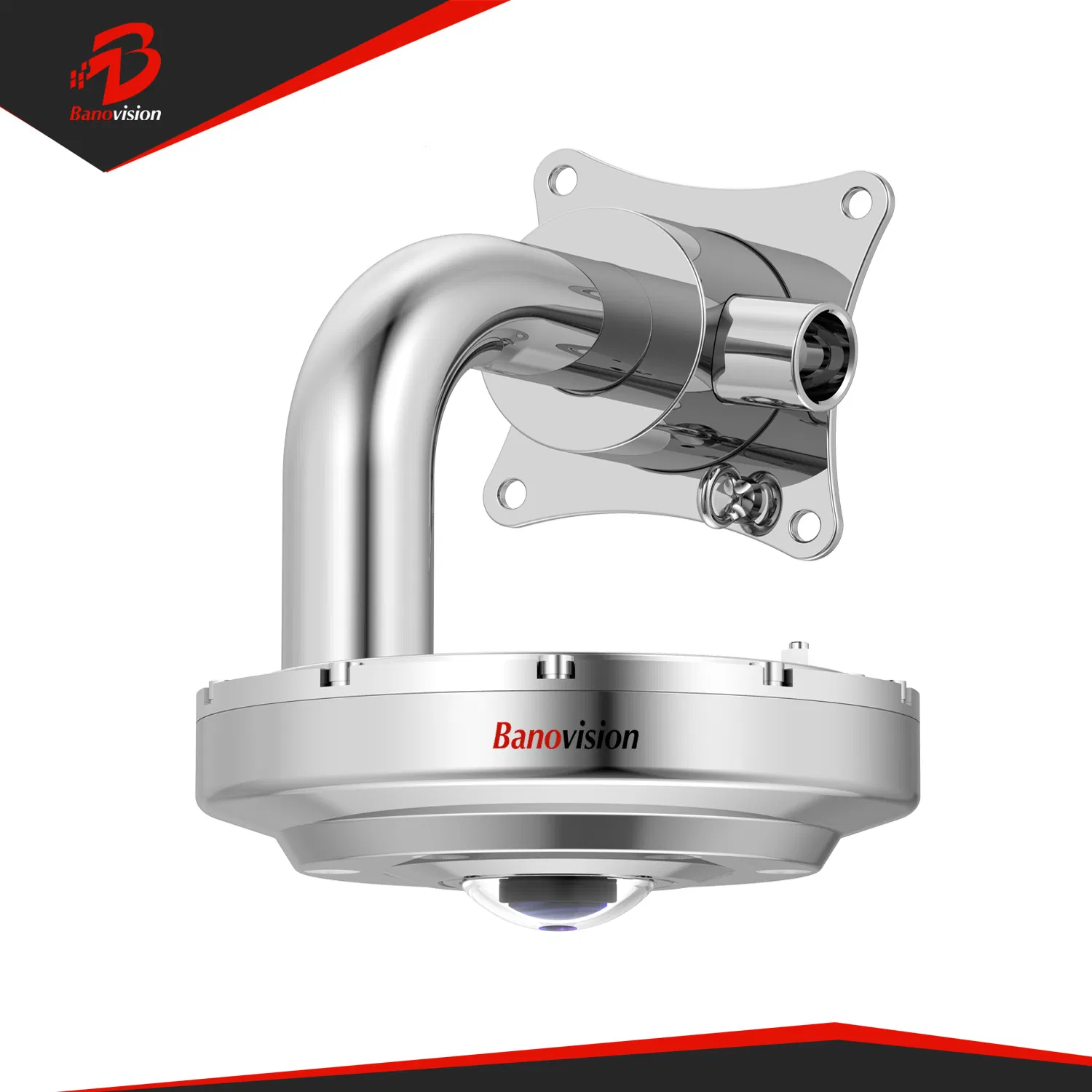

The BA-EX109-FP is a specialized explosion-proof fisheye camera designed for high-risk environments. This new type of explosion-proof equipment supports professional-grade panoramic surveillance, ensuring safety and visibility in challenging conditions.

Key Features

Anti-Corrosion Fisheye IP Camera

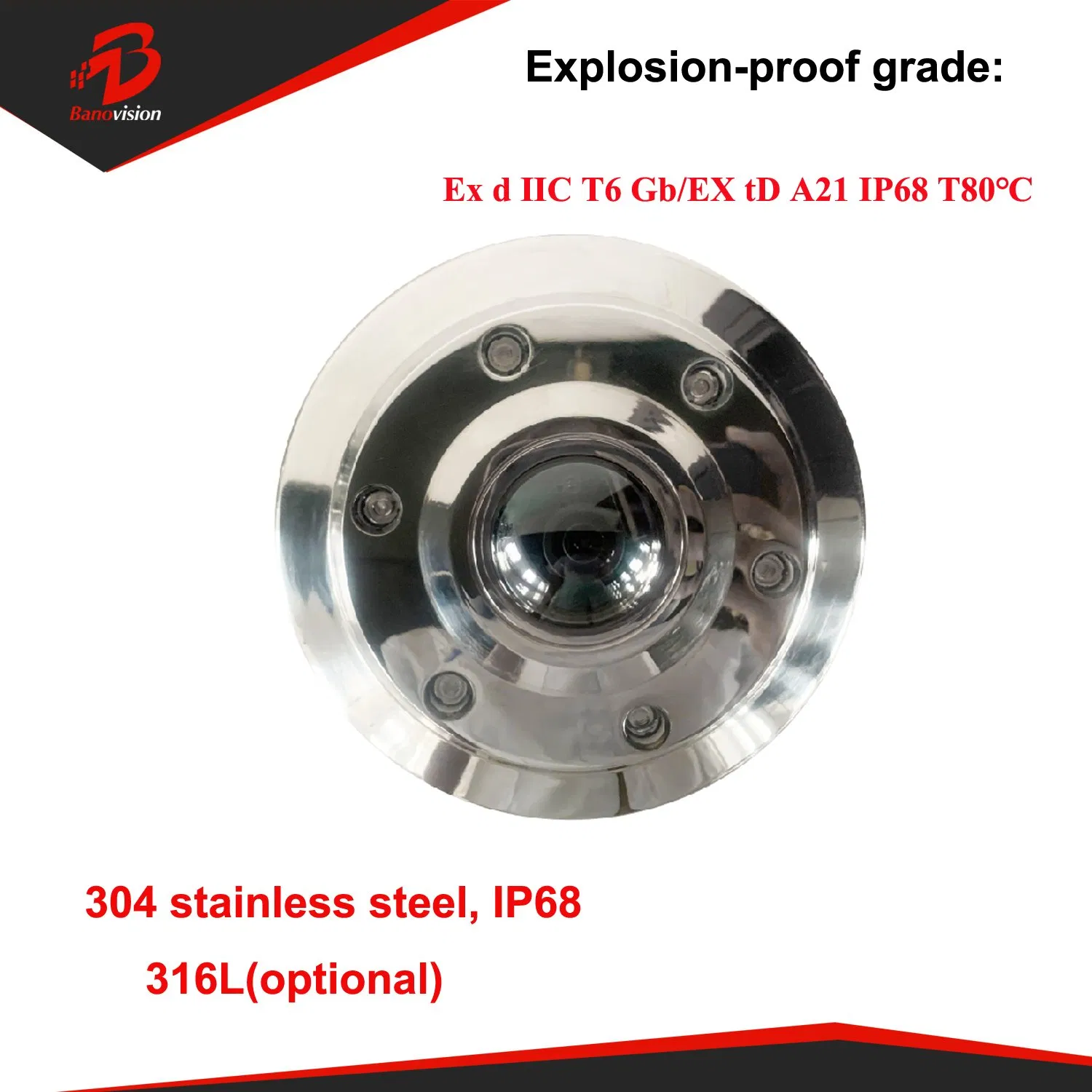

Certified Explosion level: Ex dII C T6 Gb / EX tD A21 IP68 T80ºC
1/2.8" progressive scan, 5.0 Megapixel CMOS sensor
Full HD Resolution: 2592(H) x 1944(V)
120dB True WDR for clear images in high contrast lighting
Ultra low illumination: 0.01Lux (Color), 0 Lux with IR
316L Stainless Steel Explosion-proof housing
Integrated IR distance: 20-40 meters
360° Panoramic wide-angle viewing
Standard PoE (IEEE 802.3af) power support

Technical Parameters

Camera & Lens
Image Sensor	1/2.8", progressive scan, 5.0 megapixel, CMOS
Lens	1.4mm @ F2.0
Angle of View	360° Fisheye
Minimum Illumination	Color: 0.01 Lux; 0 Lux with IR
Day/Night	IR-cut filter with auto switch
WDR	120dB True WDR
Video & Audio
Compression	Ultra 265, H.265, H.264, MJPEG
Main Stream	5MP (2592*1944): Max. 30fps
Sub Stream	1080P (1920*1080): Max. 30fps
OSD / Privacy Mask	Up to 8 OSDs / 4 Areas
Audio I/O	1 Input / 1 Output; Built-in Mic Supported
Network & Storage
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, NTP, FTP, HTTP, HTTPS, SNMP, QoS
Edge Storage	Micro SD slot, up to 256GB
Integration	ONVIF (Profile S, Profile G, Profile T), API
Mechanical & General
Material	316L Stainless Steel / IP68 / IK10
Power	DC12V±25%, PoE (IEEE 802.3af)
Environment	-30°C ~ 60°C, Humidity: ≤95% RH
Surge Protection	4KV

Industrial Applications

This panoramic explosion-proof system is engineered for hazardous locations where flammable gases, vapors, or dust are present:

Oil & Gas: Rigs, refineries, and storage tanks.

Chemical Plants: Monitoring volatile processing areas.

Mining: Underground tunnels and conveyor systems.

Manufacturing: Production lines with explosive atmospheres.

Marine: Offshore platforms and hazardous vessel areas.

Energy: Power generation and boiler room monitoring.

Product Details

Frequently Asked Questions

What is the advantage of the fisheye lens in a hazardous environment?

The 360° fisheye lens provides complete panoramic coverage, allowing a single camera to monitor a large area without blind spots, which is critical for safety in high-risk zones.

What does the Ex dIIC T6 rating signify?

It indicates the camera is flameproof and safe for use in environments containing the most explosive gas groups (IIC), including hydrogen, with a maximum surface temperature of 85°C (T6).

Is the camera resistant to harsh weather and water?

Yes, it features an IP68 rating, meaning it is fully dust-tight and can withstand long-term immersion in water under pressure, making it ideal for outdoor and marine use.

How does WDR technology improve image quality?

The 120dB True WDR technology balances lighting in high-contrast scenes, ensuring that details in both very bright and very dark areas are clearly visible.

Does this camera require separate power cabling?

No, it supports Power over Ethernet (PoE), allowing both data and power to be transmitted through a single network cable for easier and safer installation.

What material is the housing made of?

The housing is constructed from 316L stainless steel, which offers superior corrosion resistance and durability compared to standard 304 stainless steel or aluminum.
