Basic Information
Certification
CE, FCC, RoHS, EMI/EMC
Feature
Waterproof, High Definition, Mini Size, Vandal-proof
Product Description

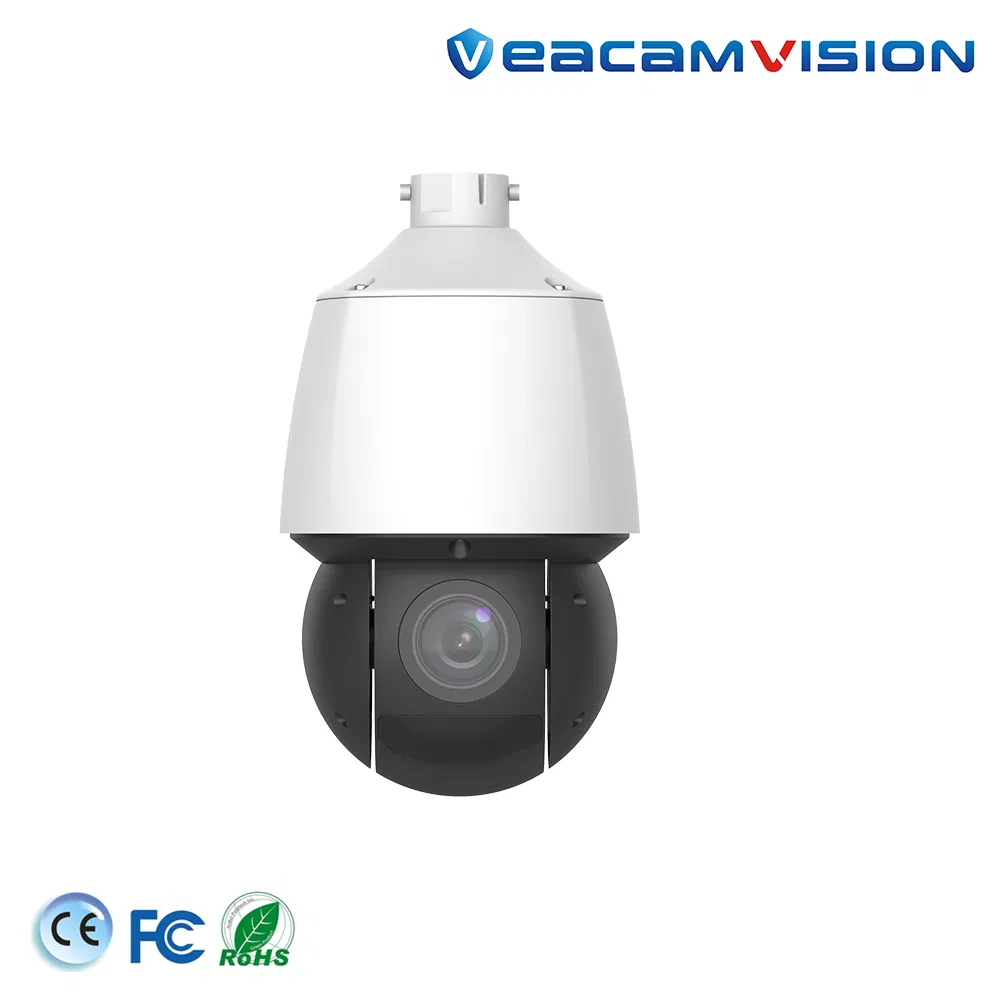

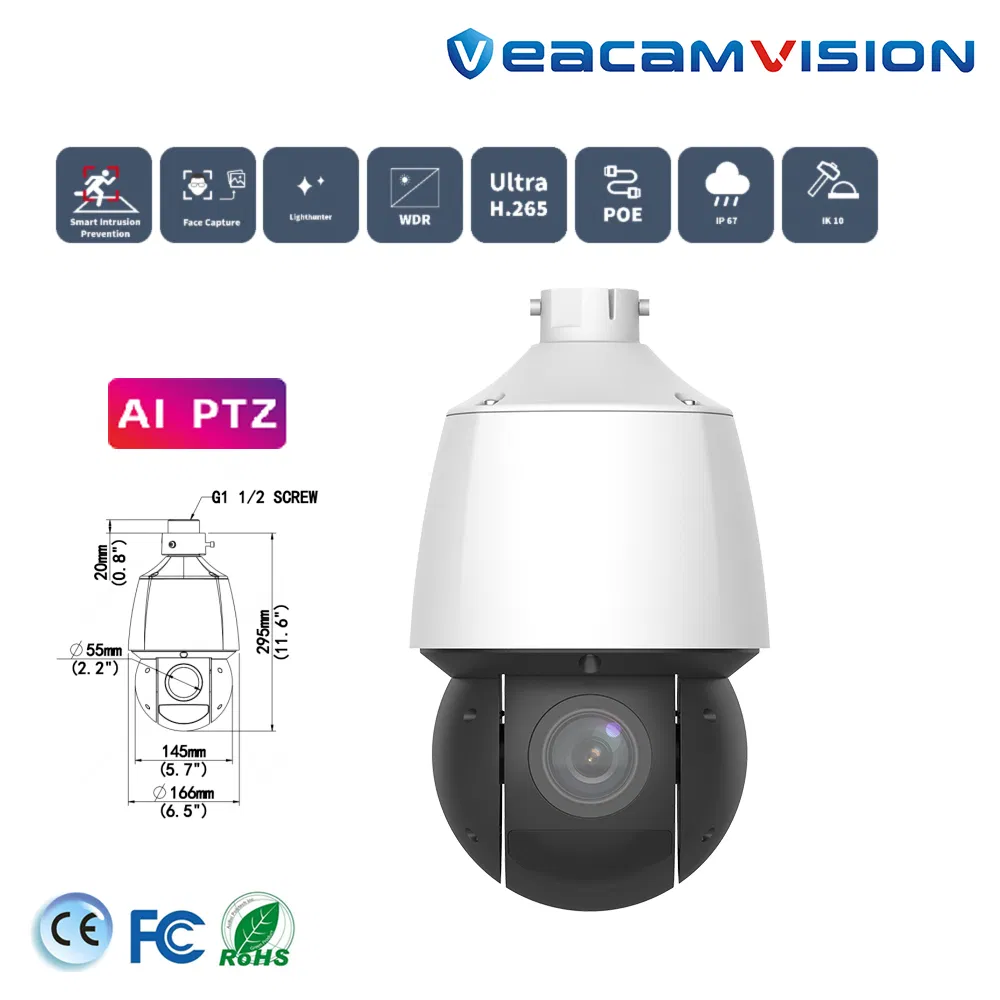

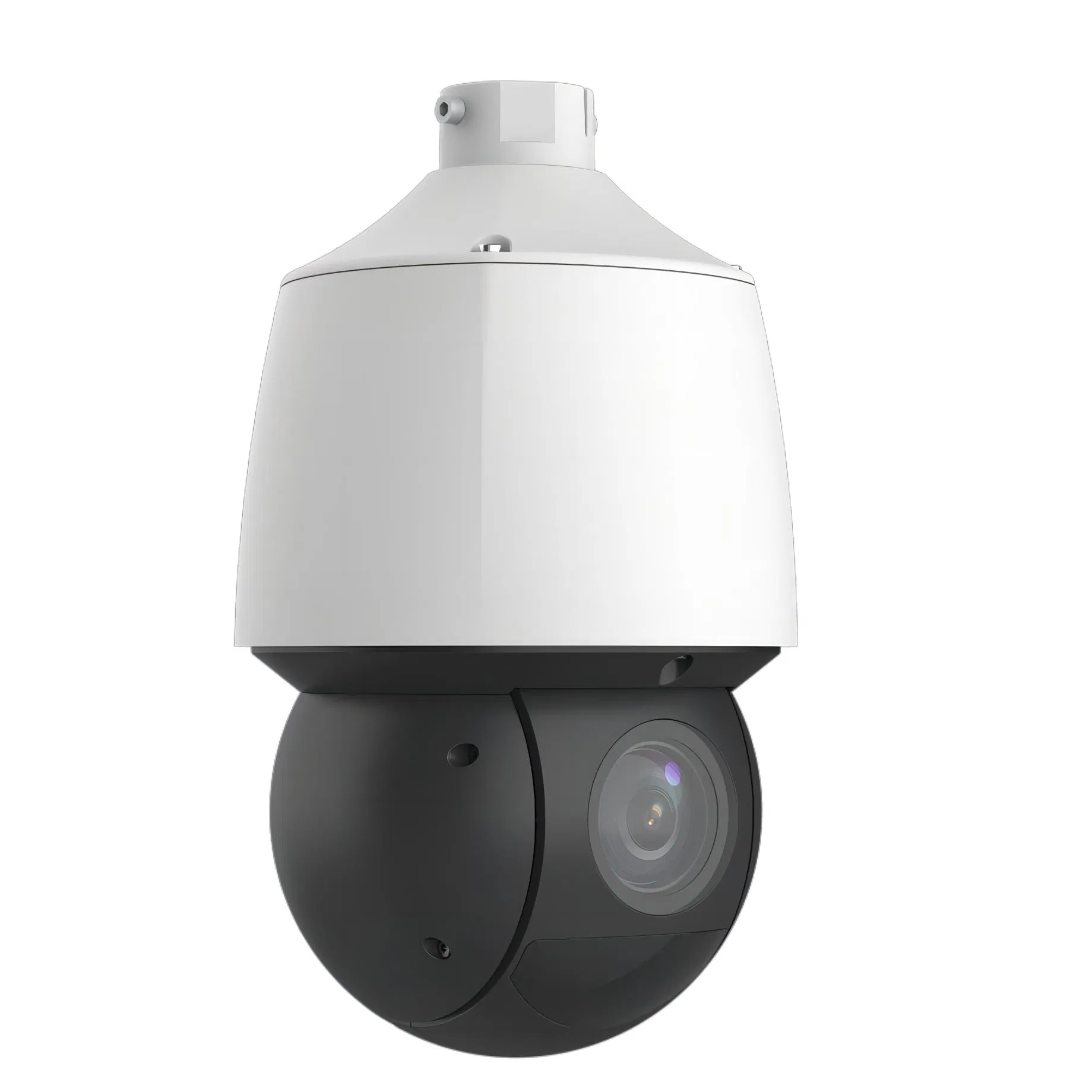

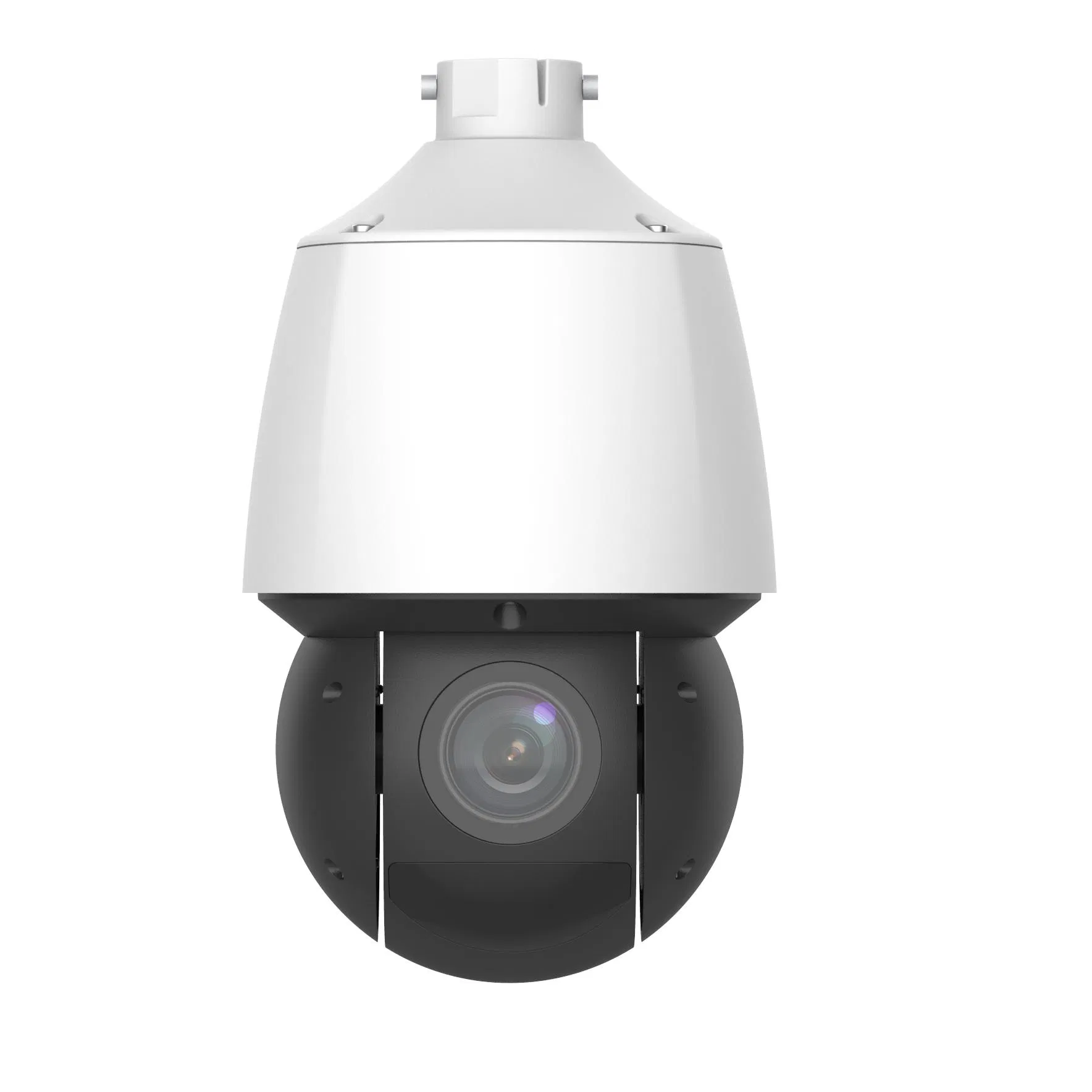

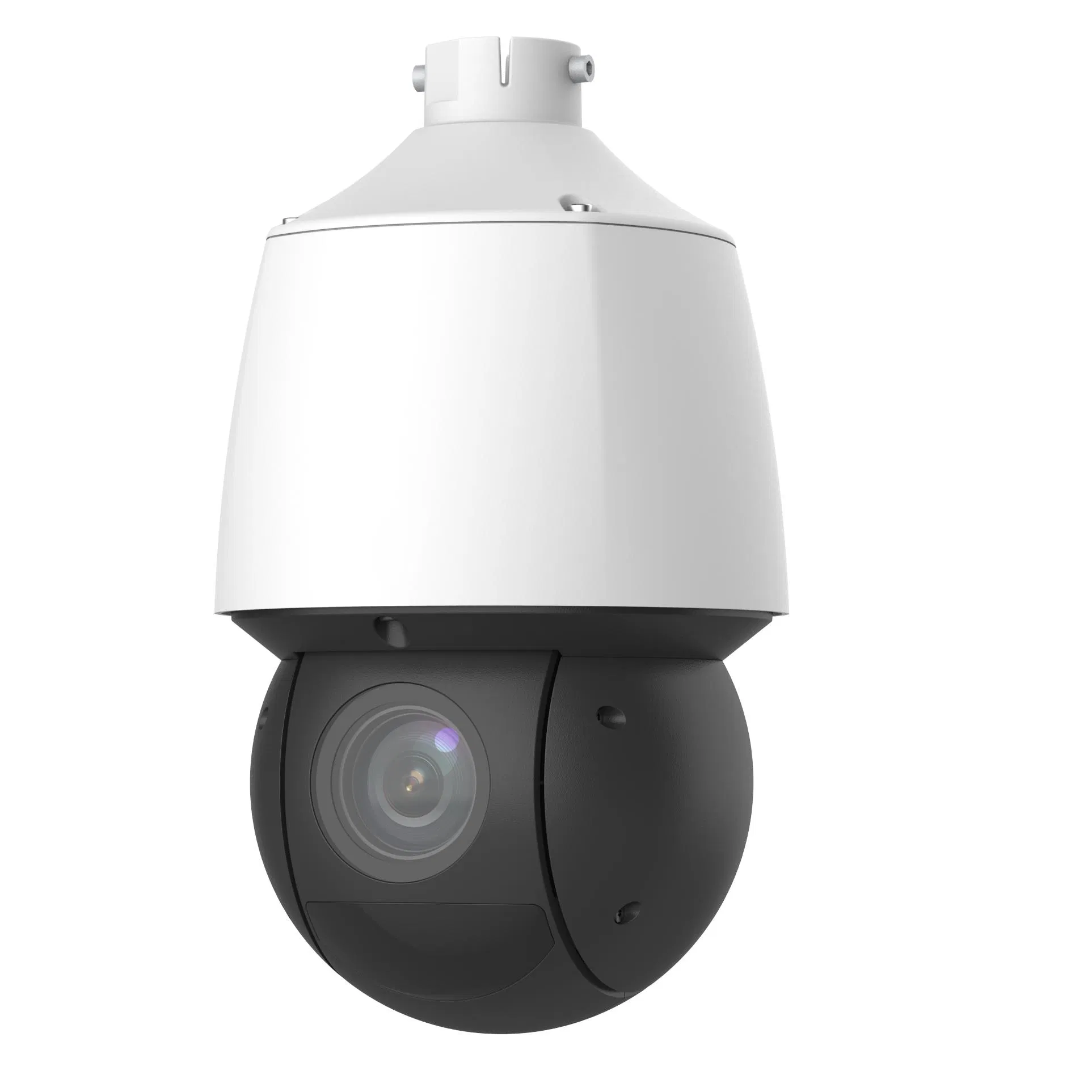

4MP 25x Lighthunter Network PTZ Dome Camera
- High quality image with 4MP, 1/2.8'' CMOS sensor
- 2688*1520@30fps in the main stream
- Ultra 265, H.265, H.264, MJPEG Compression
- 25X Optical Zoom for detailed surveillance
- Smart intrusion prevention & false alarm filtering
- Face capture with automatic snapshot selection

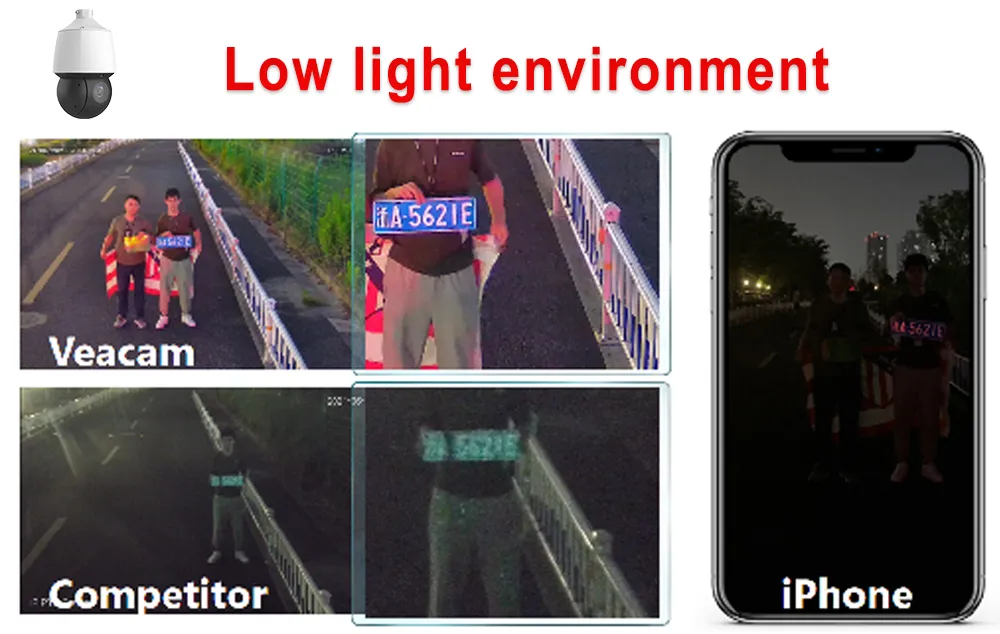

- Lighthunter technology for low light environments
- Smart IR technology, up to 100m (328ft) distance
- IP67 ingress protection & IK10 vandal resistant
- Support for DC 12V or PoE+ (IEEE 802.3at)
- Alarm 2 in / 1 out, Audio 1 in / 1 out
- SD Card support up to 256GB
Technical Parameters
|
| Sensor | 1/2.8", 4.0 megapixel, progressive scan, CMOS |
| Min. Illumination | Colour: 0.003 Lux (F1.5, AGC ON); 0 Lux with IR |

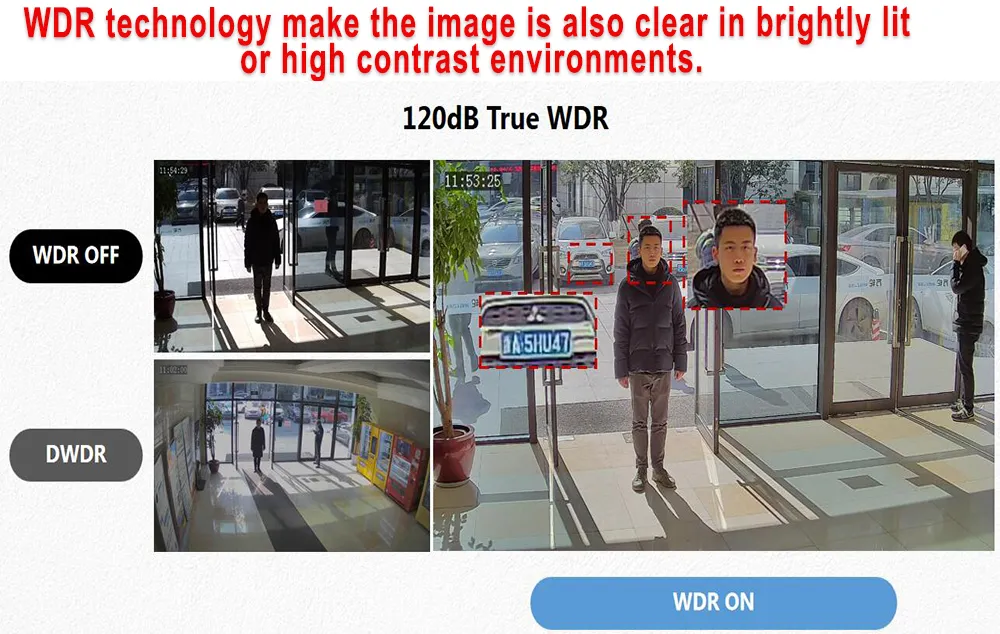

| WDR | 120dB |
| Lens Type | 4.8 ~ 120mm, AF automatic focusing and motorized zoom |
| Optical Zoom | 25X |
|
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | 4MP (2688*1520) @ 30fps |
| Smart Intrusion Prevention | Line crossing, Intrusion, Region entrance/exit detection |
| Audio | G.711U, G.711A; Two-way Audio support |
|
| Pan Range | 360° (endless) | Speed: 0.1°/s ~ 200°/s |
| Tilt Range | -15° ~ 90° (auto reverse) | Speed: 0.1°/s ~ 120°/s |
| Presets | 1024 |
|
| Power | DC12V(±25%, 3A), PoE+ (IEEE 802.3at) |

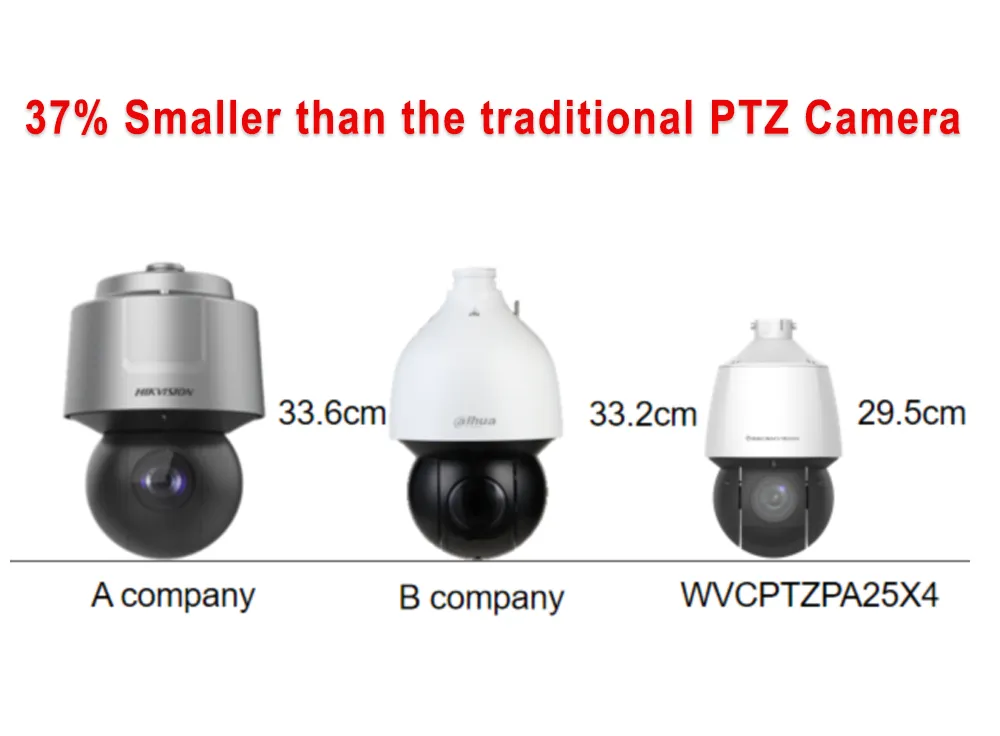

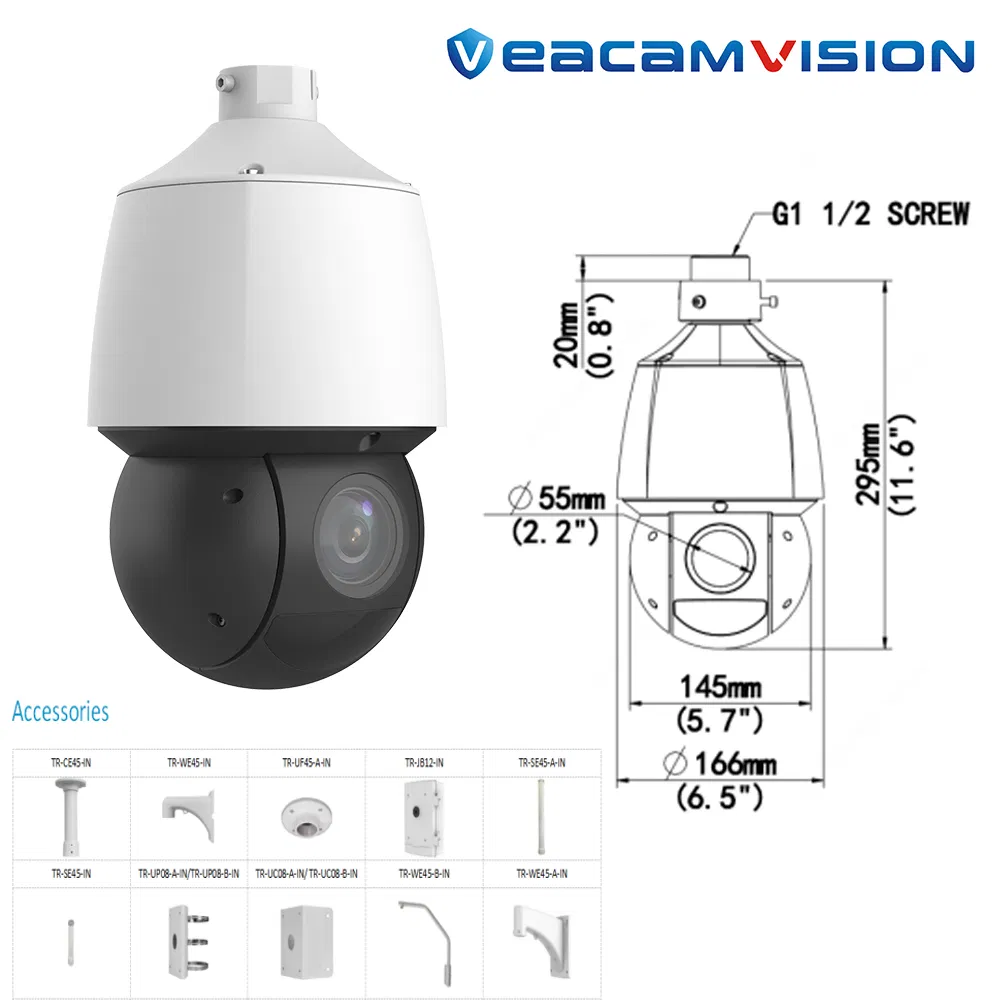

| Dimensions | Ø166 x 295mm (Ø6.5" x 11.6") |
| Environment | -40ºC ~ 70ºC; IP67 & IK10 Protection |
Product Detailed View

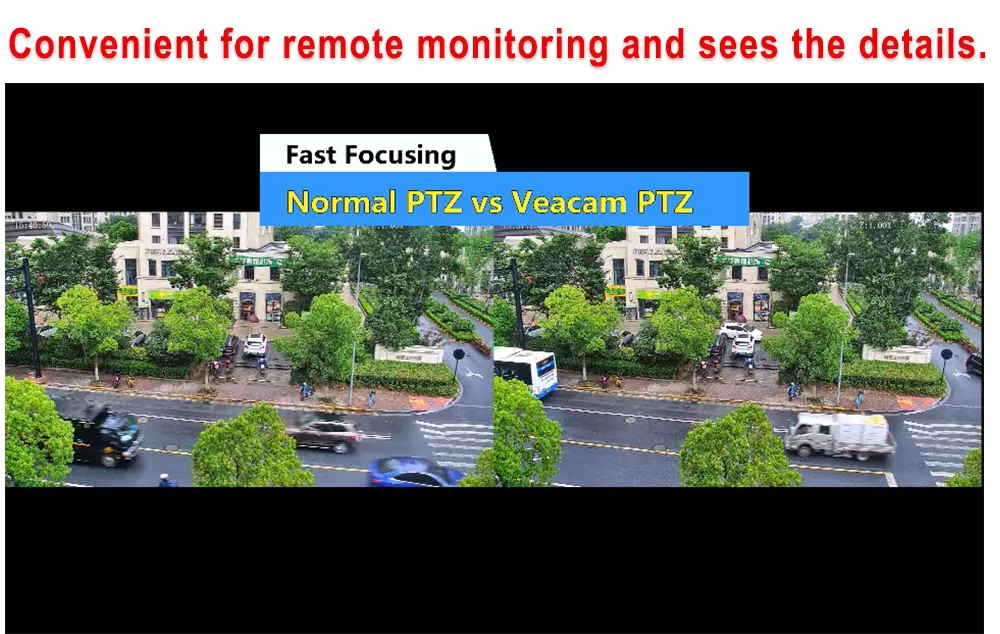

4MP resolution, X25 optical zoom, clear shot. Features lighthunter technology (0.003Lux) and 100M infrared for superior night vision.

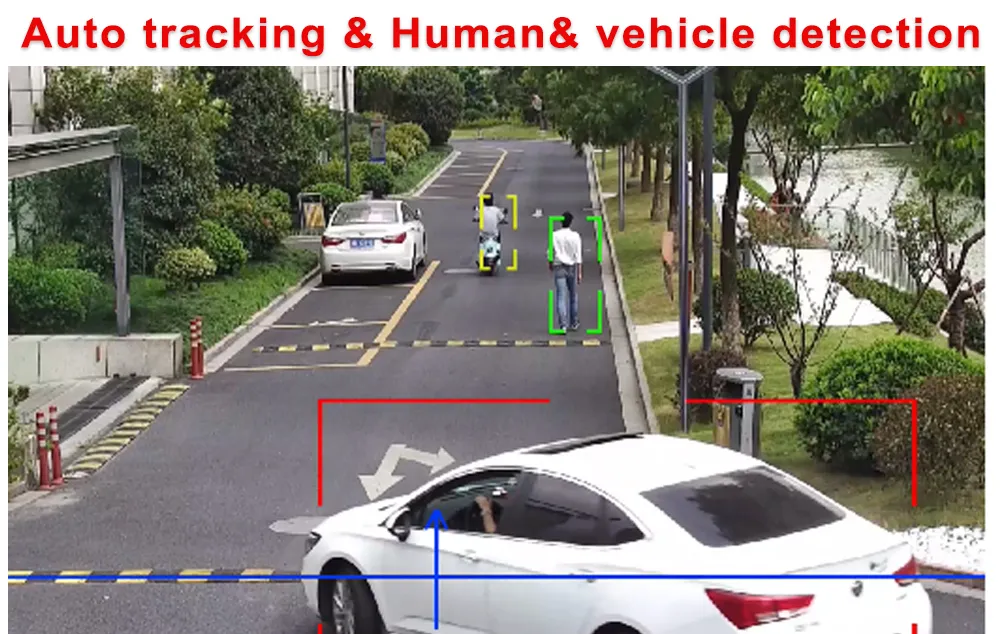

Linkage tracking: This camera supports linkage tracking of moving targets, working in coordination with intelligent alarm functions.
Production & Quality Control
Frequently Asked Questions
Are you a factory or trading company?
We are both a factory and a trading company, offering comprehensive manufacturing and sourcing solutions.
What shipping methods do you provide?
We support DHL, UPS, Fedex, and other air or sea shipments. We can handle any shipment based on your requirements.
What are your accepted methods of payment?
We support T/T, L/C, Western Union, and Trade Assurance.

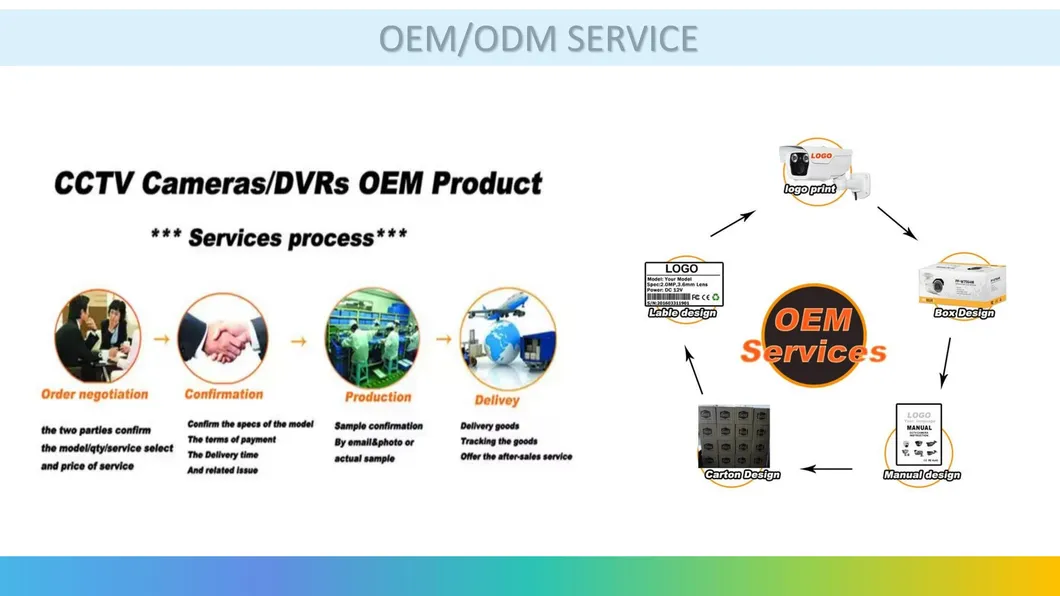

Can we print our logo on the products?
Yes, we provide OEM services and can customize the product with your logo.
What is your Minimum Order Quantity (MOQ)?
MOQ depends on your specific requirements. For OEM/ODM, the minimum is 50pcs per model, though we support small test orders for new customers.
Do you offer product samples?
Yes, samples are available. While there is a charge for samples initially, the fee is returned upon placing a subsequent bulk order.
