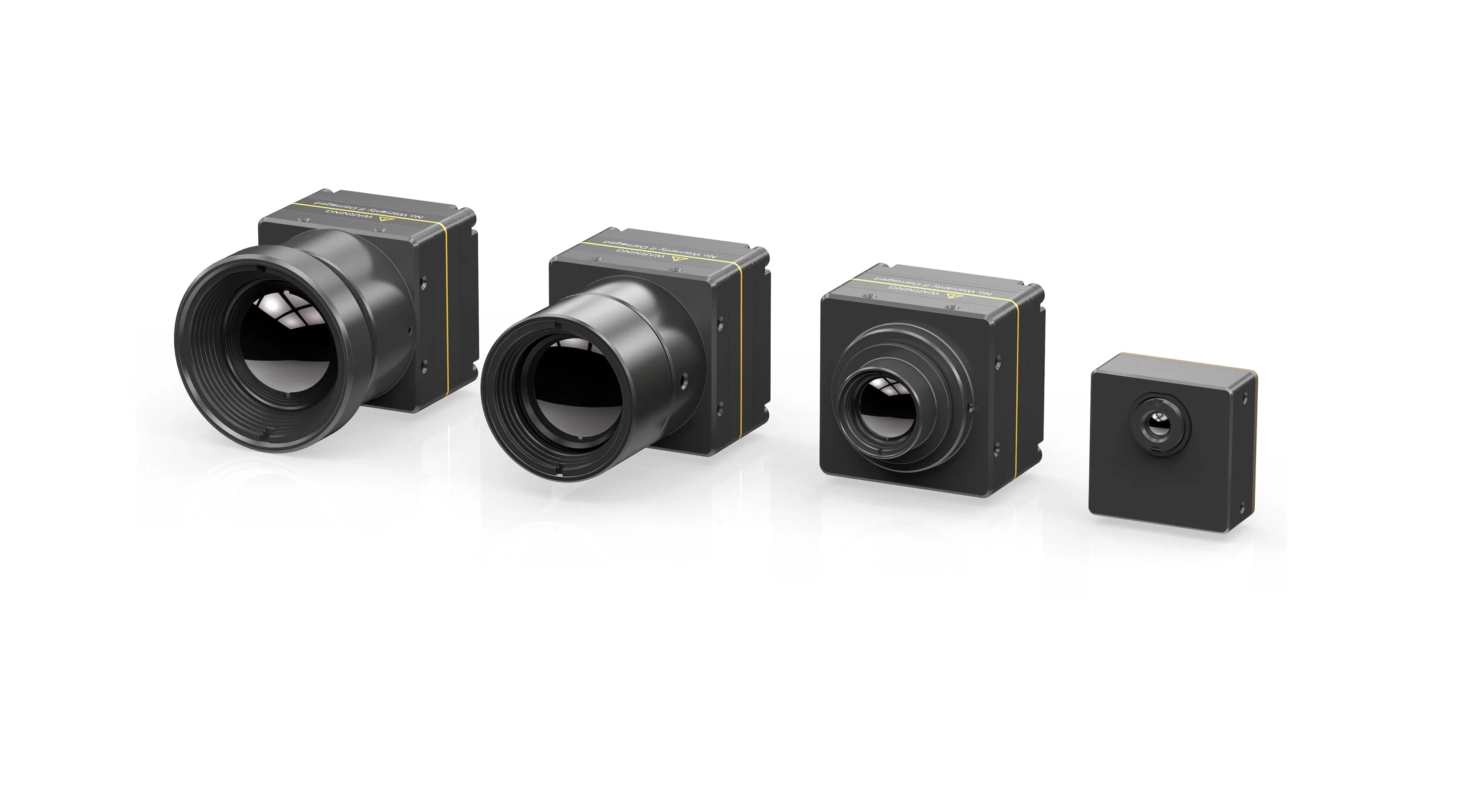

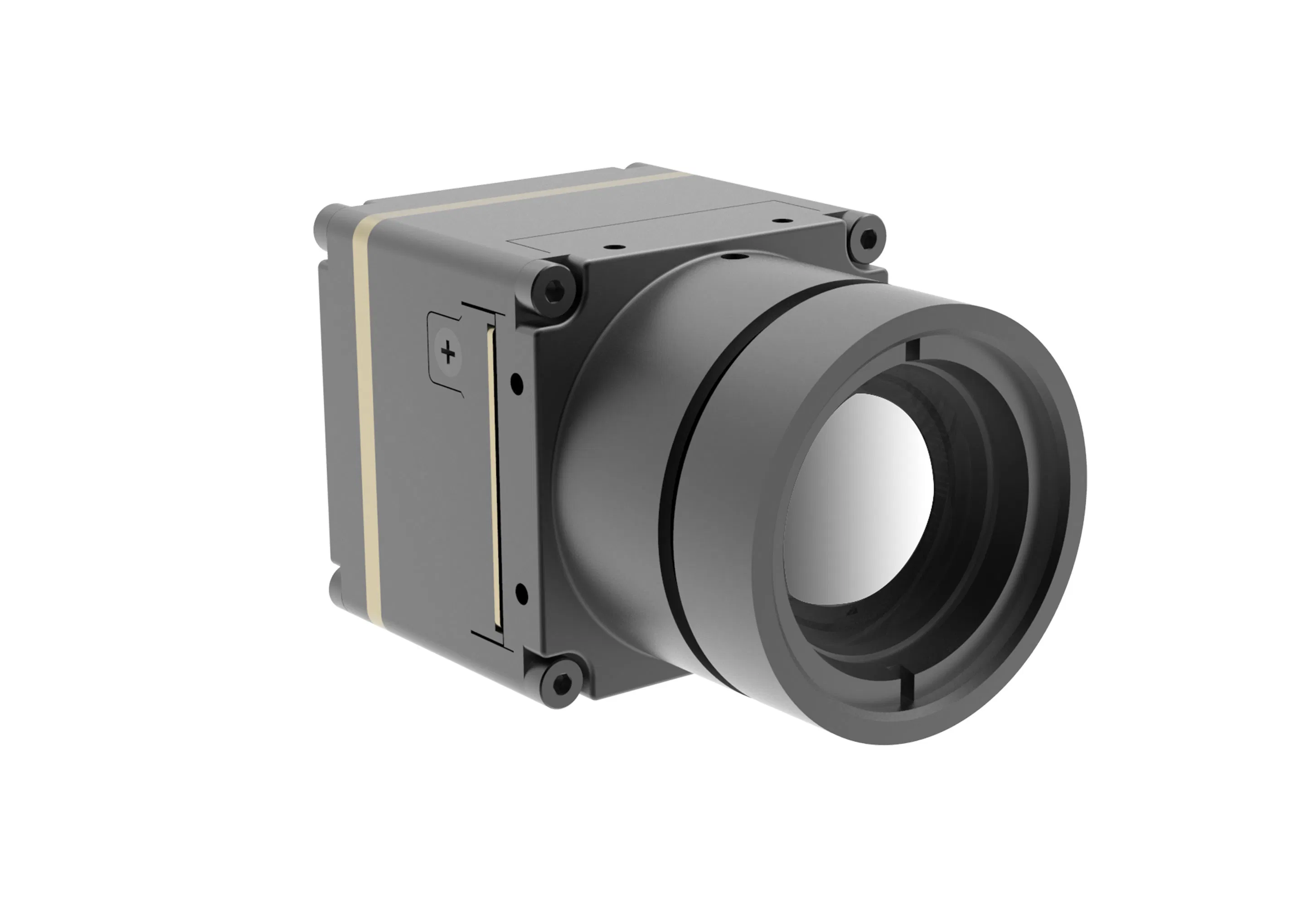

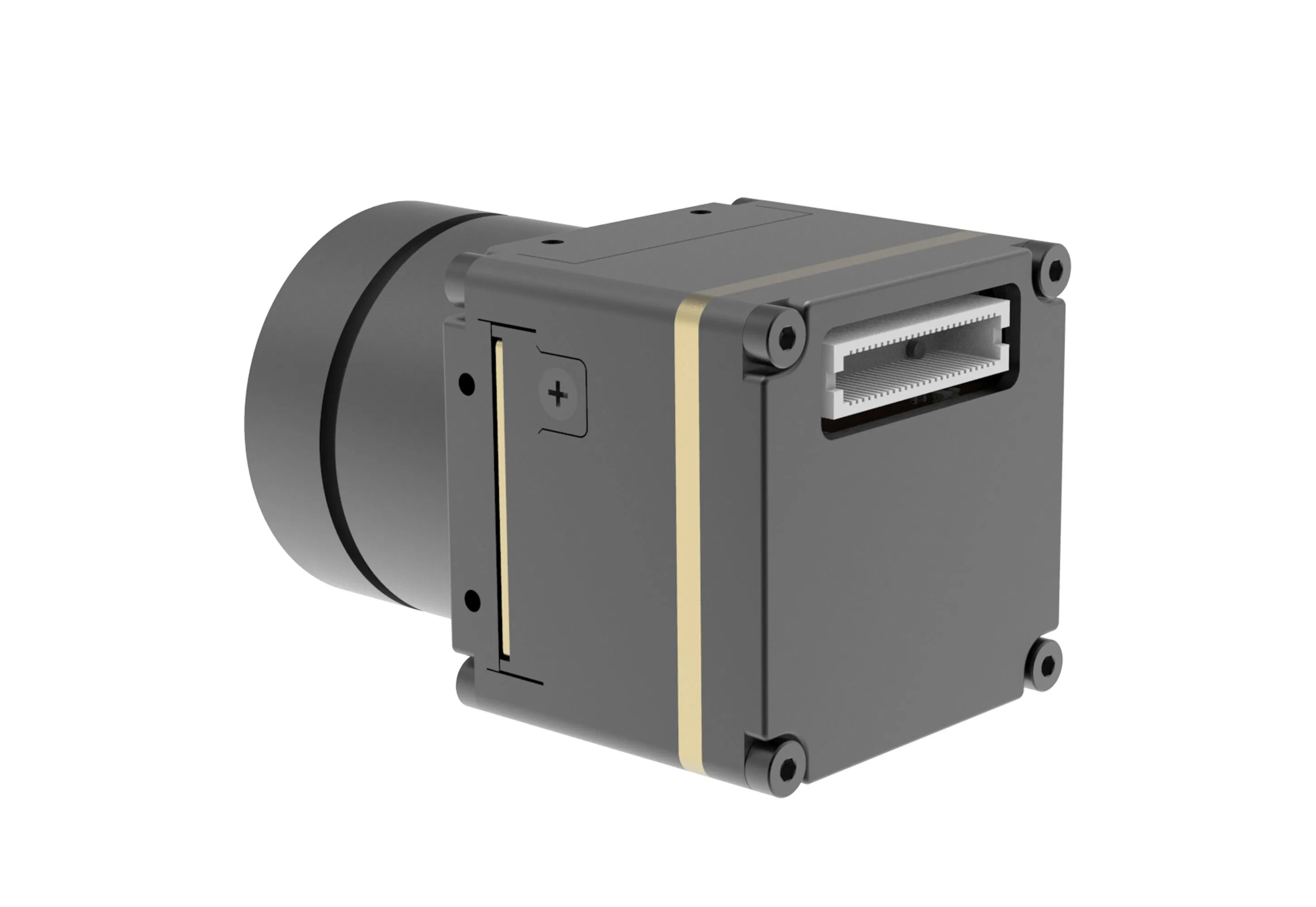

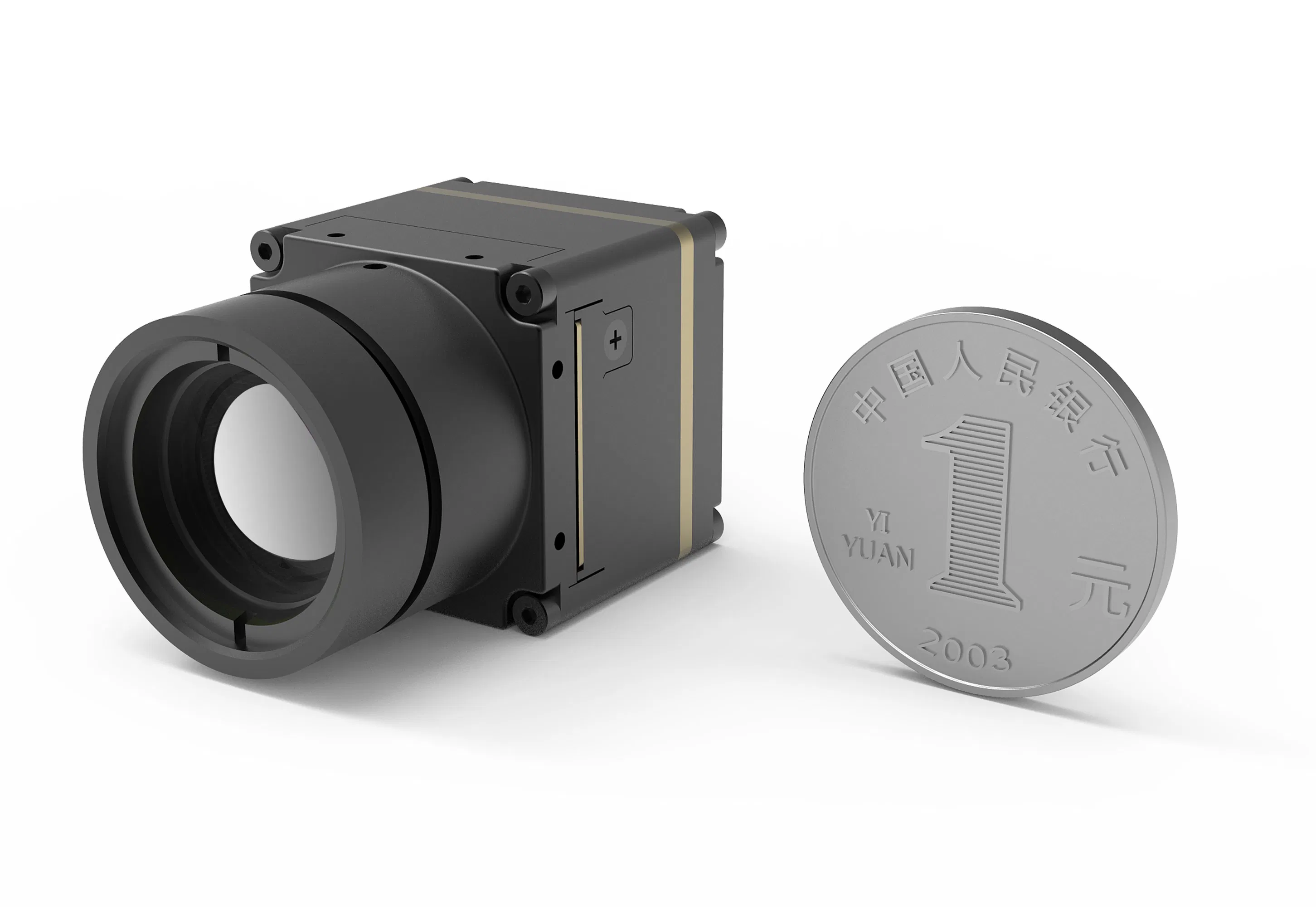

COIN417 is a specialized infrared module that integrates a 400x300@17μm wafer level package (WLP) infrared detector, high-performance signal processing circuits, and advanced image processing algorithms. This module is designed for sharp image presentation, compact size, and cost-efficiency. It features an optional thermographic function with a measurement range from -20ºC to 550ºC for industrial applications.
Mini Size: 25.4x25.4x14.1mm
Lightweight Design
NETD < 40mk
High Quality Imaging
Low Power Consumption
Rapid Integration
Professional Manufacturing
As a leading infrared detector manufacturer and service provider, we offer high-performance uncooled and cooled thermal imaging detectors. Our facilities include 20,000 square meters of clean room space with multiple fabrication lines. Key processes such as element purification, epitaxy growth, chip fabrication, and vacuum packaging are performed in-house to ensure the highest quality standards.
Frequently Asked Questions
What is infrared thermal imaging?
It is a method of using infrared radiation and thermal energy to gather information about objects to formulate images or detect temperatures, even in low visibility environments.
What are the advantages of infrared thermal imaging?
Key advantages include seeing through total darkness, long-range detection, non-contact temperature measurement, and identification under camouflage.
What is the difference between uncooled and cooled IR detectors?
Uncooled detectors operate at ambient temperatures and are smaller/lower cost, ideal for portable devices. Cooled detectors require cryogenic cooling, offering higher sensitivity for long-range missions but at a higher cost and size.
What is NETD?
NETD stands for Noise Equivalent Temperature Difference. It measures a detector's ability to distinguish small differences in thermal radiation; a lower mK figure indicates higher sensitivity.
What is WLP and its advantage?
WLP (Wafer Level Package) is a process of completing high vacuum packaging directly on the MEMS wafer. It allows for extreme miniaturization and low cost, making it ideal for consumer electronics.
What is a thermal imaging module?
A thermal imaging module is the minimum unit of a thermal device, consisting of an infrared detector, lens, and hardware with embedded software algorithms.
