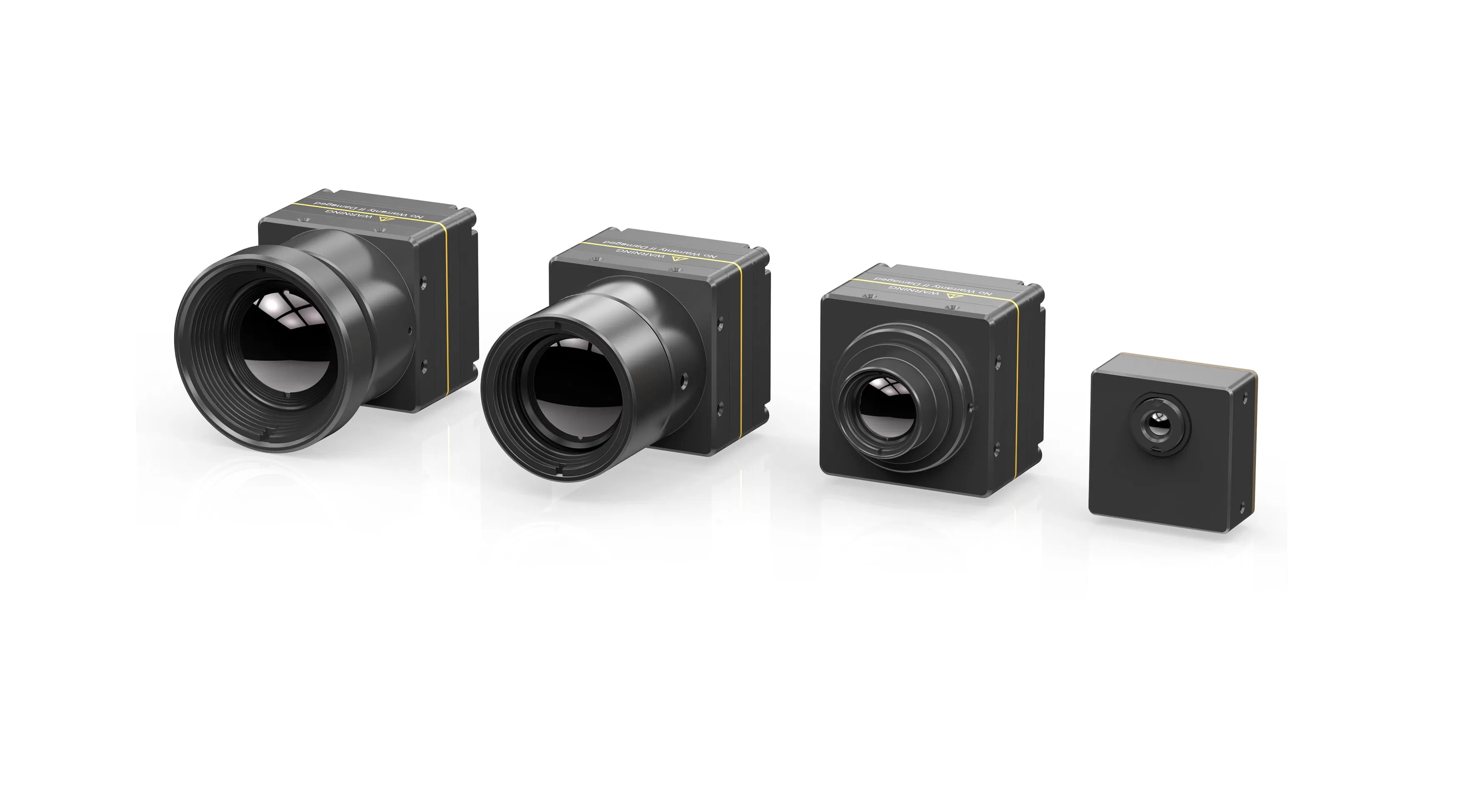

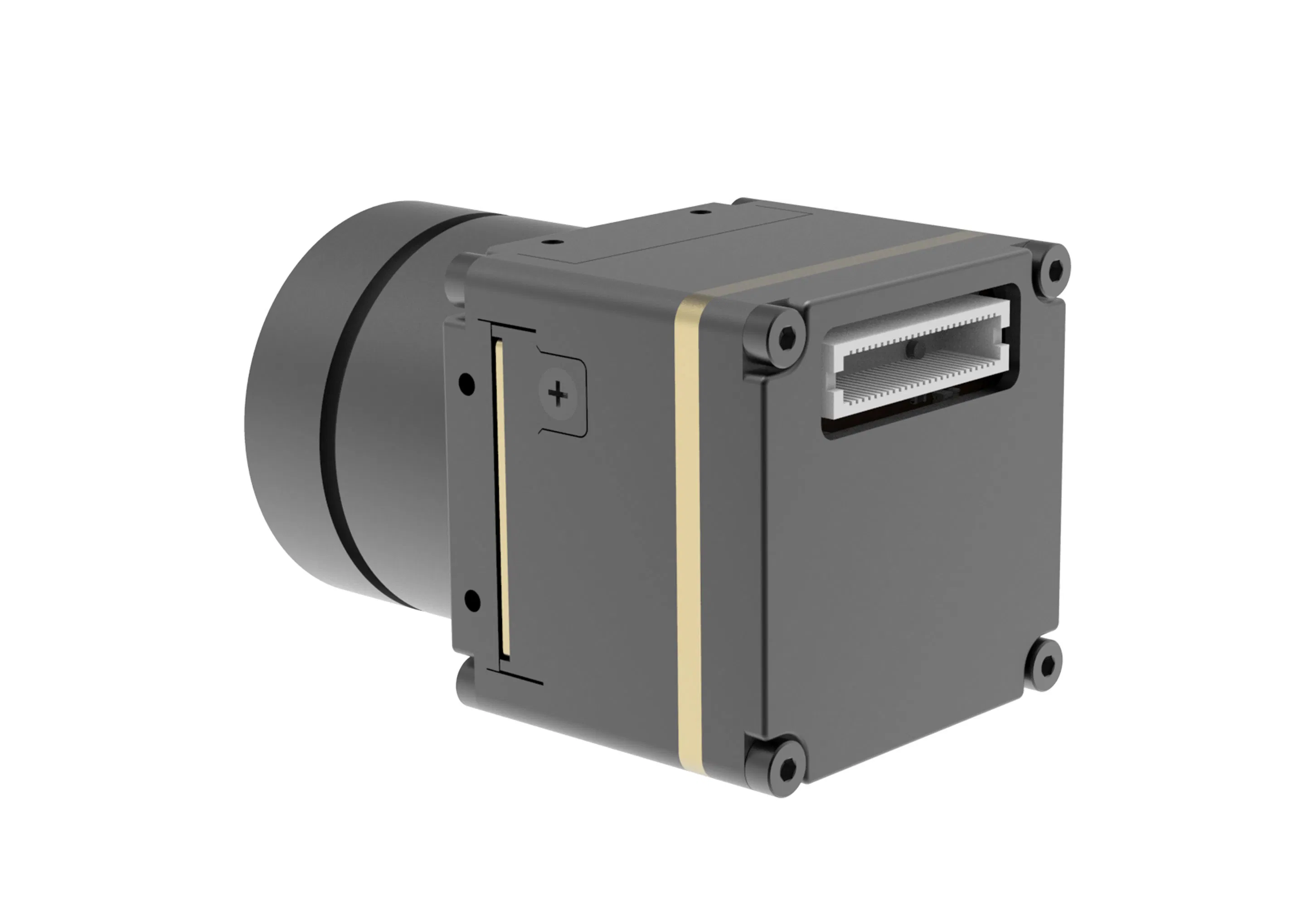

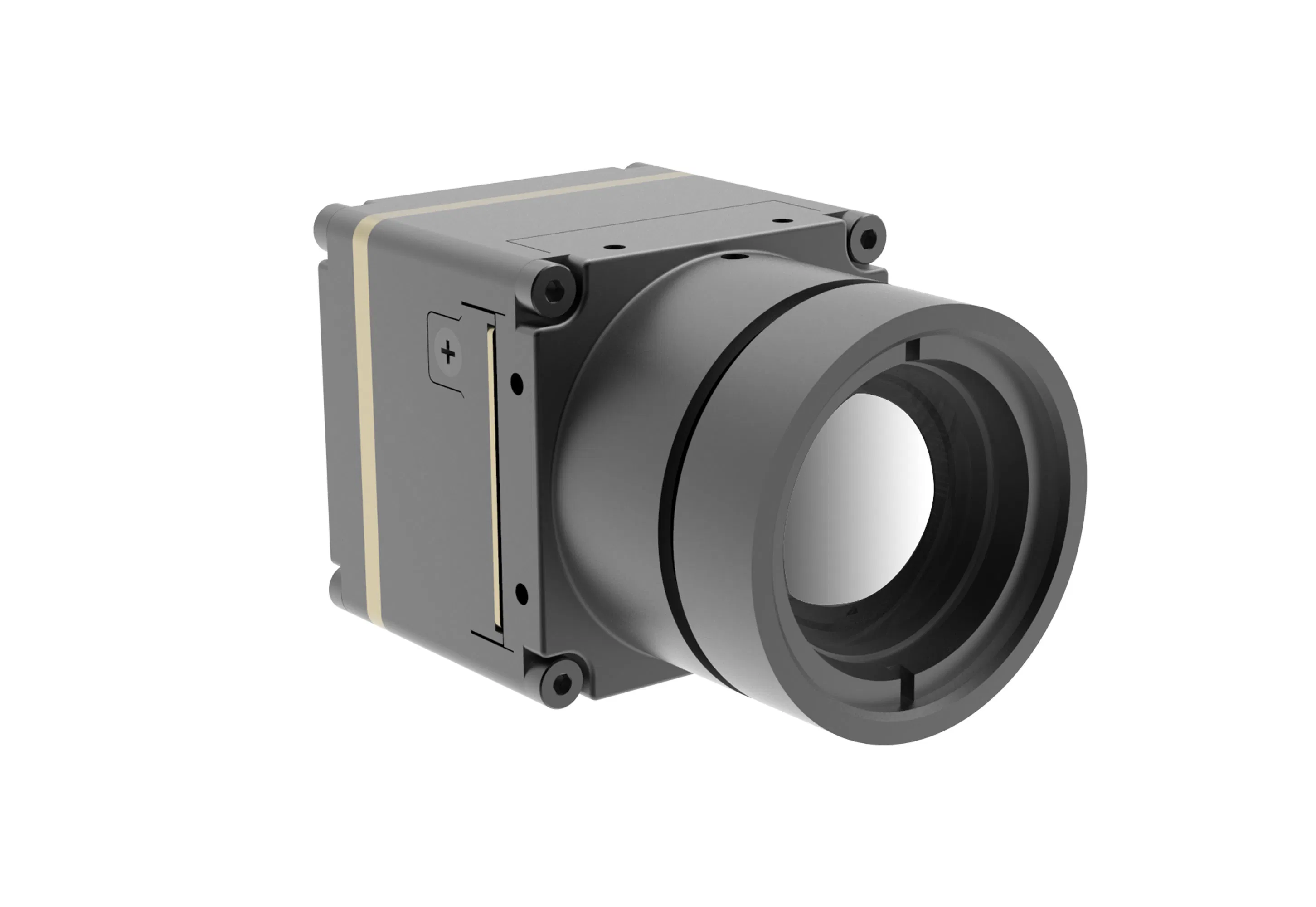

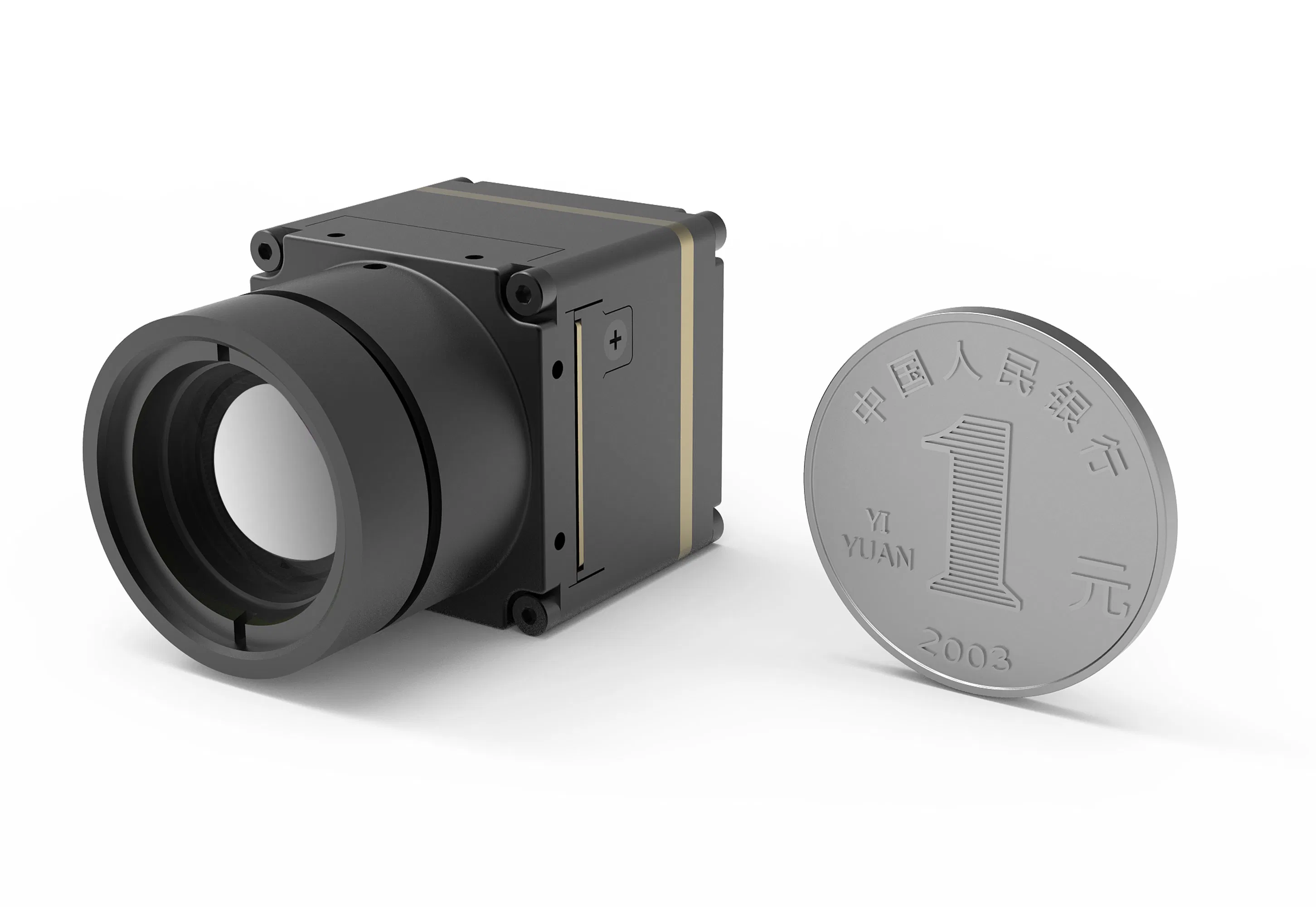

400x300@17μm Uncooled Vox Lwir Thermal Imaging Camera Module for Smart Home

Customization:	Available
Function Type:	Thermal Imaging System
Detection Type:	Microbolometer

Basic Information

Model NO.

COIN417

Output Signal

Digital Type

Material

VOx

NETD

<40mk

Resolution

400X300

Spectral Range

8-14μm

Certification

ISO9001:2015; RoHS; Reach

Specification

25.4mmX25.4mmX14.1mm

Product Description

The COIN417 is a high-performance infrared module featuring a 400x300@17μm wafer level package (WLP) detector. It integrates advanced signal processing circuits and image algorithms to provide sharp, crisp thermal imaging in a compact, cost-effective form factor.

It includes an optional thermographic function for industrial temperature measurement ranging from -20ºC to 550ºC, making it ideal for integration into various terminal products.

Mini Size
25.4x25.4x14.1mm

High Sensitivity
NETD < 40mk

Lightweight
Easy Integration

Low Power
Efficient Operation

Technical Parameters

IR Detector Performance
Resolution	400X300
Pixel Pitch	17μm
Spectral Range	8~14μm
NETD	<40mk
Image Processing
Frame Rate	25Hz / 30Hz / 50Hz / 60Hz
Digital Video	RAW / YUV / BT656
Analog Video	PAL / NTSC
Electrical & Physical
Typical Power Consumption	<1.1W
Dimension	25.4 X 25.4 X 14.1 mm (with shutter)
Weight	13g ± 0.5g (without lens)
Environmental
Operating Temperature	-40°C ~ +70°C
Storage Temperature	-45°C ~ +85°C

Applications & Advantages

Customer Reviews: Customers' praises are the affirmation of our profession and service.

Professional Capability

As a leading infrared detector manufacturer and service provider, we offer high-performance uncooled and cooled thermal imaging detectors. With 8-inch fabrication lines and state-of-the-art facilities, we manage all key processes in-house, including element purification, epitaxy growth, chip fabrication, and vacuum packaging.

Frequently Asked Questions

What is infrared thermal imaging?

It is a method of using infrared radiation and thermal energy to gather information about objects to formulate images or detect temperatures, even in low visibility environments.

What is the advantage of infrared thermal imaging?

Key advantages include seeing through total darkness, identification under camouflage, long-range detection, and non-contact temperature measurement.

What is the difference between uncooled and cooled IR detectors?

Uncooled detectors operate at ambient temperature, are smaller, and cost-effective. Cooled detectors require cryogenic cooling, offering higher sensitivity for extreme long-range missions.

What is NETD?

NETD stands for Noise Equivalent Temperature Difference. It measures a detector's ability to distinguish tiny differences in thermal radiation; lower figures indicate higher sensitivity.

What is a thermal imaging module?

A thermal imaging module is the core unit of a device, consisting of an infrared detector, lens, and hardware with embedded processing algorithms.

What is WLP (Wafer Level Package)?

WLP is the process of completing high-vacuum packaging directly on the MEMS wafer. This technology enables miniaturization and lower costs for consumer electronics.
