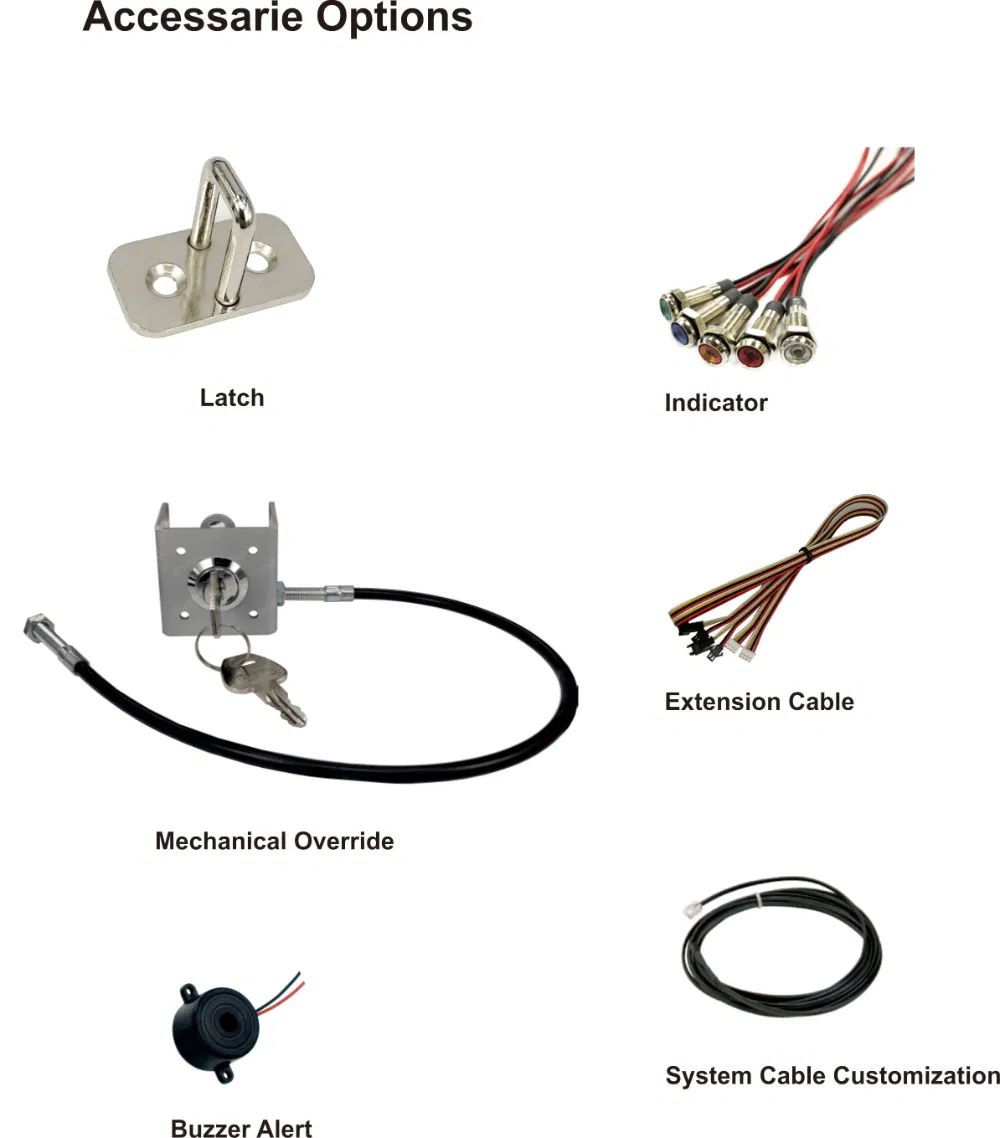

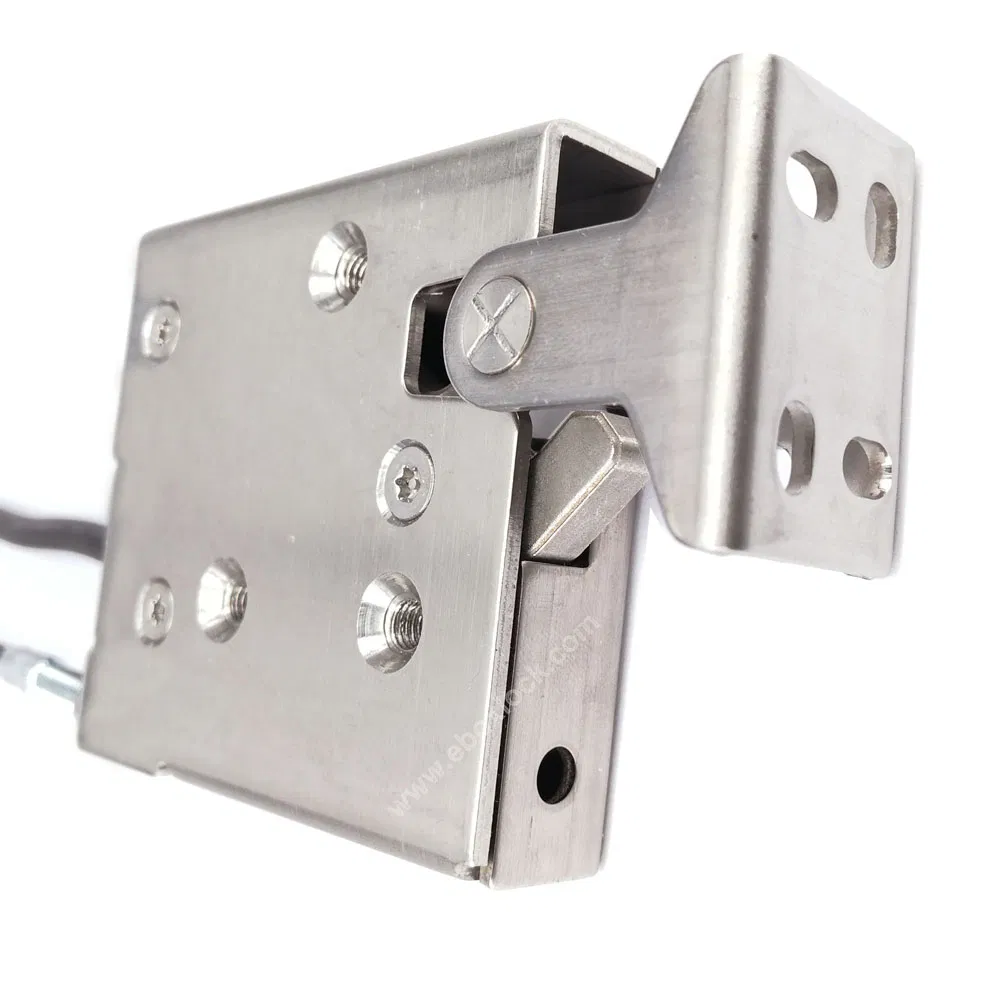

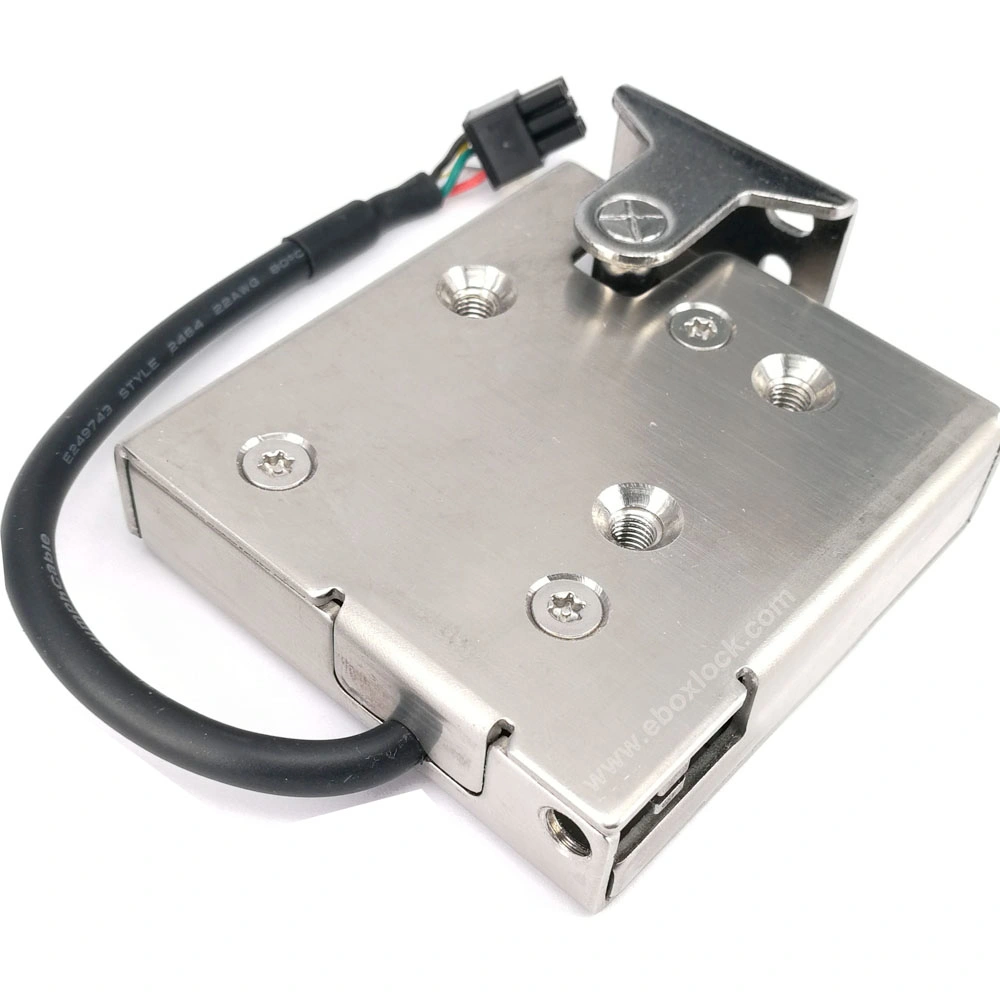

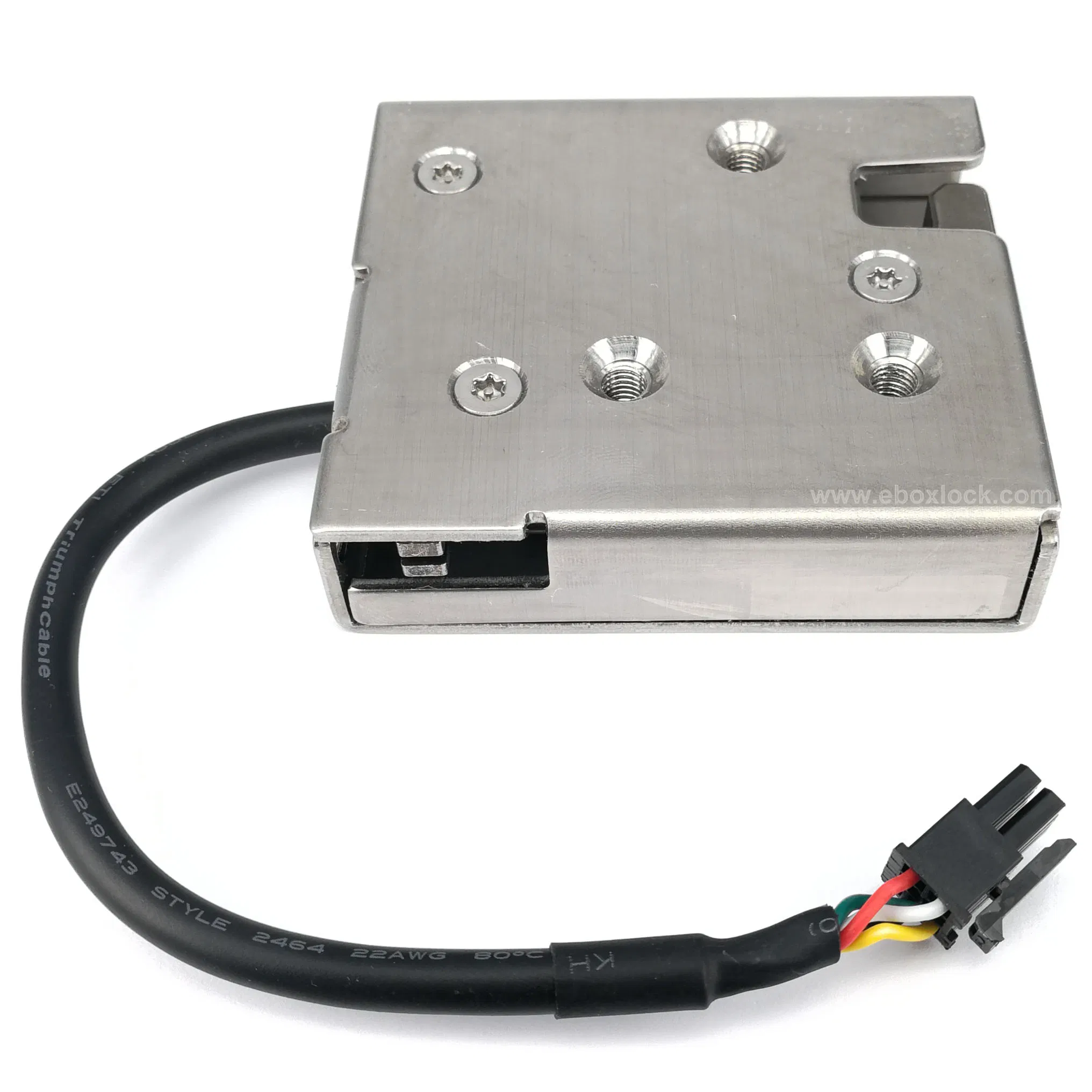

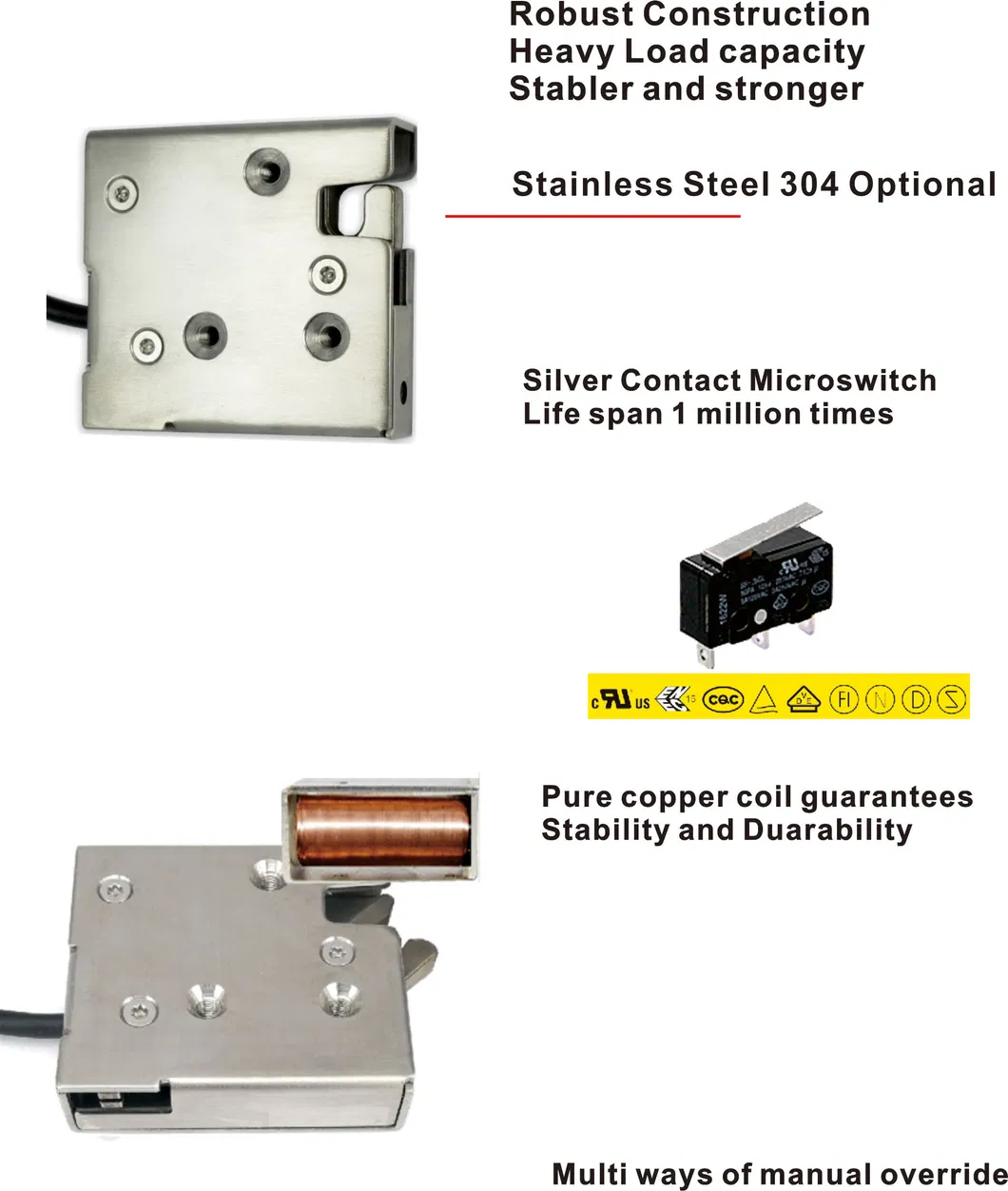

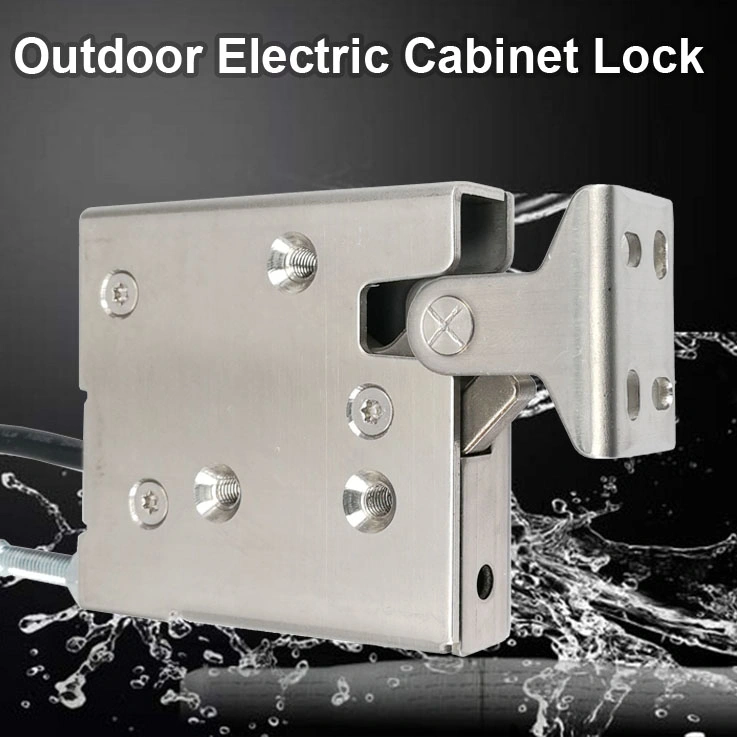

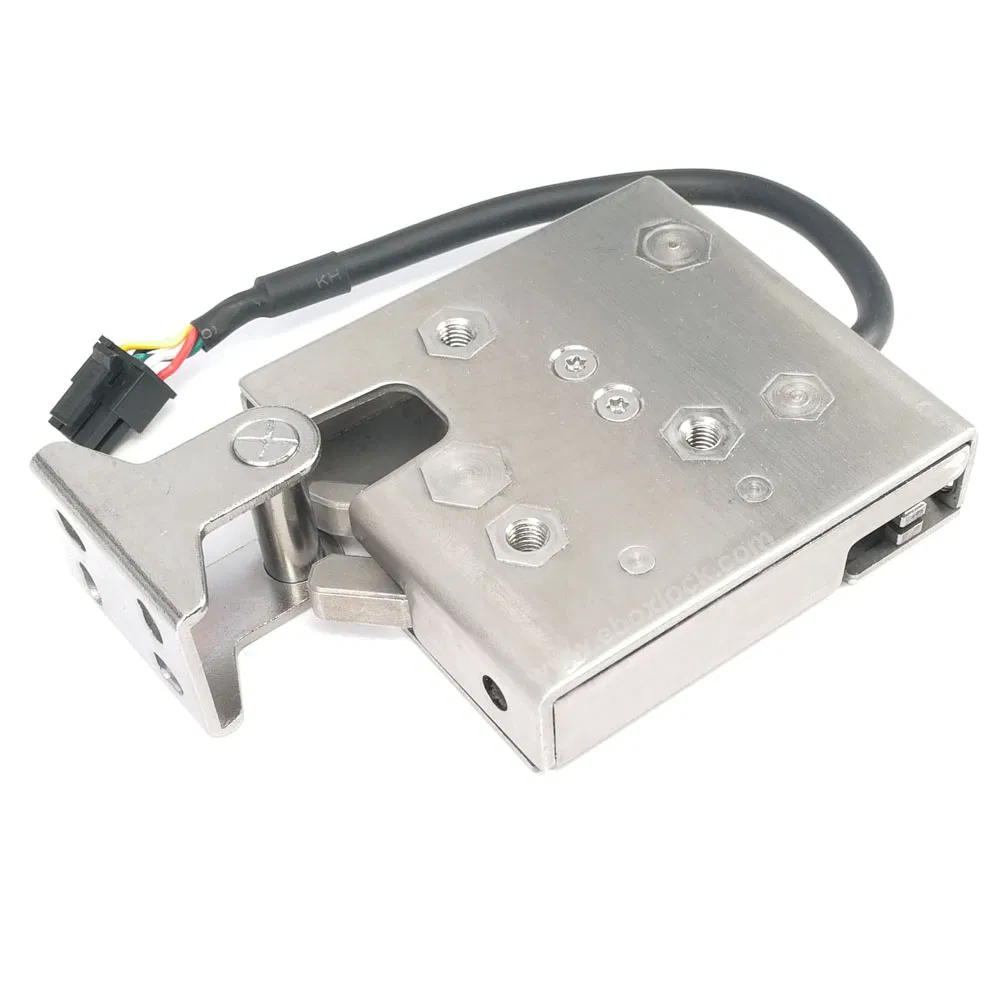

Outdoor Electronic Rotary Latch MD1220SPH is designed for outdoor locking solutions. Featuring a sealed solenoid and waterproof micro switch, it is rated for IP57. The robust all-metal construction allows MD series locks to operate against heavy mechanical loads. An optional built-in door sensor provides reporting of open/close status and mechanical kits for manual override in case of power failure.
Surface mounting, either vertically or horizontally, offers easy and flexible installation. This cabinet lock is compatible with any access control system or standalone cabinet locking. With easy push-to-close operation, the lock is designed with an internal spring rod to push the door open when electrified.
| Parameter | Details |
|---|---|
| Operation Voltage | 12/24VDC intermittent ±10% |
| Power Consumption | 12V DC 2000mA |
| Operation Mode | Fail Locked |
| Holding Force | 600KG |
| Max Power on Time | Less than 30 seconds |
| Cycle Rating | More than 1,000,000 times |
| Working Temperature | -20ºC ~ +60ºC |
| Dimensions (LxWxH) | 72mm*67mm*18mm |
| Protection Class | IP57 / IP35 |
