Wholesale Cheap Night Vision Bullet IP CCTV Infrared Thermal Imagimg Camera

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.UV-TCTHM2519-003
TypeMonocular
SensorVox Thermal Detector
Format256*192
LensAutofocus Lens
CertificationCE
FeatureWaterproof, Mini Size
Distance0-9m
Capacity10000 per Year
P

Product Description

Excellent Image Effect

  • 256*192 high resolution thermal imaging.
  • Self-developed intelligent gain control and 3D noise reduction algorithm.
  • Detail mixing enhancement for superior clarity.

Intelligent Detection

  • Real-time fire and high temperature detection.
  • Smart analytics: Area intrusion, border crossing, and entry/exit area detection.

Precise Temperature Measurement

  • Supports multiple measurement modes: 1 line, 9 frames, 10 points, and irregular/circular areas.
  • Full screen maximum temperature cross positioning.
  • Range: -20°C to 150°C (Expandable up to 550°C).
  • Accuracy: ±2°C or ±2% of reading.

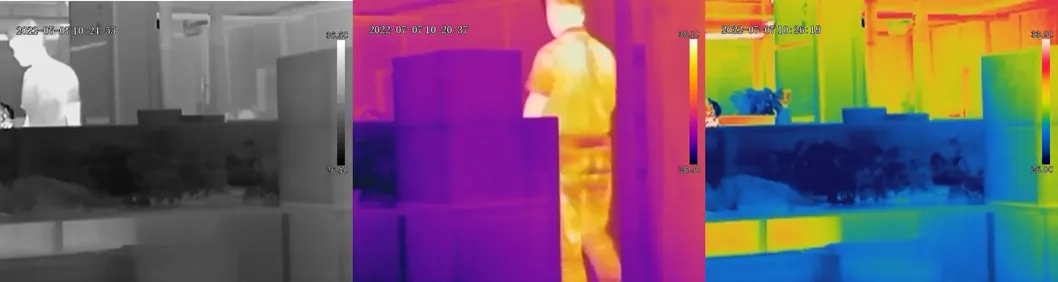

Thermal Imaging Camera

Application Scenarios

  • Industrial: Power industry, chemical disposal, petrochemical plants, and coal mines.
  • Security: Governments, prisons, and industrial parks for intrusion prevention.
  • Monitoring: Real-time temperature tracking for key dangerous locations.

Development Interface

Comprehensive SDK development kit provided to facilitate seamless secondary development and systems integration.

S

Technical Specifications

Category UV-TCTHM2519-003 UV-TCTHM2519-007 UV-TCTHM2519-010
Thermal Camera Detector Uncooled Vox Thermal Detector (256x192)
Pixel Size 12μm / NETD ≤50mk@25ºC
Lens 3.6mm 7.1mm 10mm
FoV (H x V) 50.4° x 37.5° 24° x 18° 17.3° x 13.1°
Network Protocol IPV4, HTTP, FTP, RTSP, TCP, UDP, ONVIF
Ethernet 100Mbps
Image Compression H.264 / 720*576 @ 25Hz
Color Palettes 10 modes (Black hot, White hot, Iron red, Rainbow, etc.)
Integration Interface RJ45, RS485 (or RS232), Alarm 1 in/out
Power Supply DC 12V, POE Power Supply (Typical 0.7W)
General Environment IP66 Waterproof, Temp: -30ºC to +60ºC
Infrared Camera Detail Infrared Camera View
?

Frequently Asked Questions

What is the resolution of this thermal camera?
This model features a high-performance uncooled Vox thermal detector with a resolution of 256x192 pixels.
Does the camera support automatic fire detection?
Yes, the camera includes built-in intelligent algorithms for fire detection and abnormal high-temperature alarms.
What is the temperature measurement accuracy?
The camera provides precise measurements with an accuracy of ±2°C or ±2% of the reading (whichever is greater).
Can I integrate this camera into my own software system?
Absolutely. We provide a complete SDK development kit to support secondary development and integration into your existing infrastructure.
Is this camera suitable for outdoor use?
Yes, it is rated IP66 waterproof and can operate in temperatures ranging from -30°C to +60°C, making it ideal for harsh industrial environments.
What power options are available?
The camera supports both standard DC 12V power supply and Power over Ethernet (POE) for easier installation.
