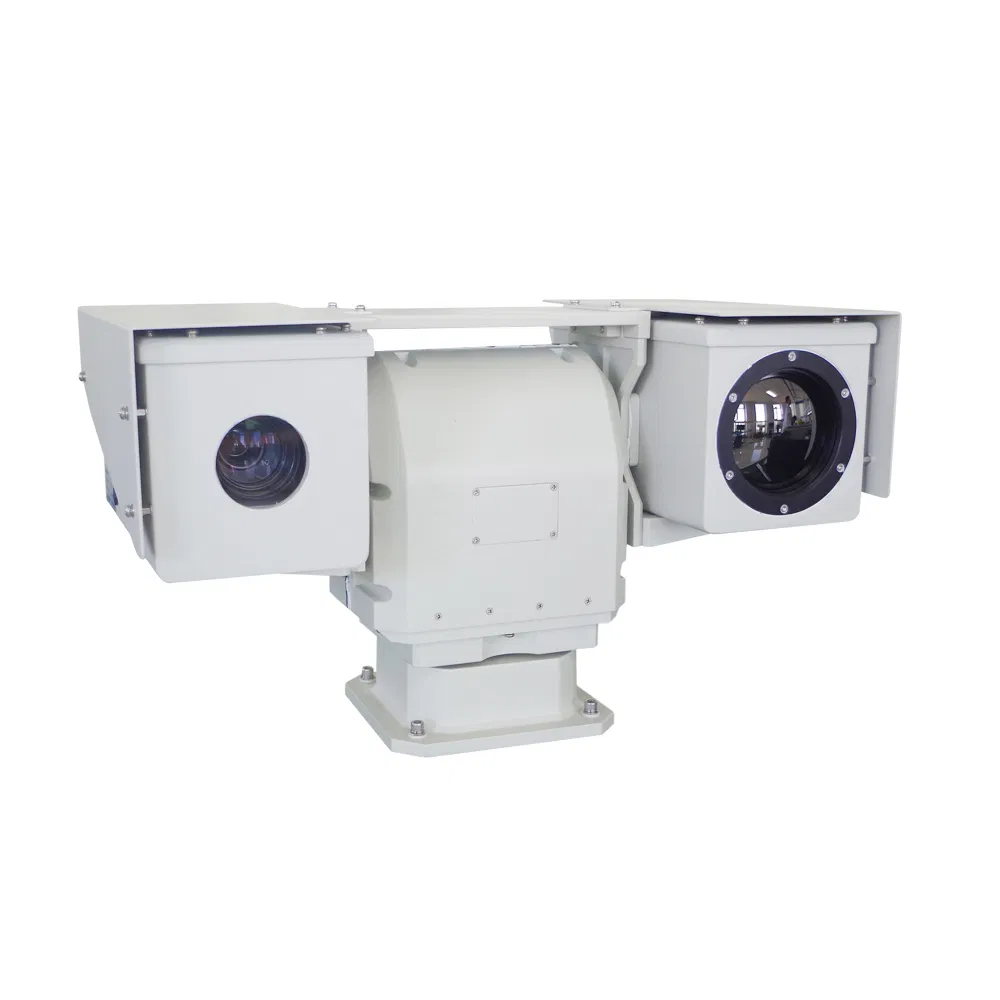

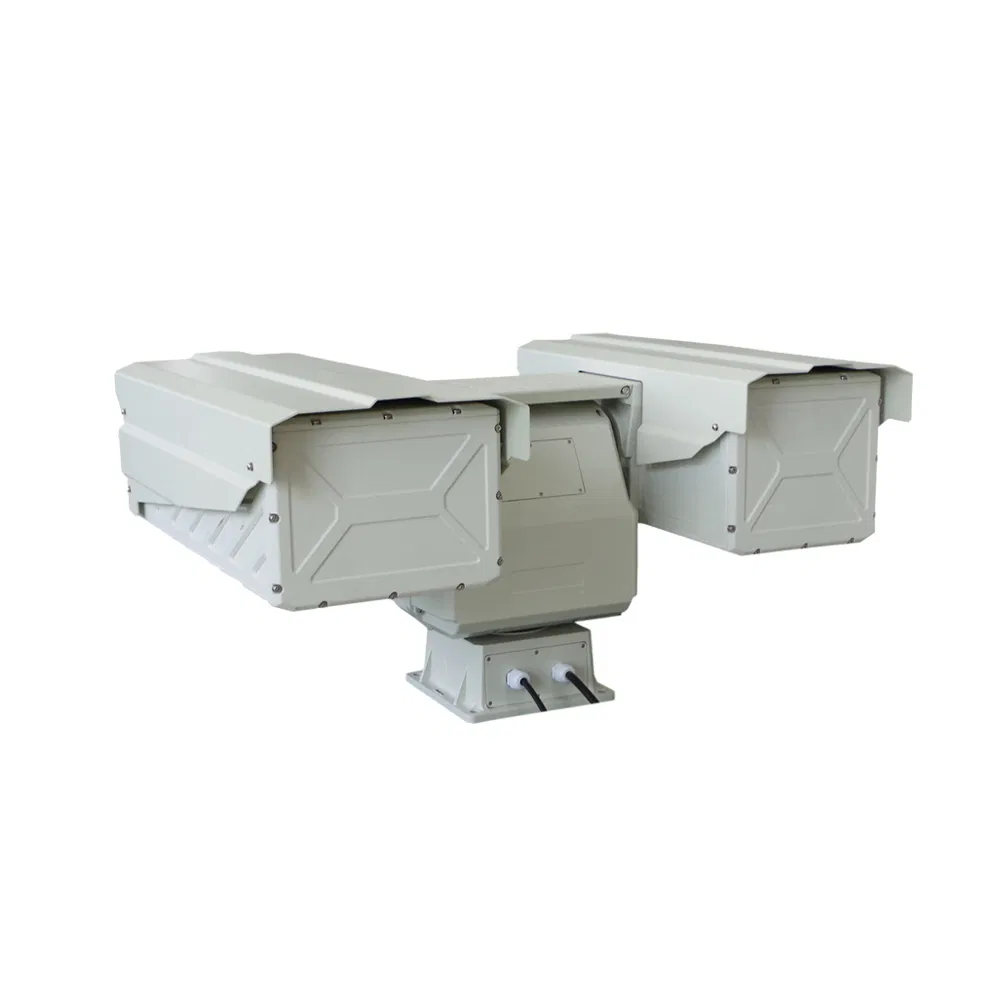

20km Long Distance Night Vision High Definition Optical Zoom PTZ Outdoor Security Camera
20km Long Distance Night Vision High Definition Optical Zoom PTZ Outdoor Security Camera
20km Long Distance Night Vision High Definition Optical Zoom PTZ Outdoor Security Camera
20km Long Distance Night Vision High Definition Optical Zoom PTZ Outdoor Security Camera
1 / 4
20km Long Distance Night Vision High Definition Optical Zoom PTZ Outdoor Security Camera
20km Long Distance Night Vision High Definition Optical Zoom PTZ Outdoor Security Camera
20km Long Distance Night Vision High Definition Optical Zoom PTZ Outdoor Security Camera
20km Long Distance Night Vision High Definition Optical Zoom PTZ Outdoor Security Camera

20km Long Distance Night Vision High Definition Optical Zoom PTZ Outdoor Security Camera

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ℹ

Basic Specifications

Model NO.
CQ-CHTVC630C66-2186V
Type
IP Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Res.
520tvl
Certification
CE, FCC, ISO9001
Feature
Waterproof, High Definition
Effective Dist.
≧30m
Sensor Size
1/3 inch
Vehicle Detection
20km
Thermal Lens
30-660mm
Visible Lens
78X
Rotation
0-360 Degree
Capacity
30PCS/Month
★

Product Highlights

Vehicle Mounted Cooled Thermal Camera

  • Intelligent thermal imaging and high-definition visible light multi-mode composite detection for 7/24 all-weather observation.
  • Latest generation VOx detector provides delicate imagery, minimizing effects from fog, rain, and snow.
  • Advanced optical continuous zoom (AS DOE) and 3CAM high-precision optomechanical design for stable identification.
  • Full HD dual-mode low-illumination CMOS sensor with compact telephoto zoom lens and electronic fog penetration.
  • 360° continuous rotation with no dead angles and adaptive rotation speed for accurate target positioning.
  • Highly intelligent support for hotspot alarms, fireworks alarms, and regional intrusion detection.
  • Advanced classification: supports vehicle, ship, human, and animal detection and tracking.
  • Robust construction: aluminum alloy shell with IP66 protection, suitable for harsh environments.

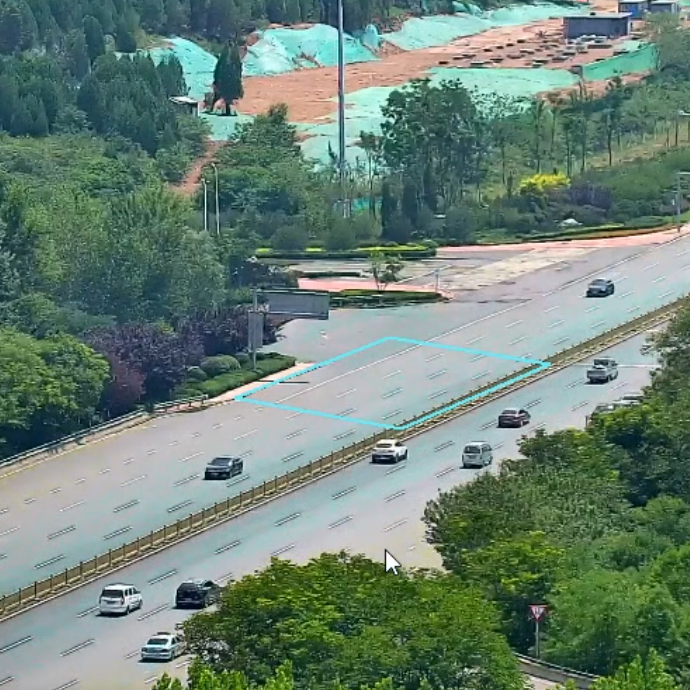

Thermal Camera View 1

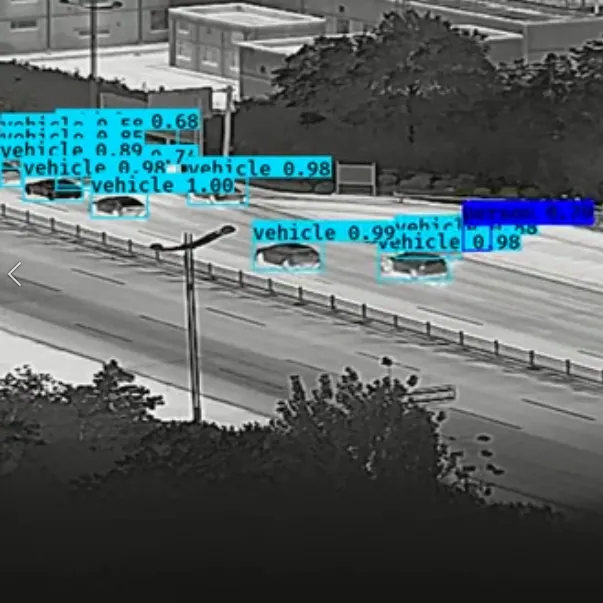

Thermal Camera View 2

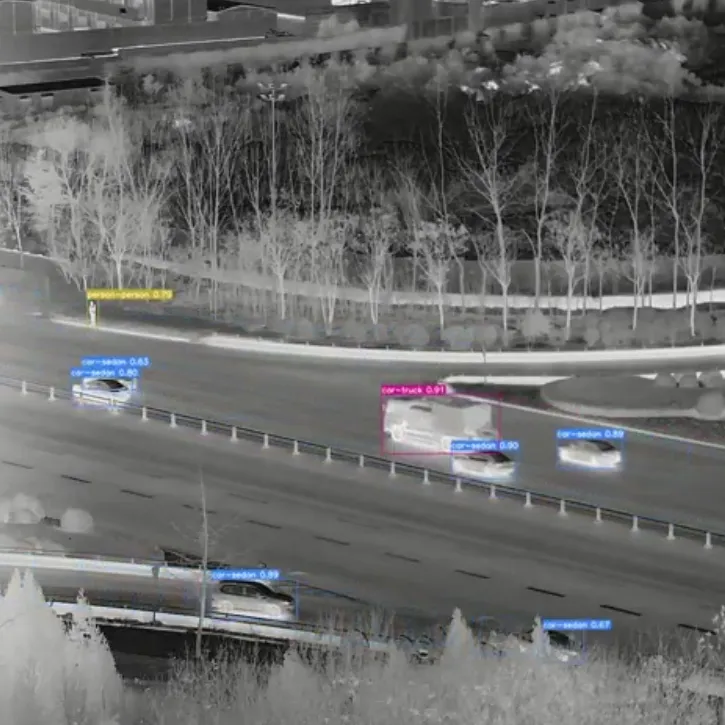

Thermal Camera View 3
📋

Technical Specifications

Category Details
Effective Distance (DRI) Vehicle (2.3*2.3m) Detection: 20km; Recognition: 11km; Identification: 5.5km
Human (1.8*0.6m) Detection: 14km; Recognition: 6.3km; Identification: 3.2km
Thermal Sensor Sensor Type Cooled Focal Plane Array (FPA) MCT HgCdTe detector
Effective Pixels 640x512, 50Hz (15μm Pixel Size)
Spectral Range 3.7 ~ 4.8μm, MWIR (NETD ≤20mK)
Thermal Lens Focal Length 30-660mm 22X F4.0 (1~8X Digital Zoom)
Visible Camera Sensor 1/1.8'' Star Level CMOS, Resolution 1920x1080
Optical Lens 11~860mm 78X Optical Zoom
Features Image Stabilization, Defog Support, Auto Focus
PTZ Rotation Pan: 0~360°, Tilt: -45~+45°
Speed Pan: 0.01~30°/S, Tilt: 0.01~15°/S
Interface Protocol IPv4/IPv6, HTTP, HTTPS, ONVIF, FTP, RTSP, TCP/UDP
Environmental Protection IP66, -25ºC~+55ºC Operating Temp, Salt-fog resistant
📦

Packaging & Delivery

Package Size
79.00cm * 46.00cm * 43.00cm
Gross Weight
70.000kg
Transport Package
Carton
Packaging Detail 1

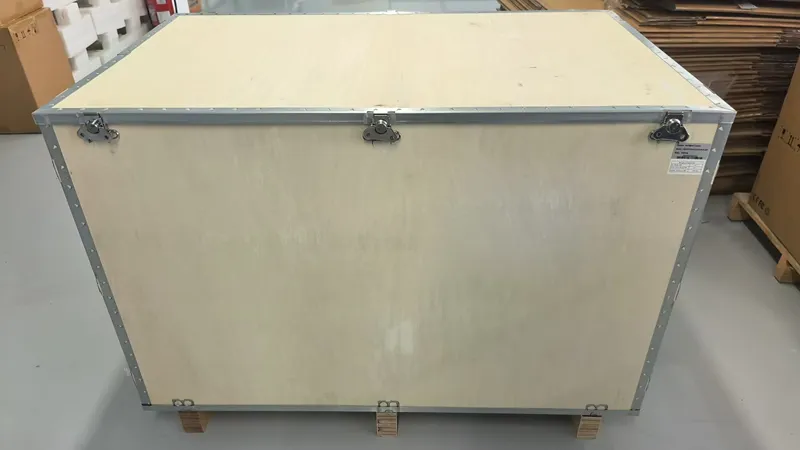

Packaging Detail 2
❓

Frequently Asked Questions

Q1: What is the maximum vehicle detection distance of this camera? A: This vehicle-mounted cooled thermal camera can detect vehicles at a distance of up to 20km and recognize them at 11km.
Q2: Is the camera suitable for marine or coastal environments? A: Yes, the housing features a PTA three-resistance coating and seawater corrosion resistance, making it ideal for harsh salty environments.
Q3: Does the system support automatic tracking? A: Absolutely. The system includes highly intelligent software that supports target tracking, screening, and filtering for vehicles, ships, and humans.
Q4: How does the camera perform in extreme weather like heavy fog? A: The camera uses a latest-generation VOx detector and electronic fog penetration technology, ensuring delicate imaging even in fog, rain, or snow.
Q5: What are the PTZ rotation capabilities? A: The unit provides 360° continuous pan rotation and a tilt range of -45° to +45°, ensuring full coverage with no dead angles.

Related Products

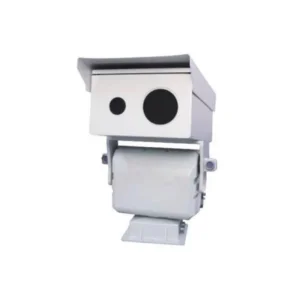

32X Optical Zoom 6-192mm Network HD Heavy-Duty PTZ Camera

32X Optical Zoom 6-192mm Network HD Heavy-Duty PTZ Camera

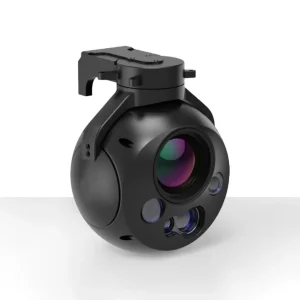

High Resolution High Frame Rate HD 1080P 4K 8mm 25mm 35mm PTZ IP Gimbal with Gyro Stabilized Imaging and Laser Optical Zoom Mini Security Flir Thermal Camera

High Resolution High Frame Rate HD 1080P 4K 8mm 25mm 35mm PTZ IP Gimbal with Gyro Stabilized Imaging and Laser Optical Zoom Mini Security Flir Thermal Camera

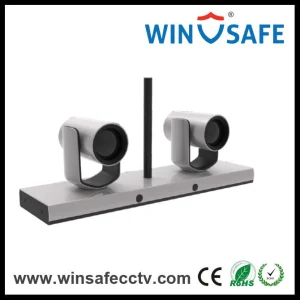

Full HD Dual Lens 12X Optical Zoom Speaker Tracking PTZ Video Conference Camera

Full HD Dual Lens 12X Optical Zoom Speaker Tracking PTZ Video Conference Camera

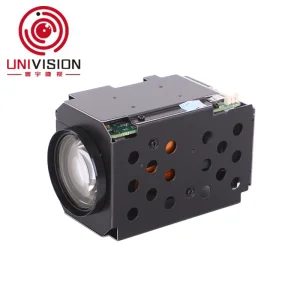

2MP 33X Af Optical Zoom Night Vision Security CCTV IP Camera for PTZ Surveillance

2MP 33X Af Optical Zoom Night Vision Security CCTV IP Camera for PTZ Surveillance

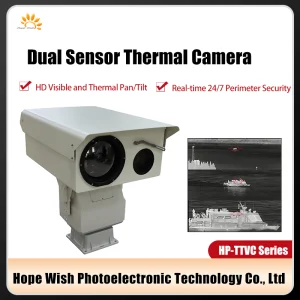

Infrared PTZ Thermal Security Camera 60X Optical Zoom

Infrared PTZ Thermal Security Camera 60X Optical Zoom

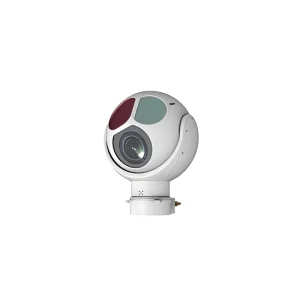

2 Axis Fire Fighter Robot Security 30X Optical Zoom Multi-Spectral Auto Tracking PTZ Camera

2 Axis Fire Fighter Robot Security 30X Optical Zoom Multi-Spectral Auto Tracking PTZ Camera

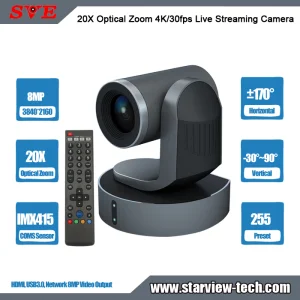

4K/30fps 20X Optical Zoom Ndi Optional HDMI / USB3.0 / IP PTZ Video Conference Camera Camera

4K/30fps 20X Optical Zoom Ndi Optional HDMI / USB3.0 / IP PTZ Video Conference Camera Camera

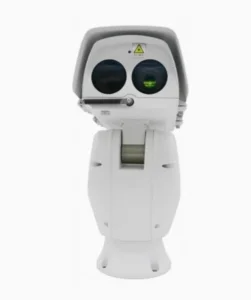

2MP 96X Long Range Optical Zoom 800m Infrared Laser Illuminator PTZ Camera with Wiper

2MP 96X Long Range Optical Zoom 800m Infrared Laser Illuminator PTZ Camera with Wiper

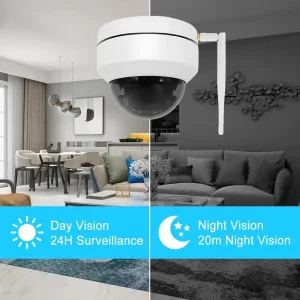

Dual Connection 5MP Metal PTZ Camera with Imx335, 5X Optical Zoom

Dual Connection 5MP Metal PTZ Camera with Imx335, 5X Optical Zoom

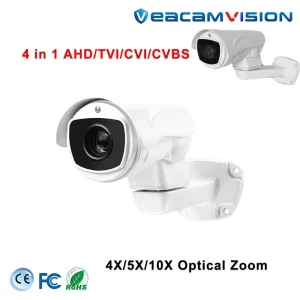

2024 PTZ Hik Dahua HD Analog Camera with 10X Optical Zoom
