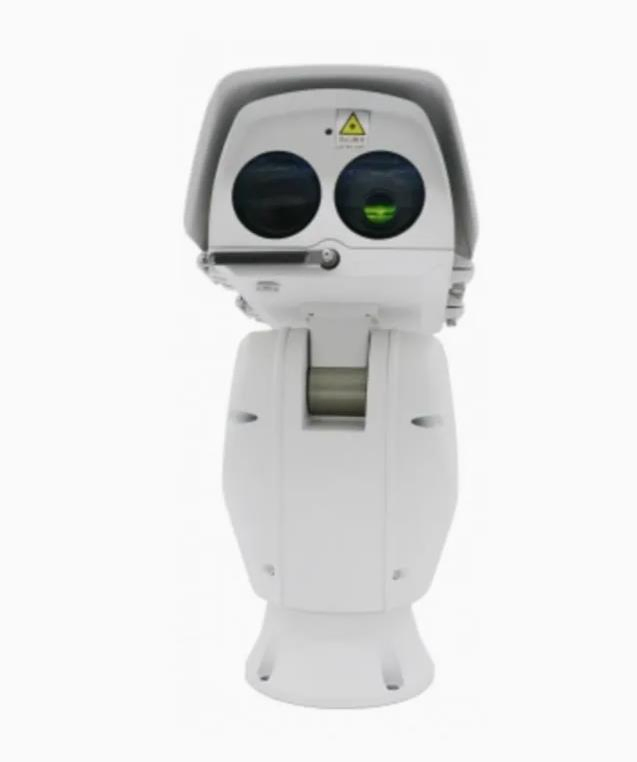

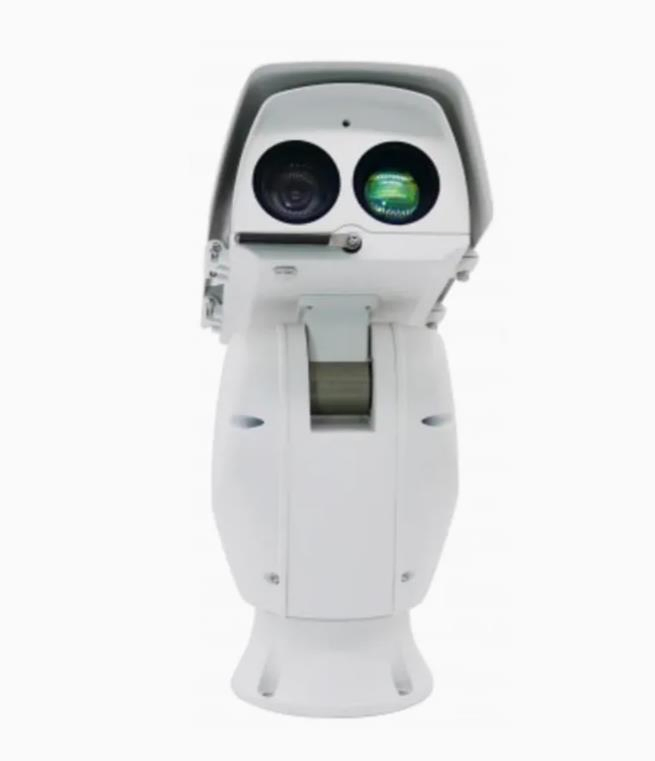

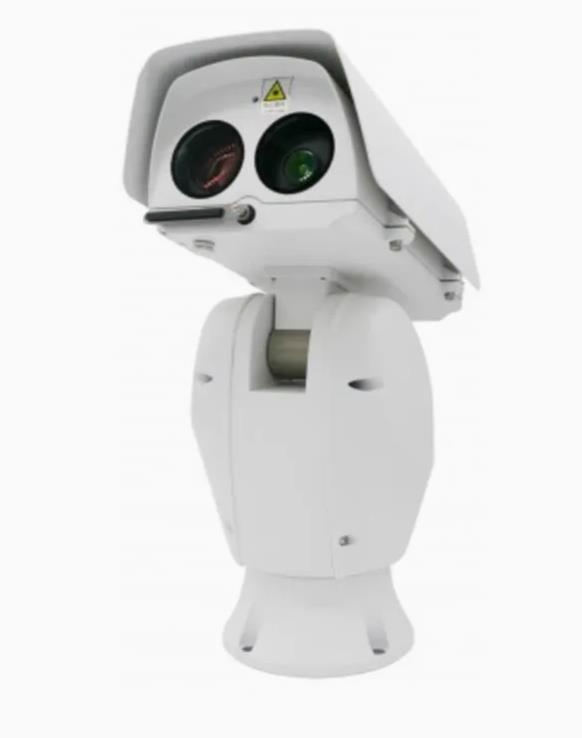

2MP 96X Long Range Optical Zoom 800m Infrared Laser Illuminator PTZ Camera with Wiper

ℹ Basic Information

Model NO.

FV-PT800-8296LS800

Type

IP Camera

Sensor

CMOS

HDMI Format

2MP

Certification

CE, FCC, CCC, RoHS, EMI/EMC, ISO9001

IP Protection

IP67

Focal Length

6-576mm, 96X Optical Zoom

IR Distance

500m

Effective Distance

1K

Power Supply

DC24V

📋 Product Description

Large space, support large volume zoom camera and long range
Support high-power laser and LED (optional)
Metal structure
Built-in efficient heat dissipation processing device
IP66 waterproof
Large torque motor drive, stable operation
Worm gear drive, power-off self-locking function (optional)

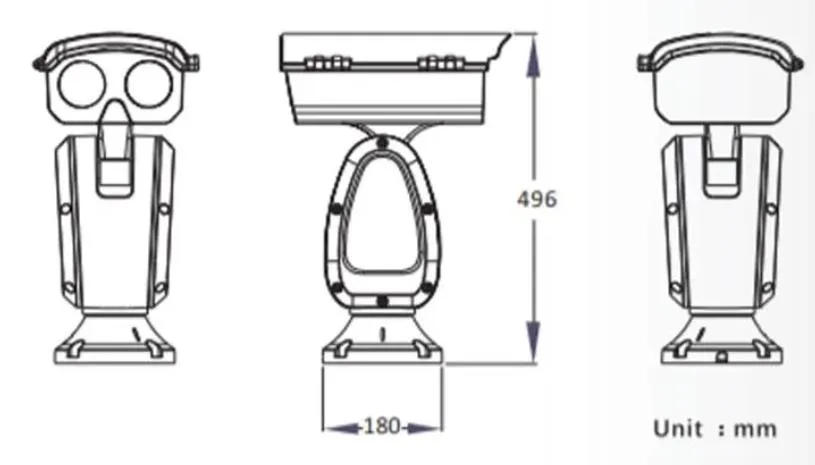

📐 Dimension

🌍 Applicable Environment

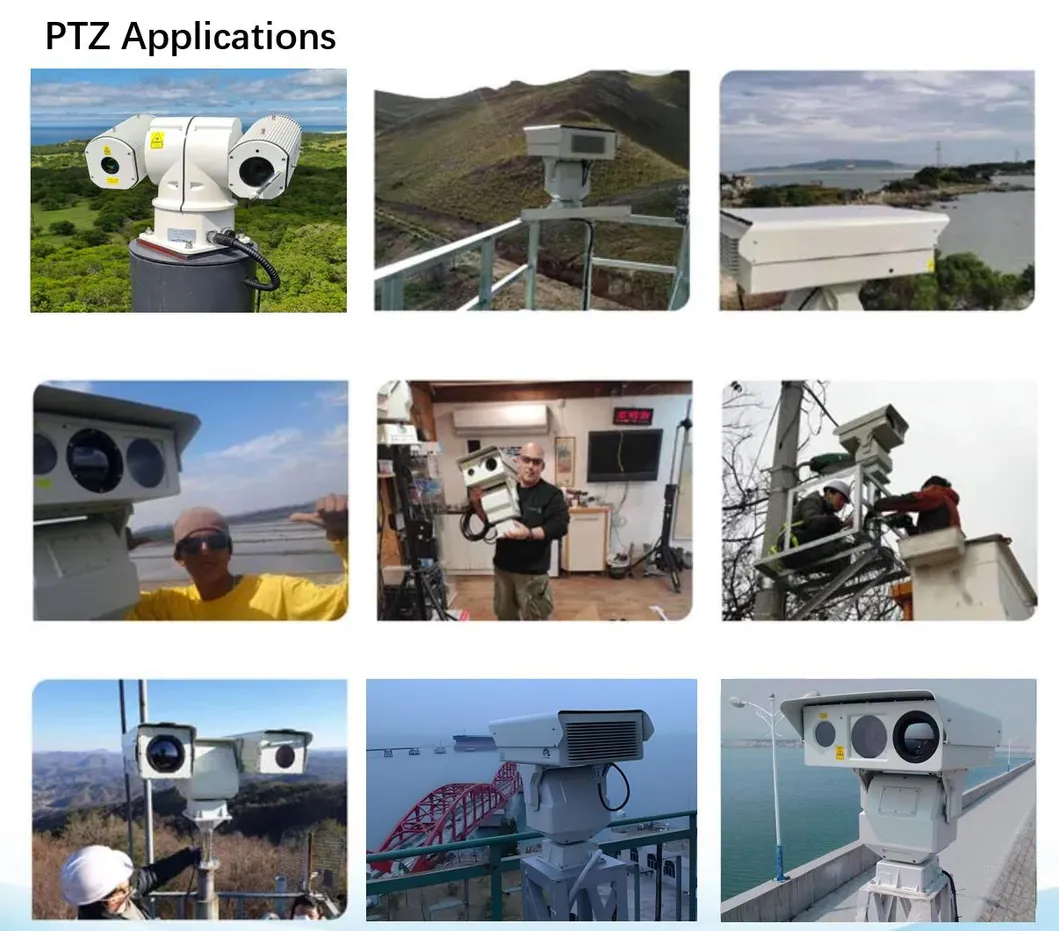

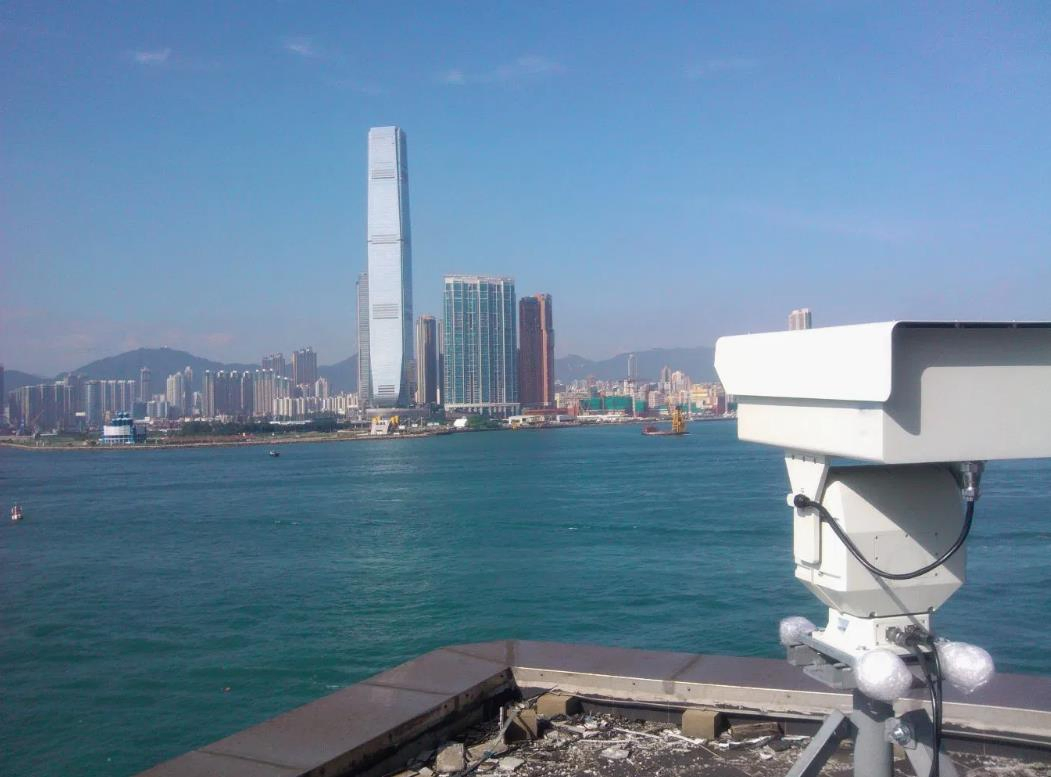

Application to river, oil onsite, railway, forest, airport, sea port and other places with low or no light surroundings while requiring high video/picture quality.

⚙ Specifications

SPECIFICATIONS
Model	FV-PT800-4252LS1000	FV-PT800-8292LS2000
Detect Distance
Vehicle	4km	7km
Human	2km	3km
Camera Imager
Imager	1/1. 8" progressive scanning CMOS
Effective pixel	2560x1440, 4MP	1920x 1080, 2MP
Minimum illumination	Color: 0.0005 Lux; B/W: 0.0001Lux, laser light on 0Lux
Focal length	6.1-317mm, 52x zoom	6.1-561, 92x zoom
Laser
Laser distance	1000m	2000m
Network & General
Video compression	H.265/H.264
Storage	Support Micro SD card 256G
Operating temp	-40ºC~65 ºC
Protection	IP66, 6000V lightning protection

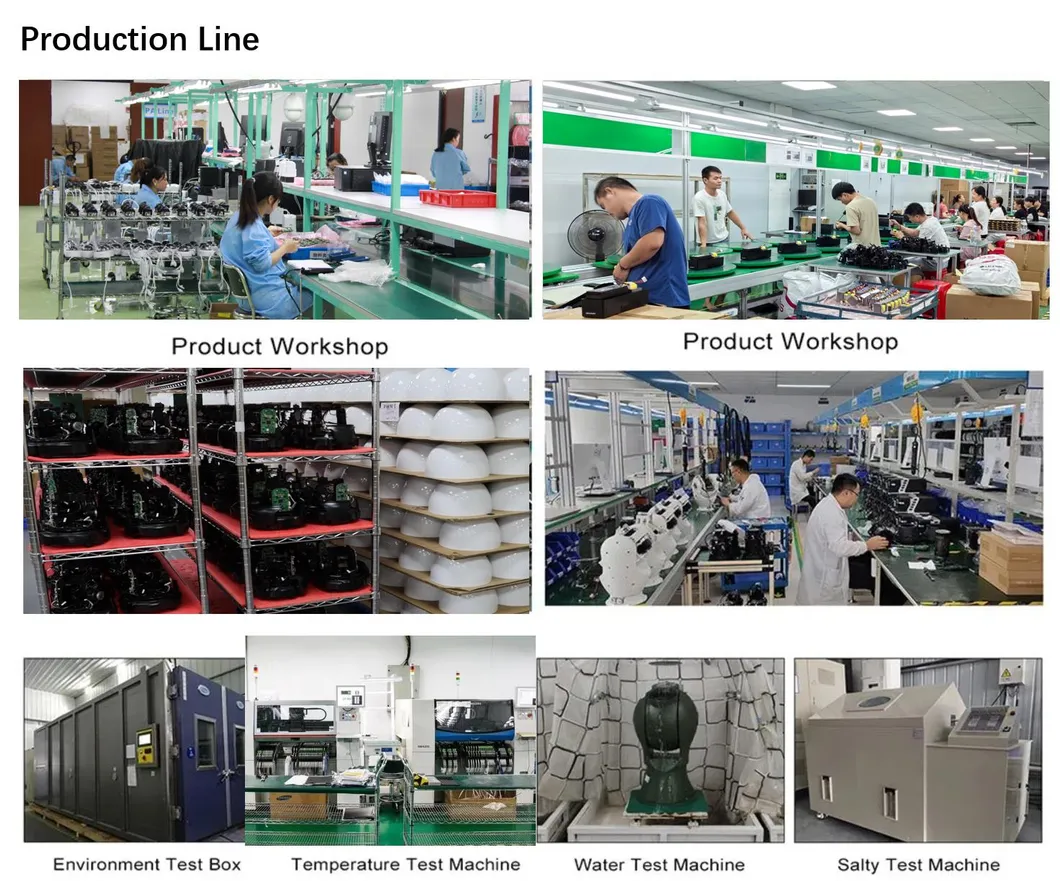

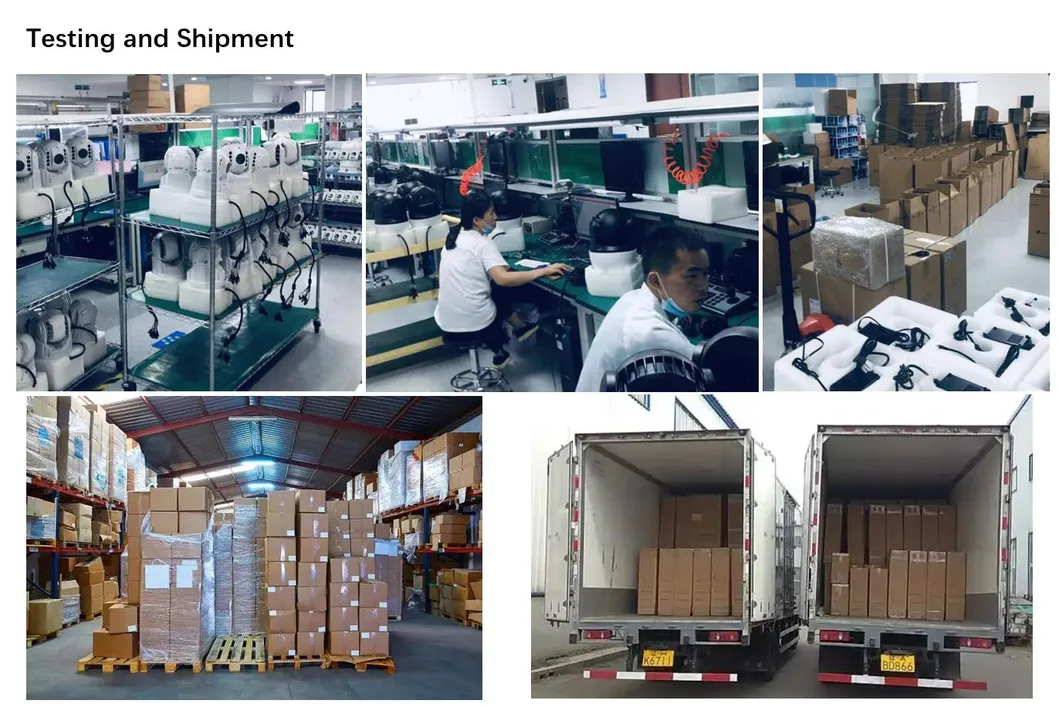

🏭 Production Display

❓ FAQ

Do you support sample orders?

Yes, we support sample orders for customers to test before placing bulk orders. The client is responsible for the basic sample cost and shipping.

What is the typical lead time?

For sample orders, it is usually 3-5 days. For bulk orders, the lead time is approximately 3-5 weeks depending on the items and quantity.

Is there a minimum order quantity (MOQ)?

There is no MOQ limit for sample orders. For bulk orders with customized services, an MOQ may apply, which can be discussed on a case-by-case basis.

What is the warranty period for your products?

Our standard warranty is 2 years. We also offer the option to extend the warranty period at a reasonable cost.

What kind of after-sales service do you provide?

We offer free technical training, 24/7 online technical support, and product return services for repairs.

Do you provide OEM/ODM services?

Yes, as a professional manufacturer, we can meet all customized service requirements through our OEM and ODM capabilities.
