Product Description

Basic Specifications
Model NO.
ES-AHD-BGZ2
Type
IP Camera
Sensor
CMOS
HDMI Format
1080P
Resolution
420tvl
Lens
Autofocus Lens
Certification
CE, FCC
Features
Waterproof, Vandal-proof
Effective Distance
10-30m
Sensor Size
1/3 inch
Power Source
Corded Electric
Connectivity
Wi-Fi
Product Overview
NOTE BEFORE PURCHASING:
1. If your DVR is incompatible with AHD/TVI/CVI Video formats, the camera will not produce any video output.
2. If your DVR lacks an RS485 input, the camera's pan-tilt-zoom (PTZ) functionality will be inoperative.

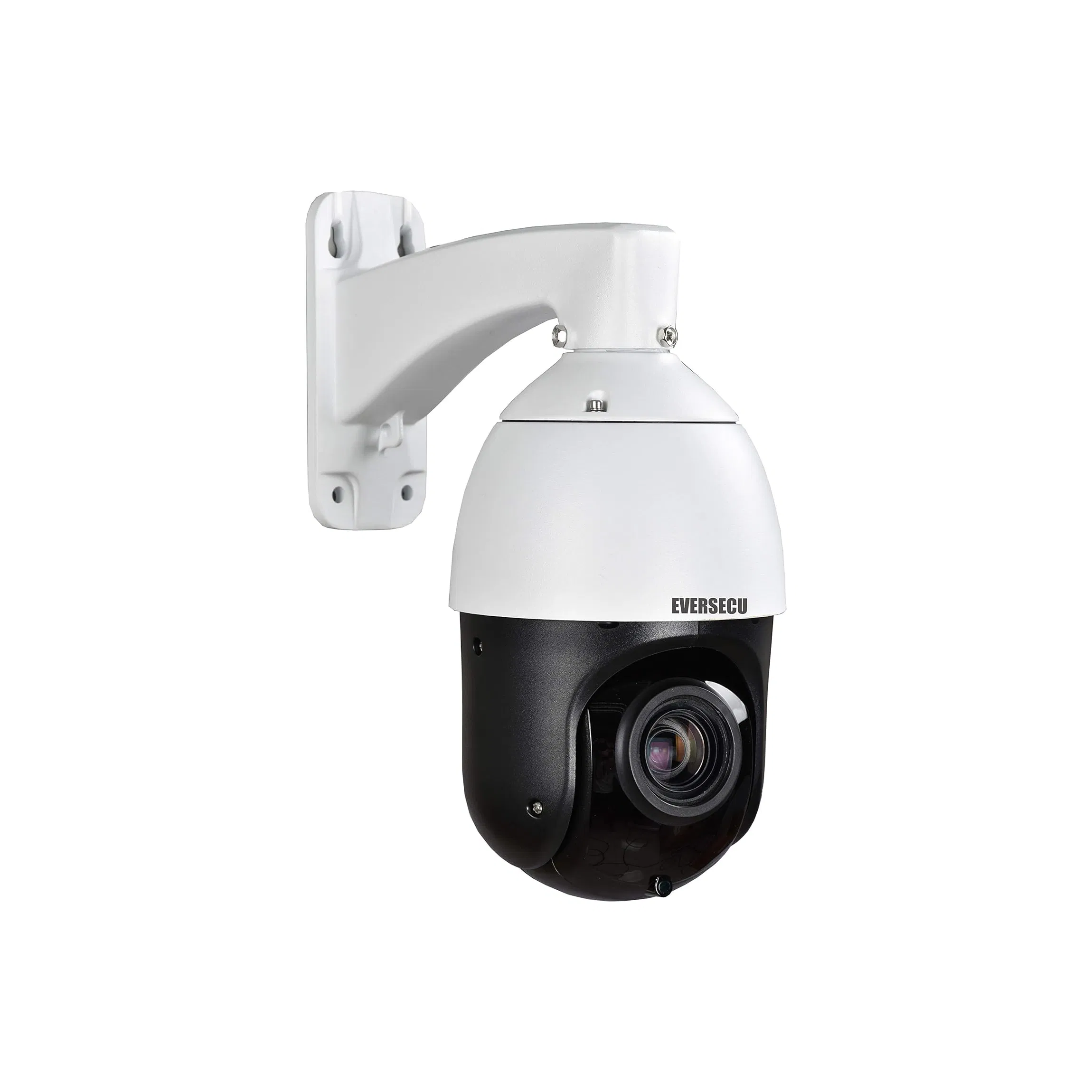

2MP Auto-Cruise PTZ Security Camera
🔍 20X Optical Zoom & PTZ Capabilities

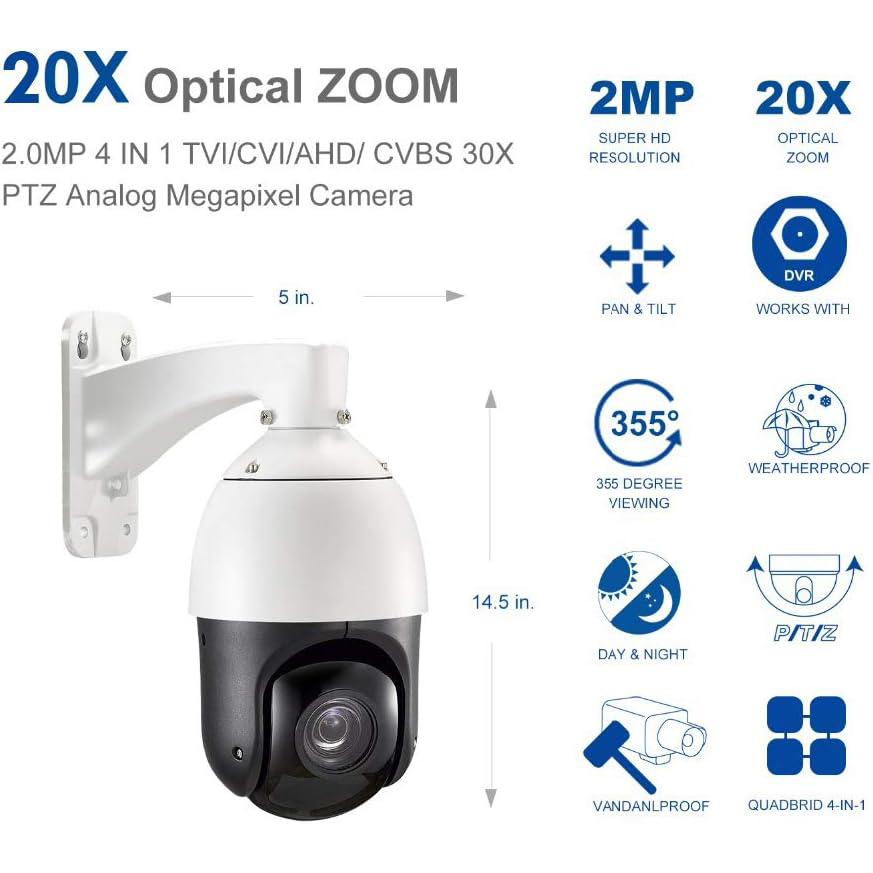

This 2MP Auto-Cruise PTZ Security Camera features a 20X optical zoom (4.7mm~96.3mm lens) and a high-performance 1/3" CMOS SONY323 sensor. It offers a full rotation range with 360° Pan and 90° Tilt, ensuring no blind spots in your surveillance area.

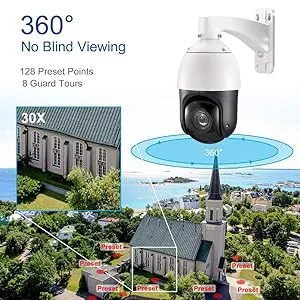

PTZ Dome Specification Installation Requirements
Technical Specifications
⚙️ Camera & PTZ Parameters
Rotation Range
Pan: 0°~360°, Tilt: 0°~90°
Preset Points
220pcs preset
Guard Tours
3 groups (Max. 16 points)
Night Vision
Up to 263ft (6PCS Array LED)
Weatherproof
IP66 Waterproof Rating
Operating Temp
-40℃ to +60℃

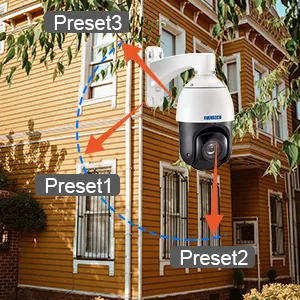

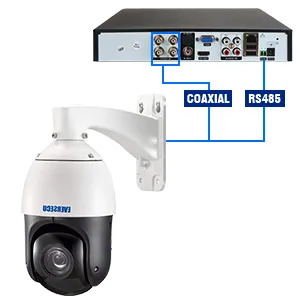

Cruise Monitoring RS485 Connection IR Parameters
Product Data Sheet
Video Resolution1080p (1920 x 1080)
Optical Zoom20x
ConnectivityWi-Fi / RS485 / Coaxial
Power SourceDC12V 3A (Corded Electric)
Mounting TypeWall Mount
Water ResistanceIP66 Waterproof
Low Light TechNight Color / Infrared
Frame Rate25/30 frames per second
Packing List
Frequently Asked Questions
What video formats does this camera support?

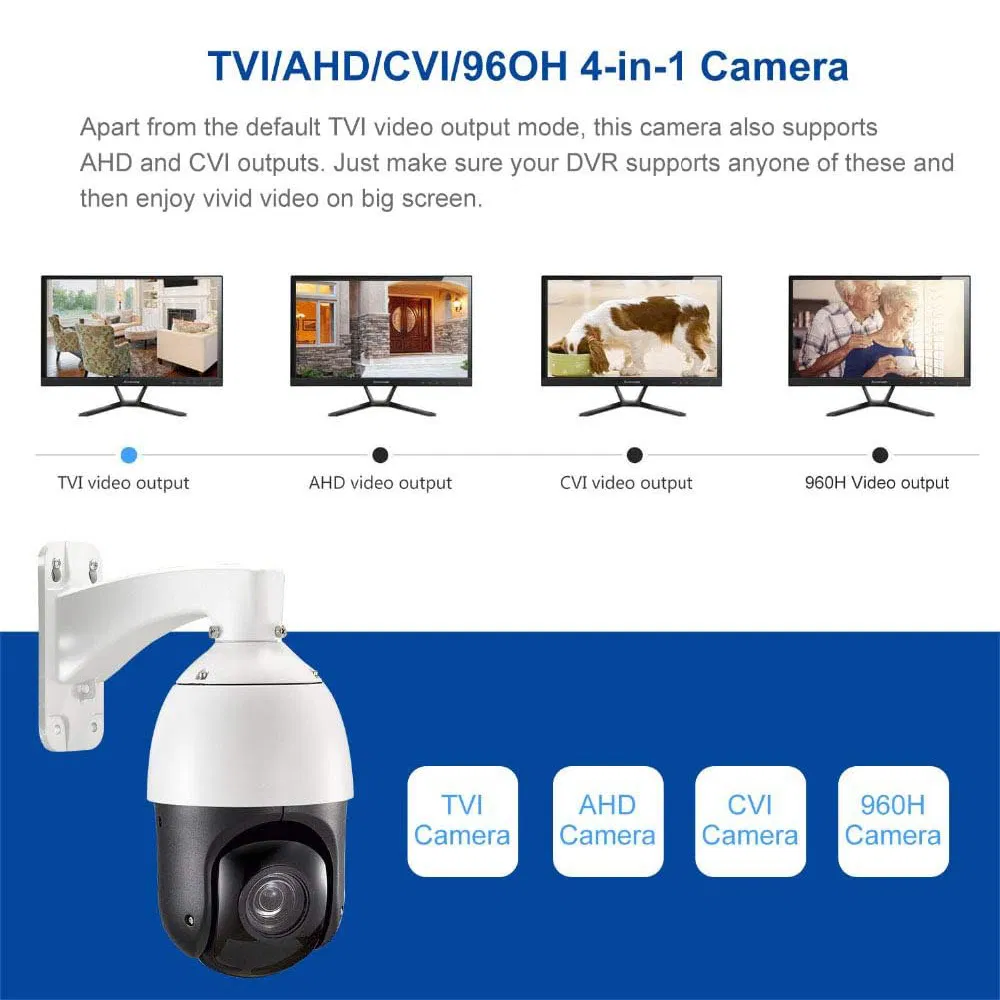

The camera supports 4-in-1 video outputs: AHD, TVI, CVI, and CVBS (Analog). The default signal is 1080P AHD, which can be manually adjusted.
Is this camera compatible with my existing DVR?
It is compatible with all 1080P or higher Analog DVRs. Please note it does not work with 720P or 960H DVRs, nor with NVR systems.
How far can the night vision reach?
Equipped with 6PCS Array 42Mil IR LEDs, the camera provides excellent night vision up to 263ft (approx. 80 meters).
Does the camera support PTZ control through the video cable?
Yes, it supports both RS485 (+/-) and coaxial cable control for Pan-Tilt-Zoom functionality.
Can I use this camera outdoors in extreme weather?
Yes, the camera features an IP66 waterproof aluminum shell and is designed to operate in temperatures ranging from -40°C to +60°C.
What is the zoom capability of this model?

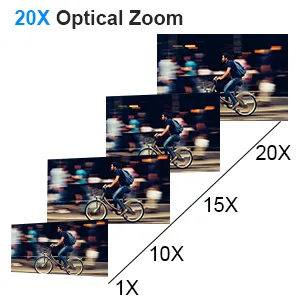

This model features a 20X optical zoom with a focal length of 4.7mm to 96.3mm, allowing for clear long-distance monitoring.
