AxizView Camera
1 / 5
This product uses a low-power design, suitable for solar power supply. It supports high temperatures of 70°C and low temperatures of -40°C, has strong anti-electromagnetic interference capability, and is suitable for use in complex environments.
| Category | Details (FC-TK65-NH) | |
|---|---|---|
| Camera | Sensor Type | 1/1.8" Progressive CMOS |
| Min. Illumination | Color: 0.002Lux, B/W: 0.0002Lux @(F1.5, AGC ON) | |
| Zoom | 32x Optical Zoom, 16x Digital Zoom | |
| Field of View | Horizontal 61.2°-2.32° (wide-tele) | |
| Day/Night Mode | Dual filter switch, auto, color, B/W | |
| PTZ | Rotation Range | Horizontal: 360° continuous; Vertical: -45°~45° |
| Speed | Horizontal: 20°/s; Vertical: 10°/s | |
| Presets | 255 presets, accuracy ±0.1° | |
| Payload | Up to 80KG | |
| Video | Compression | H.265 / H.264 |
| Resolution | 1080P / 720P @ 25/30fps | |
| Protocol | TCP/IP, HTTP, RTSP, FTP, DHCP, NTP, RTMP, IPv6, etc. | |
| General | Temperature | -40°C ~ 55°C (Operation up to 70°C) |
| Protection | IP66 | |

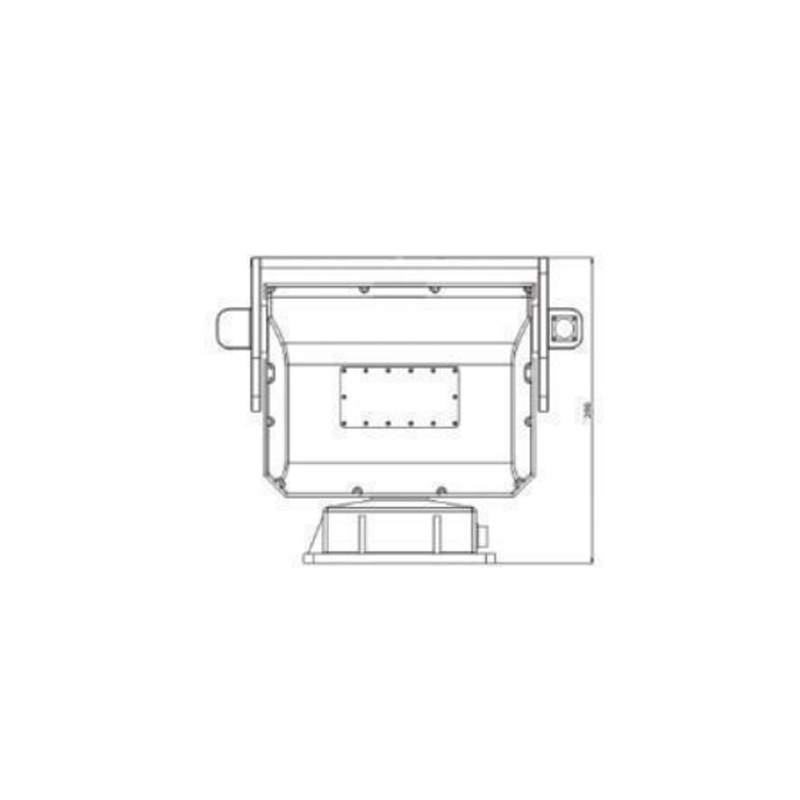

| Dimensions | 478mm(L) * 235mm(W) * 398mm(H) | |
