Customization: Available
Camera Resolution: 4K
Color: Silver
Send Inquiry

Product Description

Product Overview

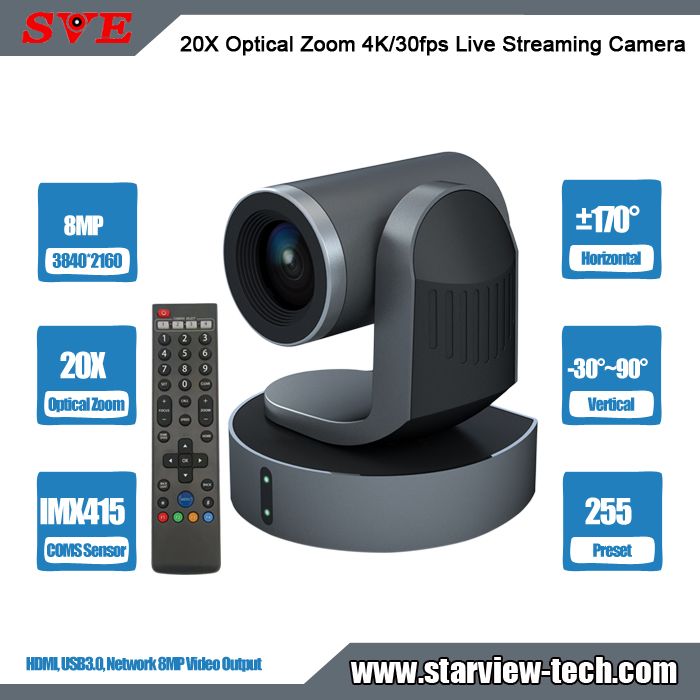

4K/30fps 20X Optical Zoom HDMI / USB3.0 / IP Live Streaming Camera, designed for professional video conferencing and high-definition broadcasting.

✓
1/2.8" 4K/30fps Sony IMX415 CMOS Sensor providing ultra-clear image quality.
✓

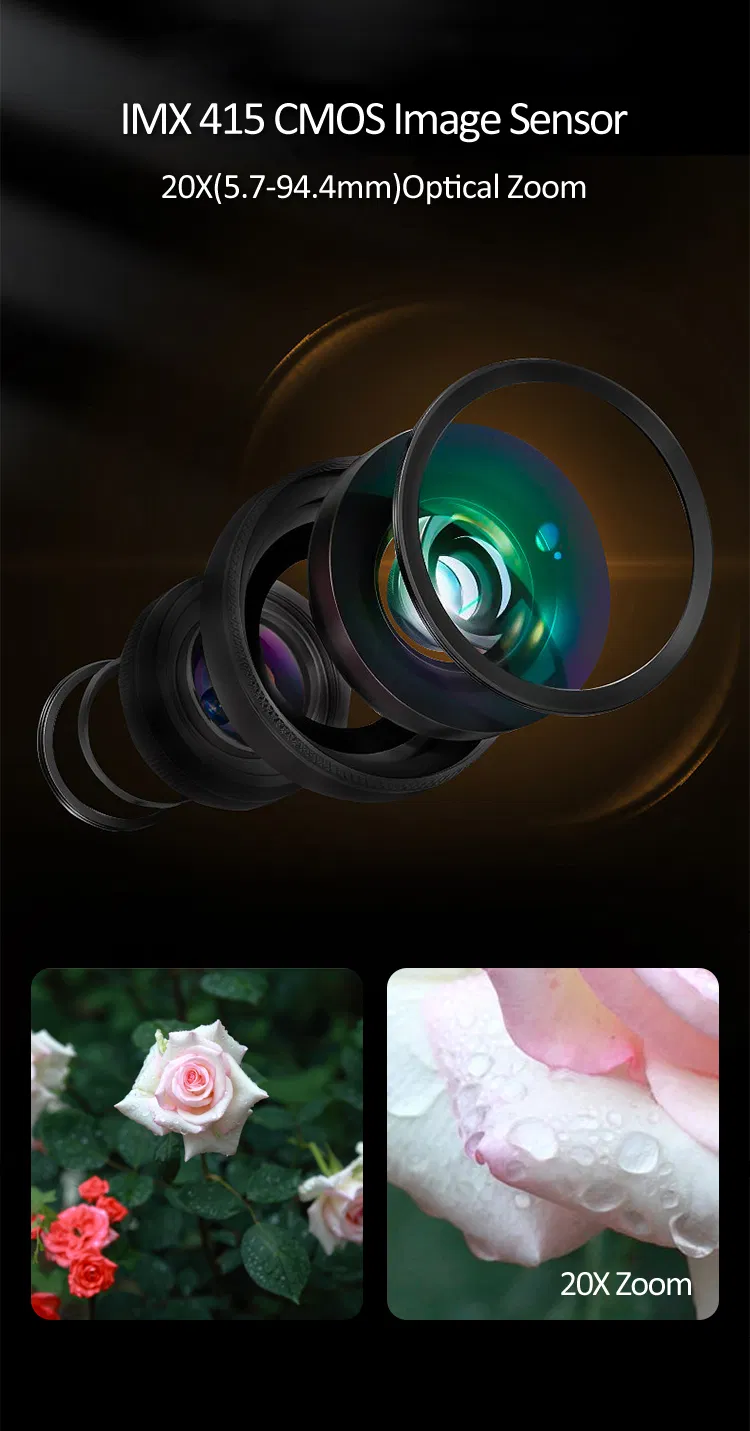

20X (5.7~94.4mm) Optical Zoom for capturing fine details at long distances.
✓
Advanced 2D/3D noise reduction algorithm and wide dynamic range.
✓
Quiet and smooth Pan & Tilt operation with a maximum horizontal speed of 200°/s.
✓
Versatile Output: HDMI, USB3.0, and Network HD Video outputs for flexible connectivity.
✓
Professional Control: RS232, RS485, and IP external control interfaces supported.
Technical Specifications
Camera & Lens Parameters
Model No.SVN-UHD4K20-P / SVN-4K30U20P
Image Sensor1/2.8" Sony IMX415 (8MP)
Video Format4K (3840*2160) @ 25/30fps; 1080P/720P supported
Optical Zoom20X Optical Zoom (f=5.7~94.4mm)
Horizontal View Angle55° (Wide) - 3.9° (Tele)
Min. Illumination0.01lux (F1.8, AGC ON)
Focus SystemAuto / Manual / One-touch Trigger
PTZ Performance
Rotation SpeedHorizontal: 2.2°~200°/s; Vertical: 1.5°~100°/s

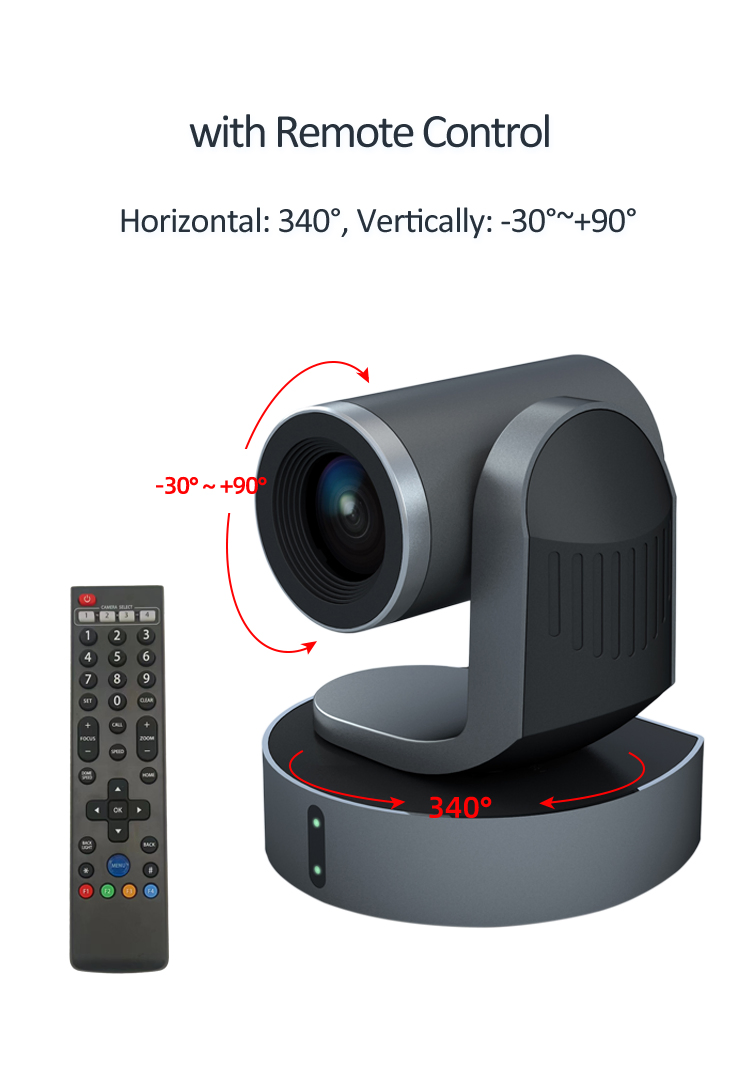

Rotation RangeHorizontal: ±170°; Vertical: -30° ~ +90°
Presets255 Points (Accuracy 0.1°)
Interface & Protocols
Video OutputHDMI, USB3.0, IP (RJ45)
Video CompressionH.265 / H.264 / MJPEG / YUV
Control ProtocolVISCA, VISCA Over IP, ONVIF, PELCO-D/P
Network ProtocolIPv4, TCP, UDP, HTTP, RTSP, RTMP, NDI, SRT
General Info
Power SupplyDC 12V / <10W
Dimensions142*125*157 mm
Net Weight1.48Kg
Product Presentation

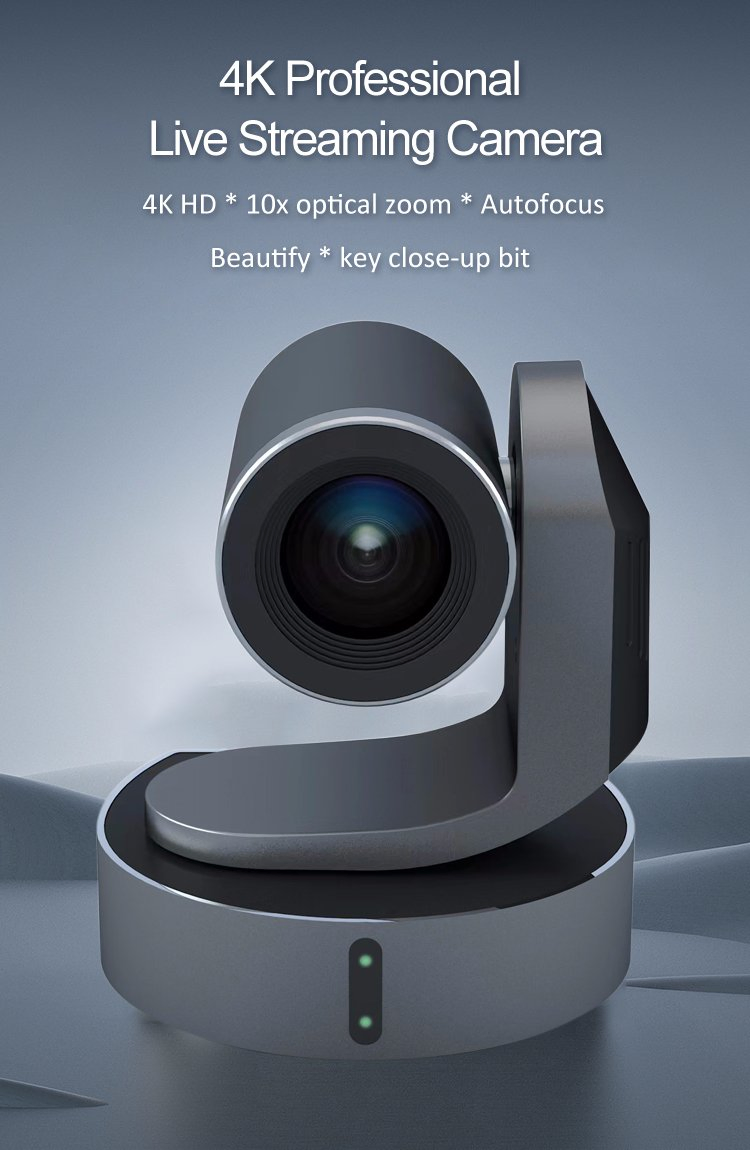

PTZ Camera View 1
PTZ Camera View 2

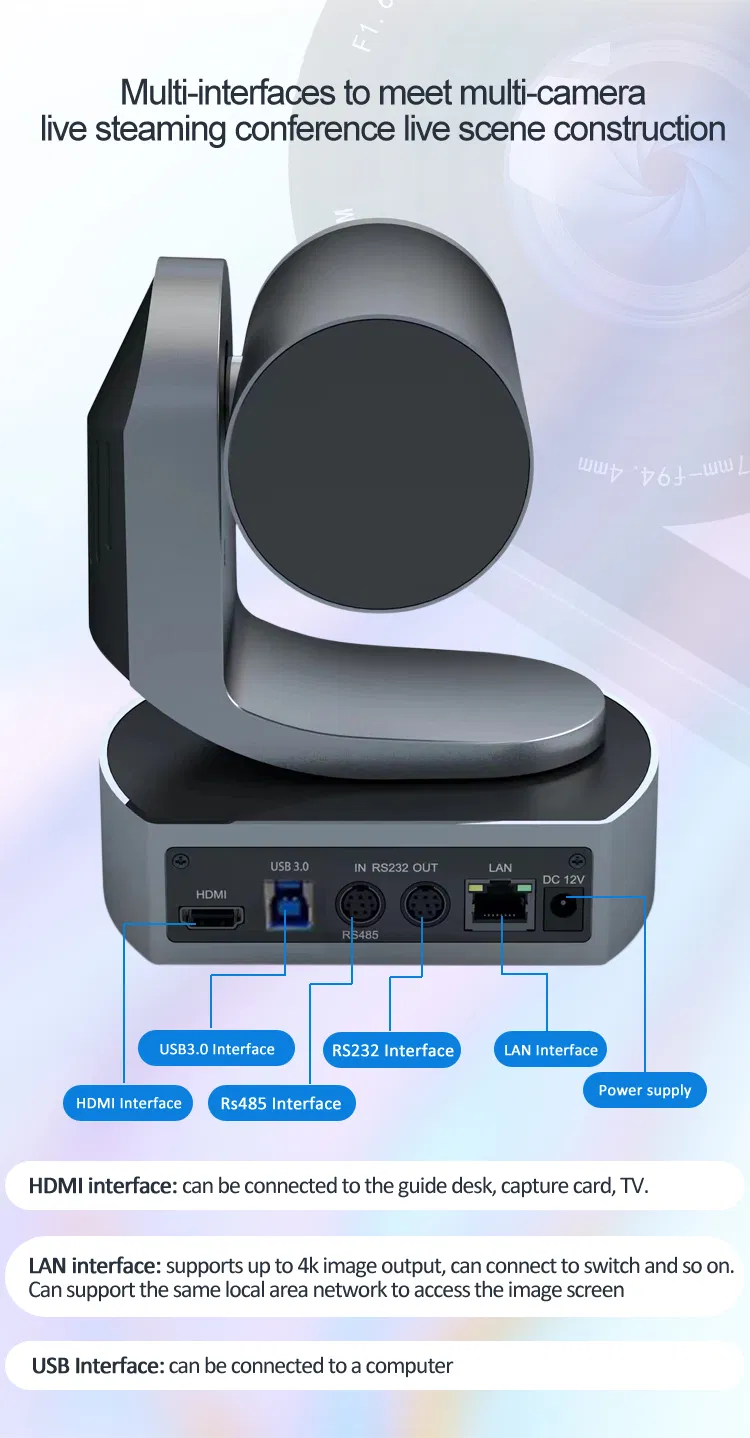

Connectivity Ports
Feature Overview
Dimensions
Application Scenario 1
Application Scenario 2

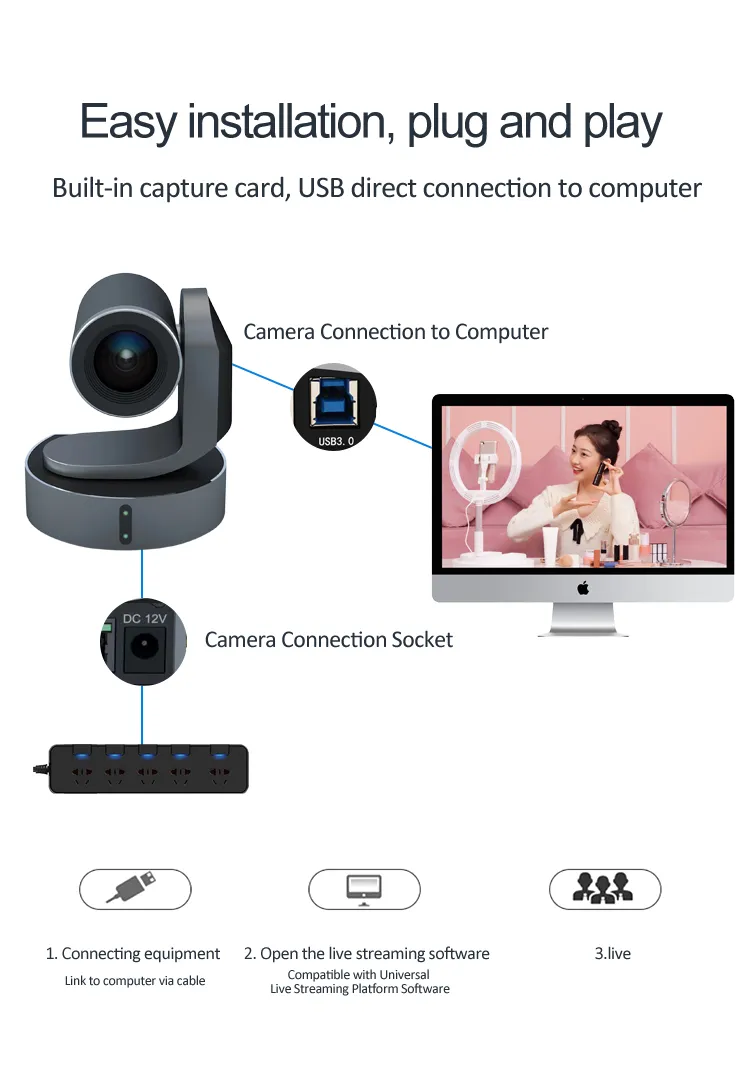

Installation Guide
Frequently Asked Questions
Does the camera support simultaneous video output?
Yes, it supports 3-channel HD video output simultaneously via HDMI, USB3.0, and IP interface.
What is the maximum resolution of this PTZ camera?
The camera delivers Ultra High Definition (UHD) video at 4K/30fps resolution using its 8MP Sony IMX415 sensor.
Can I control the camera remotely?
Absolutely. It can be controlled via the included infrared remote control, or through professional interfaces like RS232, RS485, and IP (VISCA/ONVIF).
Is it compatible with Mac and Windows?
Yes, the camera is fully compatible with both MacOS and Windows operating systems for plug-and-play use via USB.
What streaming protocols does it support?
It supports a wide range of network protocols including RTSP, RTMP, HTTP, and is optional for NDI and SRT for professional live streaming.

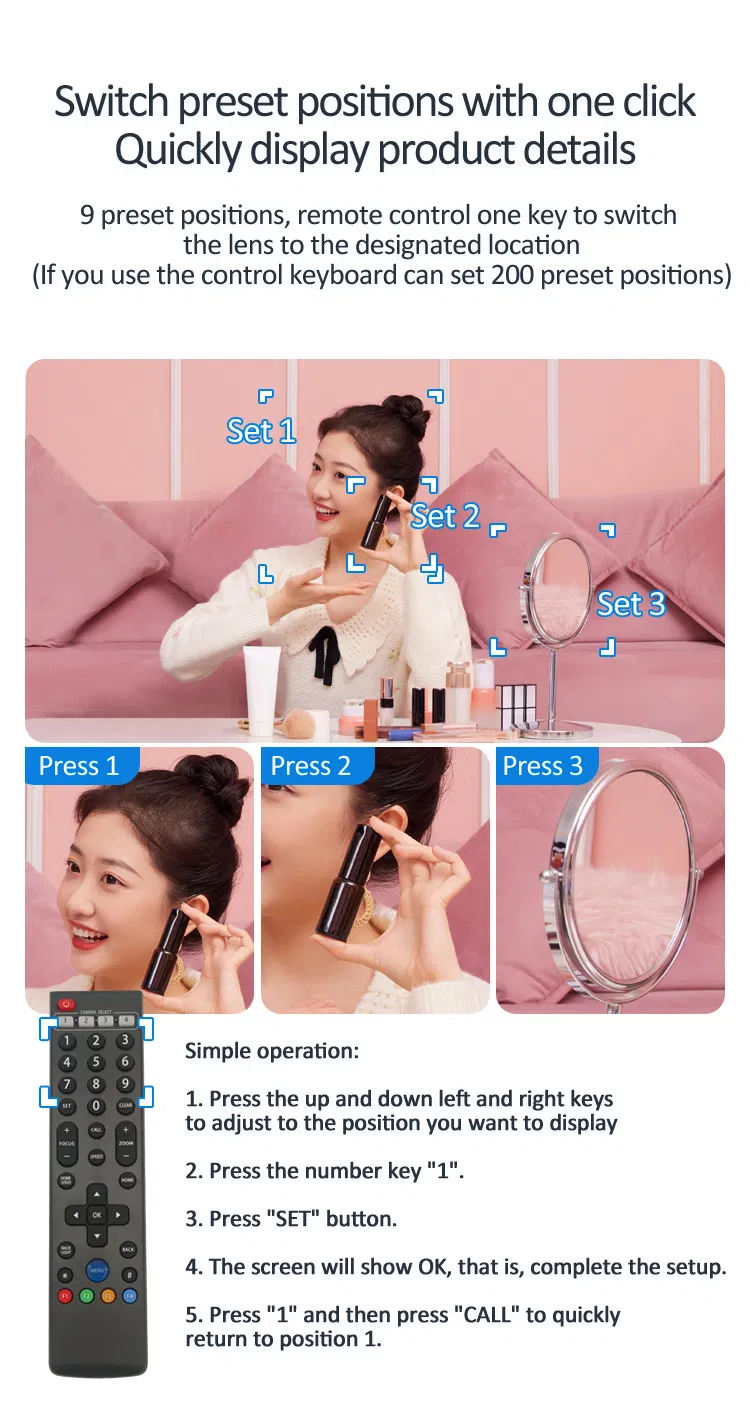

How many preset positions can be set?
The system supports up to 255 preset points with a high accuracy of 0.1° for rapid and precise positioning.
