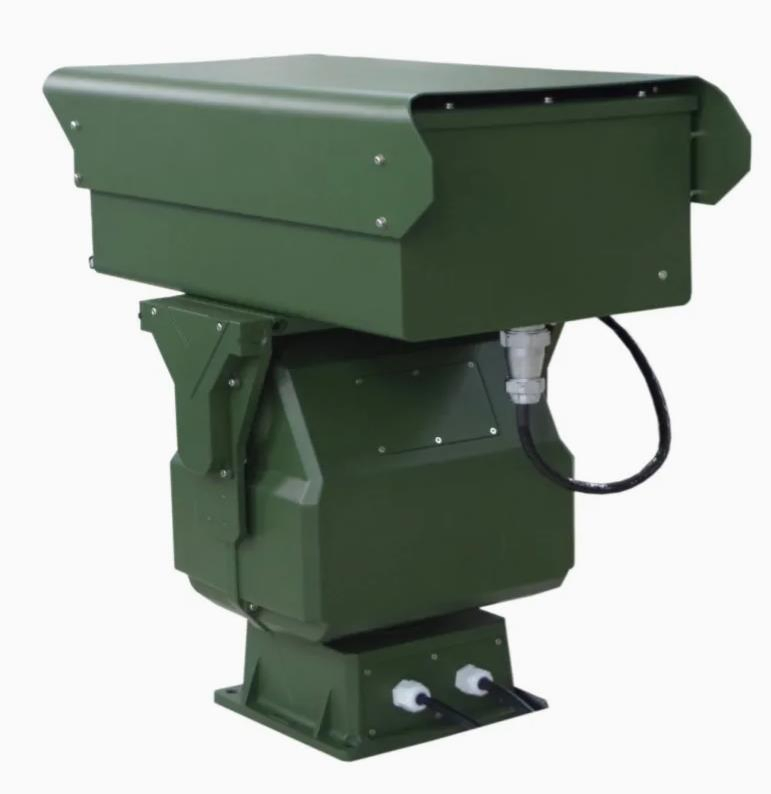

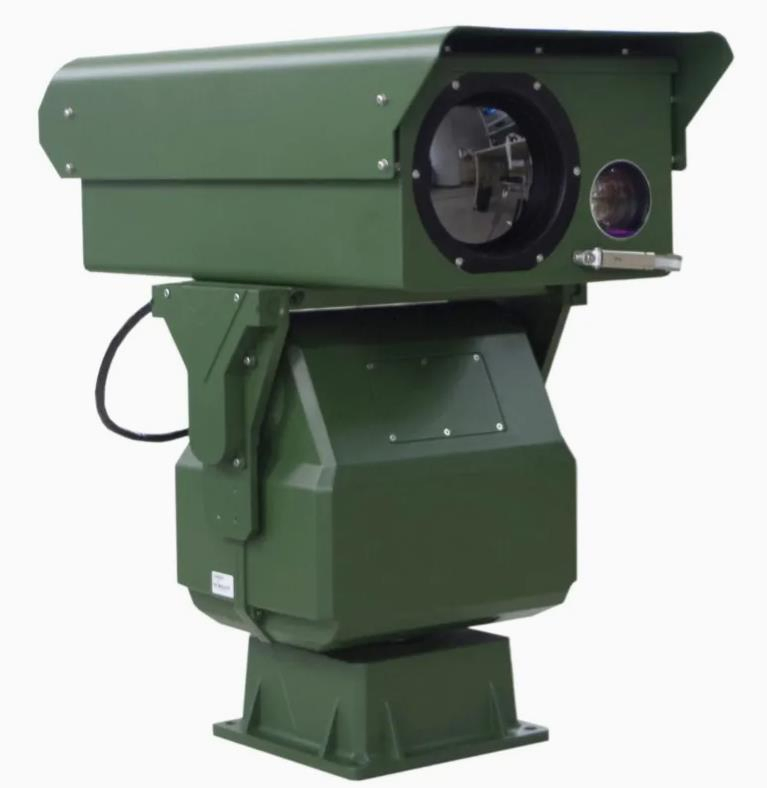

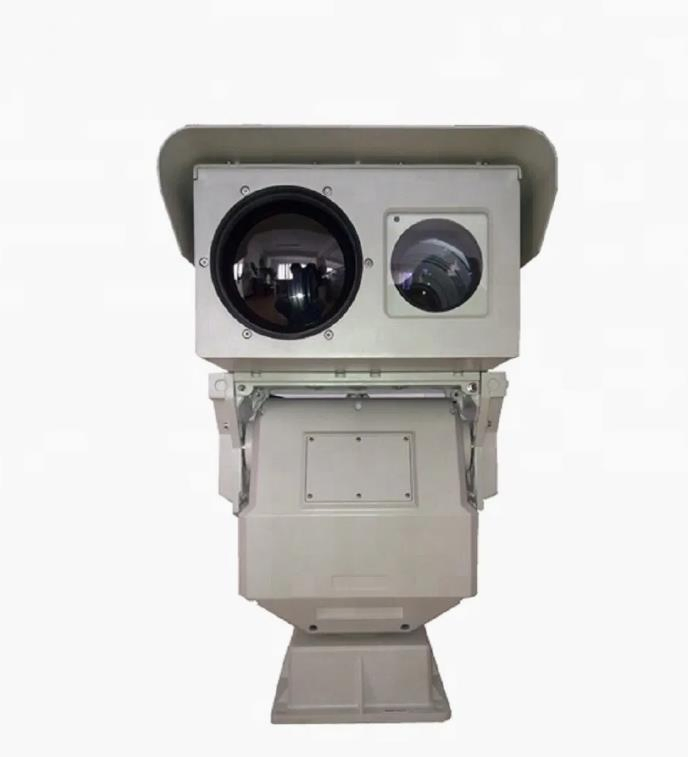

4MP 100X Optical Zoom Infrared PTZ IP66 Water-Proof Outdoor Long Range 640X512 Thermal Camera with GPS CCTV Camera Security Camera Scanner

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.
FV-6516-84100
Type
IP Camera
Sensor
CMOS
HDMI Format
4MP
Resolution
600tvl
Lens Type
Autofocus Lens
Effective Distance
5km
IP Protection
IP67
Focal Length
12.5-1250mm
Power Supply
DC24V

Product Description

  • All-Weather Performance: Intelligent thermal imaging, HD visible light, and laser night vision multi-mode detection for search and observation in any weather condition.
  • Advanced VOX Detector: Latest MEMS technology provides clear images, minimizing interference from fog, rain, and snow. High-precision optical zoom ensures stability.
  • Full HD Imaging: Based on color/black-and-white dual-mode low illumination CMOS sensor with optical and electronic double fog penetration.
  • Heavy-Duty CNC Pan-Tilt: 360° continuous rotation with no dead angles, stable operation, and accurate target positioning.
  • High Intelligence: Supports hot spot alarms, fireworks detection, temperature monitoring, and regional intrusion detection for vehicles and people.
  • Self-Diagnosis & Recovery: Life-cycle management, fault self-inspection, power-off memory, and remote upgrades reduce maintenance costs.
  • IP Network Design: Single network line handles video, alarm, and positioning data for simplified system implementation.

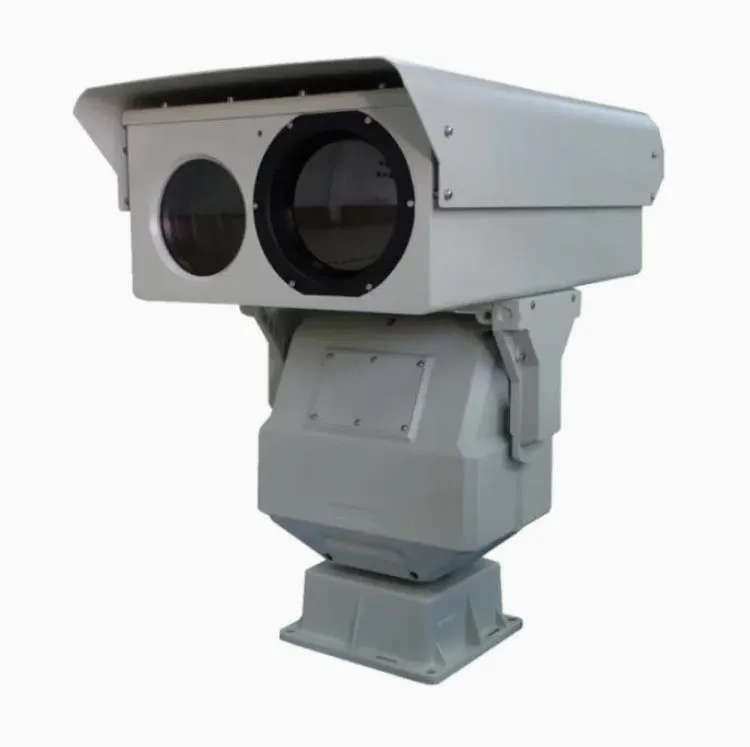

Thermal Camera Detection System
📏

Dimension

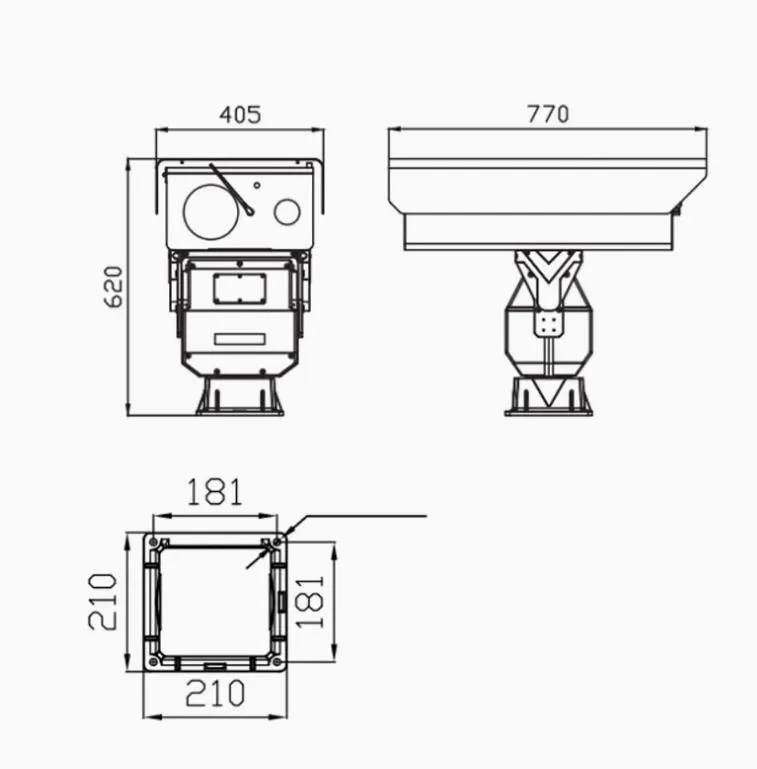

Product Dimensions
📍

Applicable Environment

Ideal for applications in rivers, oil sites, railways, forests, airports, sea ports, and other locations requiring high-quality monitoring in low-light or harsh environments.

📋

Technical Specifications

Thermal Camera Sensor Vox Detector, 640(H)x512(V) / 384(H)x288(V)
Sensitivity (NETD) ≤40mK@f/4.0, Spectral Range: 7 ~ 14μm
Digital Zoom 8X
Thermal Lens Options from 21-105mm up to 12.5-1250mm
Visible Camera Sensor 1/2.8'' or 1/1.8'' Star Level CMOS
Resolution 1920(H)x1080(V), 4MP options available
Visible Lens 33X to 120X Optical Zoom options
PTZ Rotation Pan: 0~360°, Tilt: -45~+45°
Preset 3000 Positions
Environmental Protection IP66, PTA coating (Seawater corrosion resistance)
Temperature Operate: -25ºC~+55ºC (-40ºC optional)
⚙️

Production Display

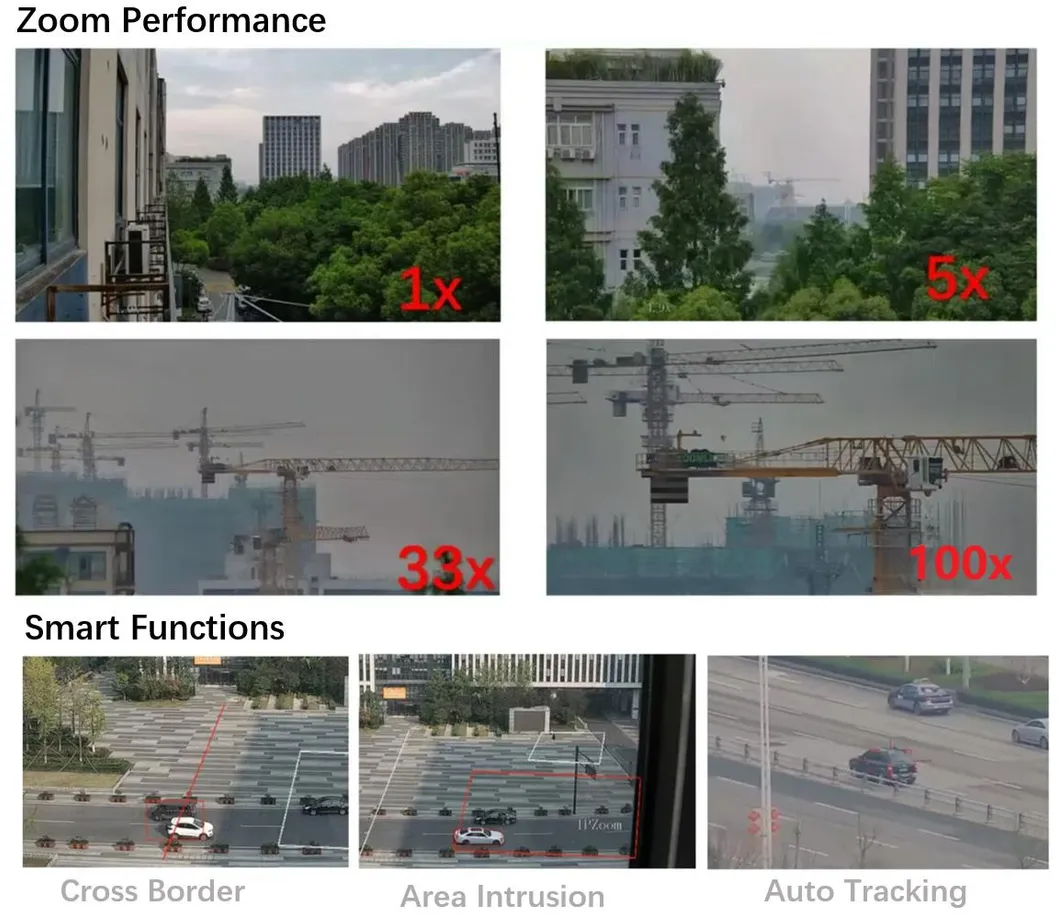

Production View 1

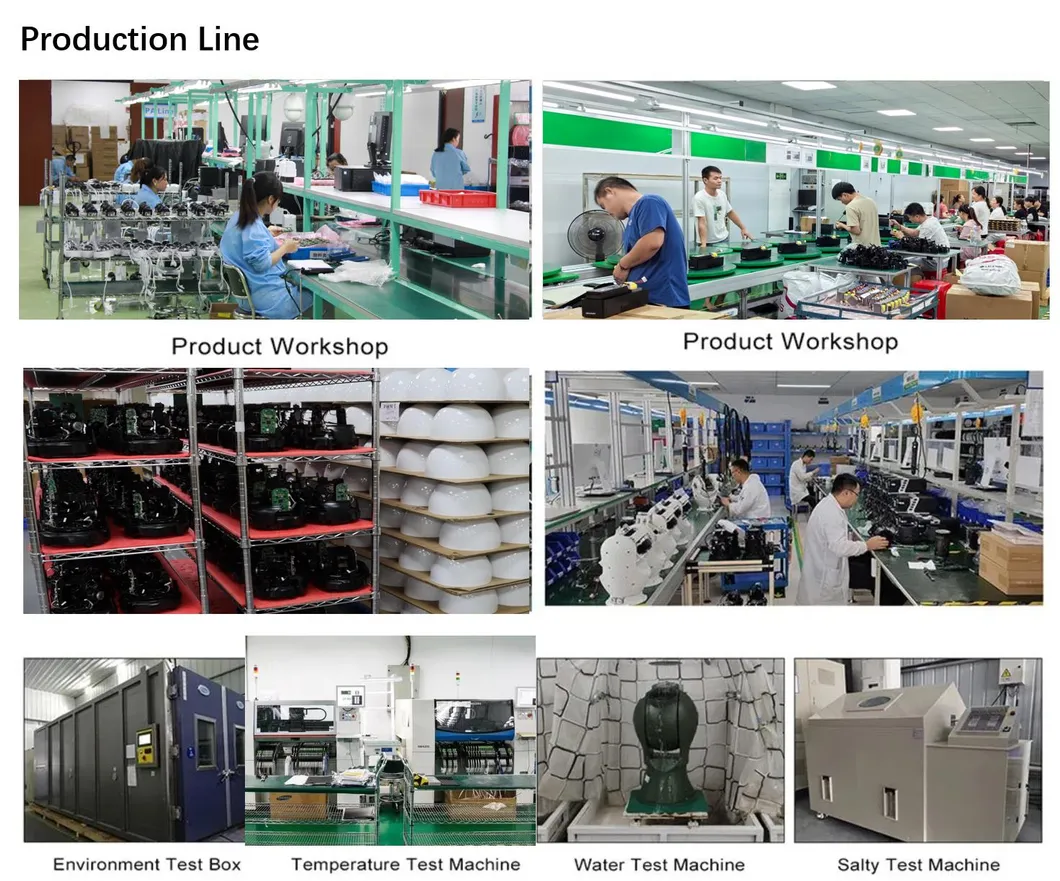

Production View 2

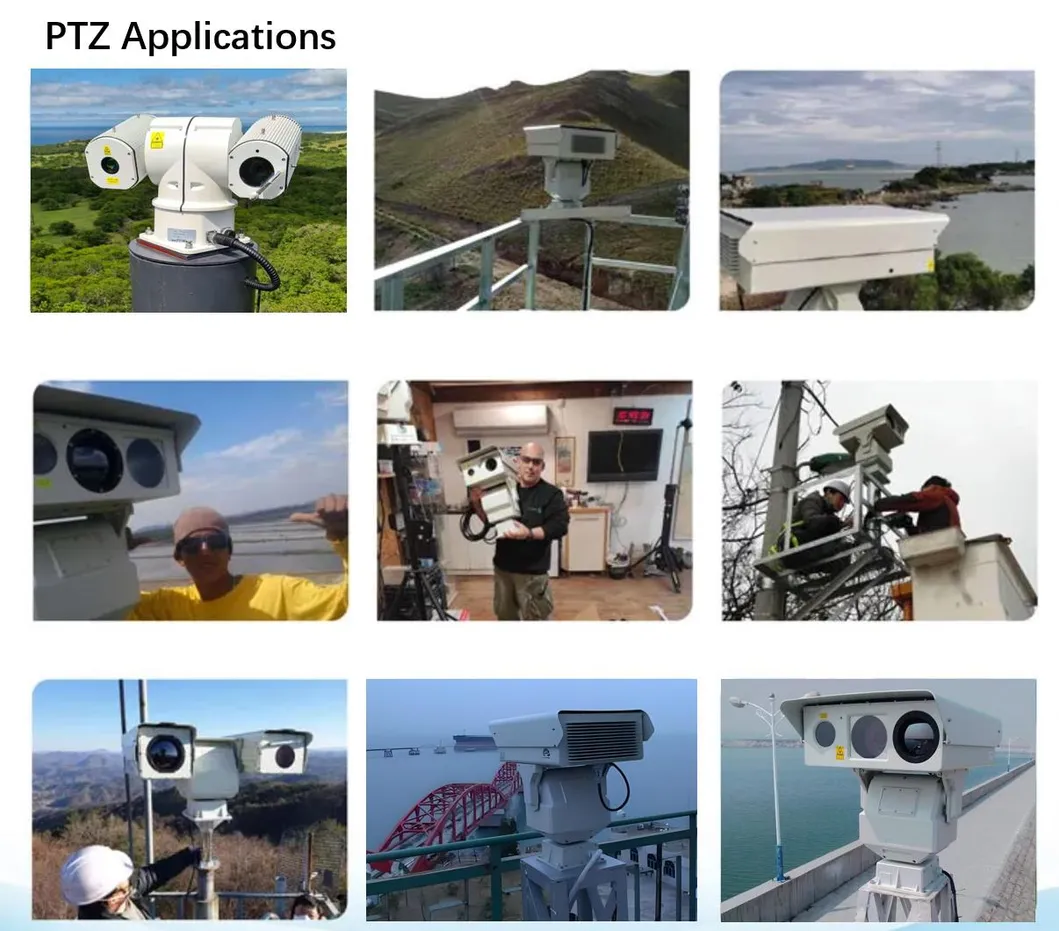

Production View 3

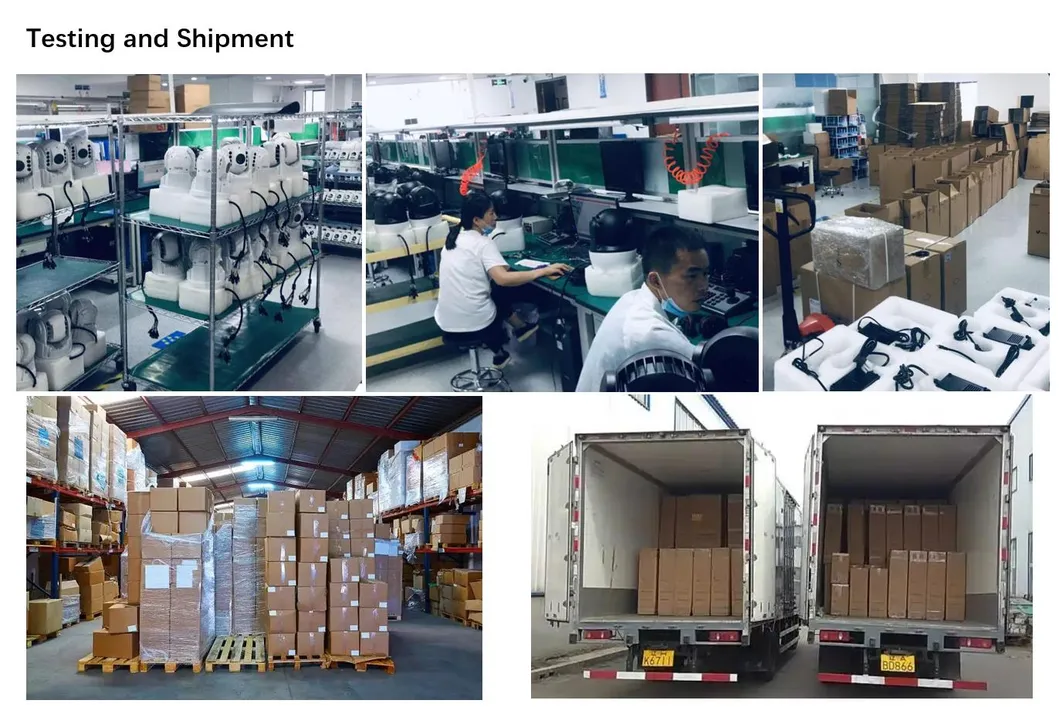

Production View 4
?

Frequently Asked Questions

Q1: Is sample ordering supported?
A: Yes, we support sample orders for testing before bulk placement. Basic sample and shipping costs are required.
Q2: What is the typical lead time?
A: Samples take 3-5 days, while bulk orders generally take 3-5 weeks depending on quantity.
Q3: How are the goods shipped?
A: We use DHL, Fedex, UPS, or TNT for samples. Bulk orders are shipped via air, sea, or train.
Q4: What is the warranty period?
A: Our standard warranty is 2 years, with options to extend for a reasonable cost.
Q5: What are your payment terms?
A: Typically T/T 30% as deposit and 70% before delivery. PayPal and West Union are accepted for samples.
Q6: Do you provide OEM/ODM services?
A: Yes, we are a professional manufacturer and can provide comprehensive customized services.
