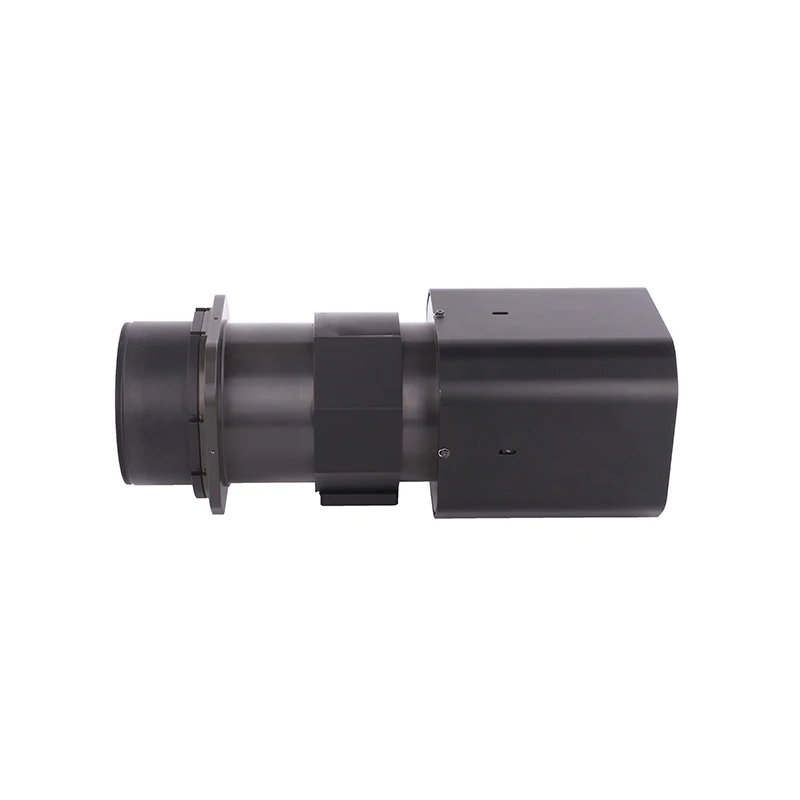

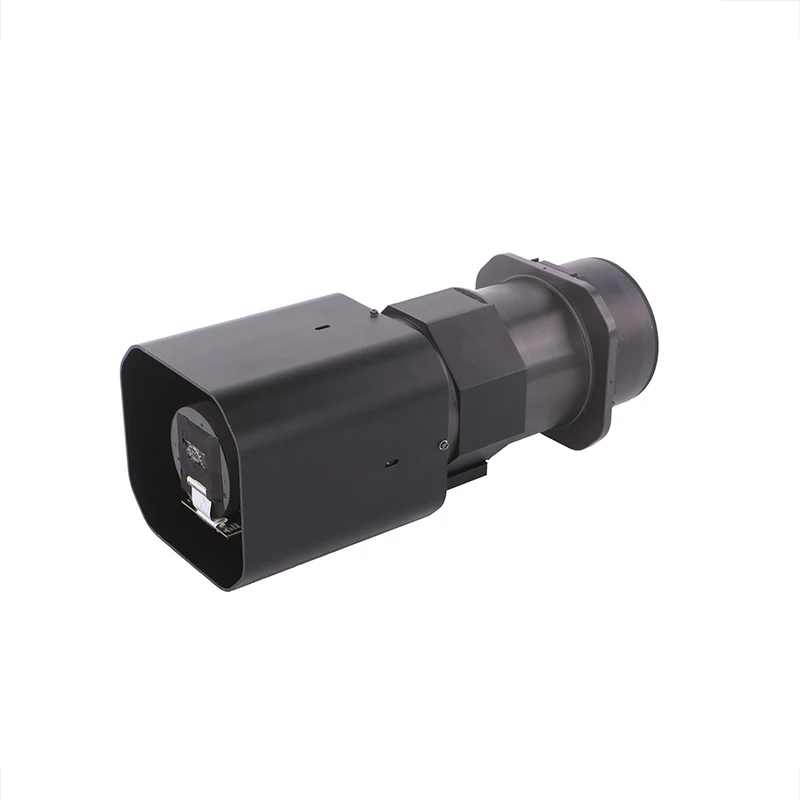

ISO Approved 4MP 86X 860mm Ois Optical Zoom Border Drone Detection Tracking Long Range Camera Module for PTZ IP Camera

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
CQ-VL42C86H
Type
IP Camera
Sensor
CMOS
Resolution
4MP
Optical Zoom
86X
Focal Length
10-860mm
Effective Distance
≧30m
Certification
CE, FCC, EMI/EMC, ISO9001: 2000

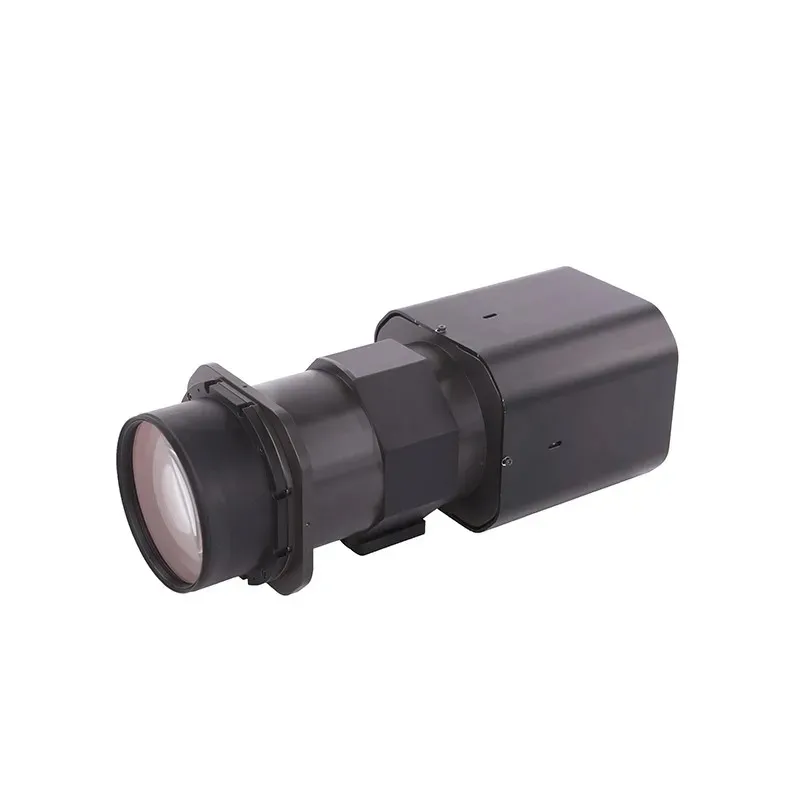

4MP 86X Optical Zoom Camera
Key Features
1/1.8'' 4MP CMOS Sensor
2688*1520 @25/30fps (60fps optional)
Ultra starlight (Color: 0.0005 Lux)
10~860mm 86X Optical Zoom
16X Digital Zoom
Optical Defog & WDR Support
Auto Day / Night switch
Optical Image Stability (OIS) Optional
High Precision Optical Axis
MIPI / LVDS Optional Interface
Protocols: VISCA, PELCO-D/P, ONVIF
Technical Specifications
Camera Parameters
Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination Color: 0.0005 Lux; B/W: 0.0001 Lux @ (F2.1, AGC ON)
Shutter Speed 1/25s to 1/100,000s
Digital Zoom 16x
Lens Performance
Focal Length 10~860mm, 86x Optical Zoom
Aperture Range F2.1-F11.2 (P-IRIS)
Field of View H: 38.40° - 0.49° (Wide-Tele)
Zoom Speed Approx. 9s (Optical, Wide-Tele)
Video & Image
Compression H.265 / H.264 / MJPEG
Main Stream 2688x1520, 1920x1080, 1280x720 @ 30fps
Intelligent Functions Intrusion, Cross-border detection, Crowd gathering, Audio anomaly
General
Operating Temp -30ºC ~ 60ºC, Humidity ≤95%
Power Consumption 3.3W (Max 15W)
Dimensions / Weight 374.3*150*142.5mm / 5190g
Camera Module Side View
Camera Module Rear View
Frequently Asked Questions
What is the maximum optical zoom of this camera module?
The camera features a powerful 86x optical zoom with a focal length ranging from 10mm to 860mm, designed for long-range surveillance.
How does the camera perform in low-light environments?
It utilizes Ultra Starlight technology with a minimum illumination of 0.0005 Lux in color mode, ensuring clear imaging even in extremely dark conditions.
Does this module support intelligent video analytics?
Yes, it supports various smart features including area intrusion detection, cross-border detection, wandering detection, and crowd gathering analysis.
What are the storage and integration options?
The module supports Micro SD/SDHC/SDXC cards up to 256GB for local storage and is compatible with ONVIF protocols (Profile S, Profile G) and NAS systems.
Can it withstand harsh weather conditions?
The module is designed for extreme environments with a working temperature range of -30ºC to 60ºC and features waterproof/weatherproof capabilities.
What video compression standards are supported?
It supports high-efficiency H.265 and H.264 compression standards, providing high-quality video while minimizing bandwidth and storage requirements.
