Basic Specifications
Model NO.UV-DMS6300/4300-75
TypeCCTV Camera
SensorCMOS
HDMI Format1080P
Horizontal Resolution2MP
KindAutofocus Lens
CertificationCE, RoHS
FeatureWaterproof, High Definition, Auto BLC
Effective Distance≧30m
Sensor Size1/2.8''
Remote ControlWith Remote Control
OriginHangzhou
Product Features
- All-weather Operation: Adopts intelligent thermal imaging, HD visible light, and laser night vision for 24/7 large-scale search and detailed observation.
- Multi-dimensional Perception: Supports image ruler, optional laser ranging, and access to multiple sensors.
- Highly Intelligent: Support hotspots, fireworks alarms, temperature detection, regional intrusion detection, and vehicle/human classification.
- Active Defense: Supports tweeter and flashing lights to deter criminals.
- Full Space Coverage: Pitch: -90°~+90°, horizontal 360° continuous rotation for three-dimensional coverage.
- High Precision Positioning: High-speed start/stop with self-adaptive focus and speed for accurate target tracking.
- Self-diagnosis: Fault self-check, power-off memory, and remote restart/upgrade capabilities.
- Lightweight IOT Design: Machine weight ≤10kg, easy to install with optional 4G/5G communication support.
- Military-grade Technology: High-strength aluminum alloy, IP67 protection, anti-strong wind, and dust-proof.
Widely used in forest and grass fire prevention, tourism scenic spots, nature reserves, power transmission lines, chemical parks, oil depots, and oil/gas pipeline monitoring. Also suitable for rivers, lakes, reservoirs, ports, docks, airport monitoring, highways, railways, border defense, and vehicle-mounted or shipborne mobile monitoring scenarios.
Detailed Parameters
| Part Number |
DMS6300-75 |
DMS4300-75 |
| Detect Distance |
Car: 6500m, Human: 2500m, Fire: 3000m (2×2m) |

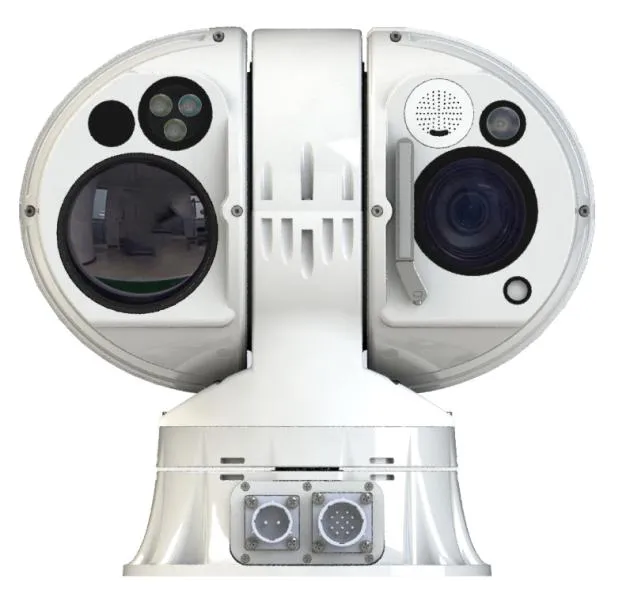

| Thermal Imaging |
Detector: VOx uncooled focal plane array
Lens: 75mm | NETD: 40mK
Image: SDE enhancement, 16 pseudo-color types
Zoom: 1.0~8.0× continuous electronic zoom
|
| Detector Array |
640×512 |
384×288 |
| Visible Light |
Sensor: ultra-low illumination starlight CMOS
Lens: 7mm~330mm, 47x optical zoom
Processing: 2D/3D noise reduction, wide dynamic, electronic fog filter
|
| Laser Illuminator |
GHT-III HD flood homogenization, 500m irradiation distance |
| Pan Tilt Structure |
Rotation: Horizontal 360° continuous; Pitch -90° to +90°
Speed: Horizontal up to 100°/s; Tilt up to 80°/s
Presets: 3000 positions, 16 cruise routes
|
| Environmental |
Temp: -40ºC to 60ºC | Humidity: ≤95%
Protection: IP67, 6KV anti-surge
|
Frequently Asked Questions
Q1: What is the maximum detection range of this camera?
The camera can detect vehicles up to 6500 meters and humans up to 2500 meters away.
Q2: Does the camera support night vision capabilities?
Yes, it features a multi-mode detection system including intelligent thermal imaging and a laser illuminator with a 500-meter range.
Q3: Is the device suitable for harsh outdoor environments?
Absolutely. It is IP67 rated for dust and water resistance, made from high-strength aluminum alloy, and operates in temperatures from -40ºC to 60ºC.
Q4: What kind of intelligent alarms are integrated?
It supports fire spot detection, regional intrusion detection, cross-border detection, and active defense via a tweeter and flashing lights.

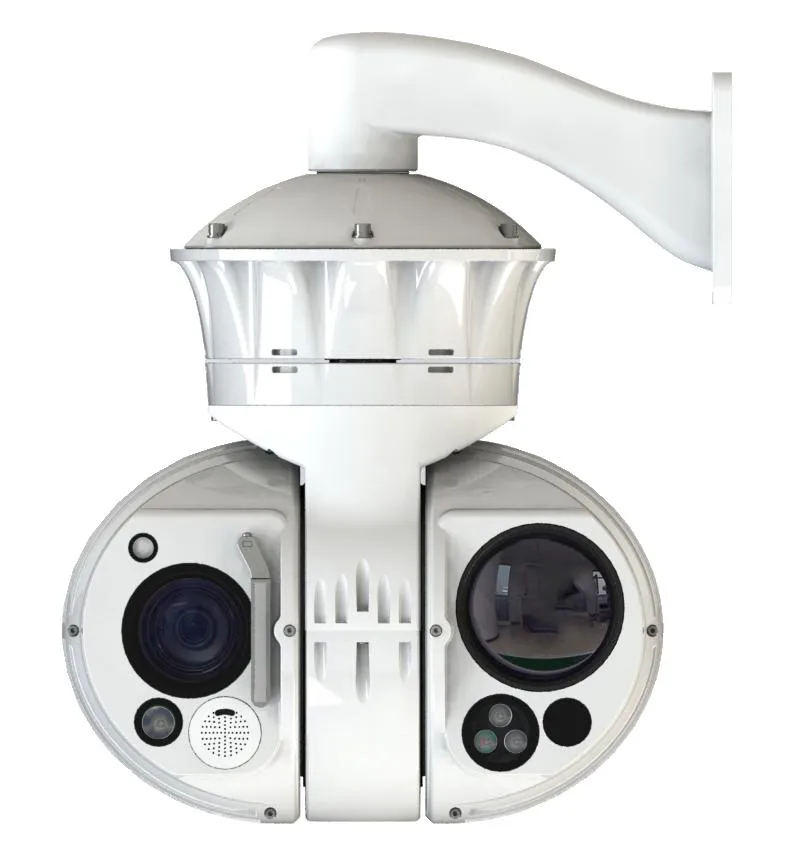

Q5: What are the installation options?
It supports multiple installation methods including formal mounting, side mounting, wall mounting, hoisting, and vehicle or tripod mounting.
Q6: Can the camera zoom during monitoring?
Yes, it features a 47x optical zoom lens for visible light and up to 8x continuous electronic zoom for thermal imaging.
