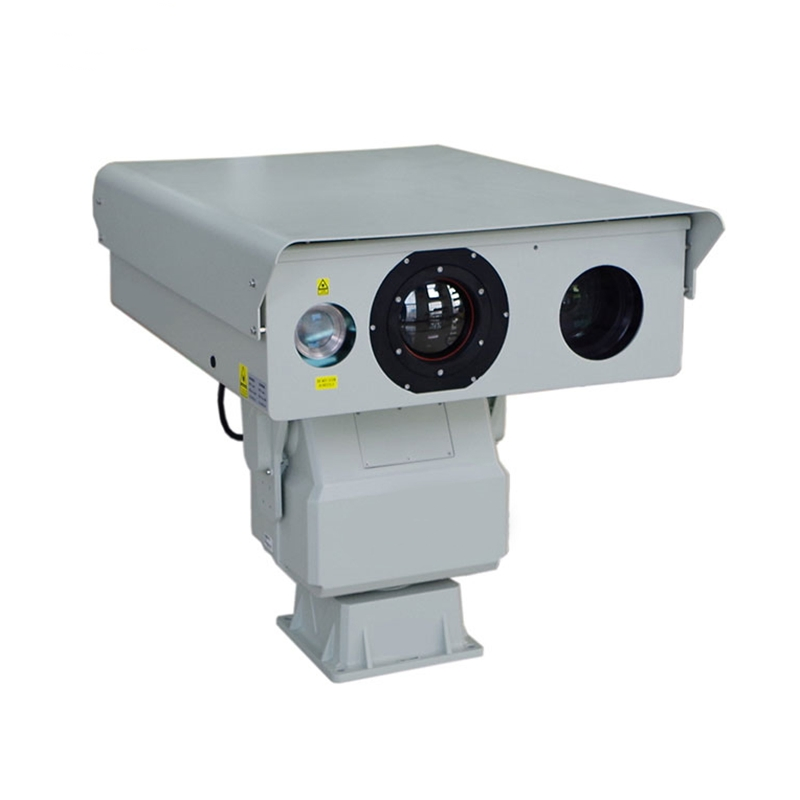

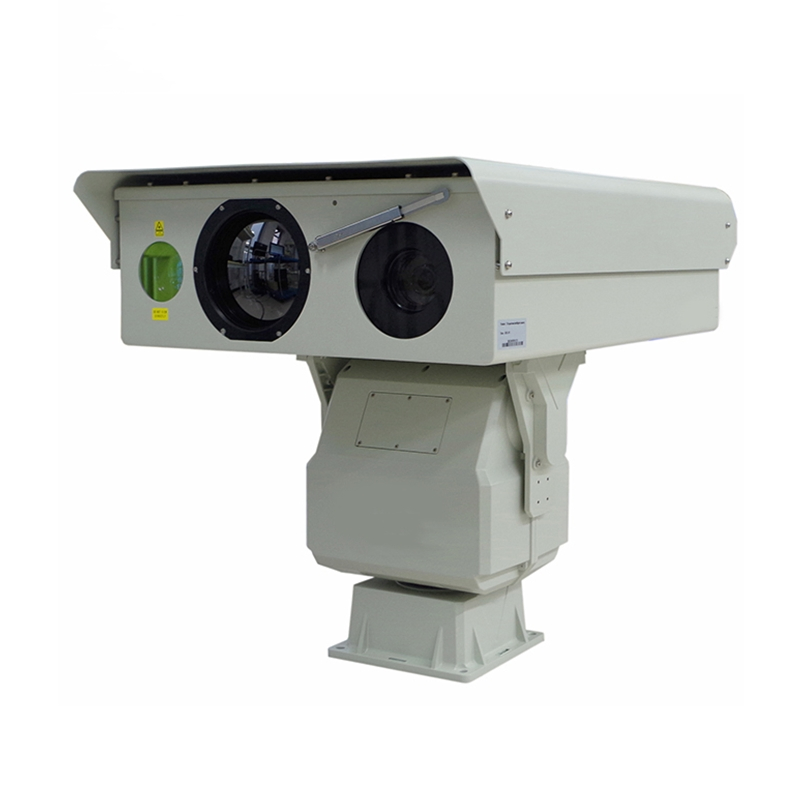

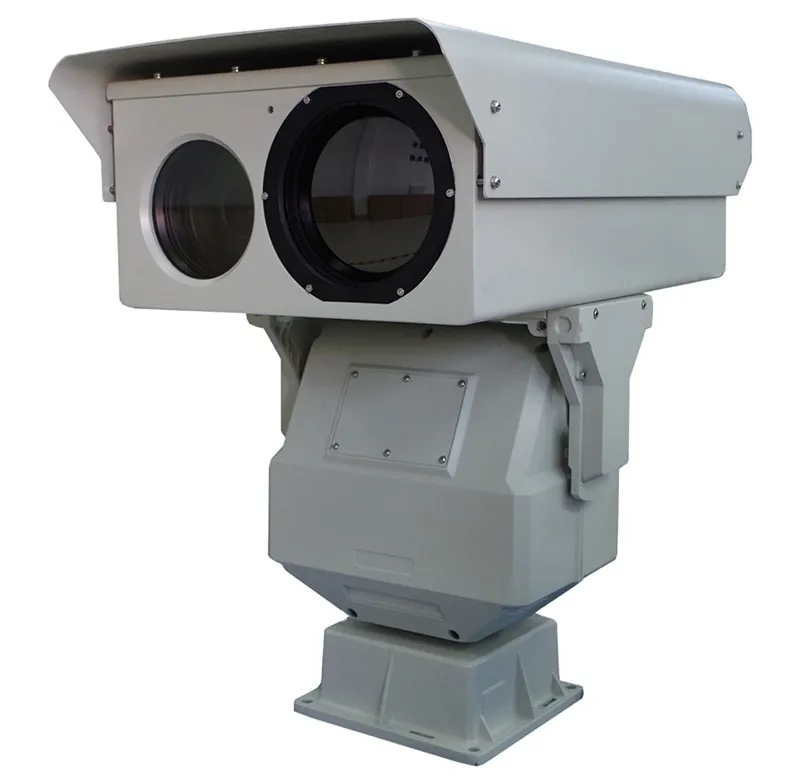

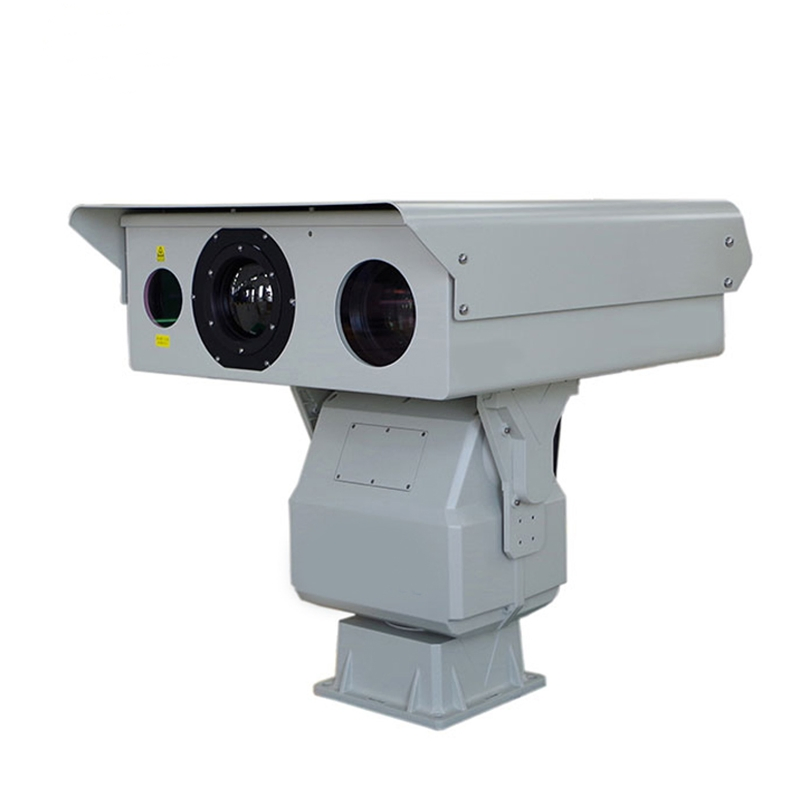

UV-PT890-TC1100-42100NX: Bi-Spectrum Cooled Thermal-Day PTZ Camera
Ultra long-range surveillance featuring 90-1100mm lens, 640*512 resolution thermal imaging combined with a 4MP 100X optical zoom visible camera.
| Category | Specification | Details |
|---|---|---|
| Effective Distance (Visible) | Vessel (150*80m) | Detection: 80km; Identification: 15km |
| Vehicle (2.3*2.3m) | Detection: 50km; Identification: 15km | |
| Human (1.8*0.6m) | Detection: 30km; Identification: 10km | |
| Thermal Sensor | Sensor Type | Cooled Focal Plane Array (MCT) detector |
| Pixels / Pitch | 640x512, 12μm | |
| Spectral Range | 3.7~4.8μm, MWIR | |
| Thermal Lens | Focal Length | 90-1100mm, 12X Optical Zoom |
| Visible Lens | Focal Length | 10~1000mm, 100X Optical Zoom |
| PTZ Range | Rotation | Pan: 0~360° continuous; Tilt: -45~+45° |
| Protection | Environmental | IP66, Seawater corrosion resistance |
