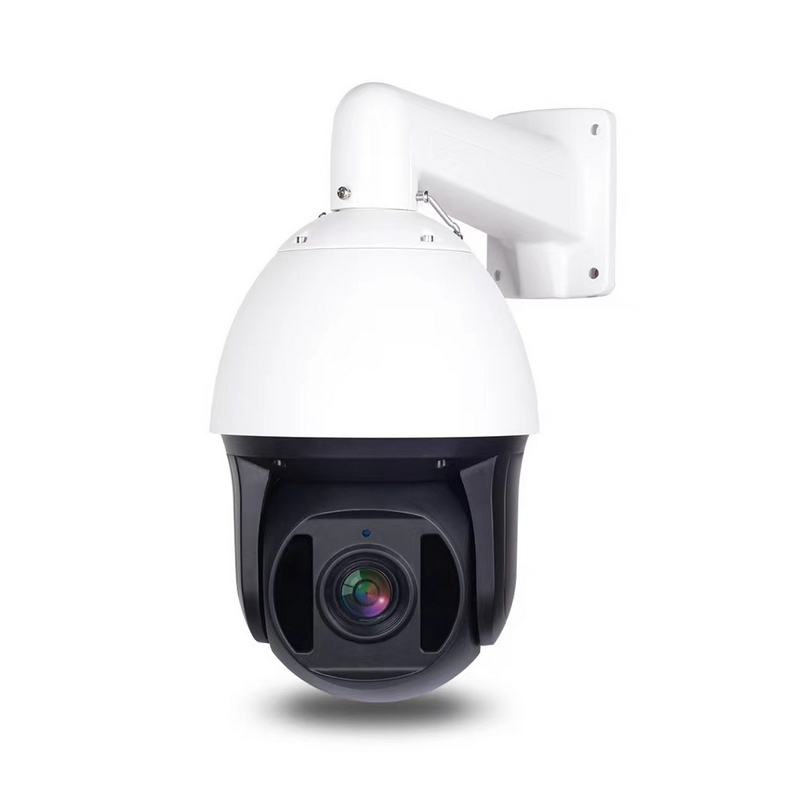

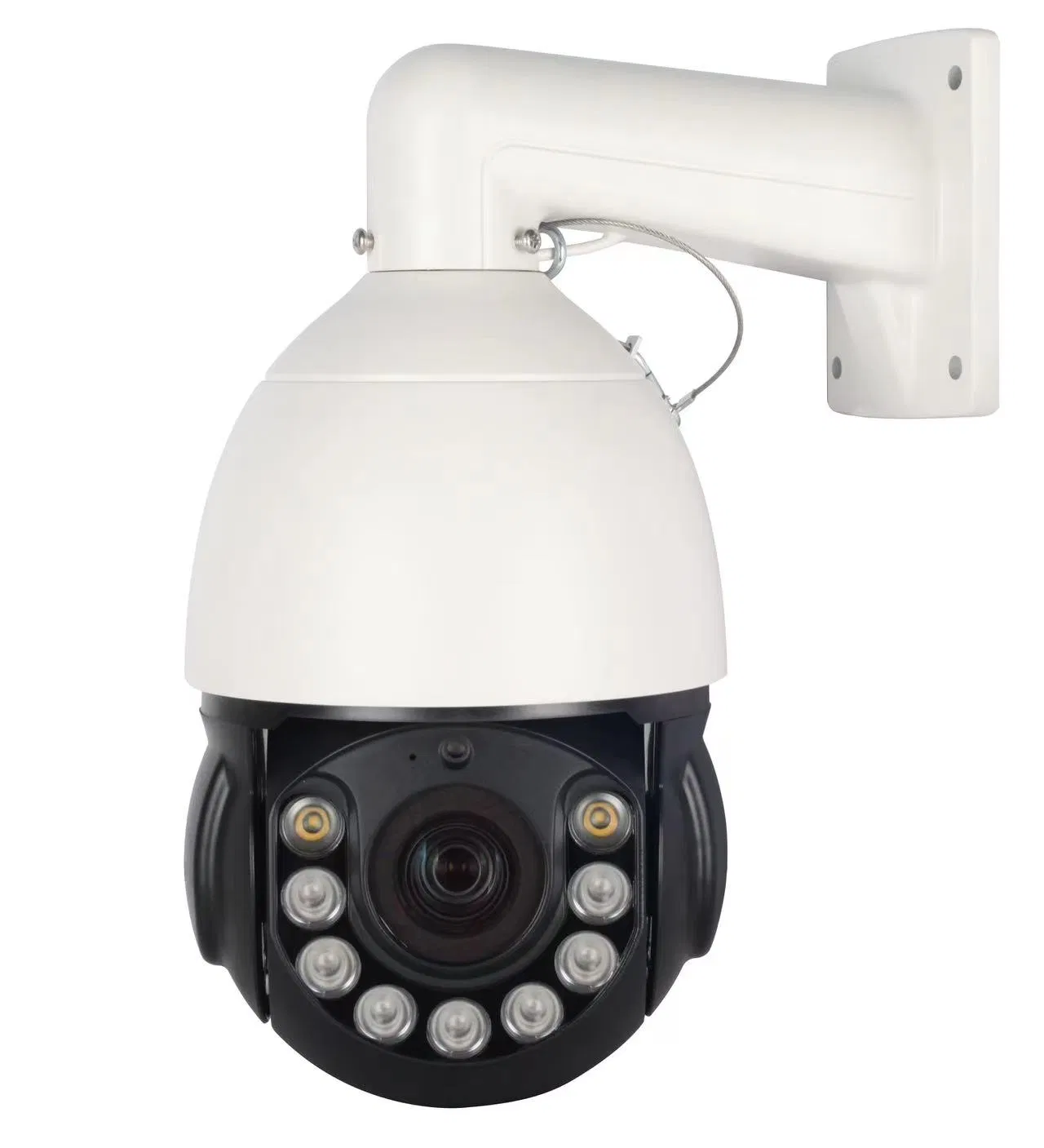

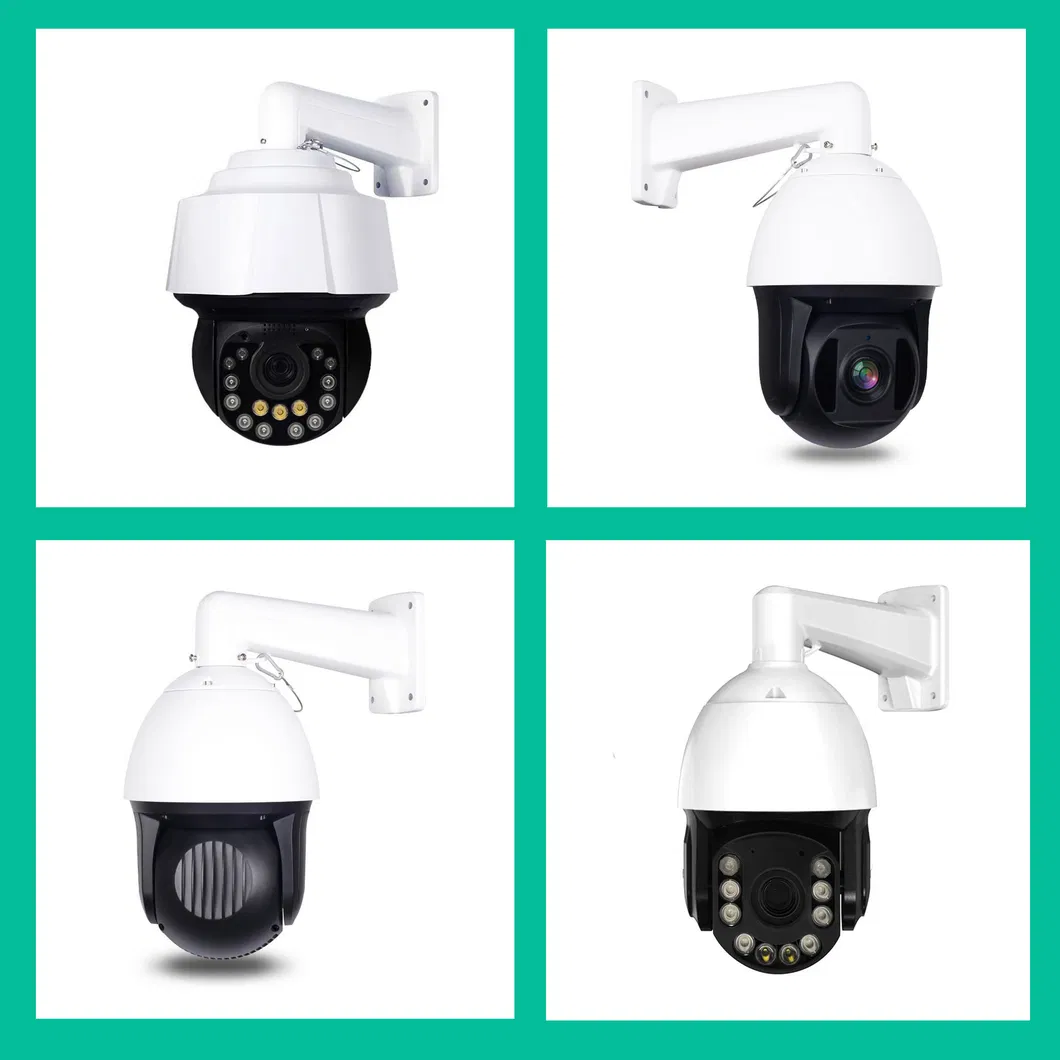

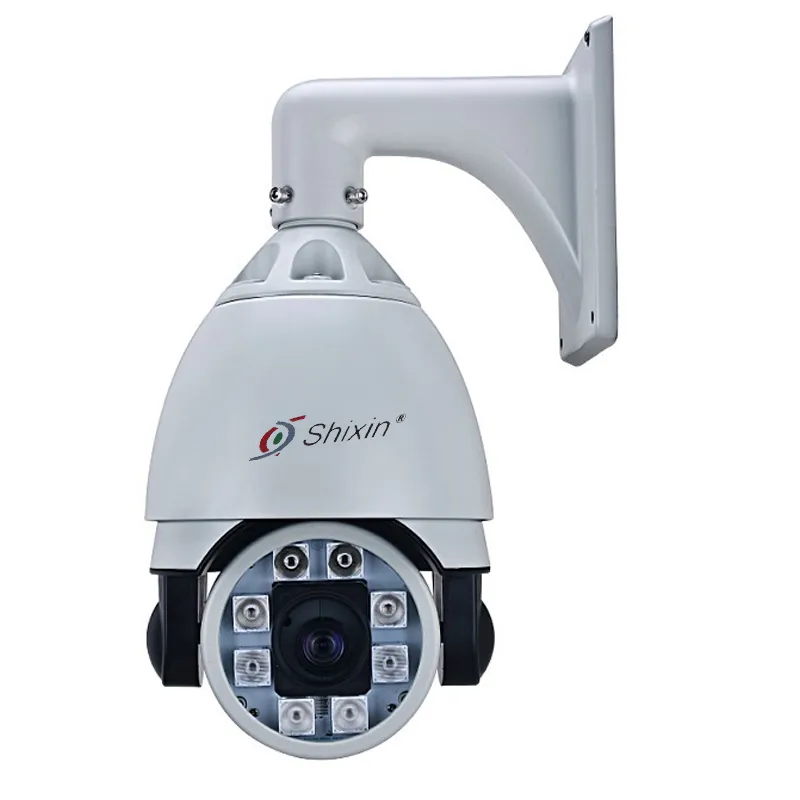

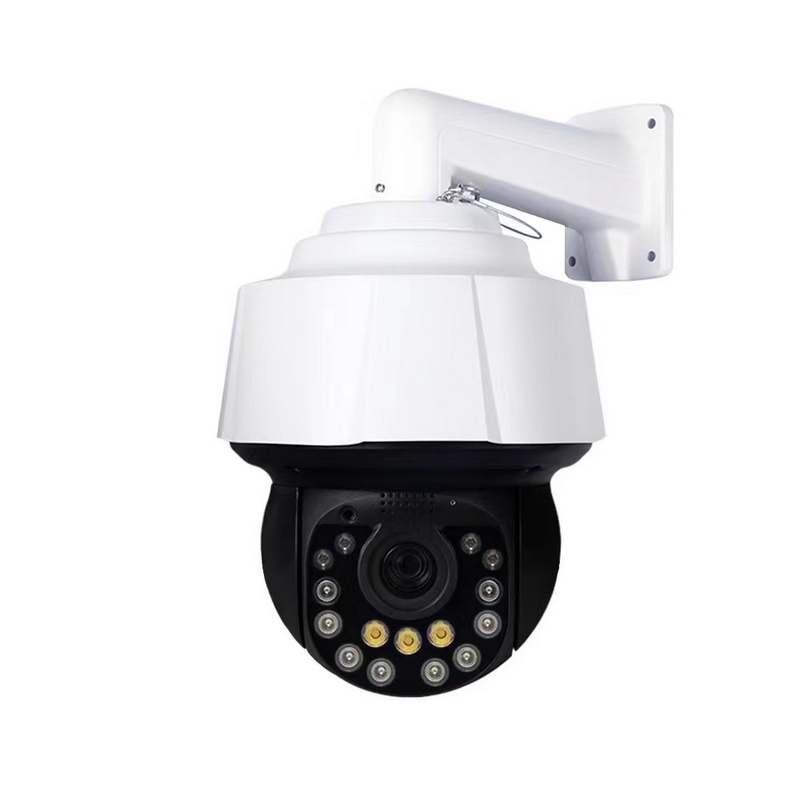

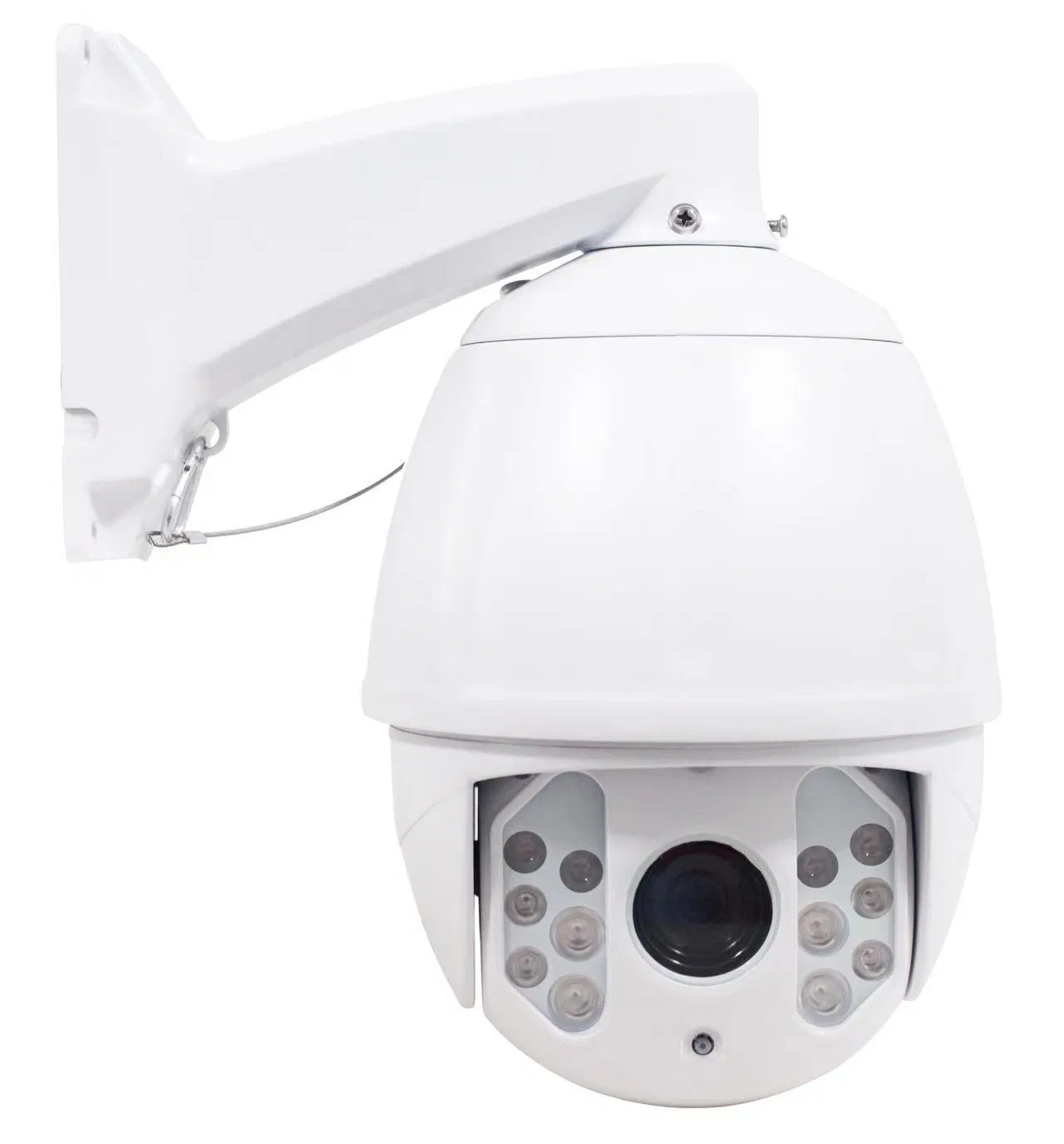

Full HD 960p 1.3 Megapixel IP Camera, 27X/36X Optical Zoom Outdoor Waterproof IP66 PTZ Camera, Pan/Tilt, Onvif P2p IP Cam (IP-620TS)

1 / 5

Full HD 960p 1.3 Megapixel IP Camera, 27X/36X Optical Zoom Outdoor Waterproof IP66 PTZ Camera, Pan/Tilt, Onvif P2p IP Cam (IP-620TS)

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

IP-620TS

Speed

High-speed Dome

Technology

Pan / Tilt / Zoom

Feature

Vandal-proof, Waterproof / Weatherproof, High Definition

Focal Length

Zoom Lens

Horizontal Resolution

960p

Sensor Size

1/3 inch

Support

FTP, Alarm, Rtsp

Camera Module

CCD 27X Optical X 27X Digital Zoom

Wireless Camera

WiFi 802.11b/G/N

Video Resolution

D1(720X576), CIF(352X288), Qcif(176X144)

IR Distance

150 Meters

IR LED

8PCS IR LED Lights

Transport Package

Neutral Retail Box

Production Capacity

1000/Month

HS Code

8529904100

🔍 Product Description

Full HD 960P 1.3 Megapixel IP Camera, featuring 27X/36X Optical Zoom, perfect for outdoor surveillance. This Waterproof IP66 PTZ Camera supports Pan/Tilt functionality and is compatible with Onvif P2P protocols.

High speed Dome PTZ camera with 7'' housing options
Explosion-proof IP66 rating for extreme weather
8PCS IR LED lights providing night vision up to 150M
Horizontal resolution: 720TVL (1280*720)
H.264 compression technology
Professional Focus: AUTO/Manual control
Iris: AUTO/Manual adjustment
Continuous 360° Horizontal Rotation and 180° Vertical Auto Flip
Smart IR LED power adjustment according to zoom level

Full HD 960p 1.3 Megapixel IP Camera, 27X/36X Optical Zoom Outdoor Waterproof IP66 PTZ Camera

⚙️ Technical Specifications

Presets

Category	Type	Specification Details
CCD Module	Image Sensor	1/3" Sony CMOS
	Lens	Zoom: 3.2-86.4mm, 27X / 36X Optical Zoom
	Min. illumination	0.5LUX / F1.2
Day/Night	IR Performance	8pcs IR Led lights, Distance 80/150M
Video	Compression	H.264 Format
Video	Resolution	1280*960 (960P)
Audio	Encoding	G.711 ADPCM
Hardware	CPU	32 Bit ARM9 RISC Core
Hardware	System	Embedded Linux system, 256M DDR, 32M Flash
Network	Protocols	TCP/IP, UDP, HTTP, DHCP, PPPoE, FTP, UPNP, DDNS, SMTP, NTP, TFTP
PTZ Function	Pan Range	360 degrees continuously
	Pan Speed	0.1-250 degrees/s (Manual), 360 degrees/s (Patrol)
	255 Points
	Scanning	5 Programmable Patrol sections
Power	Voltage	Input AC 100-240V \| Output DC12V 5A (8W)

❓ Frequently Asked Questions

What is the maximum night vision distance for this camera?

The camera is equipped with 8 high-performance IR LEDs, providing a night vision range of up to 150 meters, making it ideal for large-scale outdoor surveillance.

Is the camera durable enough for heavy rain or snow?

Yes, the camera features an IP66-rated waterproof and explosion-proof housing, ensuring reliable operation in harsh weather conditions and temperatures ranging from -10 to 55 Celsius.

Does this model support optical zoom?

Absolutely. It features a powerful 27X Optical Zoom lens (F=3.2-86.4mm), allowing you to capture clear details even at long distances.

Can I control the camera's movement remotely?

Yes, it is a full PTZ camera supporting 360° continuous horizontal rotation and 180° vertical auto-flip, which can be controlled via the network interface.

What storage and alarm features are available?

The camera supports motion detection alarms which can trigger picture uploads to Email or video uploads to an FTP server. It also includes an optional SD card slot for local storage.

Which network protocols are supported?

It supports a wide range of protocols including TCP/IP, HTTP, RTSP, ONVIF, and P2P, ensuring compatibility with most NVRs and remote viewing software.
