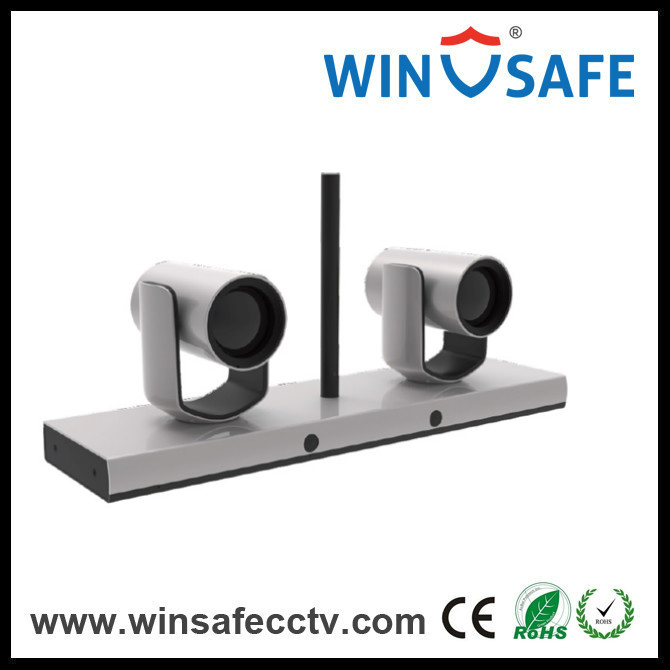

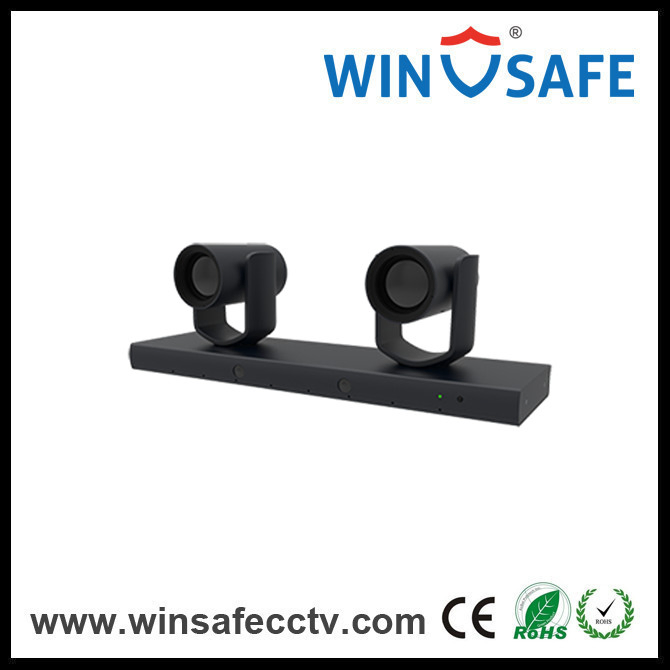

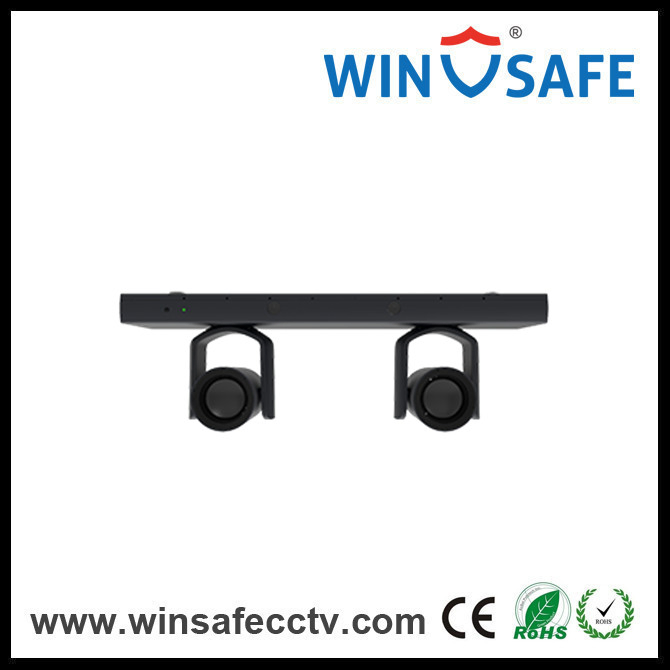

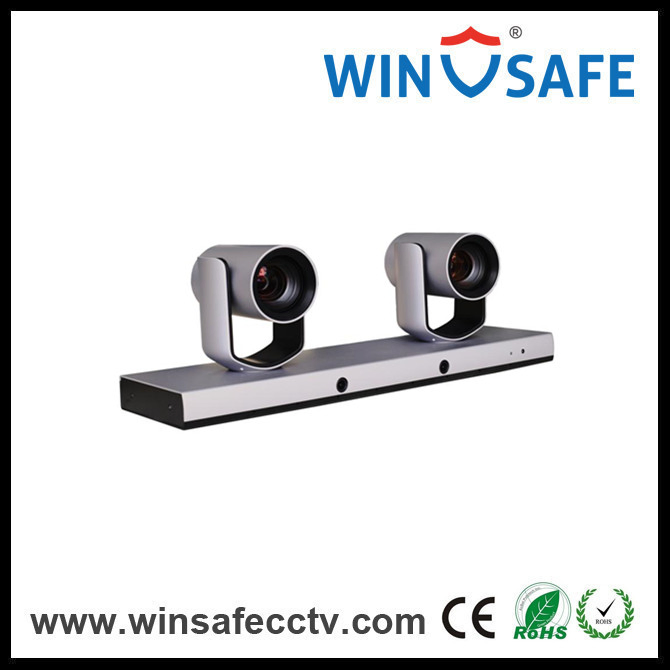

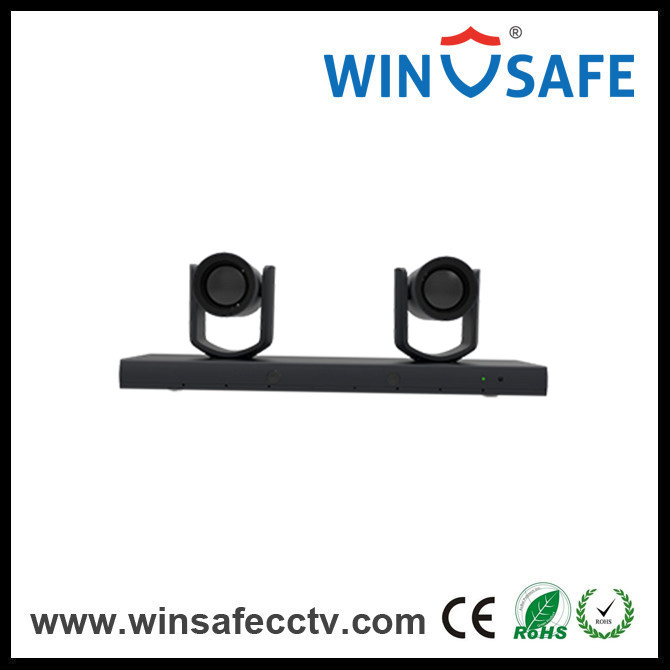

HDMI Interface and 3G-SDI Speaker Tracking Camera
The AMC-G200T speaker tracking camera helps to achieve intelligent meeting experience, implemented with both audio positioning and intelligent video analysis technology. It can automatically switch between close-up images to frame speakers and full view images to frame the whole room, freeing camera operation during a meeting and enabling attendees to focus more on discussion.
Key Advantages:
| HD Camera Specs | |
| Image Sensor | 1/2.8" Exmor CMOS, 2.14MP |
| Signal Format (SDI) | 1080p/60, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/50 |
| Focal / Iris | f=3.9mm-46.8mm / F1.6 - F2.8 |
| Zoom | 12x Optical, 12x Digital |
| Field of View | 72.5° - 6.3° |
| Min. illumination | 0.5Lux(Color), 0.1Lux(B/W) |
| DNR / BLC | 2D/3D Support / Supported |
| PTZ Performance | |
| Pan/Tilt Range | Pan: -90° to +90° ; Tilt: -30° to +90° |
| Preset Number | 256 |
| Network & Interface | |
| Video Compression | H.264, H.265 |
| Protocol | HTTP, RTSP, RTMP, TCP, UDP, ONVIF |
| Video Output | 1 x HDMI, 1 x 3G-SDI |
| Audio I/O | 1 x Line in, 1 x Line out |
| Control | 1 x RS232 (VISCA / PELCO-P / PELCO-D) |
| General | |
| Power Supply | DC12V (Below 50W) | 500mm x 163mm x 145mm |
| Weight | 3KG |
