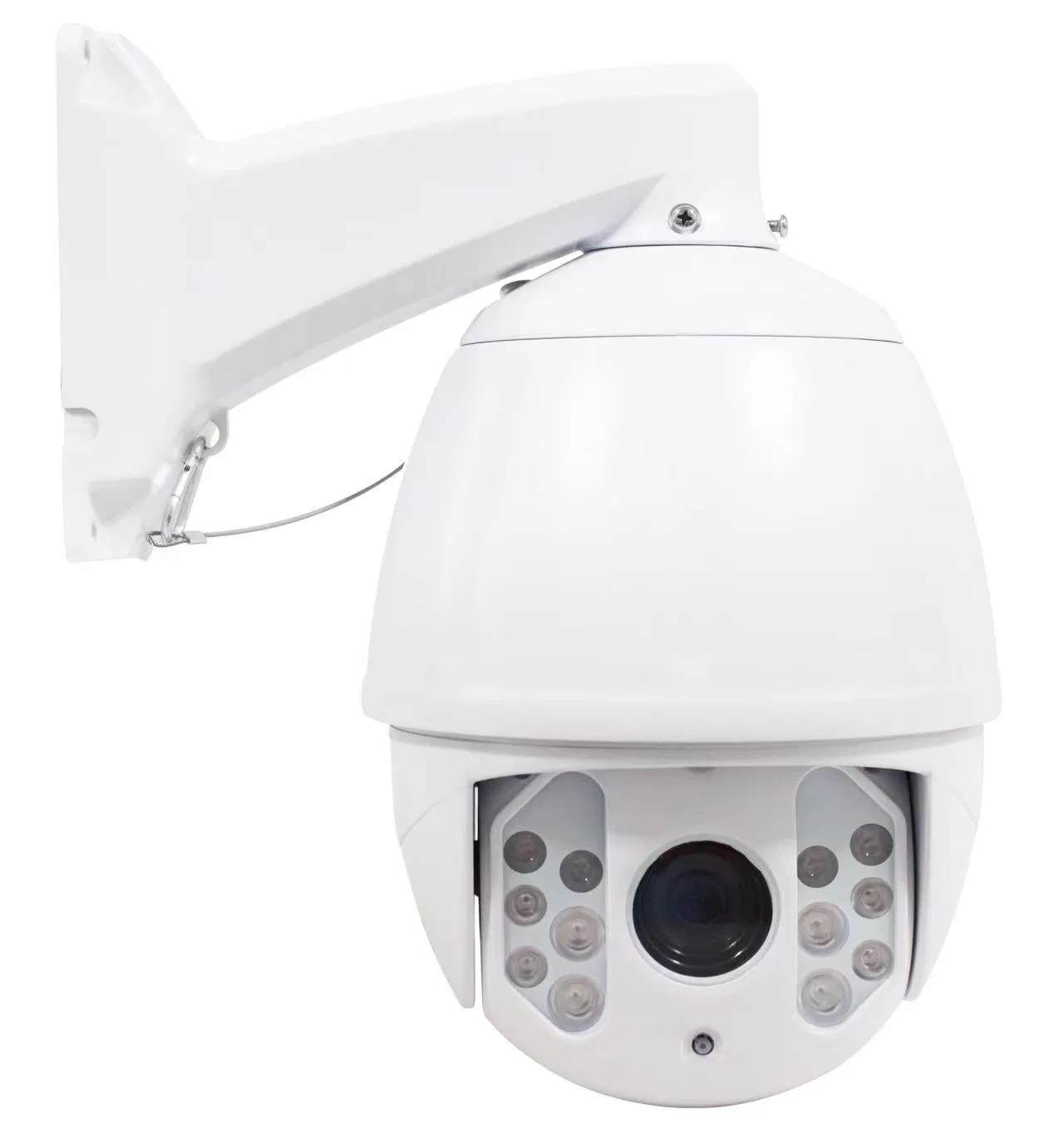

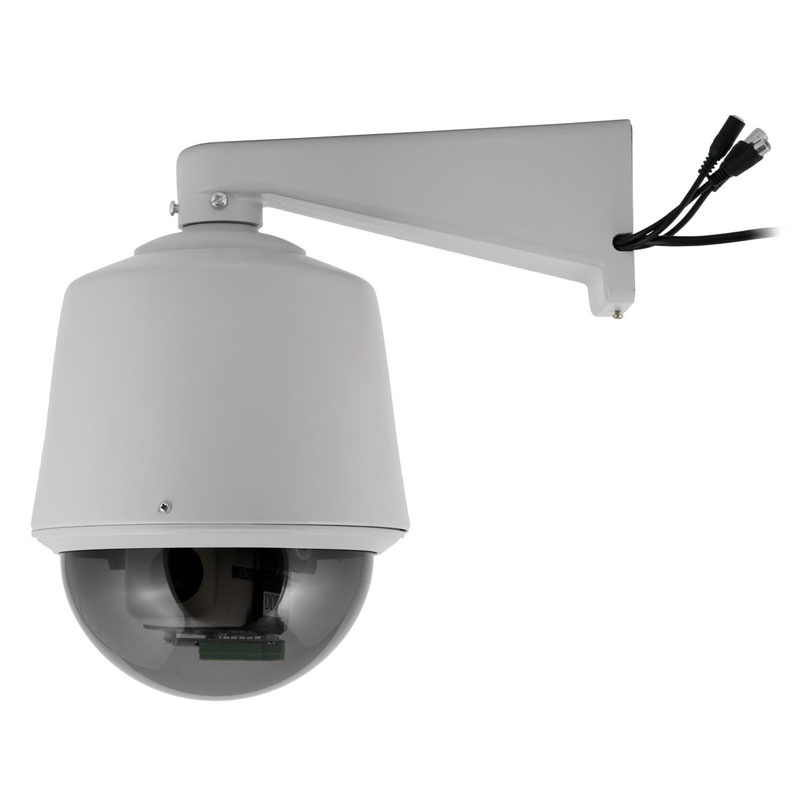

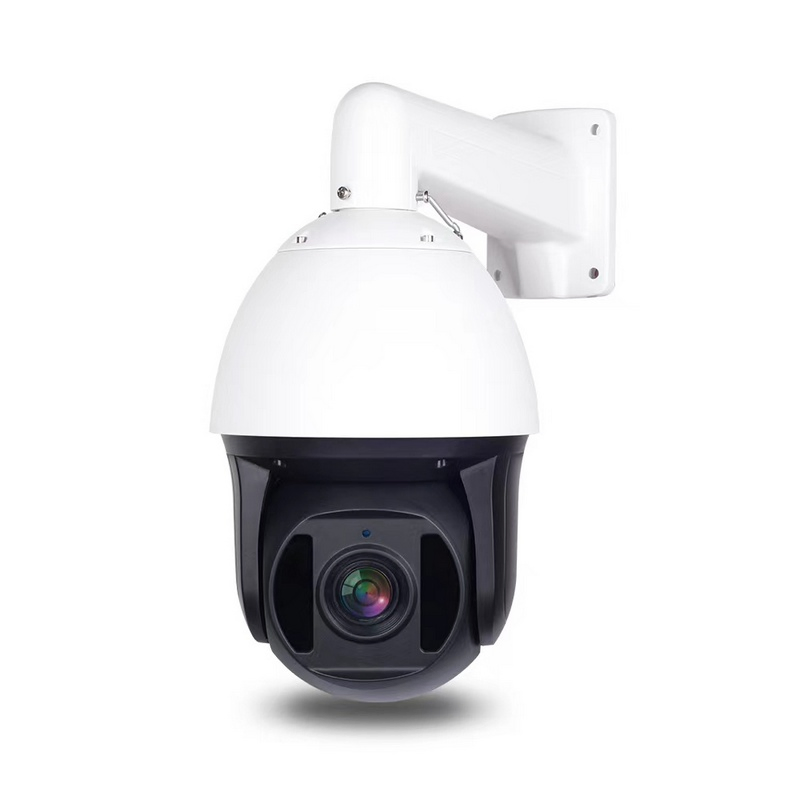

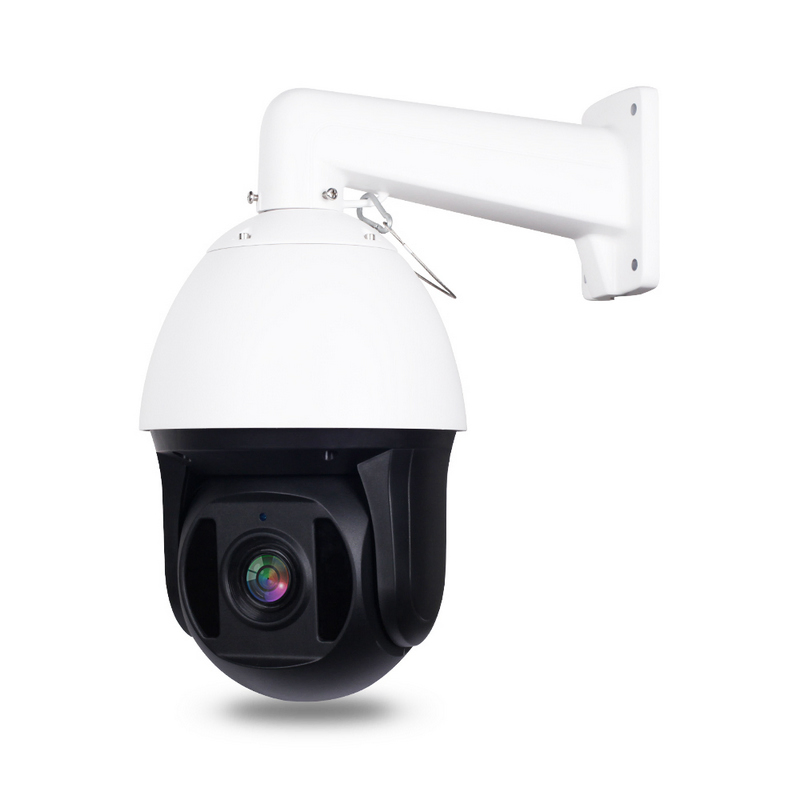

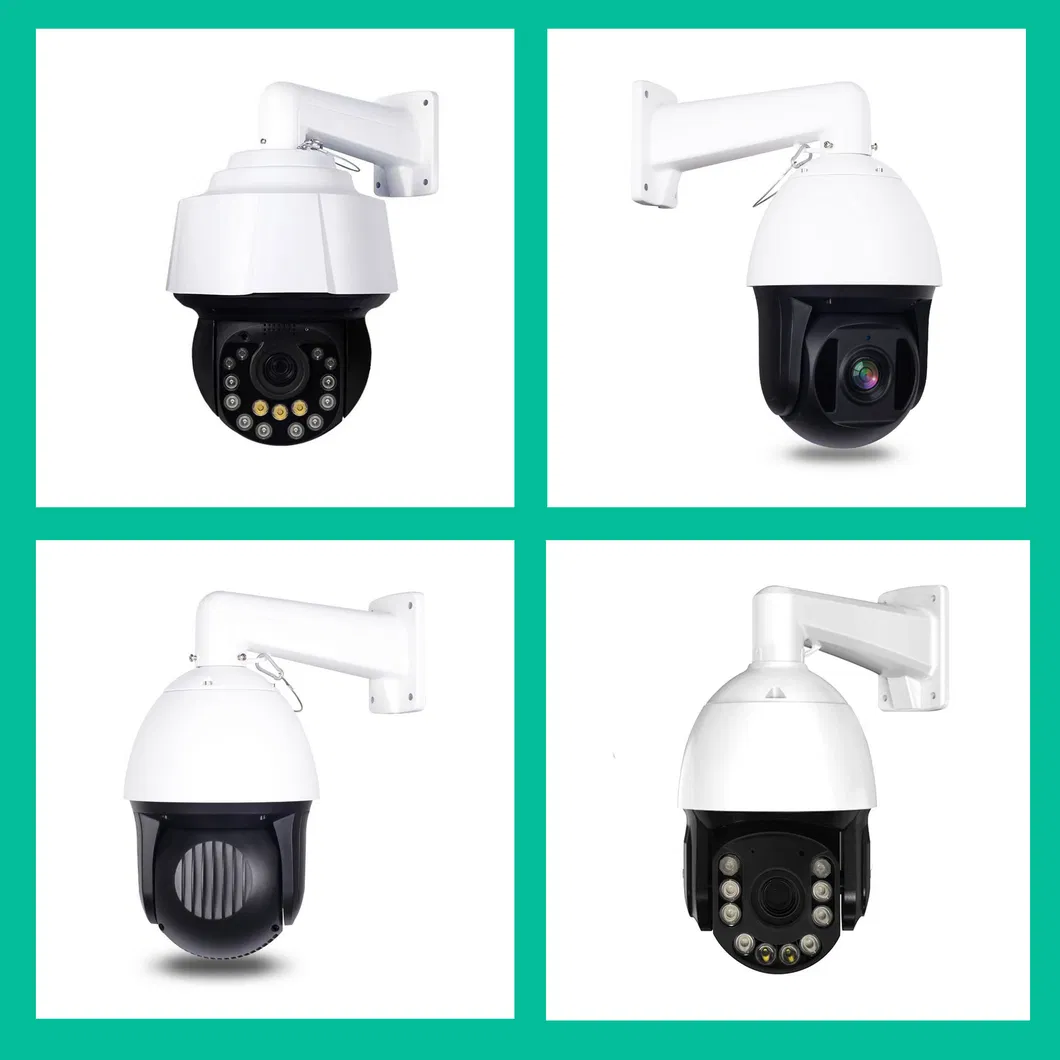

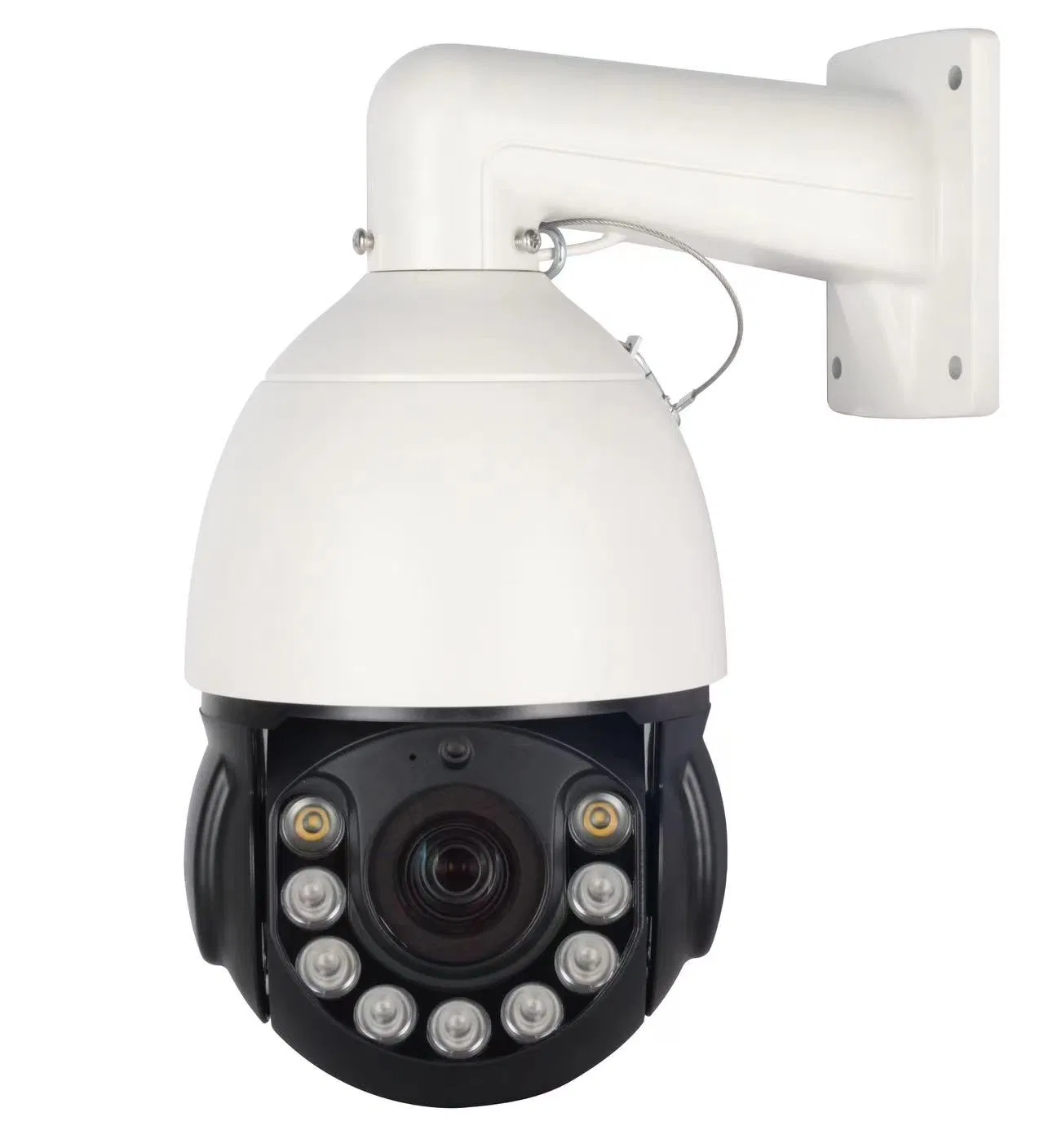

H.264 Pan/Tilt Day/Night 27X Optical Zoom IP PTZ Camera (IP-510H)
This high-performance IP PTZ Camera is designed for versatile security monitoring, combining outdoor durability with advanced optical capabilities.
| Category | Type | Specification |
|---|---|---|
| Camera Module | Image Sensor | 1/4 SONY CCD, 480TVL |
| Focus | 3.2 - 86.4mm | |
| Min. illumination | 0.1LUX / F1.2 | |
| Video & Audio | Compressed format | H.264 / G.711 ADPCM |
| Resolution | D1(720×576), Half-D1, CIF, QCIF (Max 30fps) | |
| Hardware | CPU & System | 32 Bit ARM9 RISC Core, Embedded eCos system |
| Memory | 256M DDR, 32M Flash memory | |
| Network | Interface | 10/100M Ethernet port (RJ45) |
| Protocols | TCP/IP, UDP, HTTP, DHCP, PPPoE, FTP, UPNP, DDNS, SMTP, NTP, TFTP | |
| PTZ Function | Rotation Range | Pan: 320°, Tilt: 90° auto rotation |
| Presets | 64 presets, 4 preset lines (16 presets per line) | |
| Rotation speed | Pan: 5-30°/s, Tilt: 7.5-30°/s | |
| General | Environment | Temp: -10°C to 55°C; Humidity: 0% - 80%RHG |
| Dimension | 335mm(L) x 300mm(W) x 410mm(H) | |
| Weight | 3.51Kg |
