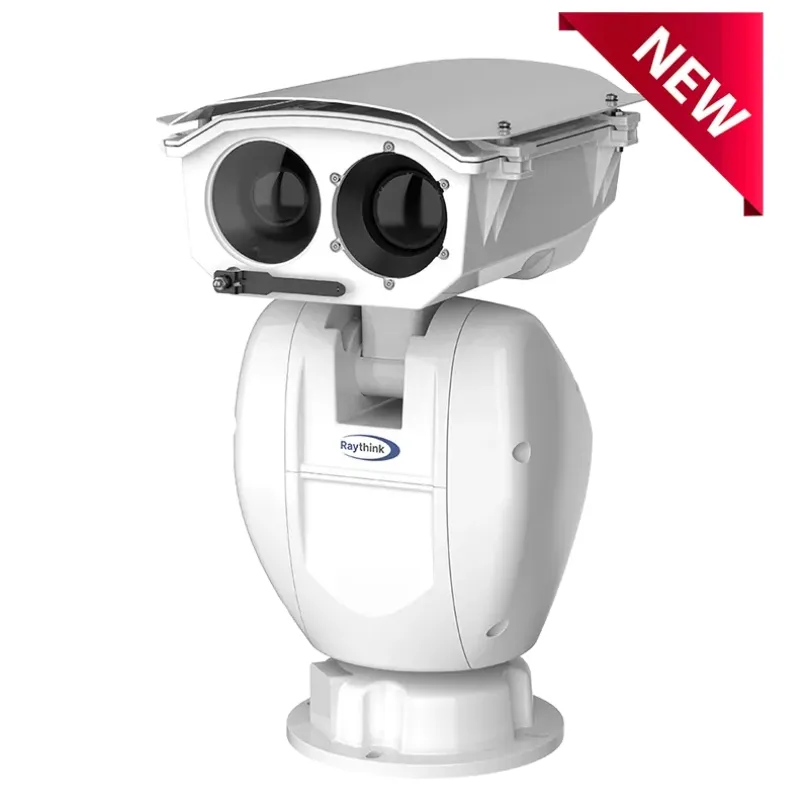

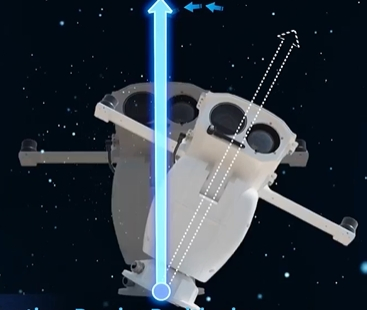

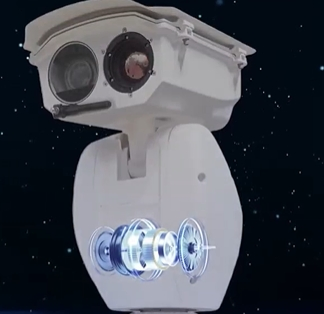

The PC4 series is a medium-to-long-range observation and monitoring product that integrates infrared thermal imaging, an HD visible light camera, and an intelligent PTZ into one. The product, equipped with a self-developed AI recognition algorithm, can perform target recognition and tracking. It supports intelligent functions such as fire point detection, tripwire intrusion, and regional intrusion detection, enhancing target recognition accuracy during nighttime and adverse weather conditions. It is suitable for scenarios requiring medium-range and long-distance monitoring such as forest fire monitoring, medium-range perimeter security and perimeter monitoring.
| Model NO. | PC464A1 | Type | CCTV Camera |
| Sensor | CMOS | Kind | Autofocus Lens |
| Certification | CE, FCC, RoHS, EMI/EMC | Effective Distance | ≧30m |
| Power Consumption | 75W | Weight | 14kg |
| Work Environment | -40ºC~+70ºC;<90%Rh | Power | DC 24V±15% |
| Audio Input/Output | 1×Input / 1×Output | Alarm Input/Output | 7×Input / 2×Output |
| Fire Detection | Support | Focal Length | 6~336/6~360mm |
Equipped with the latest generation 12um uncooled infrared detector, providing longer and clearer imaging with advanced algorithms.
Visible light (4MP) and thermal imaging (up to 1.3MP) ensure all-weather 24-hour security monitoring.

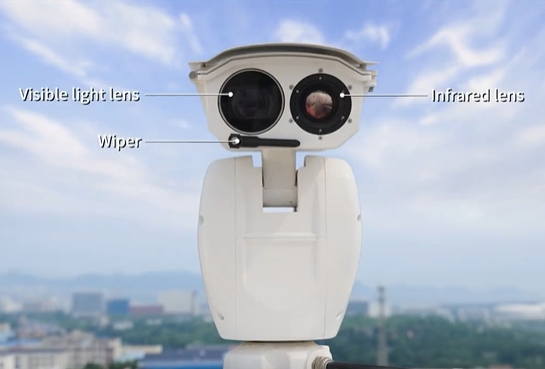

High-magnification visible light continuous zoom lens and electric focusing infrared lens for long-range needs.
Advanced smoke and fire detection algorithms specifically designed for forest fire monitoring and perimeter security.
Supports tripwire intrusion, regional intrusion, and AI recognition/tracking of passengers and vehicles.
Supports standard ONVIF protocols and provides SDKs and supporting NVR software for easy integration.
| Thermal Module | |
| Detector Type | Uncooled VOx infrared detector |
| Resolution / Pixel Pitch | 640×512 / 12μm |
| NETD | ≤40mK(@25°C,F#1.0,25Hz) |
| Focal Length | 50mm/75mm/25~75mm/100mm Motorized lens |
| Optical Module | |
| Sensor | 1/1.8-inch 4 megapixel CMOS |
| Resolution | 2688×1520 |
| Focal Length | 6~360mm 60X |
| PTZ | |
| Pan / Tilt Range | 360° continuous rotating / -90°~+40° |
| Scan Mode | Preset point/Patrol inspection group/Pattern/Area scanning/Linear scanning |
| System & Smart Functions | |
| Intelligent Detection | Tripwire, regional intrusion, passenger and vehicle recognition |
| Smart Alarm | Smoke & Fire detection, Network anomaly, IP conflict, Burn alarm |
| Interface | RJ45 10M/100M, RS485, Audio I/O, 7-ch Alarm In, 2-ch Alarm Out |
| Storage | Micro SD card (up to 512G) |
| General | |
| Protection Level | IP66; TVS 6000v Lightning/Surge protection |
| Dimension / Weight | 250x472x360mm / <20kg |
A: We maintain professional infrared detector chip manufacturing and rigid thermal camera manufacturing processes. Our facilities include a perfect quality management system and a CNAS certification reliability test platform.
A: For small orders, it usually takes 7 working days. Products that require customization or do not have sufficient inventory take approximately 2-4 weeks. Please confirm specific shipping times for OEM orders.
A: The MOQ depends on the specific product model. Please contact us for details on the product you are interested in.
A: Our standard payment terms include L/C, T/T, D/P, Western Union, Paypal, and Money Gram.
A: Thermal cameras come with a 2-year warranty, while our detectors are covered by an extensive 10-year warranty.
A: We provide lifetime technical support. Our engineering team typically responds to technical inquiries within 24 hours.
