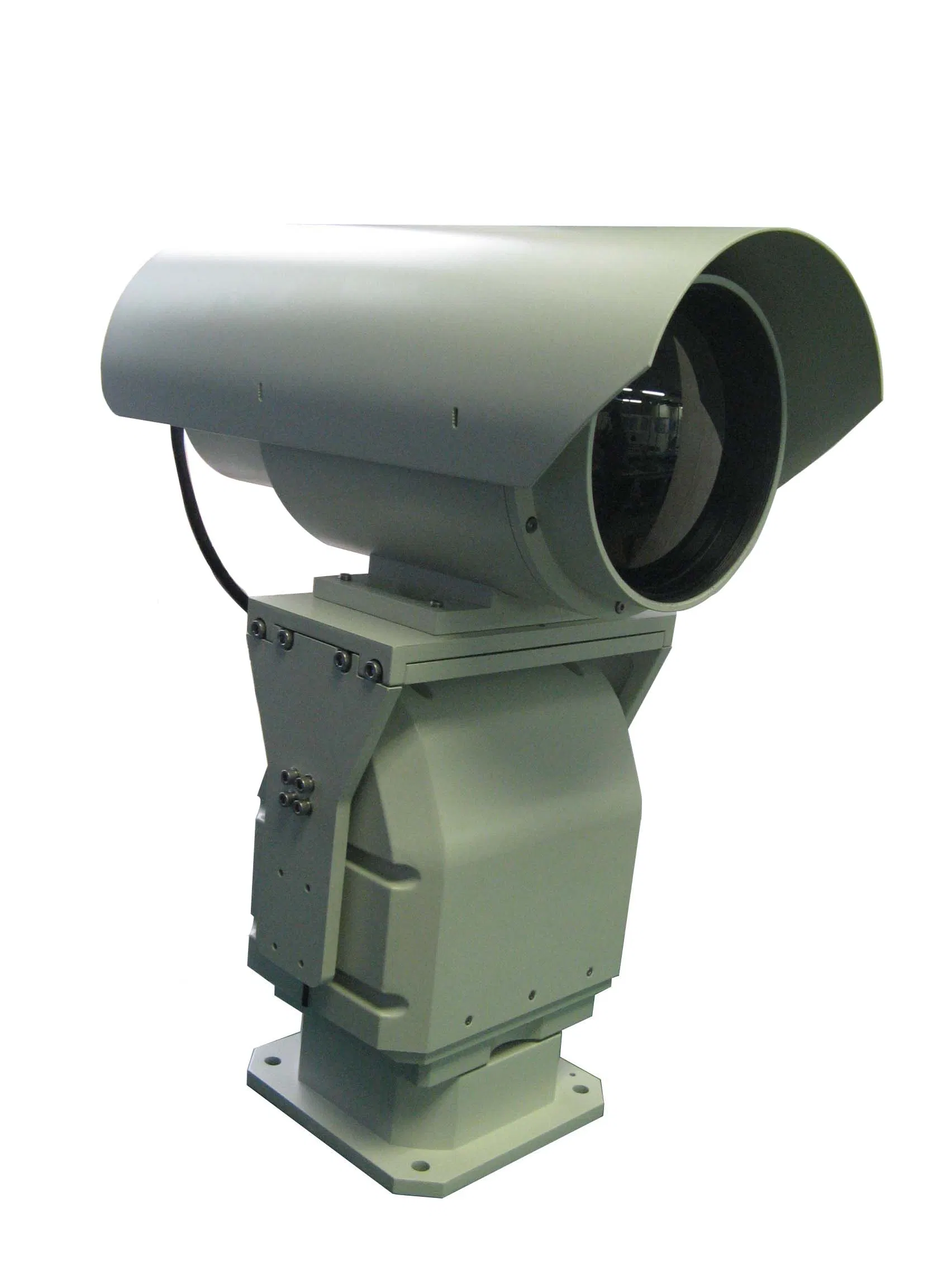

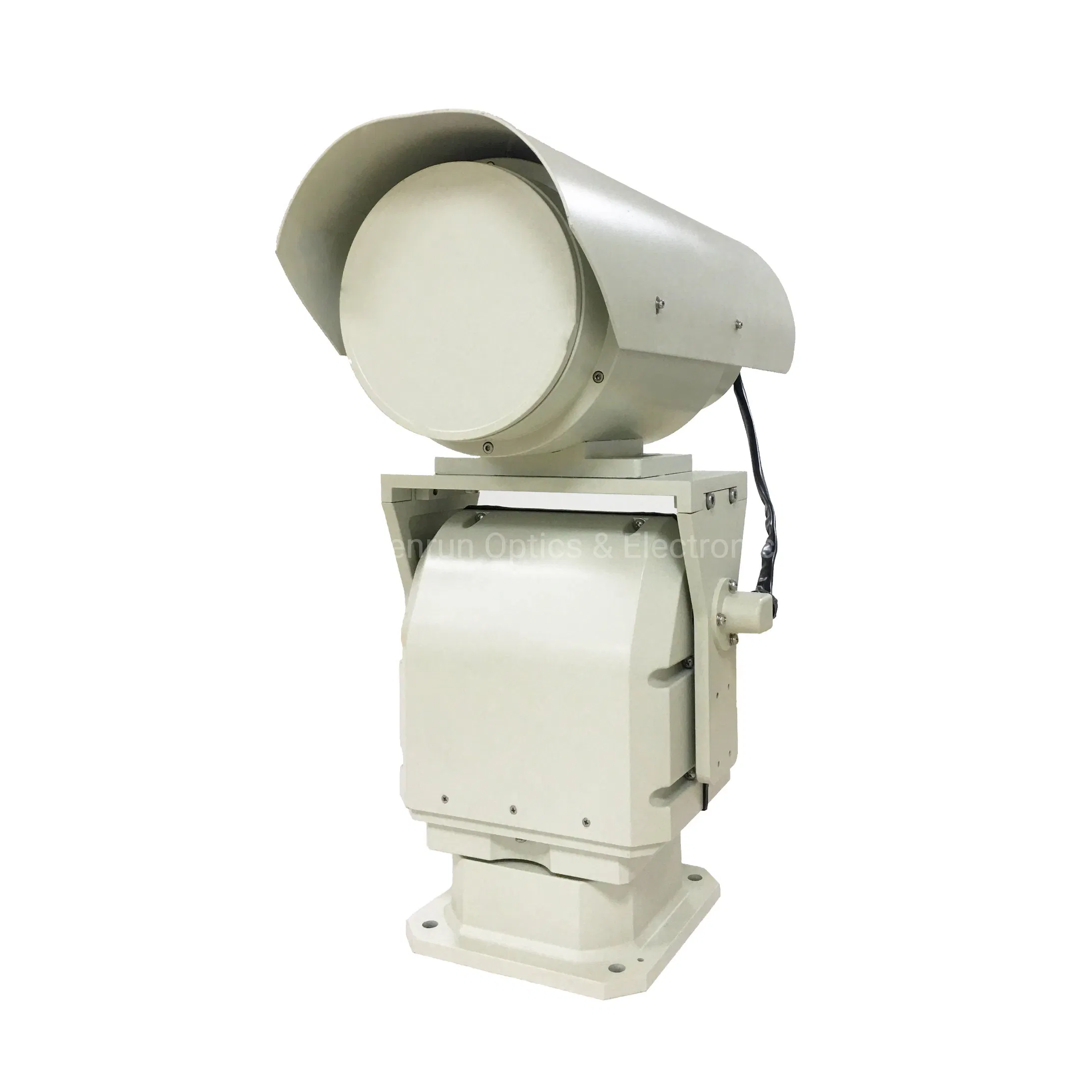

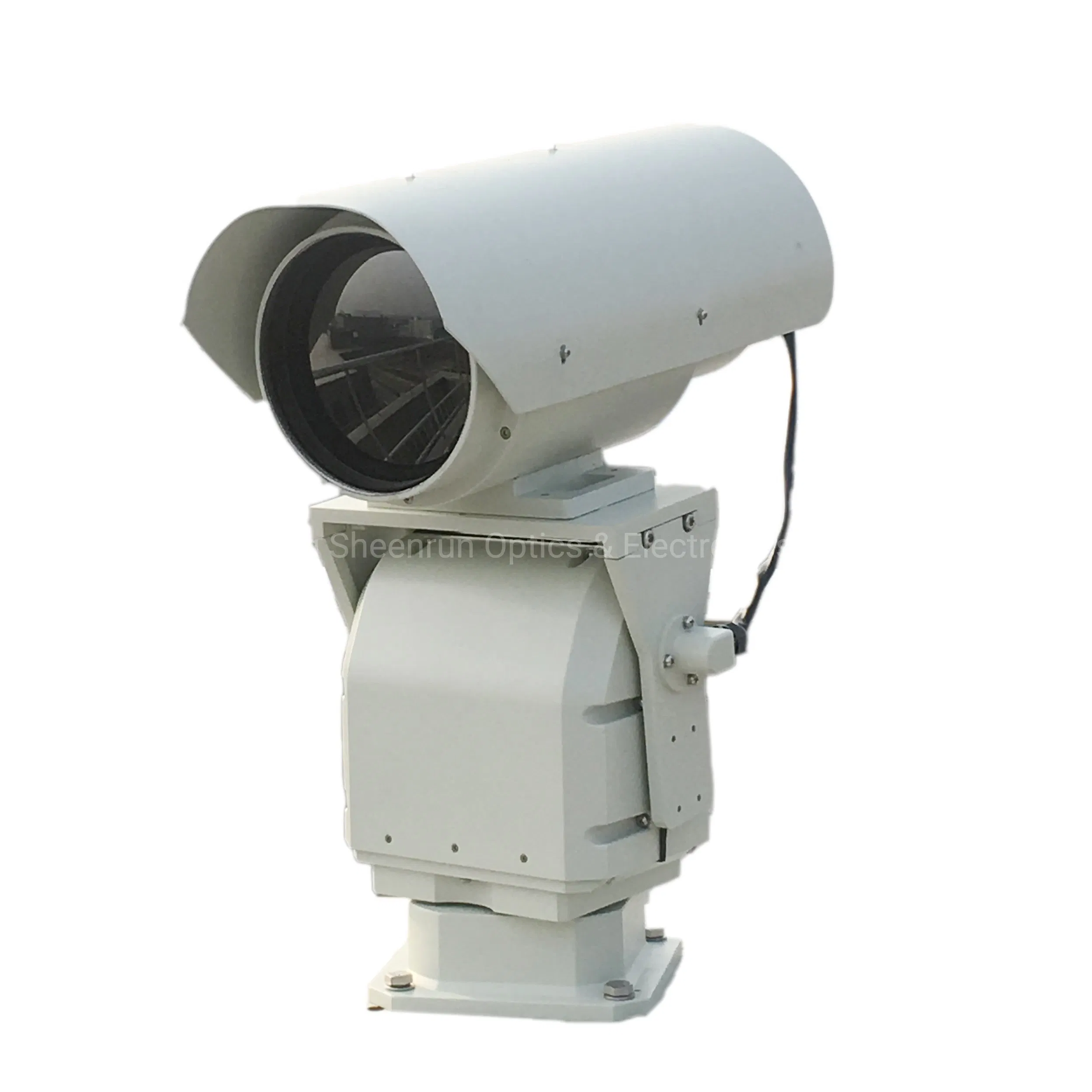

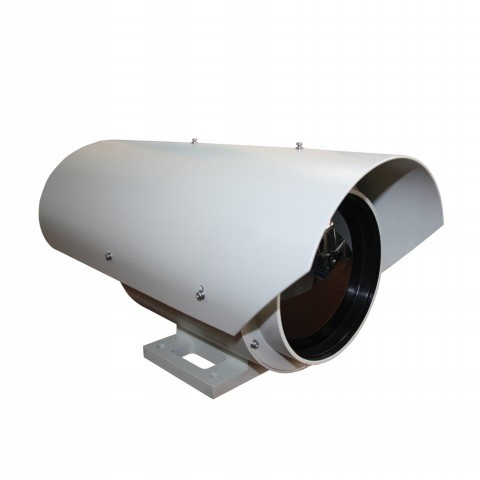

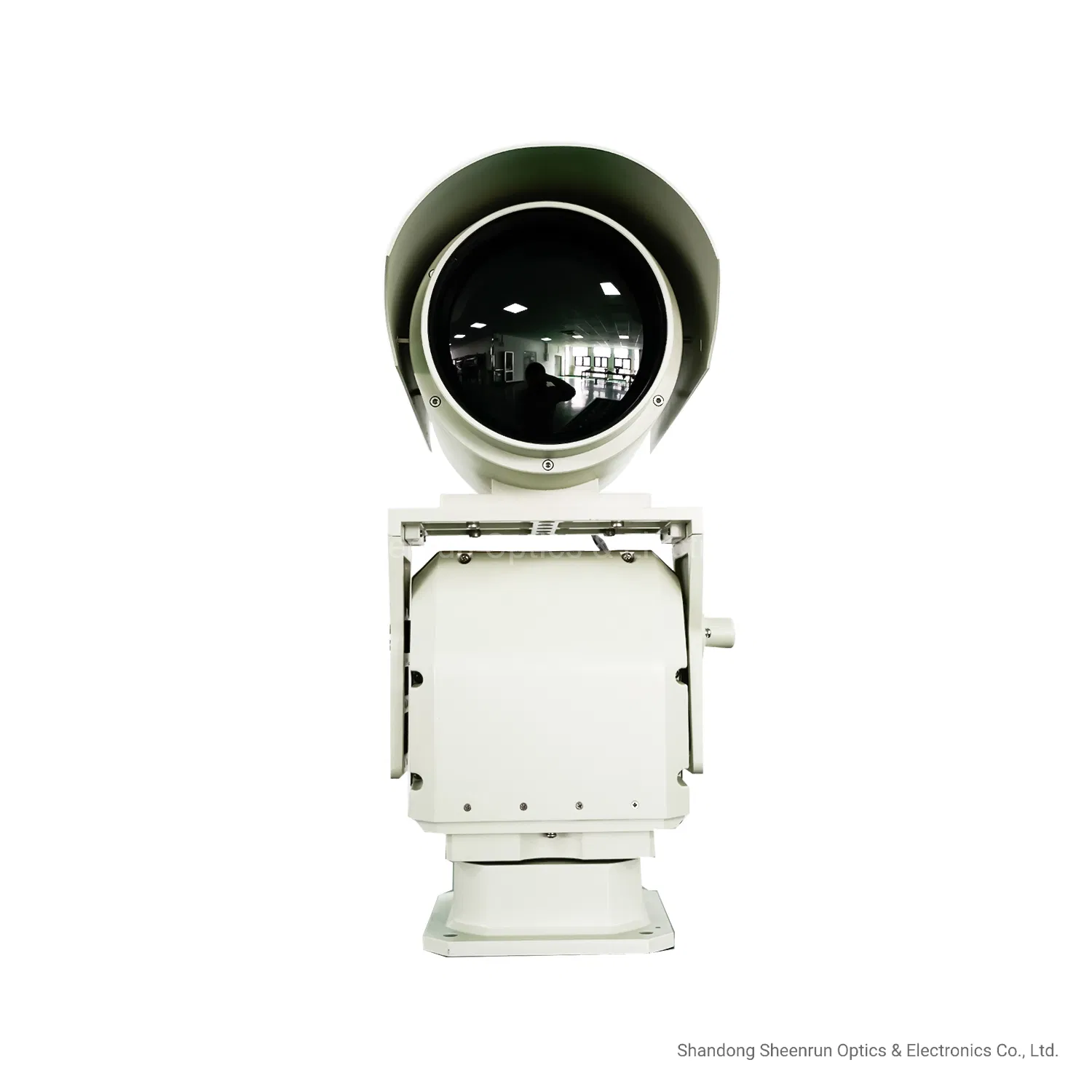

PTZ Thermal Camera with 30-150mm Optical Zoom Lens

1 / 5

PTZ Thermal Camera with 30-150mm Optical Zoom Lens

Customization:	Available
Technology:	Infrared
Style:	Zoom Lens

Send Inquiry

Product Description

Basic Product Information

Model NO.

SHR-TIR155R

Type

CCTV Camera

Sensor

Vox

HDMI Format

PAL/NTSC Video Output

Resolution

324X 256 Resolution

Certification

CE, FCC

Protection

IP66, Waterproof, Vandal-proof

Lens Focal Length

30-150mm, 5X Optical Zoom

Power Supply

DC12V

Key Features

✓ 30-150mm thermal lens with high-performance 5x optical zoom.
✓ Continuous optical zoom enables both large-scale searching and small target observation.
✓ Uncooled Vox detector with 324x256 resolution.
✓ Multiple image modes: Hot black, hot white, and 10 types of pseudo colors.
✓ 2x and 4x electric zoom capabilities.
✓ Rugged IP66 weather-proof housing.
✓ Optional IP control integration.

Technical Specifications

Performance Metrics
Effect Distance
Detection Distance	Human (1.8m×0.5m): 3600m \| Vehicle (2.3m×2.3m): 9900m
Recognition Distance	Human (1.8m×0.5m): 900m \| Vehicle (2.3m×2.3m): 2470m
IR Lens System
Focal Length	30-150mm, 5x Optical Zoom
FOV / F Value	3.1°x 2.4° to 15.2°x 12.2° \| F1.0-F1.2
Lens Control	Electric zoom, electric focus (optional auto focus)
Detector & Imaging
Detector Type	Uncooled focal plane infrared Vox
Resolution / Frame Rate	324x256 \| 25HZ
Spectrum Range / NETD	8-14μm \| ≤ 50mK @ f/1.0, 300K
Environmental & Physical
Operating Temp	-25ºC to +55ºC (optional -40ºC to +55ºC)
Protection	IP66, Anti-thunder 2000V, Shock/Vibration resistant
Dimensions / Weight	400mm x 202mm x 200mm \| ≤5kg

Product Showcase

Our Services

◈ One-year standard warranty with extended options available.
◈ Life-long technical support provided by professional engineers.
◈ Full OEM service support for global partners.
◈ Custom product development based on specific surveillance requirements.

Frequently Asked Questions

What is the maximum human detection distance for this camera?

The SHR-TIR155R can detect a human target (1.8m x 0.5m) at a distance of up to 3600 meters.

Does the camera support optical zoom?

Yes, it features a 30-150mm thermal lens providing a 5x continuous optical zoom, which is ideal for both wide-area search and detailed observation.

Is this thermal camera suitable for harsh weather conditions?

Absolutely. The device is IP66 rated, making it waterproof and weatherproof. It also includes 2000V anti-thunder protection and is tested for shock and vibration resistance.

What are the available image display modes?

The camera supports hot black, hot white, and 10 different kinds of pseudo colors to enhance image contrast in various environments.

What power supply is required for operation?

The camera operates on a DC12V power supply with a low power consumption of ≤8W.

Can the lens focus be adjusted remotely?

Yes, the camera features electric zoom and electric focus, with an optional auto-focus feature available for more convenient operation.
